Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

Description:

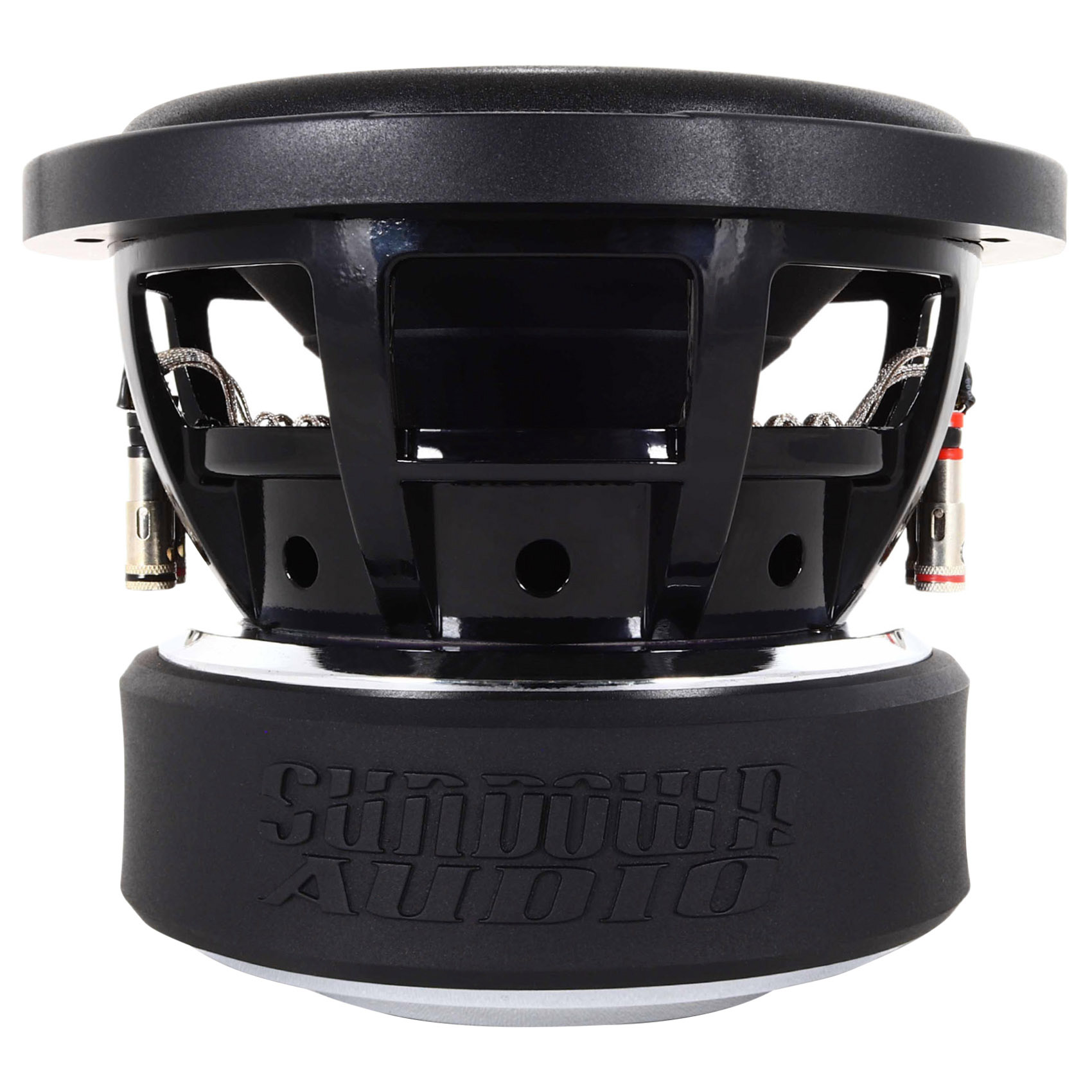

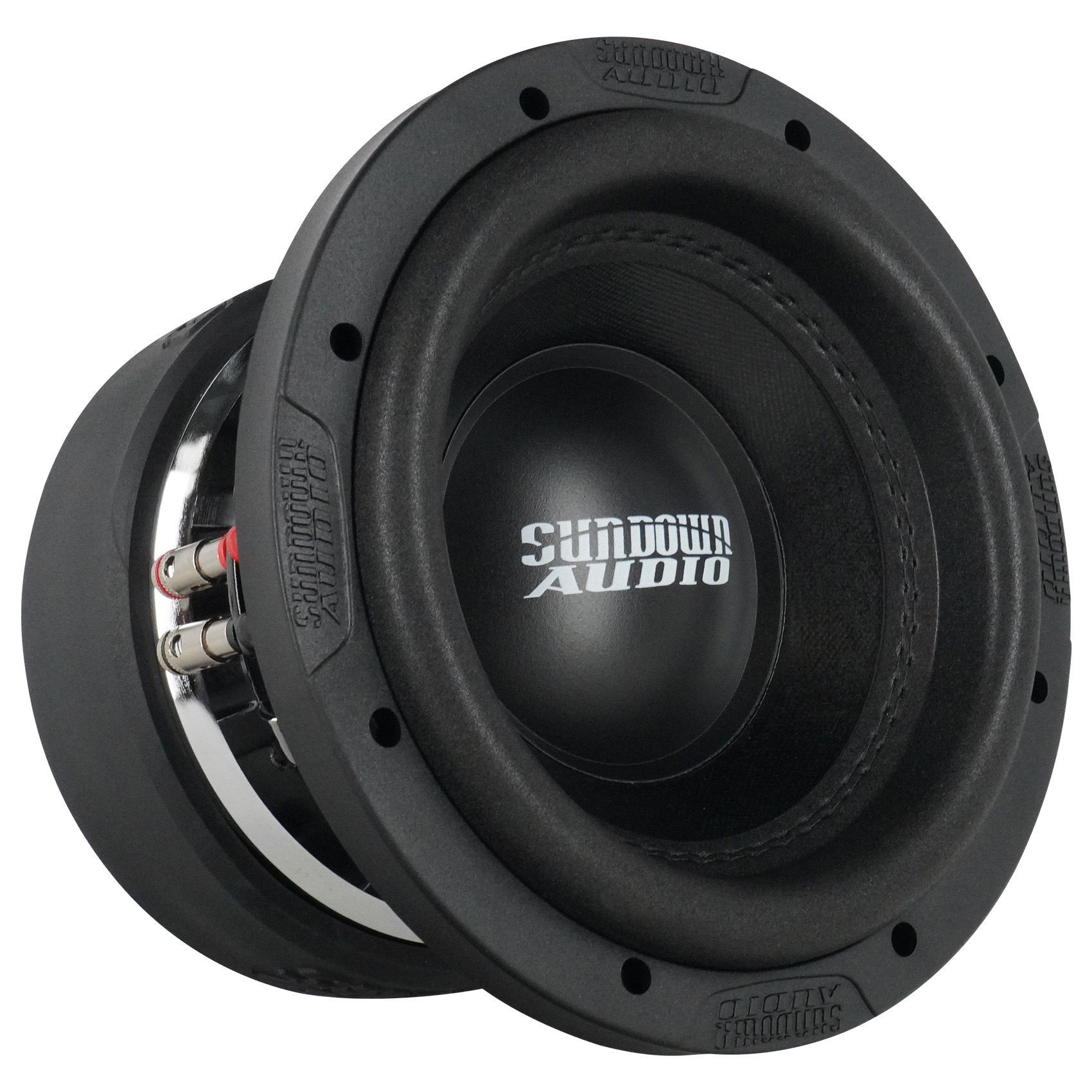

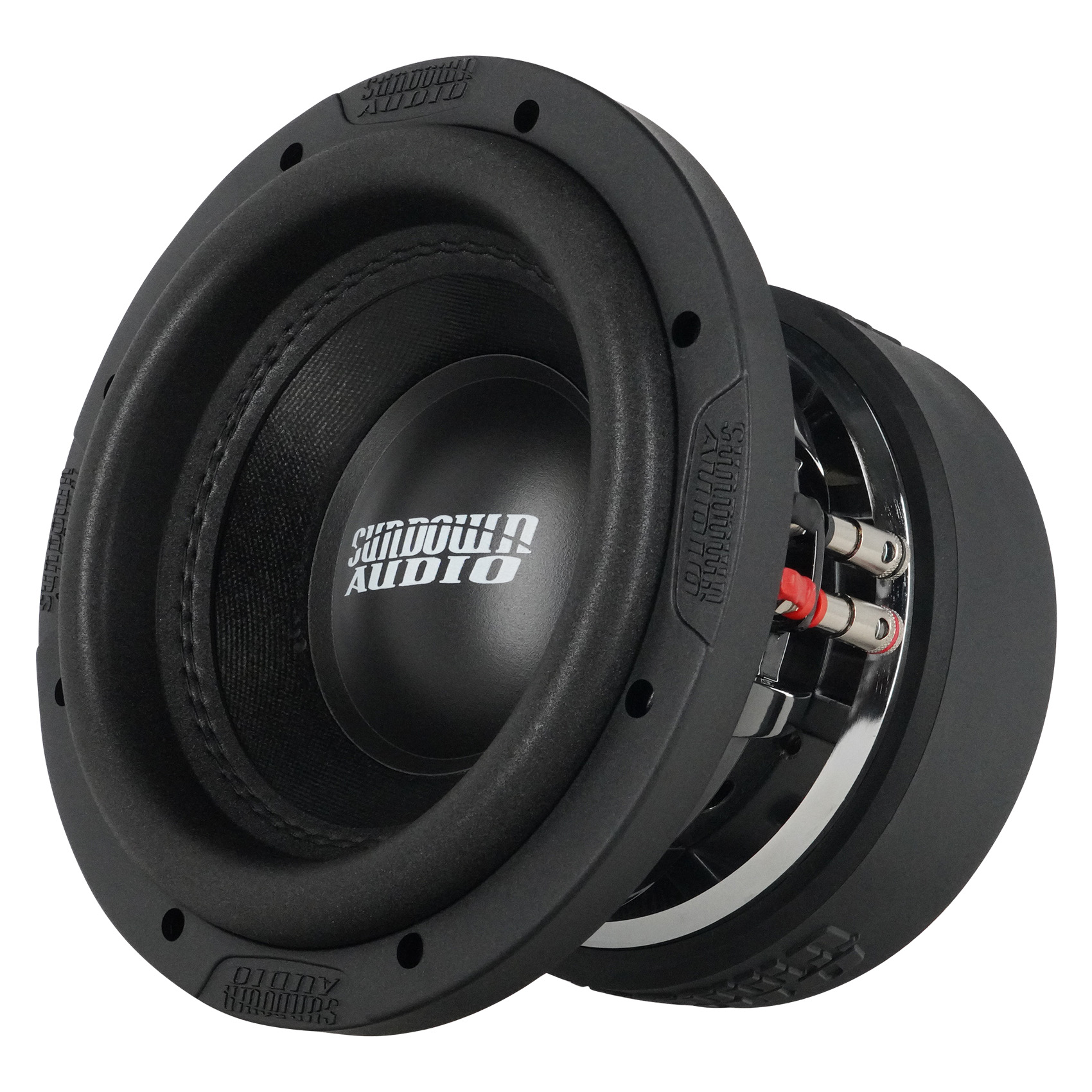

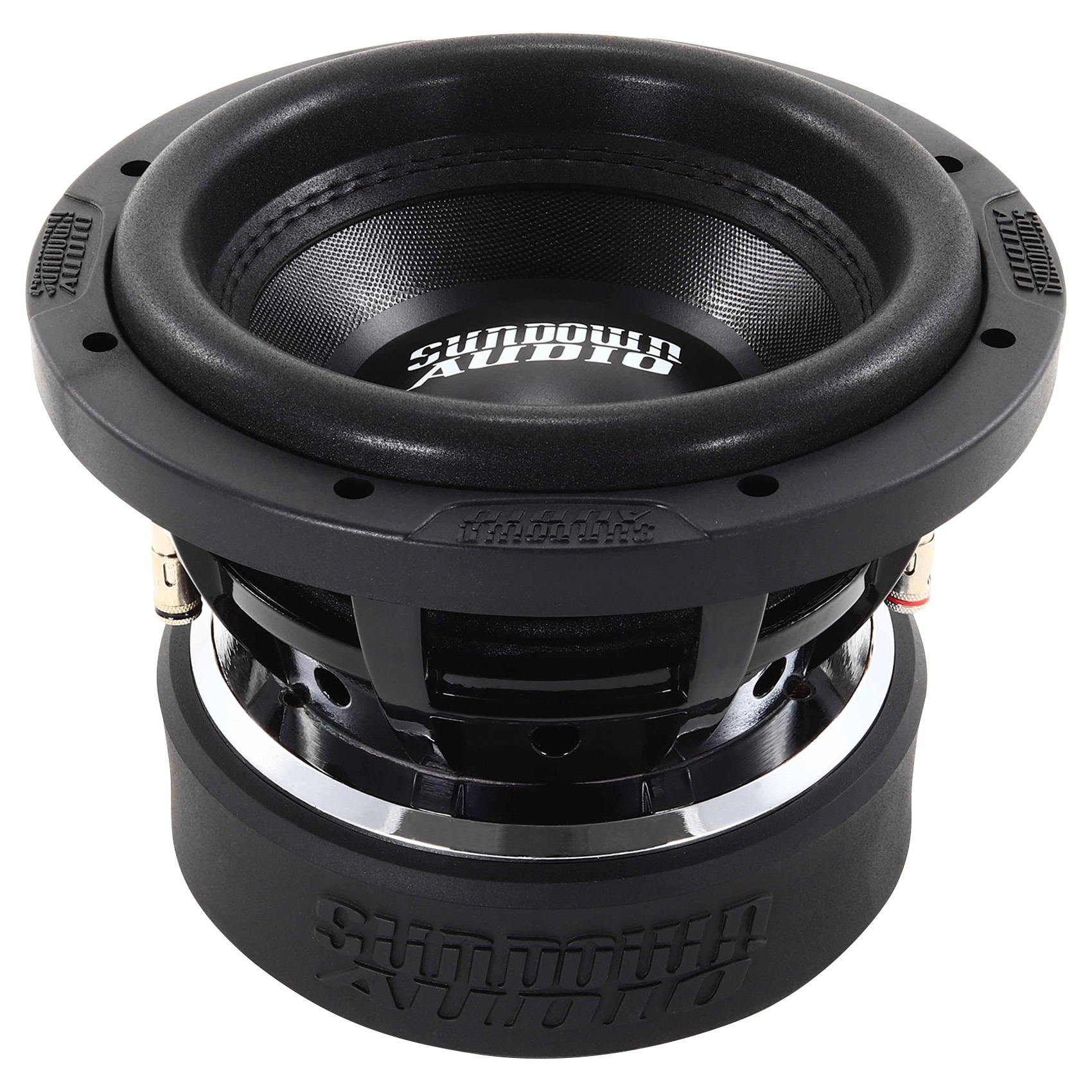

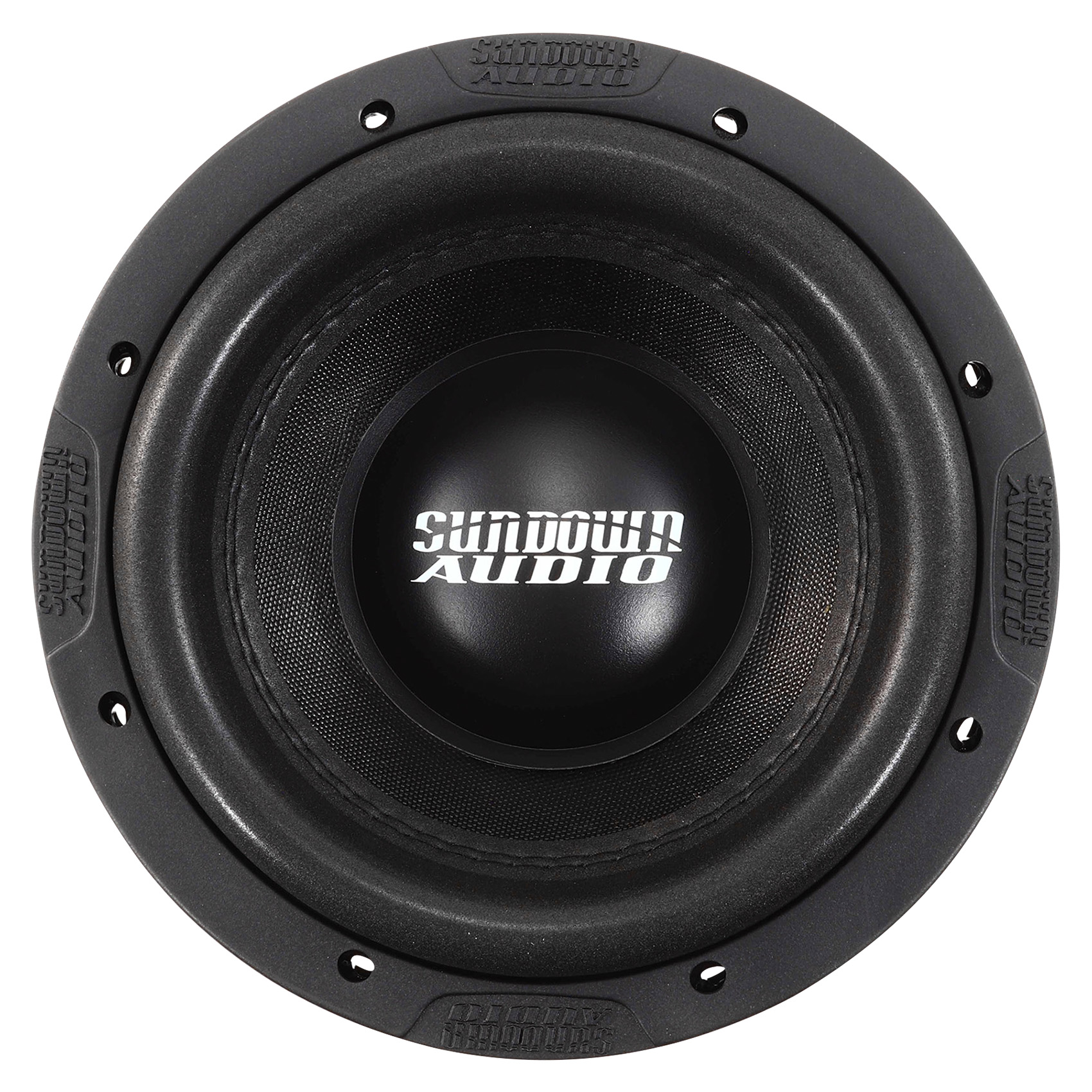

The U Series woofer from Sundown is incredibly versatile, thriving in both competition setups and your daily driver. It features a double-stacked 9” wide ferrite magnet system and a robust top plate. It also incorporates shorting rings within the magnets and pole cap to enhance frequency response, act as a heat sink, and guide airflow. The U Series is equipped with a significantly thicker custom aluminum frame that boasts heat-dissipation ribs. The v.2 motor also includes an extended pole piece to ensure the coil remains controlled even under high stress!

Features:

• 750W Watts RMS / 1500 Watts Peak

• Dual 2 ohm

• Optimized for small ported enclosures

• Aluminum 2.25” voice coil former for superior heat dissipation

• High-temperature copper voice coil

• Double stitched surround

• Heavy-duty cast basket

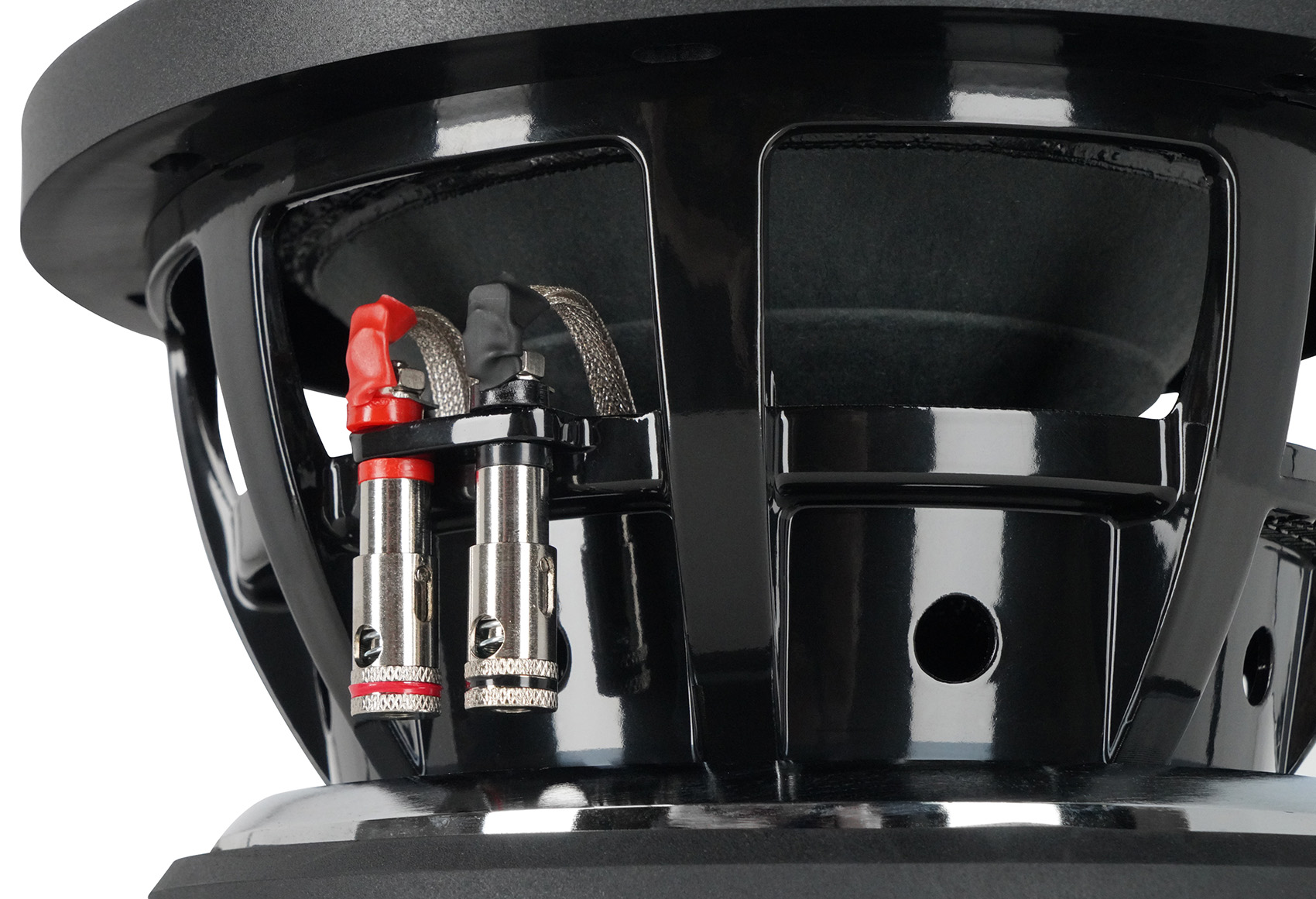

• Spring-loaded terminals accept up to 8-gauge wire

• Stitched-on heavy-duty tinsel leads

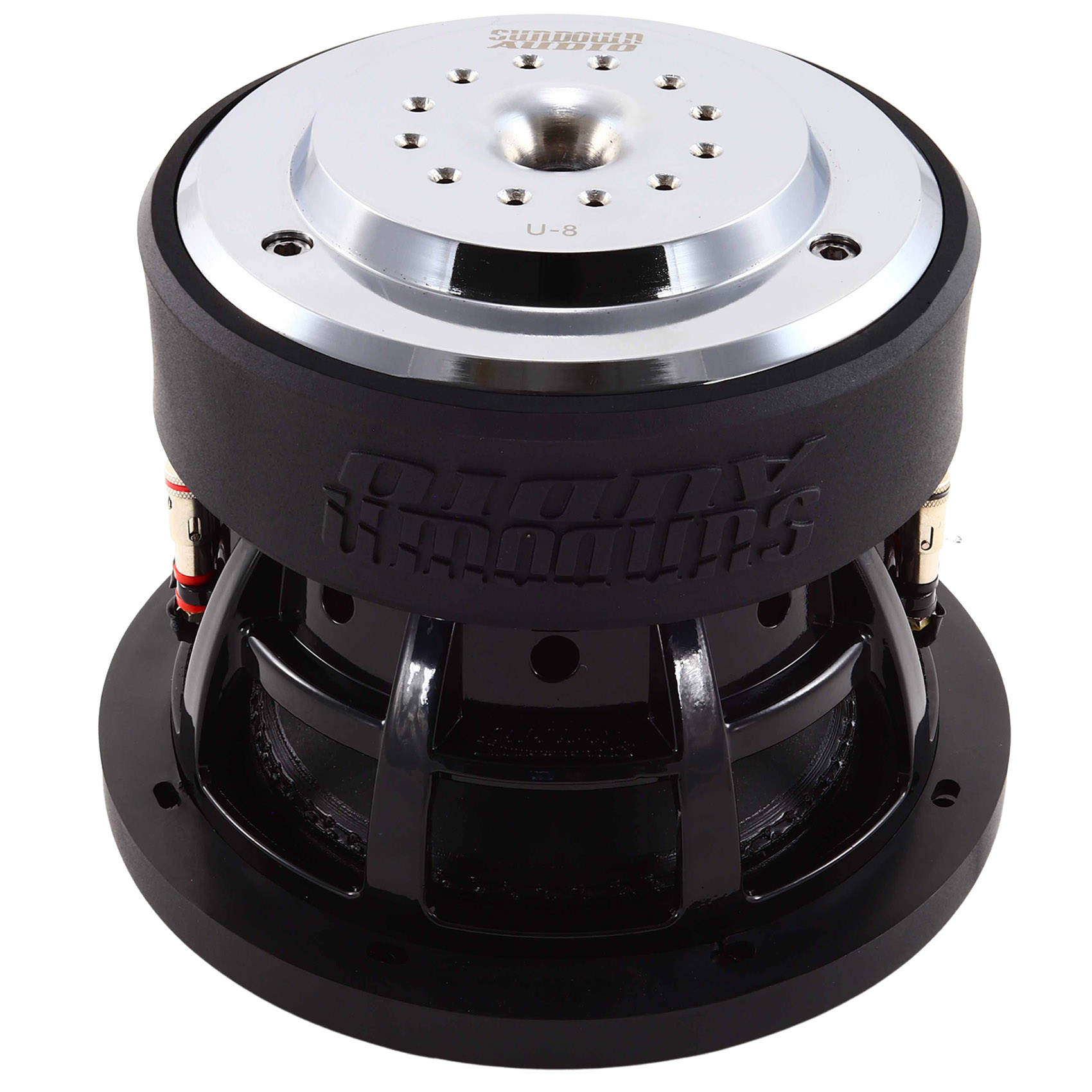

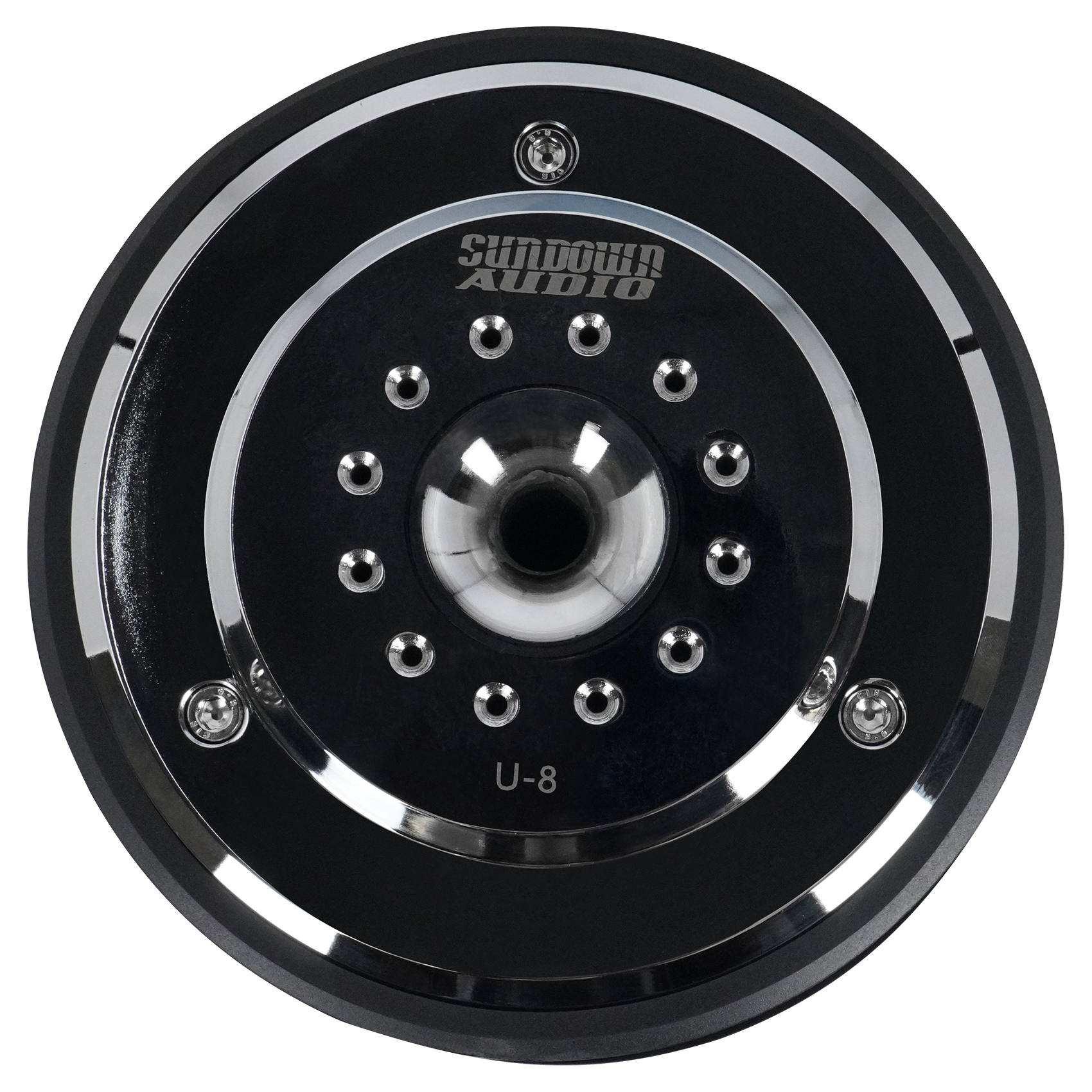

• Solid pole with vent channels and aluminum shorting ring cap

• Rear gap-venting

• Top-Plate Cooling Channels


Specifications:

• RE (Ohms): 3.8

• FS (Hz): 39.387

• VAS (L): 6.345

• Qes: 0.412

• Qms: 2.474

• Qts: 0.353

• BL (NA): 20

• Mms (Grams): 175.34

• Cms (uM/N): 93.125

• Sens (dB @ 1w/1m): 81.6

• Xmax: 18mm


Subwoofer Measurements:

• Displacement (Inches): .09 cu ft

• Depth (Inches): 6.02"

• Cutout (Inches): 7.375"

• Motor Diameter (Inches): 6.88"


Ported Enclosure Specs:

• Ported Enclosure Size: 0.65 cu ft

• Recommended Port Area: 9 sq in

• Recommended Port Tuning: 35 hz


Sealed Enclosure Specs:

• Sealed Enclosure Size: 0.3 cu ft


4th Order Enclosure Specs:

• 4th Order Sealed Side: .225cu ft

• 4th Order Ported Side: .675cu ft

• 4th Order Port Area: 14sq in

• 4th Order Port Length: 6"
