Complete Lowering Suspension Kit 3"/6" Drop for Ford F-150 Heritage 2004 2WD V8



Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

maXpeedingrods G1 Shock
Specification

Product type: lowering kit/drop kit

Compatible drop height: Front 3" Rear 6"

Material: High Tensile Strength Carbon Steel

Finish: Powder coated

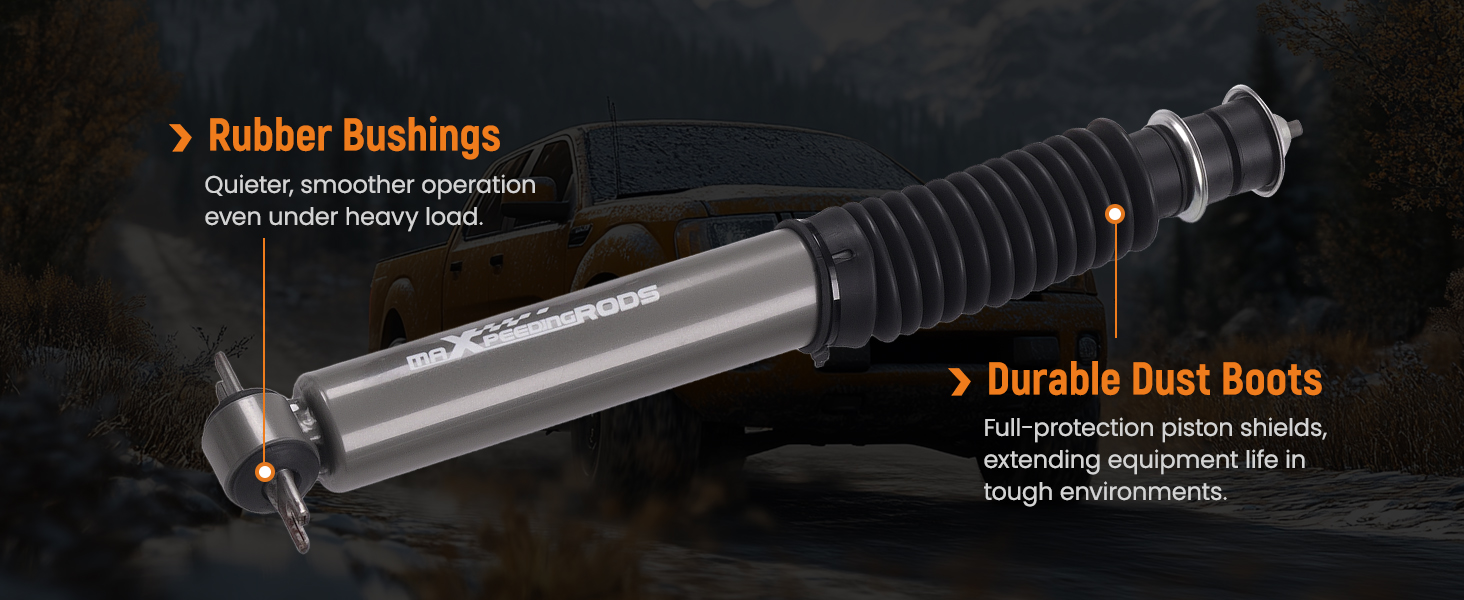

Bushing material: Rubber

Nitrogen charged：yes

Dust cover equipped: yes

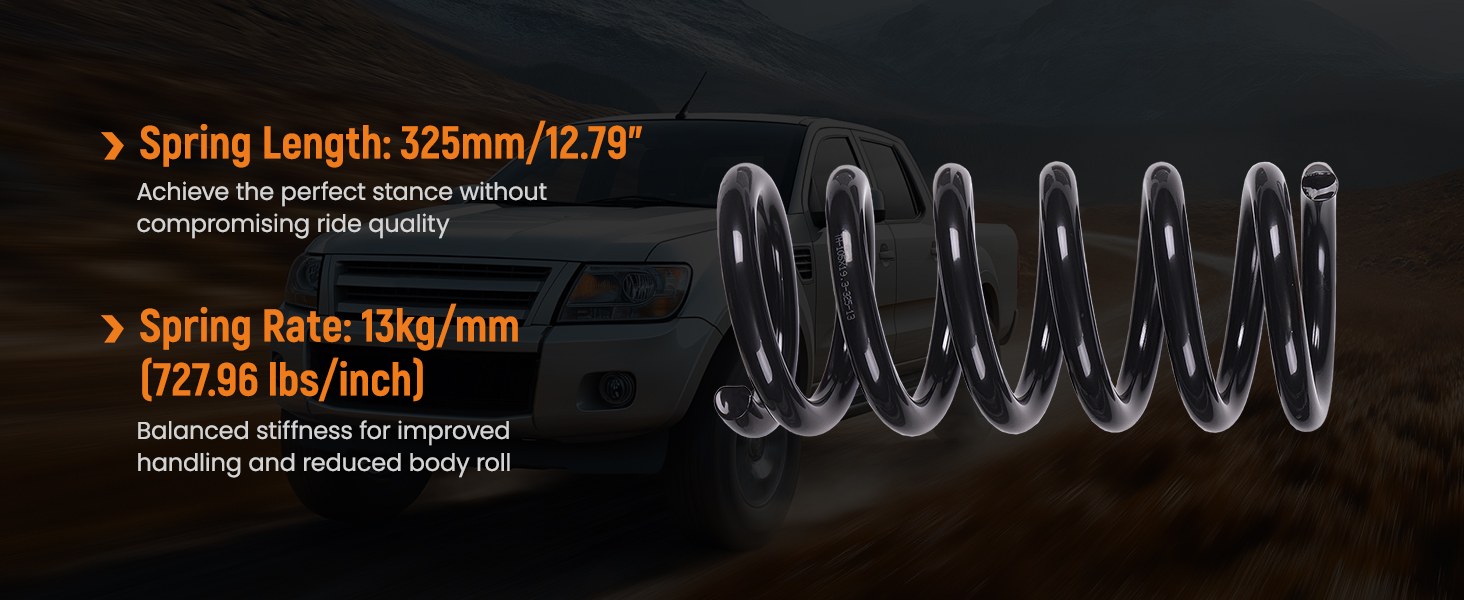

Spring length: 325mm/12.79"

Spring rate: 13kg/mm=727.96 lbs/in

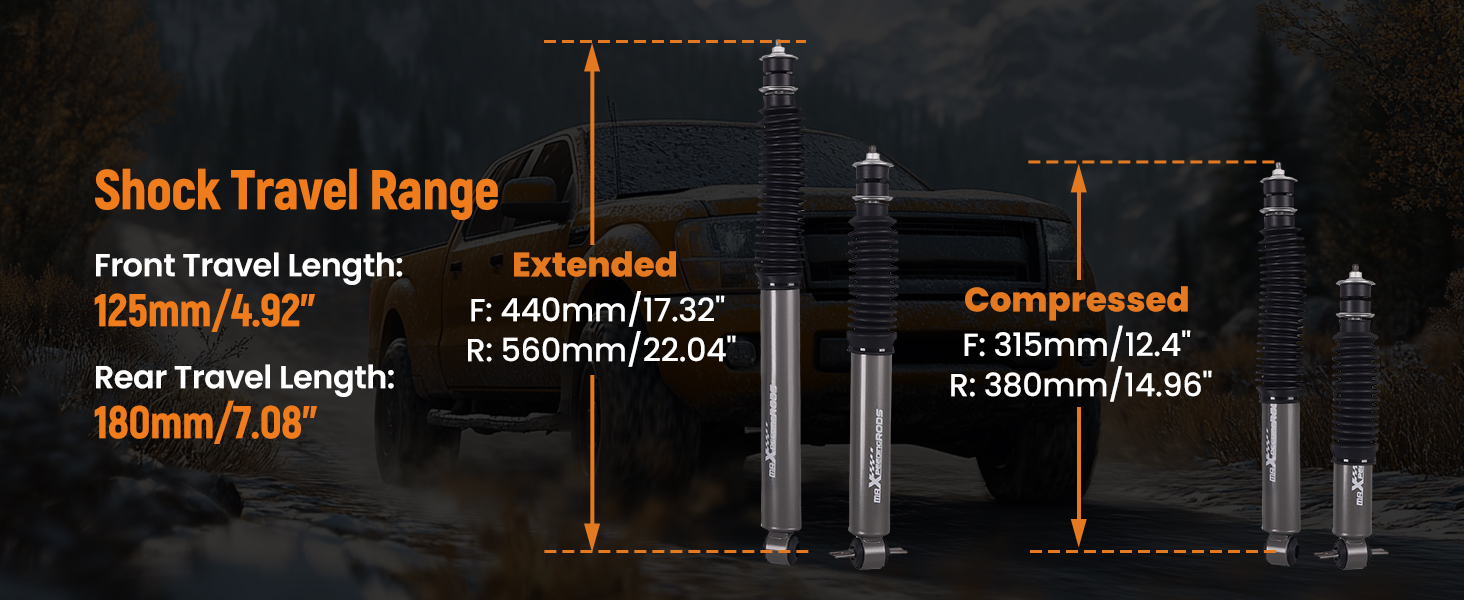

Travel: F: 125mm/4.92"    R: 180mm /7.08"

Extended length: F: 440mm/17.32"  R: 560mm/22.04"

Collapsed length:F: 315mm/12.4"   R: 380mm/14.96"

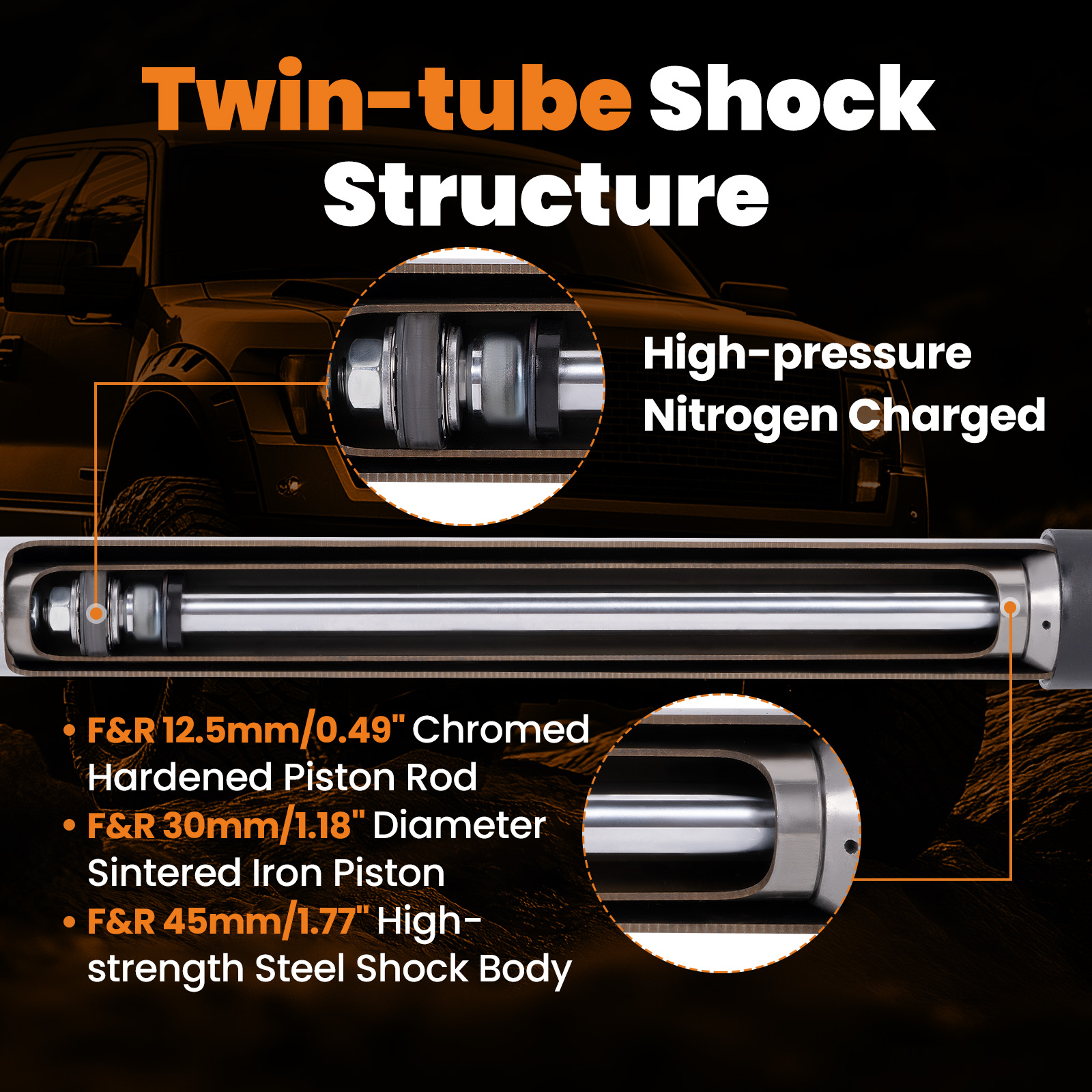

Shock Structure
  • Diameter of piston rod: 12.5mm/0.49"
  • Piston diameter: 30mm/1.18"
  • Outer cylinder diameter: 45mm/1.77"

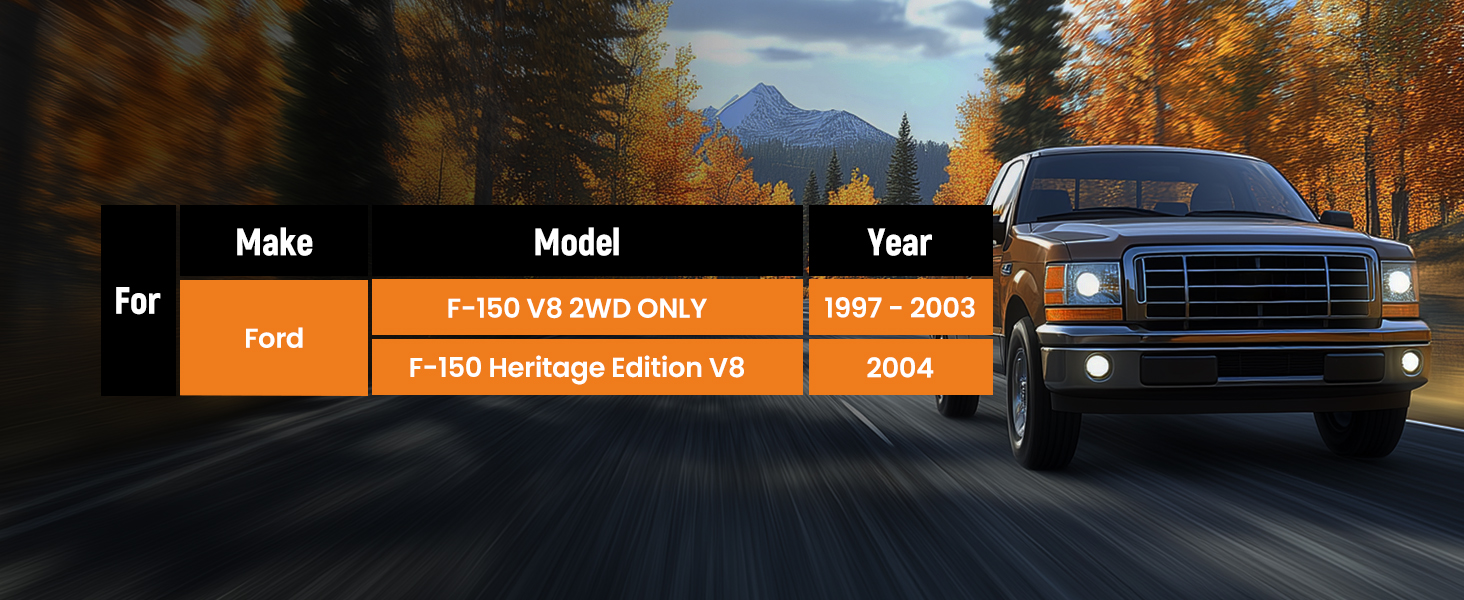

Application

for Ford F-150  (2WD ONLY!!)  V8 1997- 2003

for Ford F-150 Heritage Edition V8 2004

G1 Shock

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.

12.5mm Chromed Hardened Piston Rod.

30mm Diameter Sintered Iron Piston.

36KN Tensile Strength.

Precision Welding.

Easy bolt-on installation

Power coated surface：provides superior corrosion resistance.

High Tensile Strength Carbon Steel for optimal durability and fitment.

Dust cover included prevent the shaft rod and oil seal from damaging.

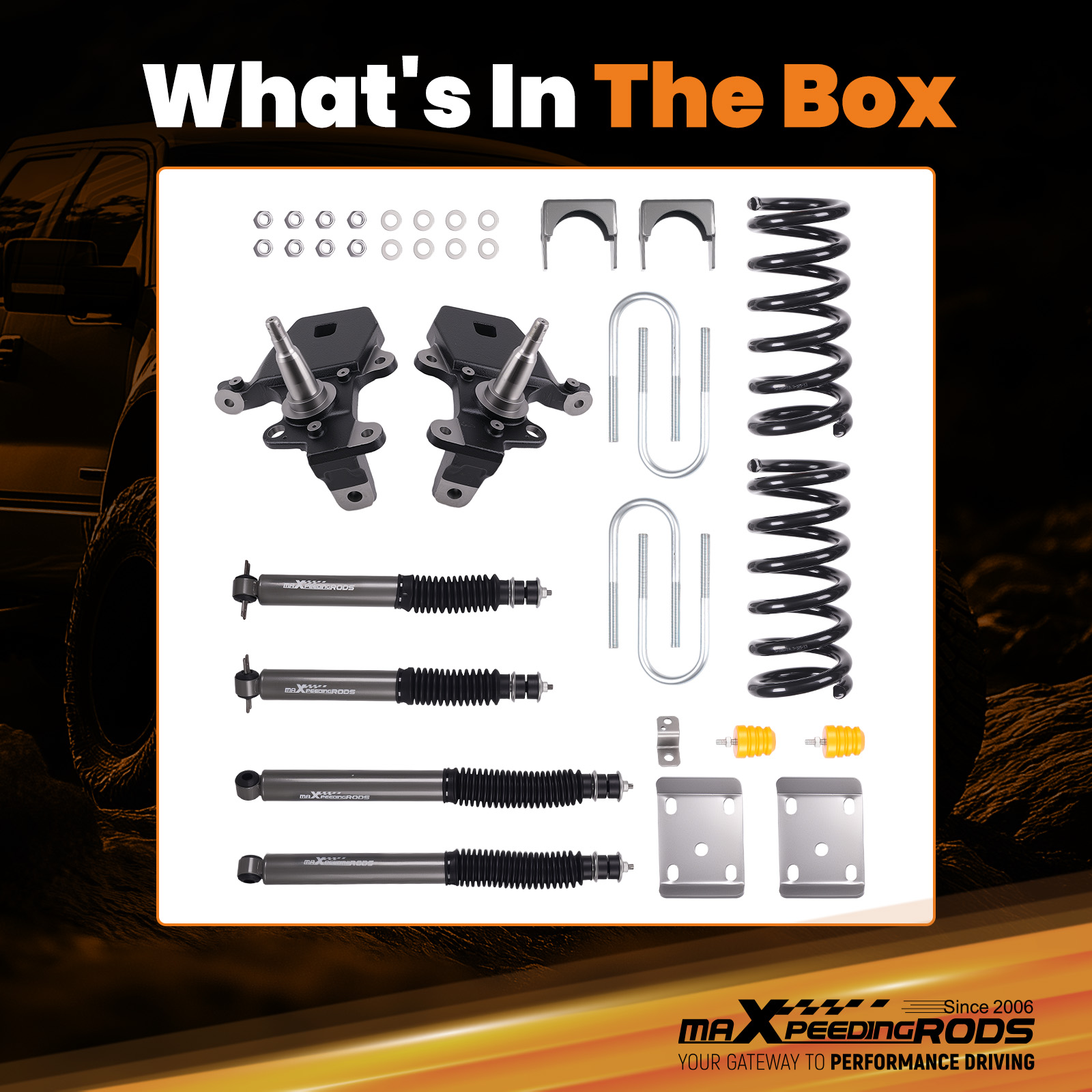

Package included

Package included

2x Front drop shocks

2x Front drop coils

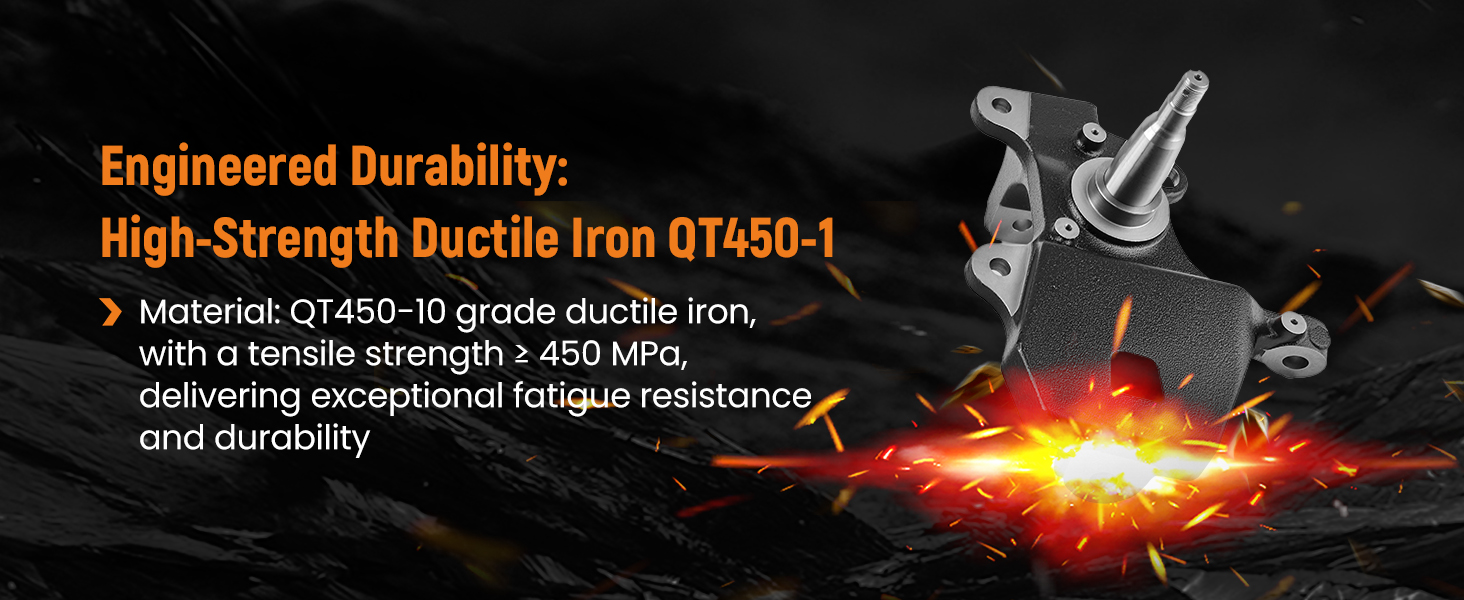

2x Front drop spindles

2x Rear drop shocks

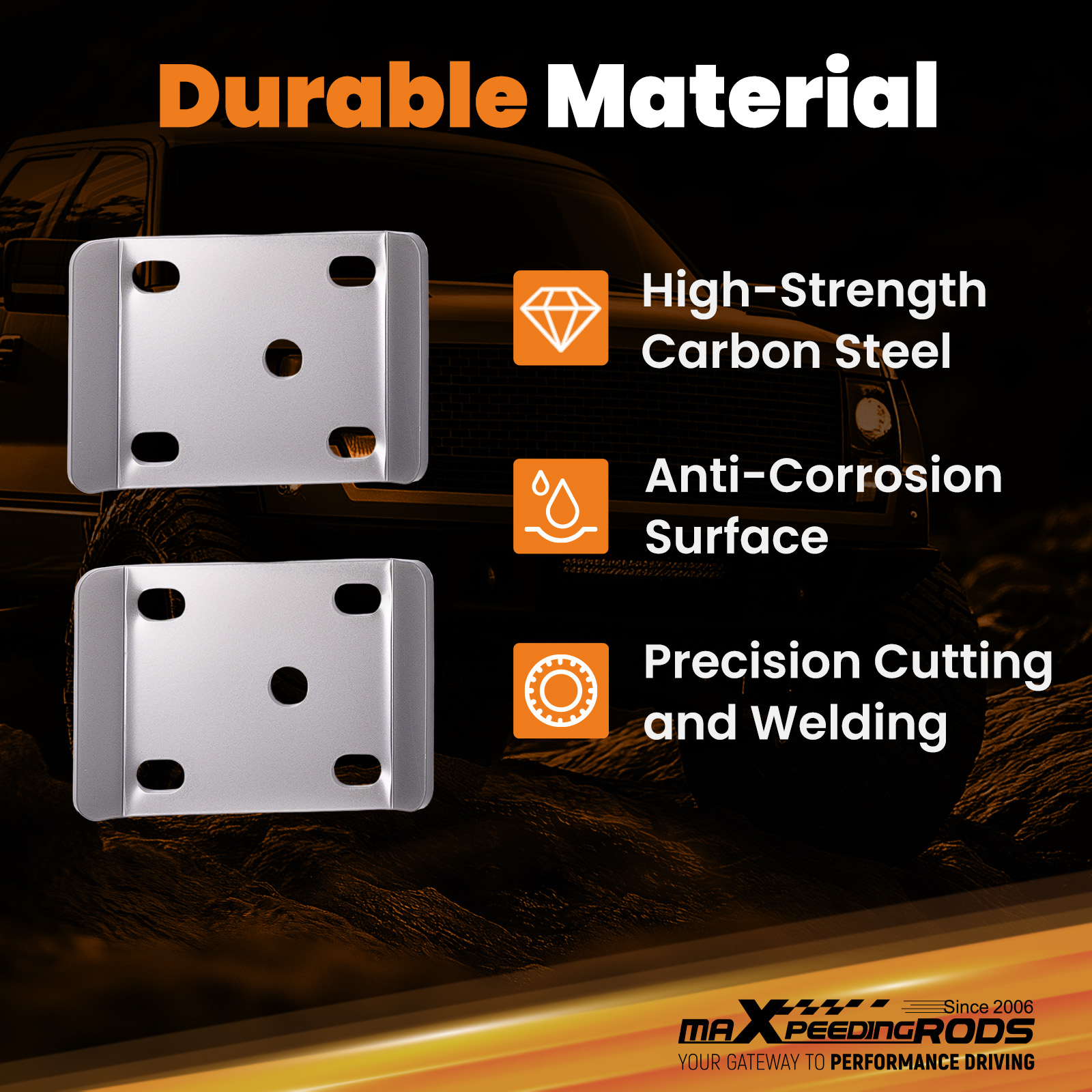

1x Rear flip kit

necessary hardware
