Details

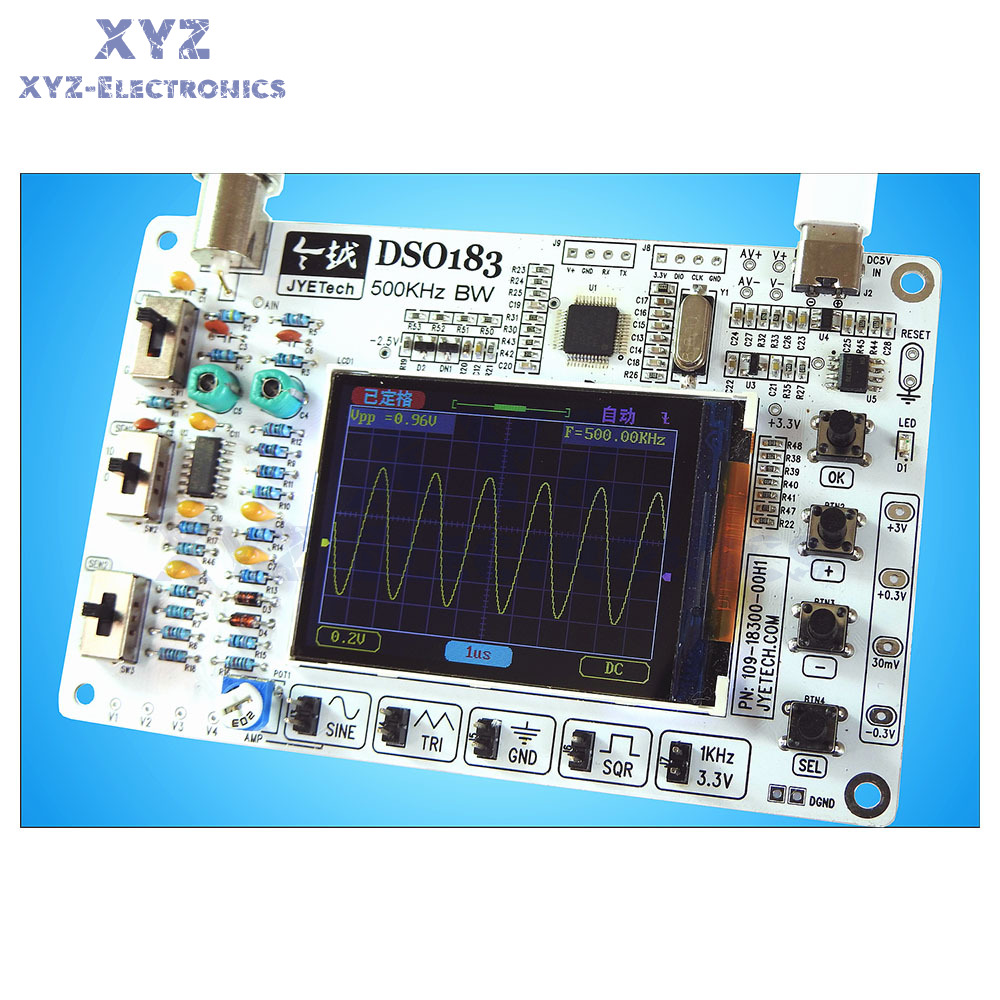

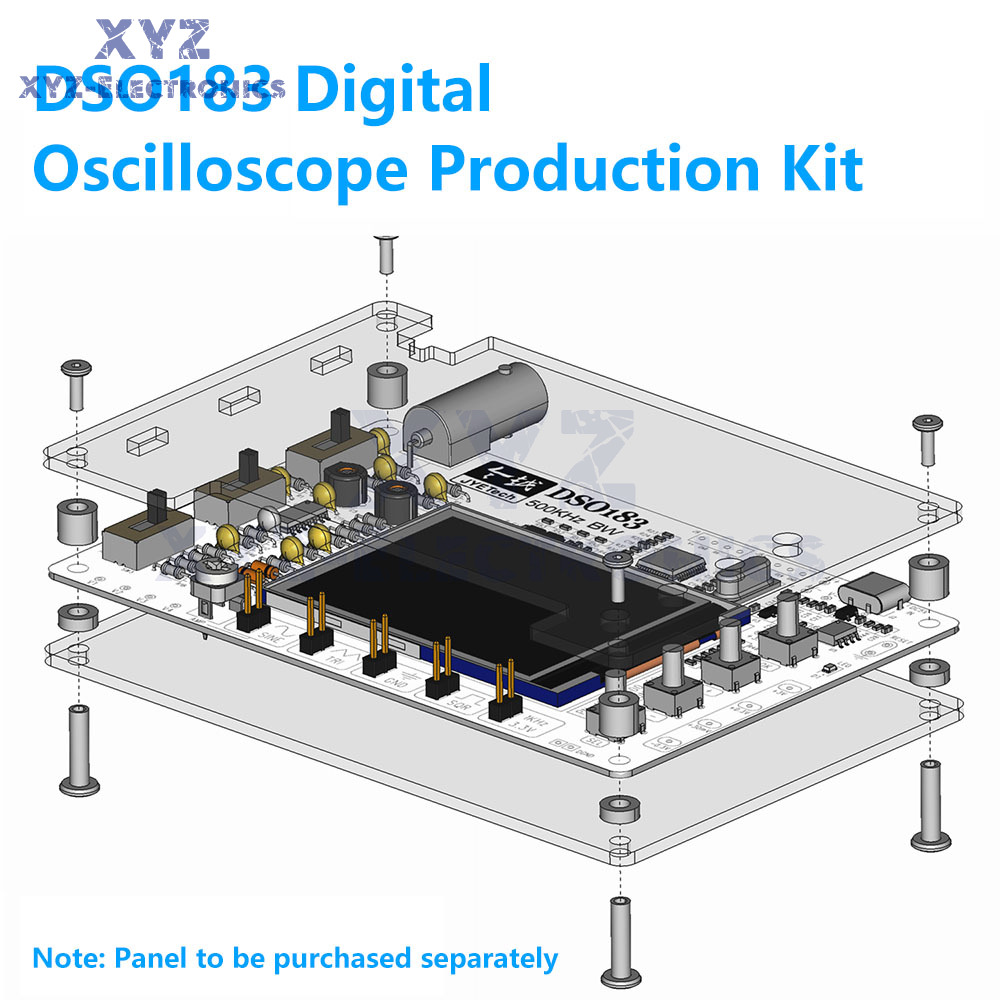

1. Single-board structure design: Compact integrated structure, easy to install, high stability, suitable for various experimental environments.
2. Built-in signal generator: Integrated sine wave, triangle wave, and other waveform output functions to meet diverse testing needs.
3. Waveform storage and recall: Supports waveform saving and quick recall functions, convenient for comparison analysis and reuse.
4. 500 kHz high bandwidth: High-frequency response capability for precise capture of complex signal details.
5. Ideal tool for electronics enthusiasts: Easy to operate with powerful functionality, making it an excellent assistant for learning electronics technology and exploring the world of circuits.
Bandwidth: 500 kHz
ADC Resolution: 12-bit
Real-time Sampling Rate: 1.5 Msps
Waveform Buffer Length: 1024 points
Vertical sensitivity range: 10 mV/div to 5 V/div
Input impedance: 1 MΩ
Maximum input voltage: 50 Vpk
Coupling mode: DC, AC, GND
Horizontal time base range: 1 us/div to 500 s/div
Trigger mode: Auto, Normal, Single
Trigger edge: 1 us/div - 500 s/div
Power supply: DC 5 V (powered via USB [Type-C interface])
Current consumption: <100 mA

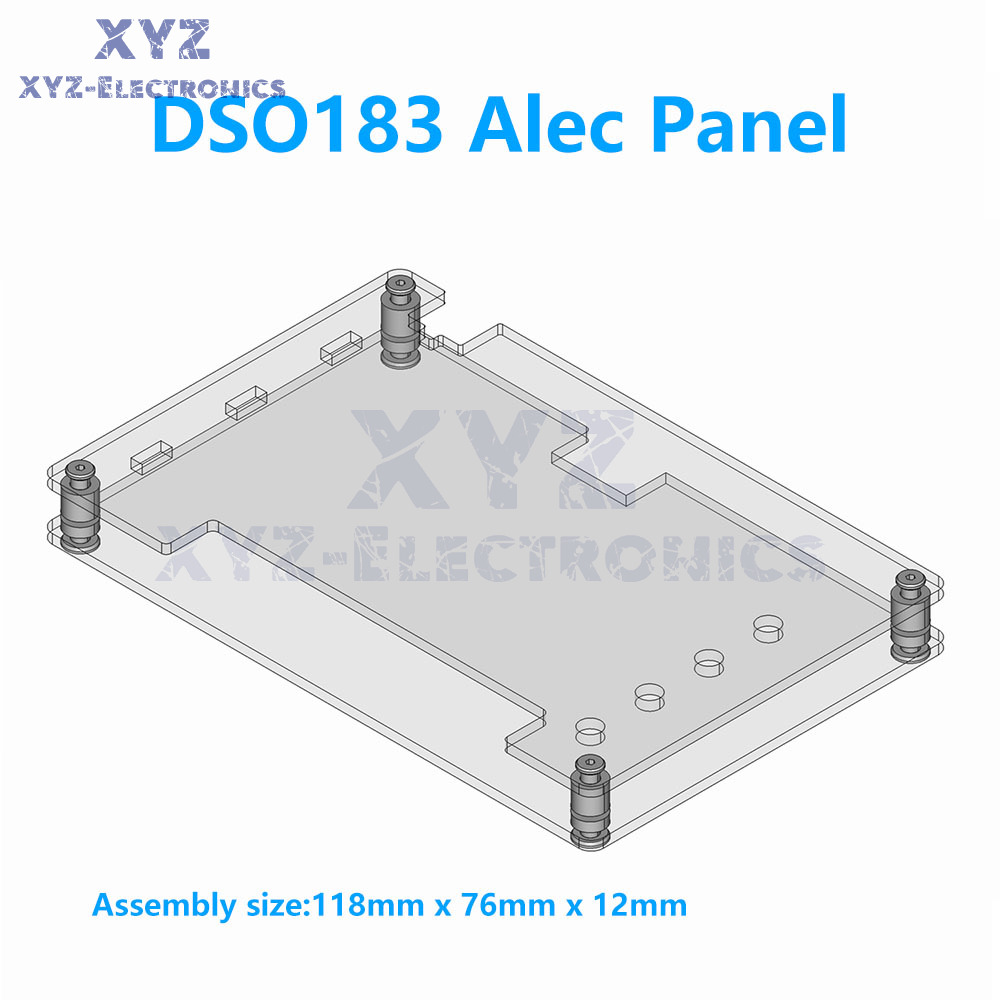

Product dimensions: 118 × 76 × 12 mm

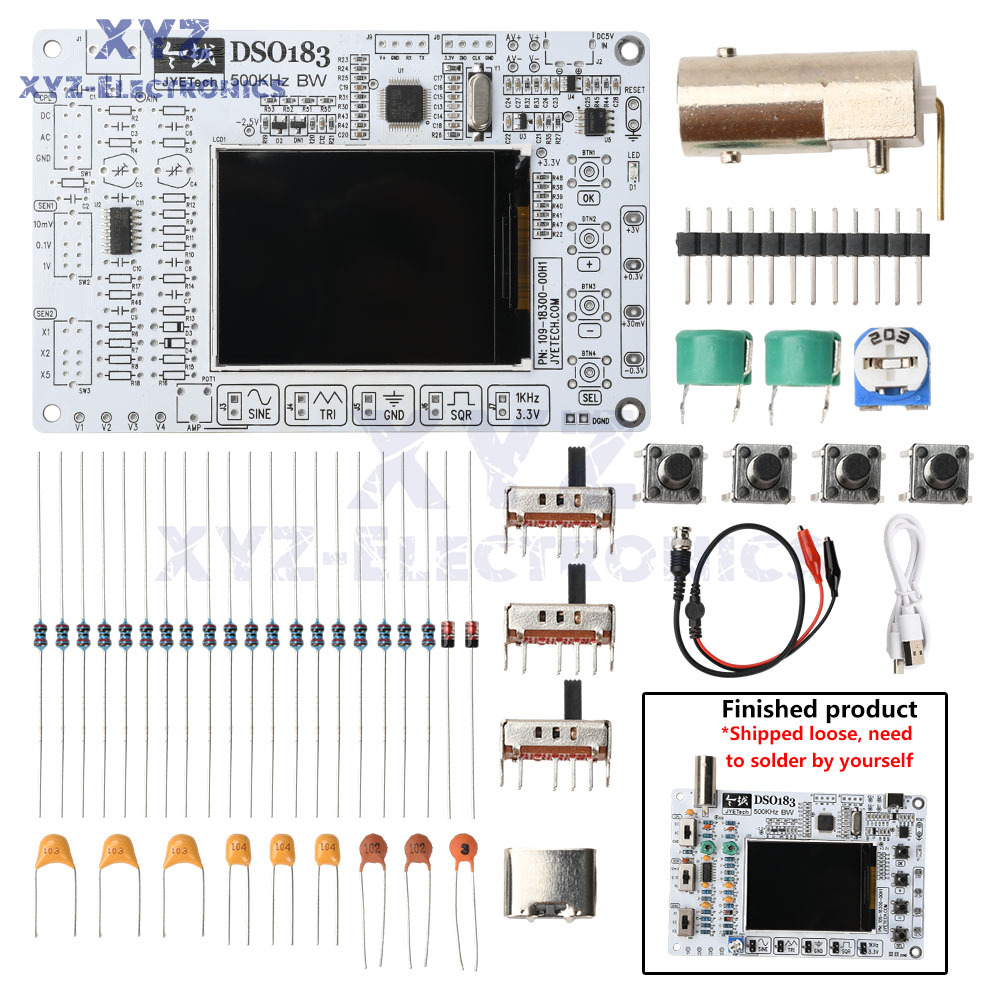

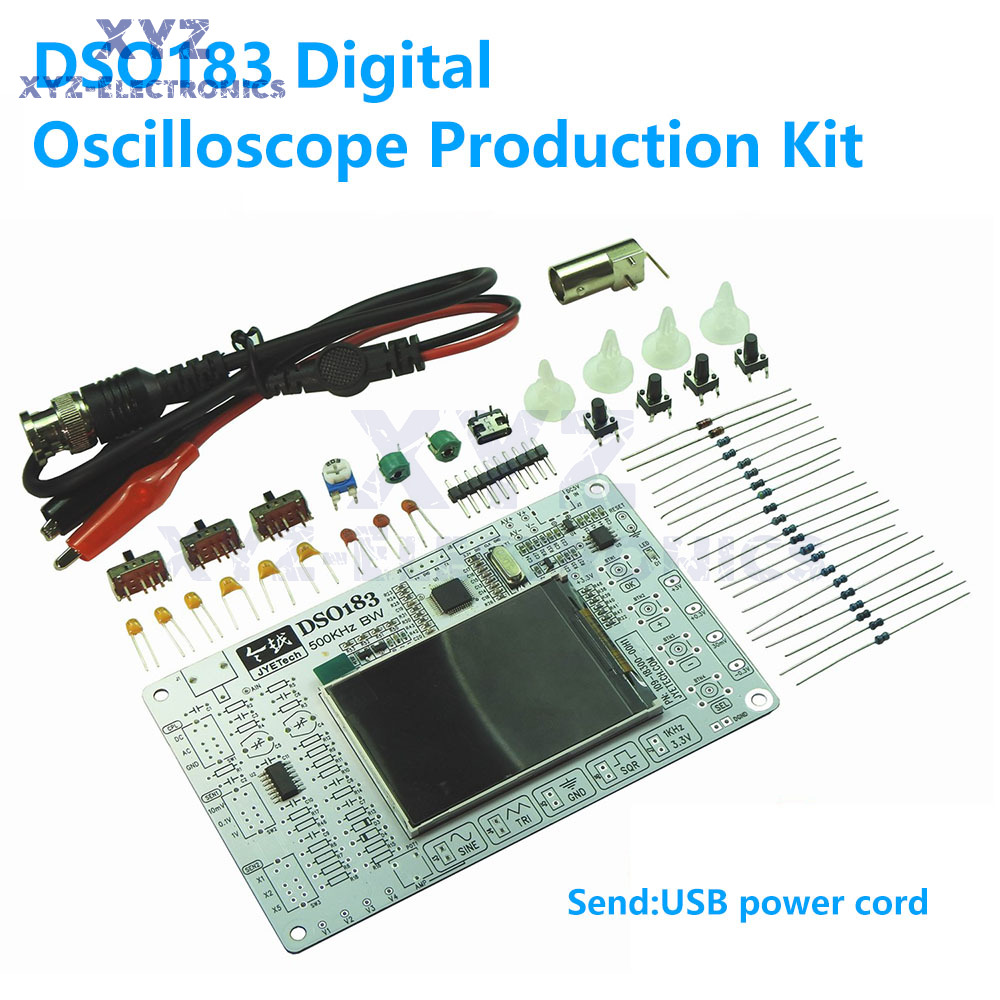

DIY kit *1
