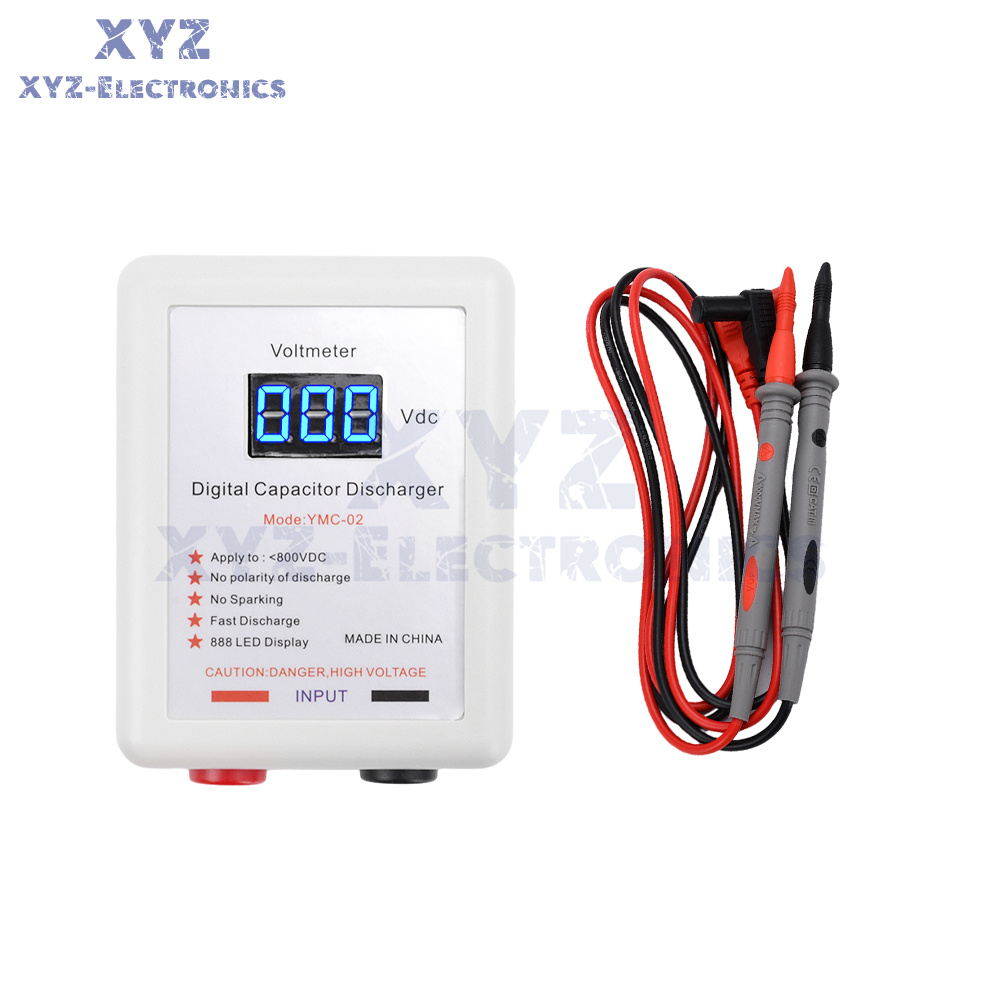

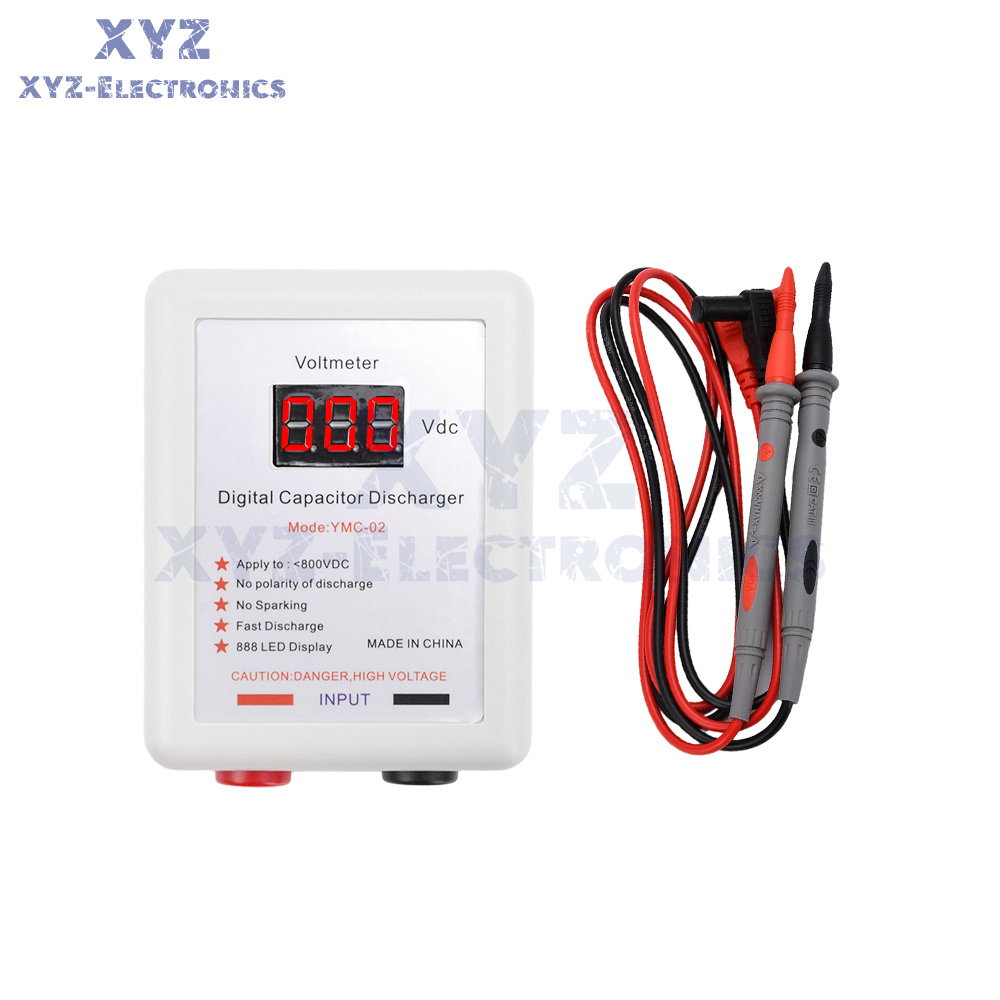

Details
1. Small size handheld, easy to carry around
2. Fast discharge without fire
3. Discharge does not distinguish between positive and negative poles.
4.4-bit 8888 digital tube display voltage, can be used as a voltmeter
5. Suitable for DC voltage 800V below the discharge occasions
Discharge voltage: <800V DC
LED colour: red/blue
Maximum discharge energy (Joule): 150J
Input Connector: 4mm banana socket
Meter Pen Material: Anti-freezing PVC Soft Meter Pen
Application: Switching power supply, digital camera, TV power supply board, high voltage electrolytic capacitor.

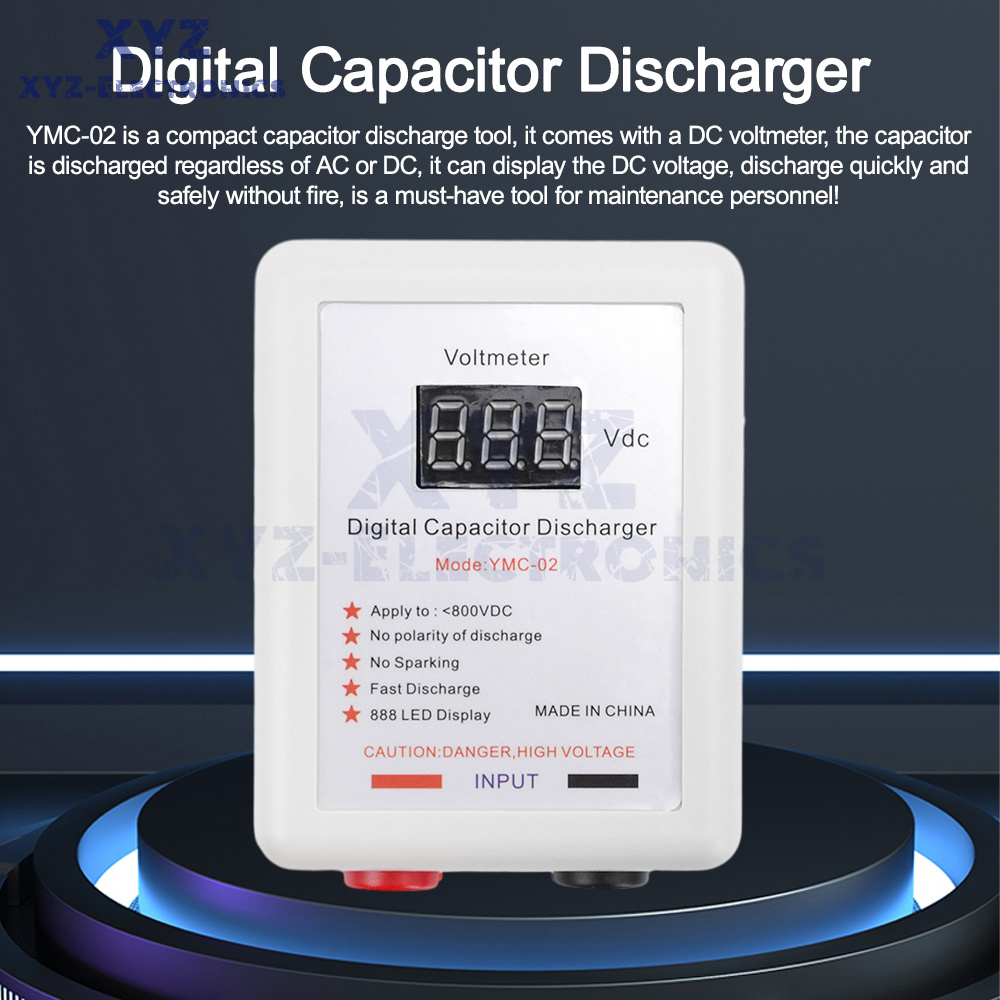

Function: Discharge the high voltage capacitor to protect the product and the operator from electric shock.
1. The red and black pens are inserted into the host 4mm Shanyan jack.
2. The red and black pens do not distinguish between positive and negative poles contact to the capacitor two pins above
3. The electric meter will display the capacitor above the electric music, when the voltage is about 10V or so, the digital tube LED does not light up, at this time, do not let go of the pen, the discharge will continue, about 10S, can be discharged to 5V or less!
1. The voltmeter shows DC voltage, if you measure AC input, you have to convert it by simple calculation.
2. AC voltage a voltmeter display voltage / 0.9 conversion factor is 0.9)
3. For example: if the voltmeter shows 207VDC, the actual AC voltage is 207V DC/0.9=230V AC.
1. If used as a voltmeter, the measurement time should not be more than 20S when measuring the AC voltage 230V.
2. For the safe use of discharger, it is recommended to use it for the occasions below 600VDC.
3. Before discharging the capacitor, please disconnect the 230V AC voltage first.

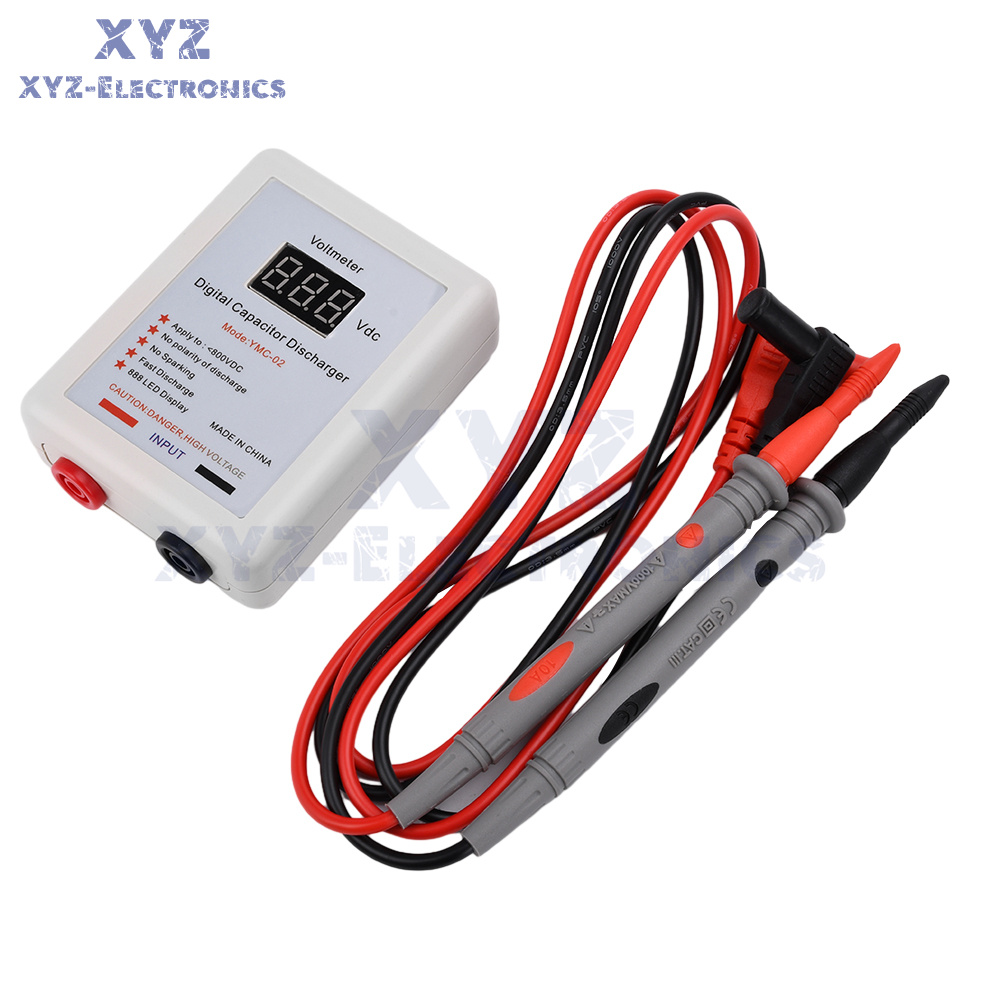

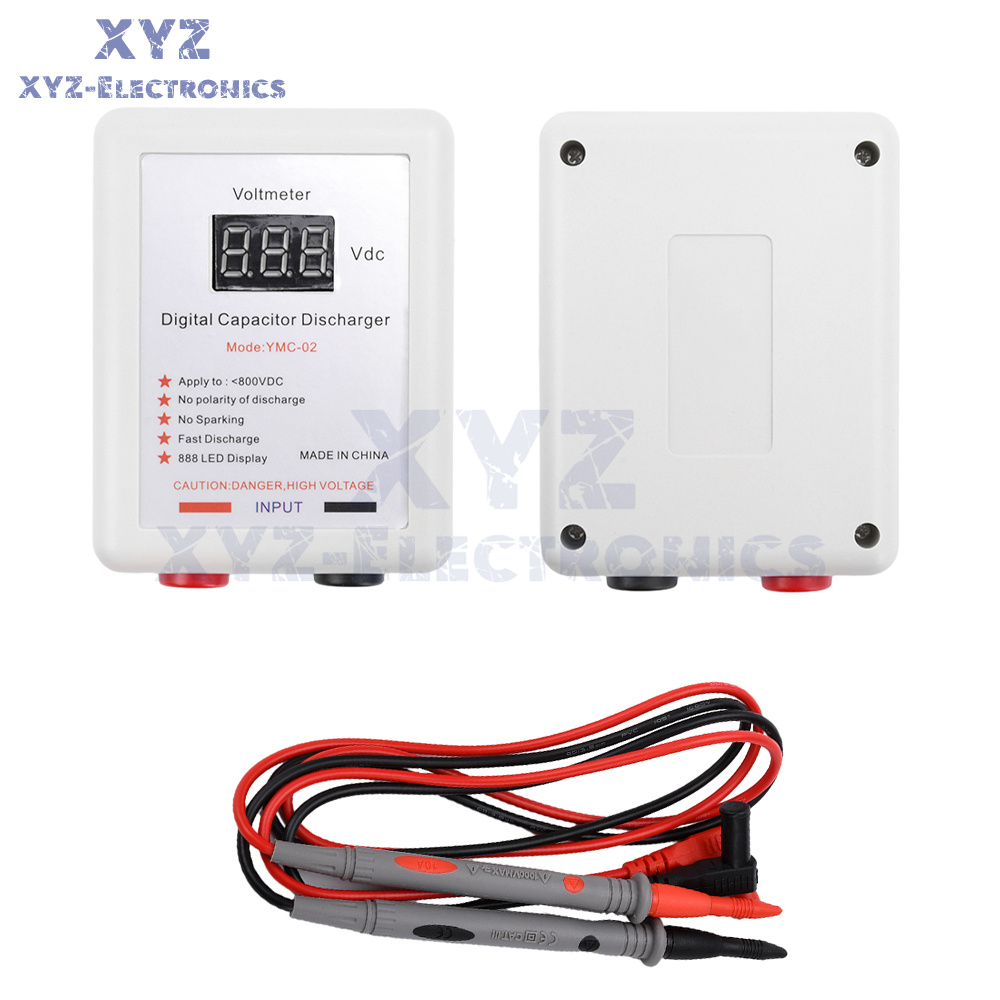

Capacitor Discharger*1
Meter pen*1
