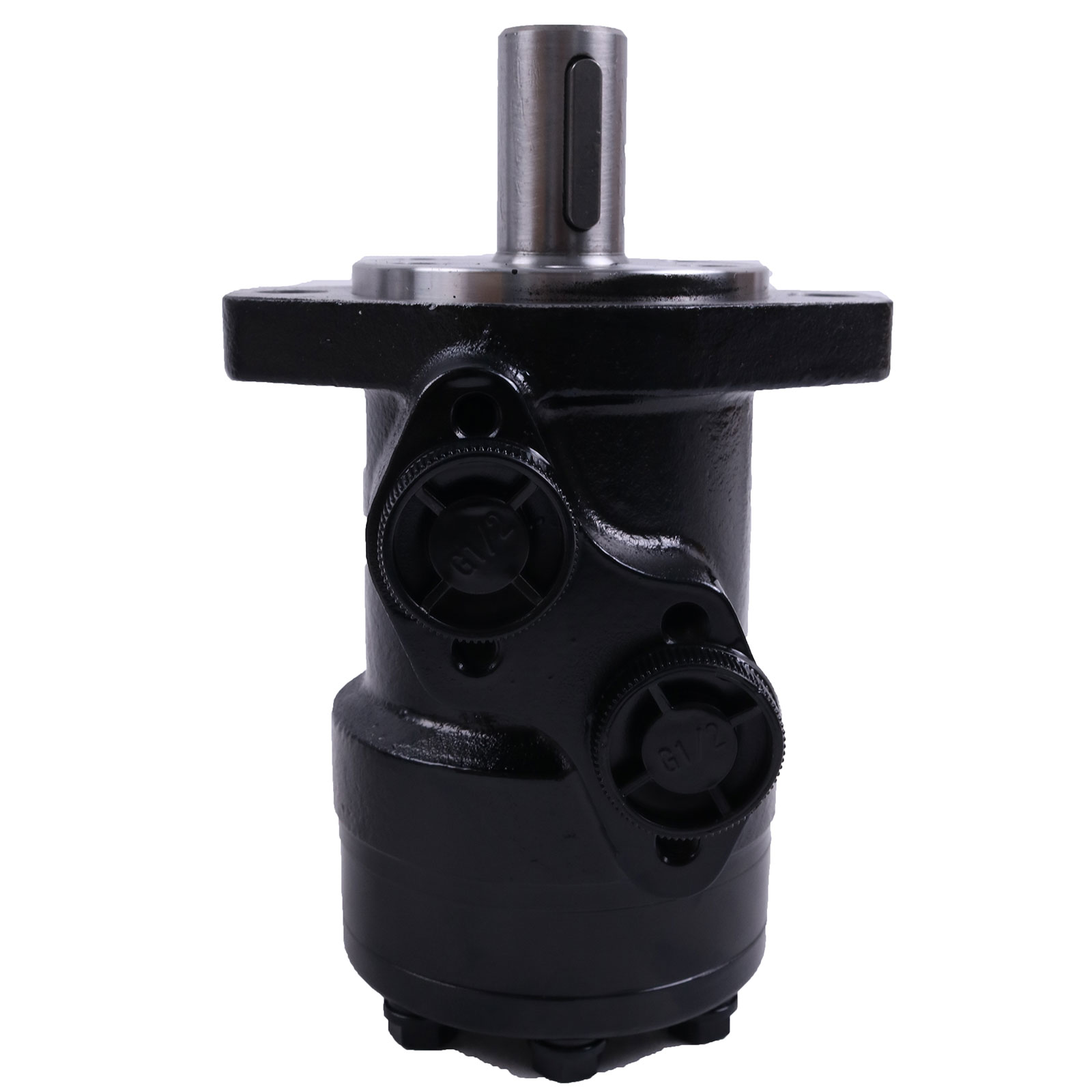

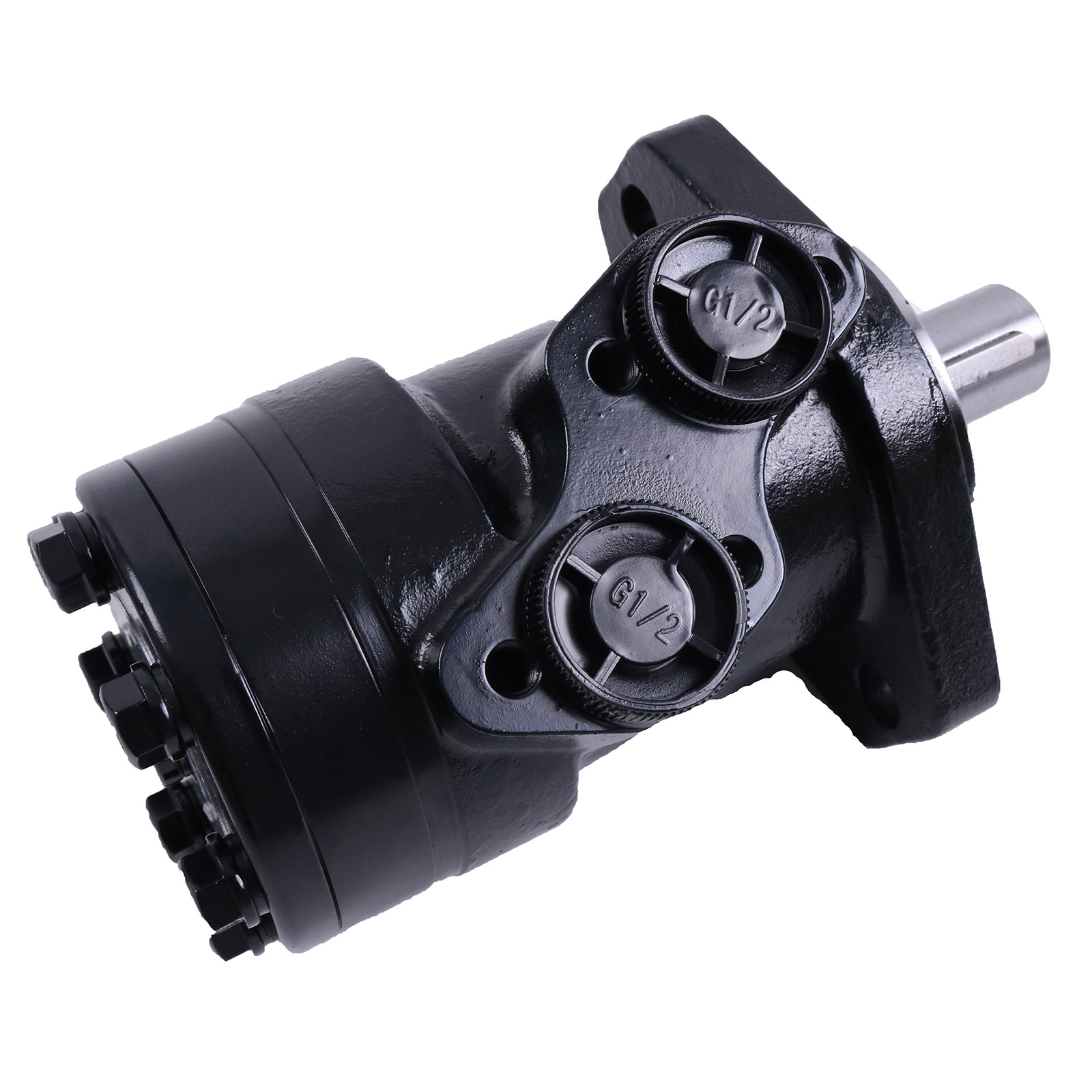

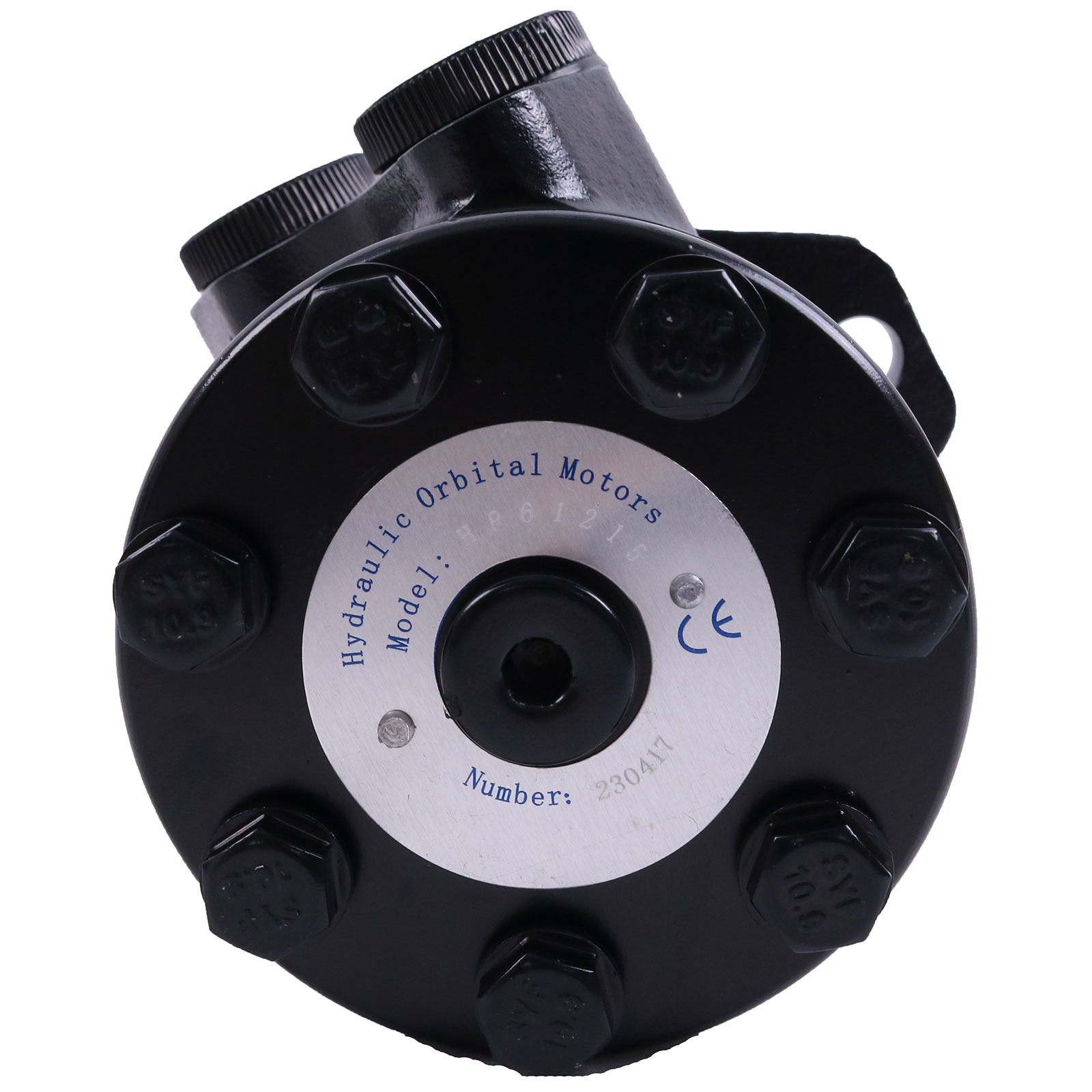

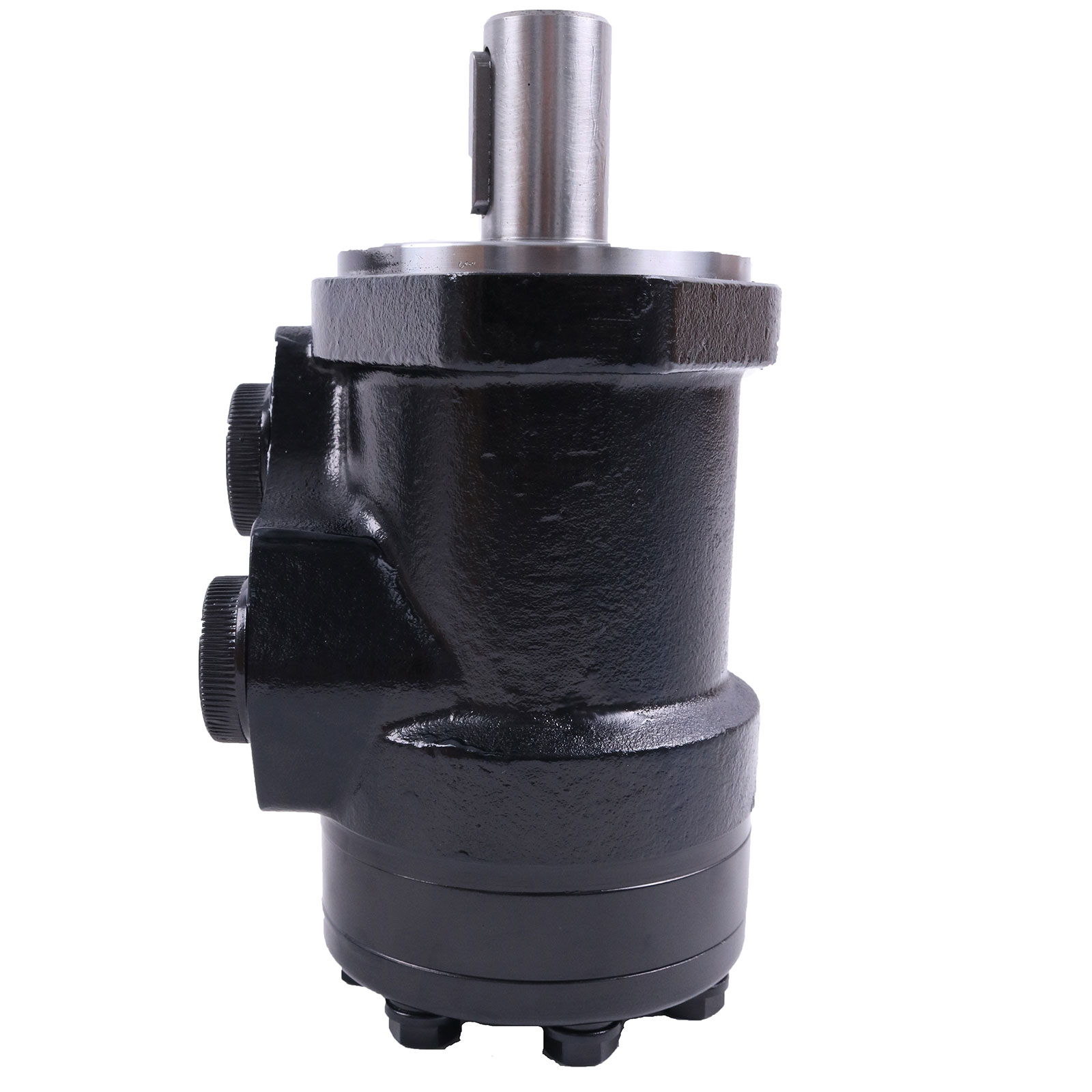

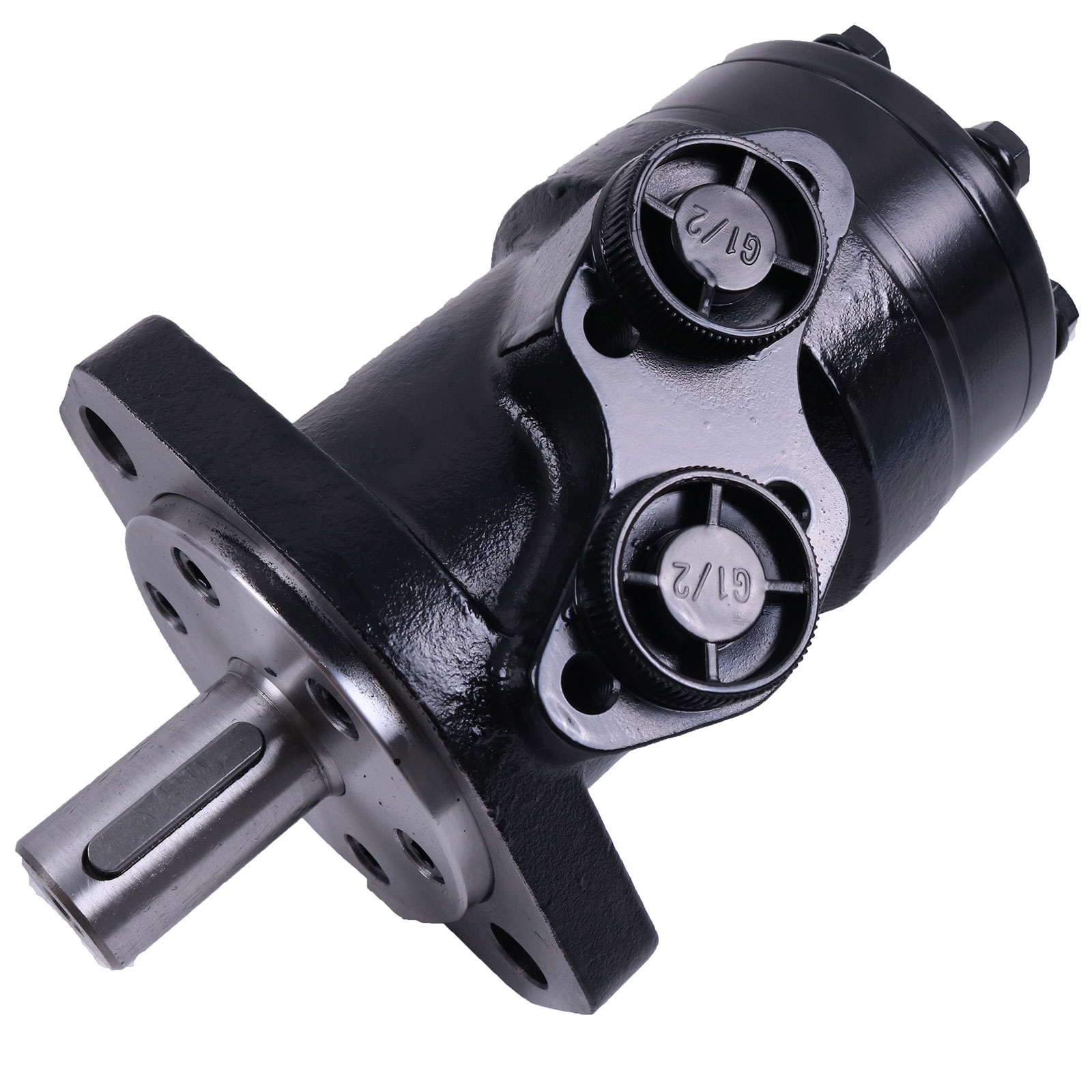

1/2 BSP Hydraulic Motor 100-11186730 OMP100-151-0602 OMP100-151-0302 Compatible with Danfoss

Detail

Part Name: Hydraulic Wheel Motor
Part Number:1OMP X 100 - 11186730, OMP100 - 151-0602, OMP100 - 151-0302, 1510602
Specification:
Type: OMP
Motor Size: 100
Geometric displacement: 97.3cm³/[5.95in]
Max speed cont: 615 rpm
Max speed int: 770 rpm
Max torque cont: 190Nm/[1680lbf in]
Max torque int: 230Nm/[2040lbf in]
Max output power cont: 11.0kW/[14.8hp]
Max output power int: 13.0kW/[17.4hp]
Max pressure drop cont: 140bar/[2030psi]
Max pressure drop int: 175bar[2540psi]
Max pressure drop peak: 225bar/[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 170Nm/[1510lbf in]
Min starting torque at max press drop int: 210Nm/[1860lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]

Warranty：1 Year
