Alber Cellcorder CRT-300 Cell Resistance Tester

The Albér Cellcorder CRT-300 cell resistance tester displays and records cell float voltage, internal cell resistance and intercell connection resistance

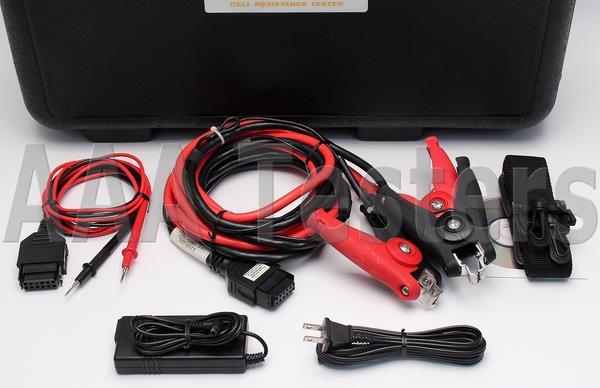

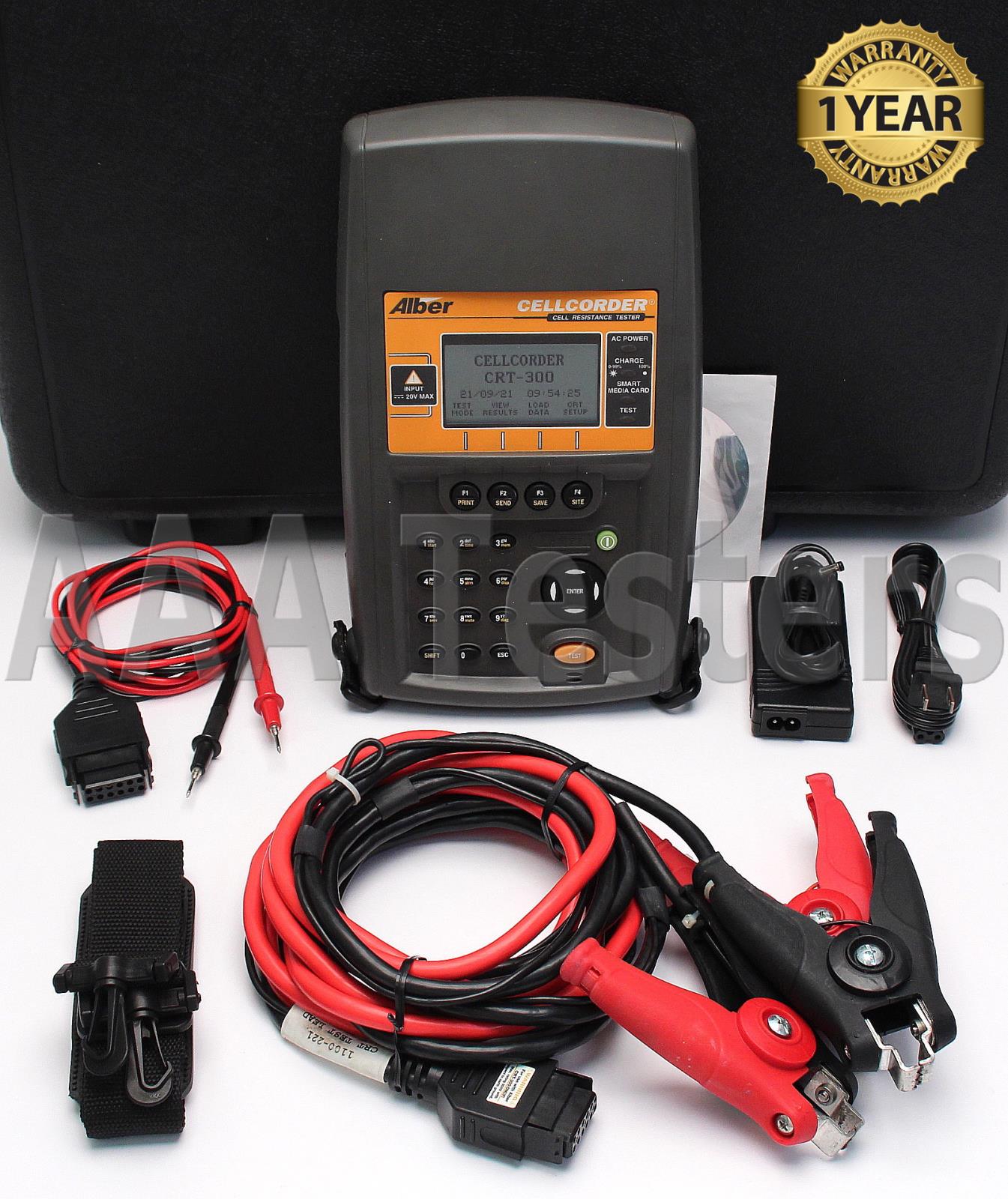

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

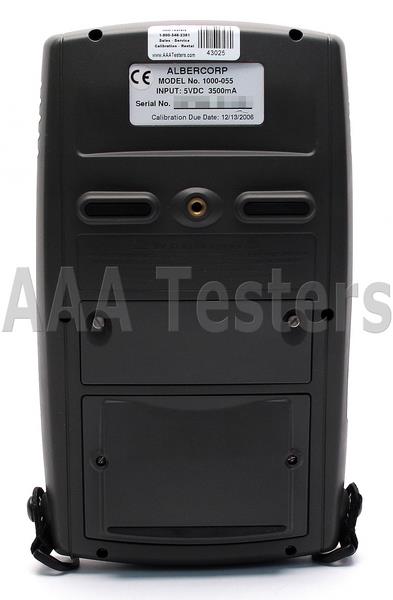

 Alber Cellcorder CRT-300
Liebert offers the latest in battery monitoring technology with products by Albér — a leader in the field since 1972. Albér technologies by Liebert are designed to prevent battery failure, optimize useful battery life, reduce maintenance cost and increase safety.

The Albér Cellcorder CRT-300 Cell Resistance Tester
The Albér Cellcorder CRT-300 cell resistance tester displays and records cell float voltage, internal cell resistance and intercell connection resistance.

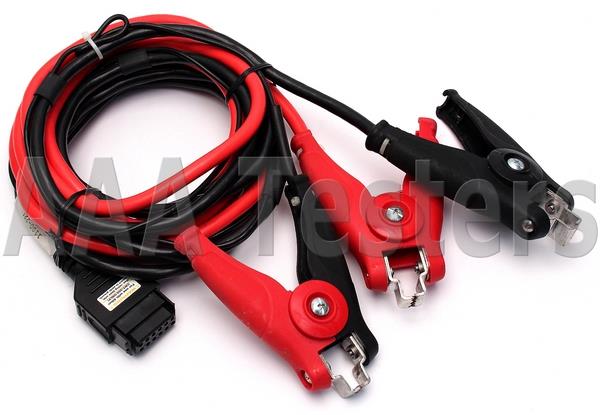

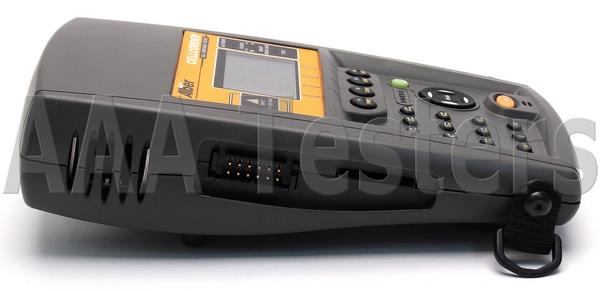

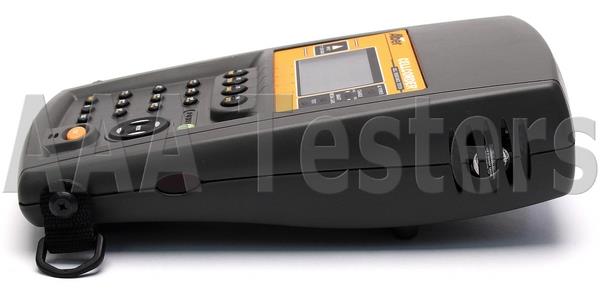

The portable unit is lightweight, rugged and durable. Standard features include a memory card, backlit graphical reflective LCD display for better contrast and specially designed cables and  clamps with interchangeable jaws  for different battery post designs.  A built-in infrared port provides wireless communications to printer, PDA, DMA-35N Hydrometer or laptop computer.

Accurate Data in a Fraction of Normal Test Time

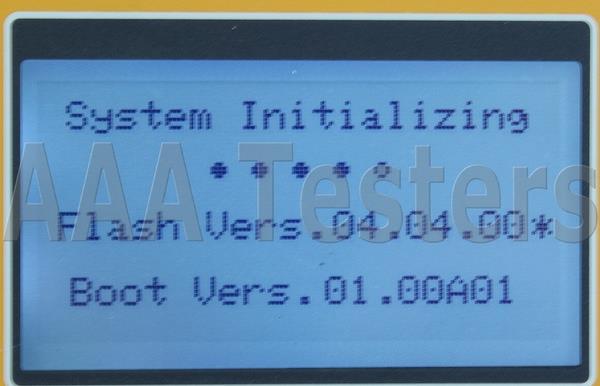

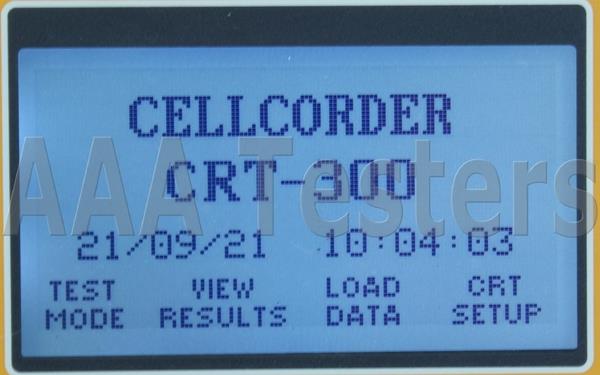

The Albér Cellcorder can be used on single cell or multicell modules. The memory card allows a virtually unlimited amount of data storage. The memory card, infrared port or optional internal modem transfers readings to a PC for analysis and report generation. Using a compatible hydrometer, you may also download specific gravity and temperature data to the Cellcorder using the wireless infrared port. The high contrast, 128 x 64 pixel, backlit graphical display shows menus and test results. A fully charged Cellcorder can test for seven hours while isolated operation helps ensure safety and makes the unit easy to move around.

System Capabilities:

• Float Voltage Readings
  • The Cellcorder measures the voltage applied during full float operation. The voltage range covers all cells or modules up to 20 volts with accuracy up to four full digits.
• Internal Cell Resistance
  • Using a patented process, the Cellcorder applies a momentary load and calculates internal cell resistance by determining instantaneous voltage drop and load current. Algorithms make this measurement possible on cells floating on-line or off-line.
• Intercell Resistance
  • The Cellcorder measures the resistance between two electrically connected cell terminals. The measurement consists of connector resistance and contact resistance at the points of connection to the cell terminals.
• Auto Ranging
  • The Cellcorder automatically selects the correct voltage range, load resistor, and time for a test.
• Reliable Readings
  • The Cellcorder performs even in high noise environments - without the need to disconnect the battery from service. Up to a 60 amp DC load (on 2V cells)  is used to calculate internal cell resistance and intercell resistance. Circuitry rejects the 50Hz/60Hz ripple often troublesome to AC-based impedance and conductance meters.
• Easy-To-Use

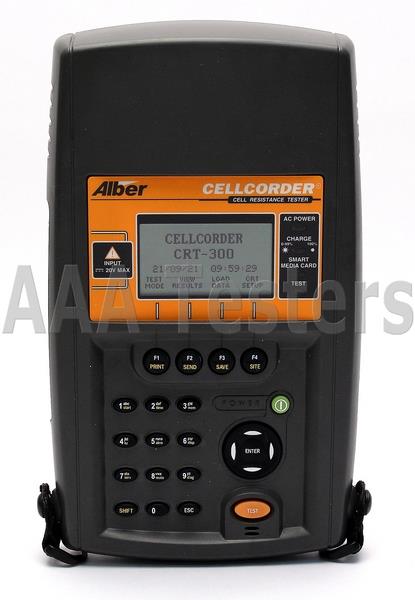

  • Includes a combination keypad for alphanumeric data entry plus shift key for quick function keys. Interactive, multi-function menu buttons correlate to relevant menu selections on screen. A navigation  key allows easy selection of choices  in menu.

Specifications:


 For full Alber CRT-300 product specifications, please click here: Alber CRT-300
