Details

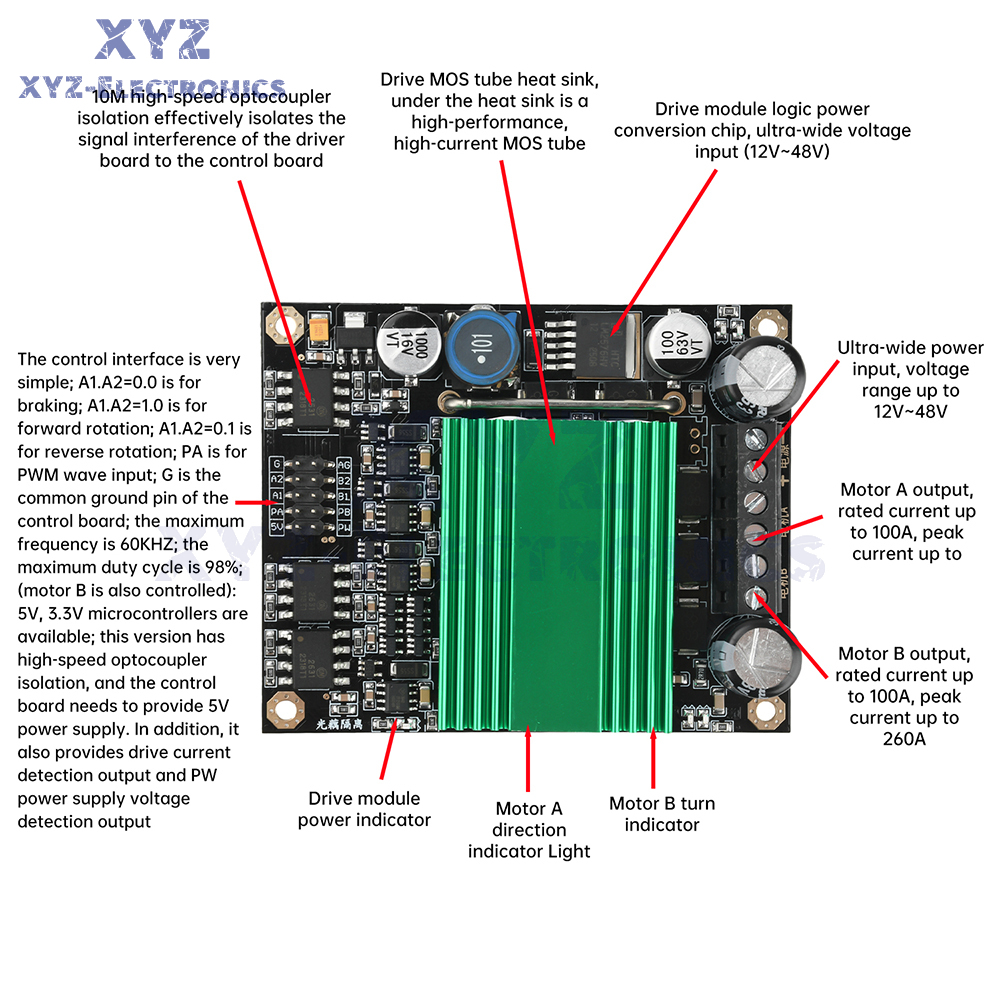

1. The driver module adopts surface mount components with high integration and exquisite layout, and is driven by dual high-power DC motors on board
2. Equipped with large heat sinks, effectively reducing the temperature during high current operation and ensuring stable operation of the module

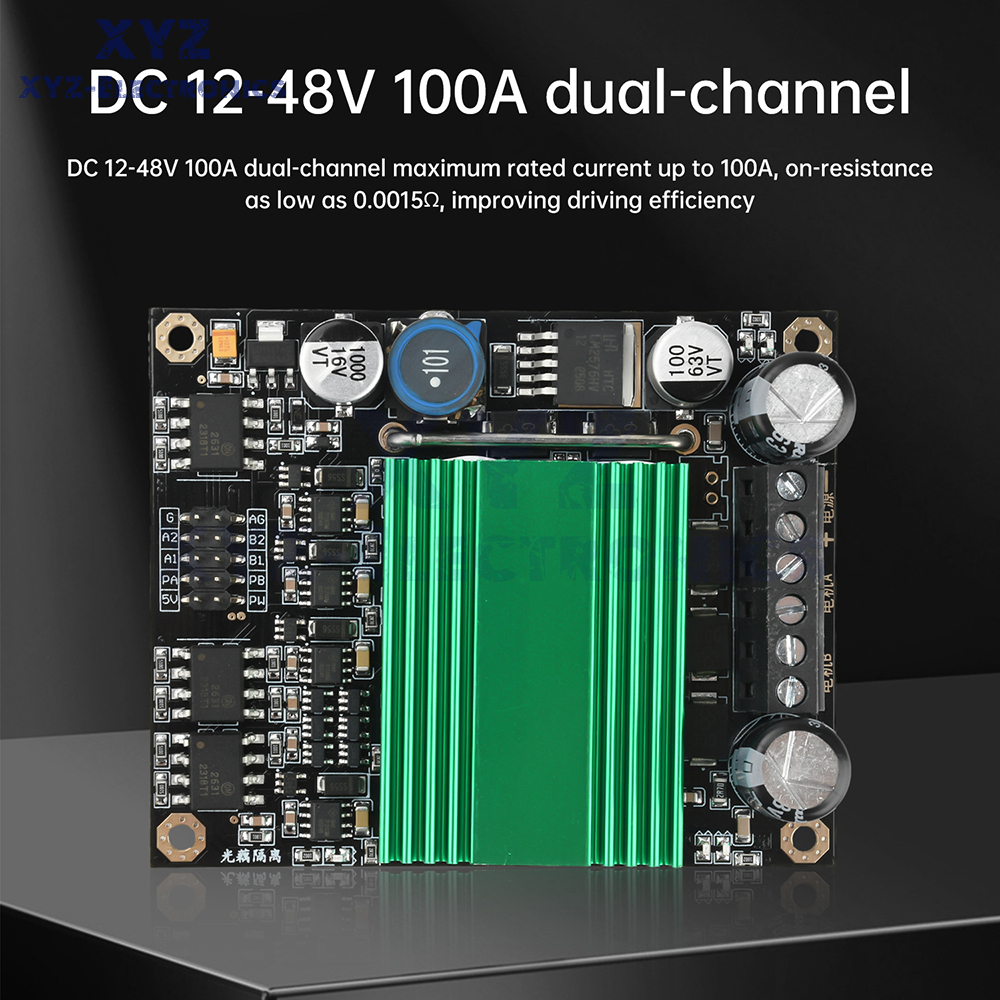

3. The maximum rated current reaches 100A, and the on resistance is as low as 0.0015 Ω, improving driving efficiency
4. Switching frequency up to 60kHz to avoid noise and discomfort caused by low-frequency debugging
Both 5.3.3V and 5V microcontrollers can control this module, and only one motor power supply (12-48V) is required
Input voltage: 12-48V

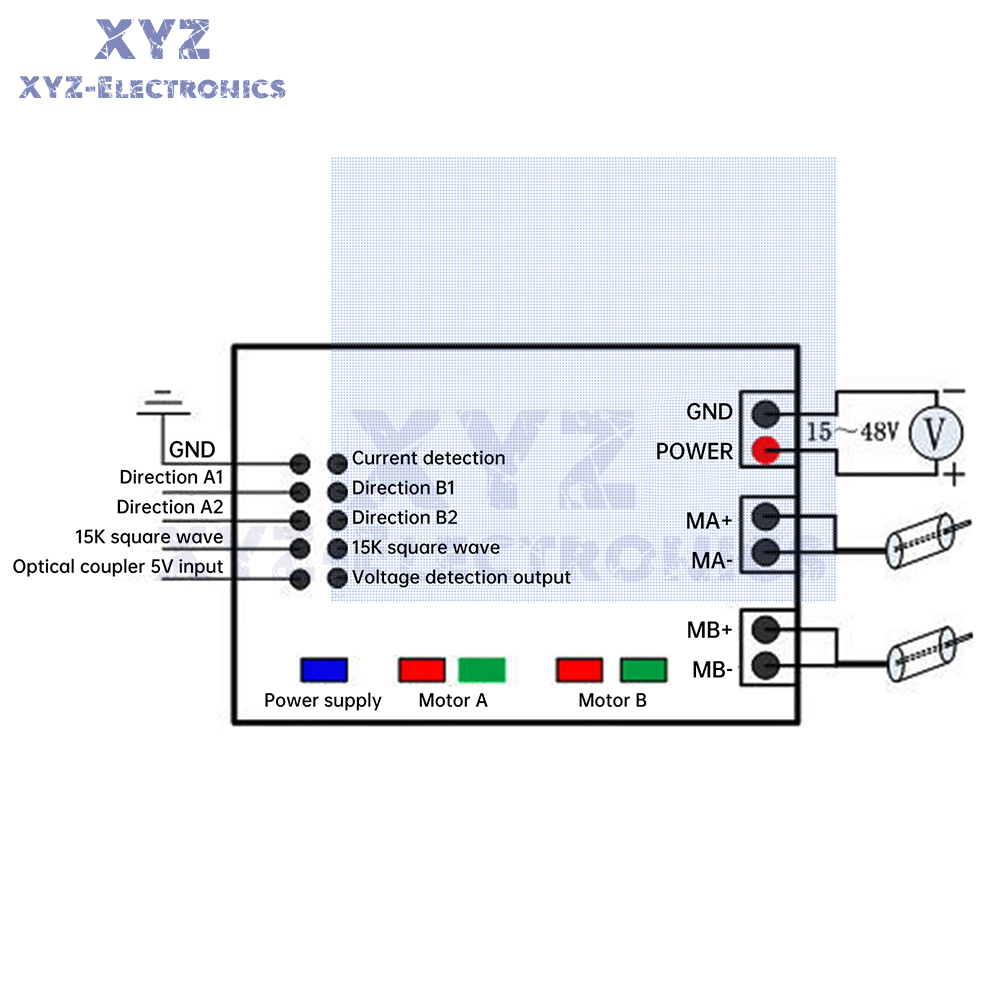

Control interface:
When A1.A2=0.0, it is the brake
When A1 and A2 are equal to 1.0, it is a forward rotation
When A1 and A2=0.1, it is reversed
PA is PWM wave input (motor speed regulation)
G is the common ground pin with the control board (B is the same control)
The optocoupler isolation ultra wide voltage motor driver (theoretically up to 60V) can generally reach 48V. This module uses a 10M high-speed optocoupler to isolate the input signal, effectively preventing interference signals from the drive board to the control board, making the system more stable and reliable. In addition, this module uses high-quality new original power tubes, so the maximum rated current can reach 100A.
This module can be used for driving general high-power DC motors, with a maximum current of 100A and stable performance, which cannot be compared to general integrated motor drives. Therefore, it is very suitable for robot competitions, tank competitions, and so on.
Motor driver module * 1
