Features & Details
Brand: KAC
Interchange Part Number: YAM7015,ATVYA8331,4108002,PAXL1104HD,PAXL1104,02141703,AX7815,YAM6015HD,8130205
Machine Type: ATV/UTV/SXS
Axle Nut Included: Yes
ABS Ring Included: No
Items Included: 2x Rear cv axle shaft
Quantity: 2
Compressor Length(IN): 20.88in

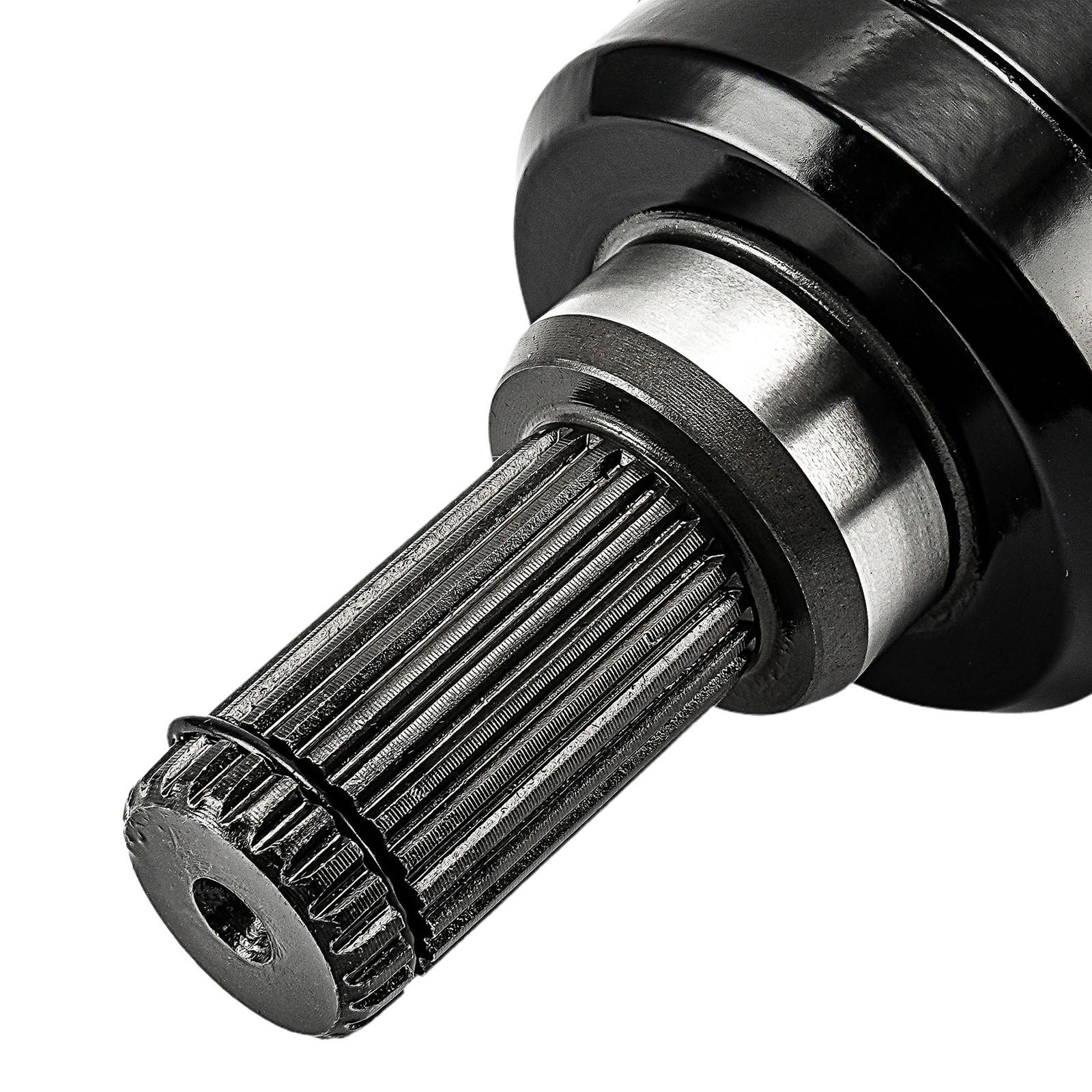

Output Shaft Spline Count: 27
Superseded Part Number: YAM7015,ATVYA8331,4108002,PAXL1104HD,PAXL1104,02141703,AX7815,YAM6015HD,8130205
Input Shaft Spline Count: 23
Placement on Vehicle: Rear
Key Advantages
- Designed for high compatibility with 2009-2014 Yamaha YFM550 Grizzly FI 4x4 Auto EPS all engine models, providing a reliable replacement option.
- Specifically fits for 2009-2013 Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE all engine models, ensuring excellent performance.
- Manufactured adhering to stringent quality standards, ensuring durability and safety.
- Comes with axle nuts included, ready for an easy and complete installation.
Compatibility
For Yamaha:Yamaha YFM550 Grizzly FI 4x4 Auto EPS 2009-2014 All engine
Yamaha YFM550 Grizzly FI 4x4 Auto 2009-2014 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto 2009-2013 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto EPS 2009-2013 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE 2009-2013 All engine
What's Included
2x Rear cv axle shaft
Installation Guide
- Ensure the vehicle is on a stable surface and secure it using wheel chocks.
- Remove the wheel and brake assembly to access the drive shaft.
- Carefully detach the current rear CV axle shaft from the differential and wheel hub.
- Align and install the new drive axle, securing it within the differential and wheel hub.
- Tighten all bolts to the manufacturer’s specified torque settings and reassemble the brake and wheel components.
- Conduct a thorough inspection to confirm proper installation and operation before road testing.
Important Notes
- Verify compatibility with your vehicle model and year before purchase to ensure proper fitment.
- Professional installation is recommended to ensure correct installation and to avoid potential damage.
- Recheck all components after installation to confirm proper function and safety.
- Keep the original packaging until the product is successfully installed and tested.
