Features & Details
Brand: KAC
Interchange Part Number: YAM7015,ATVYA8331,4108002,PAXL1104HD,PAXL1104,02141703,AX7815,YAM6015HD
Machine Type: ATV/UTV/SXS
Axle Nut Included: Yes
ABS Ring Included: No

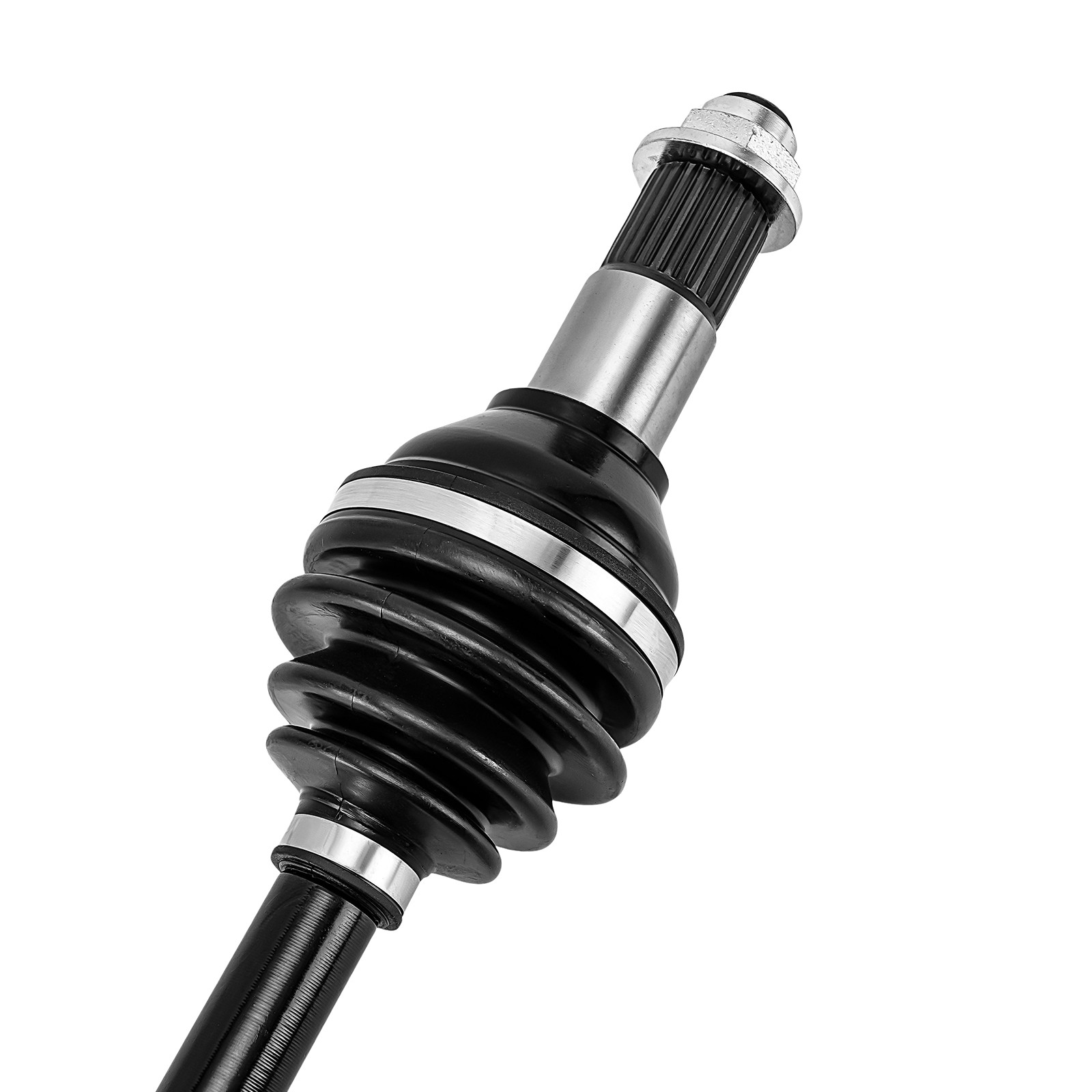

Items Included: 1x Rear Left or Right cv axle shaft
Quantity: 1
Compressor Length(IN): 20.88in
Output Shaft Spline Count: 27
Superseded Part Number: YAM7015,ATVYA8331,4108002,PAXL1104HD,PAXL1104,02141703,AX7815,YAM6015HD
Input Shaft Spline Count: 23
Placement on Vehicle: Rear Left or Right
Key Advantages
- Designed for high performance: Our drive axle ensures optimal power transmission, enhancing the performance of your ATV/UTV/SXS vehicles.
- Durability assured: The robust construction of the axle offers long-lasting reliability even under extreme conditions.
- Precision fit for your vehicle: Manufactured to meet exact OE specifications for Yamaha models, ensuring a hassle-free installation.
- Versatile compatibility: Fits for 2009-2014 Yamaha YFM550 Grizzly FI 4x4 Auto EPS all engine, fits for 2009-2014 Yamaha YFM550 Grizzly FI 4x4 Auto all engine, fits for 2009-2013 Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE all engine.
Compatibility
For Yamaha:Yamaha YFM550 Grizzly FI 4x4 Auto EPS 2009-2014 All engine
Yamaha YFM550 Grizzly FI 4x4 Auto 2009-2014 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto 2009-2013 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto EPS 2009-2013 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE 2009-2013 All engine
What's Included
1x Rear Left or Right cv axle shaft
Installation Guide
- Ensure vehicle is on a stable surface and securely elevated.
- Remove the wheel to access the rear left or right drive axle.
- Carefully disconnect the old drive axle from the differential.
- Align and insert the new drive axle into the vehicle's hub.
- Secure the axle nut included in the package for precise fitment.
- Reattach the wheel and lower the vehicle to the ground.
- Conduct a test drive to confirm proper installation and performance.
Important Notes
- For accurate installation, reference the vehicle's service manual.
- Double-check compatibility using interchange part numbers: YAM7015, ATVYA8331, 4108002, PAXL1104HD, PAXL1104, 02141703, AX7815, YAM6015HD.
- Installation should be performed by a qualified technician if you are not familiar with automotive repairs.
- Axle does not include an ABS ring; ensure this aligns with your vehicle's requirements.
- Verify the compressor length (20.88 inches) and spline counts (27 output, 23 input) to confirm proper fit.
