Details
1. Supports Bluetooth 5.2 for stable wireless connectivity and smoother audio transmission.
2. Multiple input options: Bluetooth/AUX/USB drive to meet diverse scenario needs.
3. TWS true wireless pairing technology enables stereo sound effects with dual-board combinations.
4. Built-in high-efficiency digital amplifier delivers up to 30W output power for powerful, clear audio quality.
5. Supports lossless decoding of WAV/FLAC/APE/MP3 formats for high-fidelity audio experience.

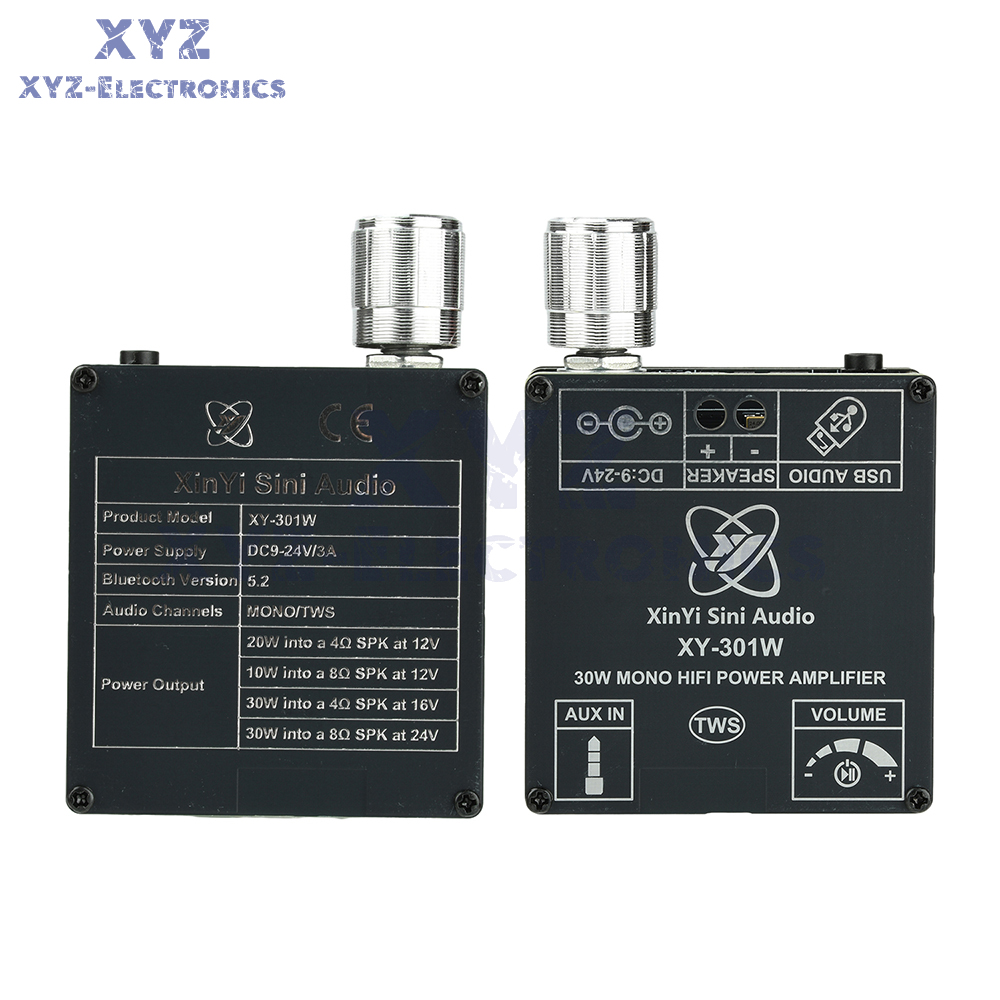

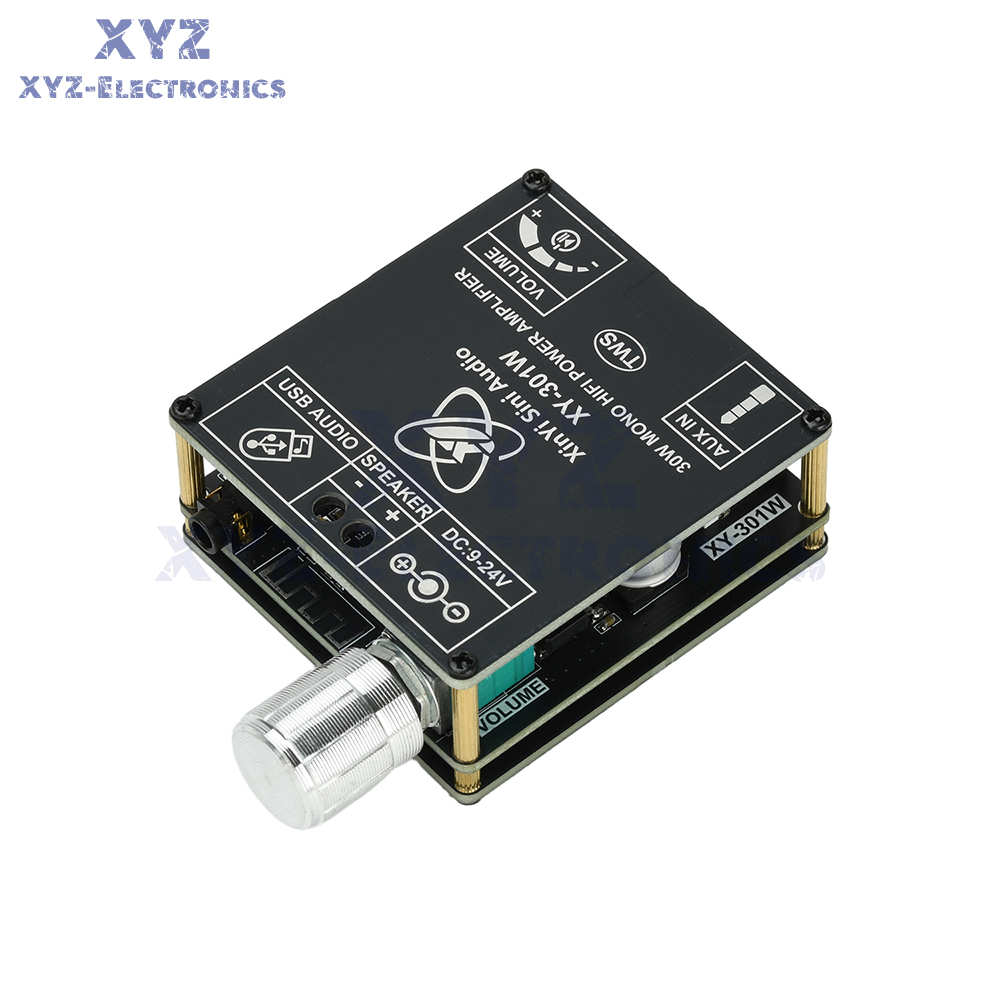

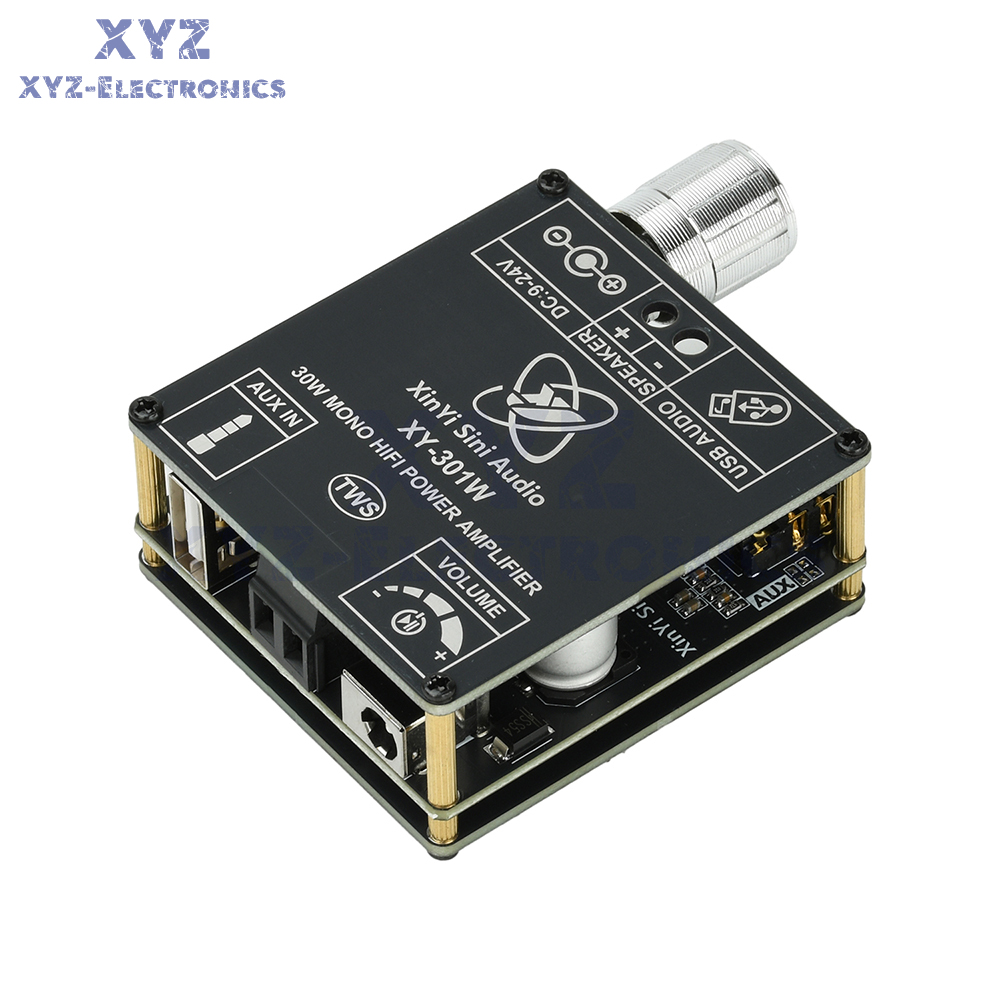

Product Name: TWS Bluetooth Digital Audio Amplifier Board
Model Number: XY-301W
Power Supply: DC 9-24V/3A or higher
Audio Inputs: Bluetooth 5.2/AUX/USB Drive
Bluetooth Audio Decoding: AAC/SBC
USB Lossless Decoding: WAV/FLAC/APE/MP3
Output Power:
20W@4Ω/12VDC
10W@8Ω/12VDC
30W@4Ω/16VDC
30W@8Ω/24VDC
TWS Pairing Connection
1. Power on both amplifier boards. Blue indicator lights flash rapidly (do not pair with mobile Bluetooth/do not connect AUX/do not insert USB drive).
2. Press the volume knob on one amplifier board 4 times consecutively. The TWS red indicator light begins rapid flashing (the other board maintains rapid blue flashing).
3. Wait until the TWS red indicator changes from rapid flashing to steady illumination (Master unit), while the other unit's blue indicator turns off and its red indicator begins slow flashing (Slave unit). This confirms successful TWS pairing. If the red indicator turns off, pairing failed; repeat the 4-tap volume knob procedure to reconnect.
4. After successful TWS pairing, enable your phone's Bluetooth, search for “XinYi,” and connect. Play music from your phone; alternatively, insert an AUX cable or USB drive to play music.
Canceling TWS Pairing
During TWS pairing, press the volume knob on either amplifier board four times consecutively to exit TWS pairing mode.
Note:
1. When using TWS pairing, establish the TWS connection first before pairing with your phone's Bluetooth.
2. TWS pairing operates in memory mode; devices will automatically reconnect upon next power-up.
1x Amplifier Board
1x Adapter
1x Screwdriver

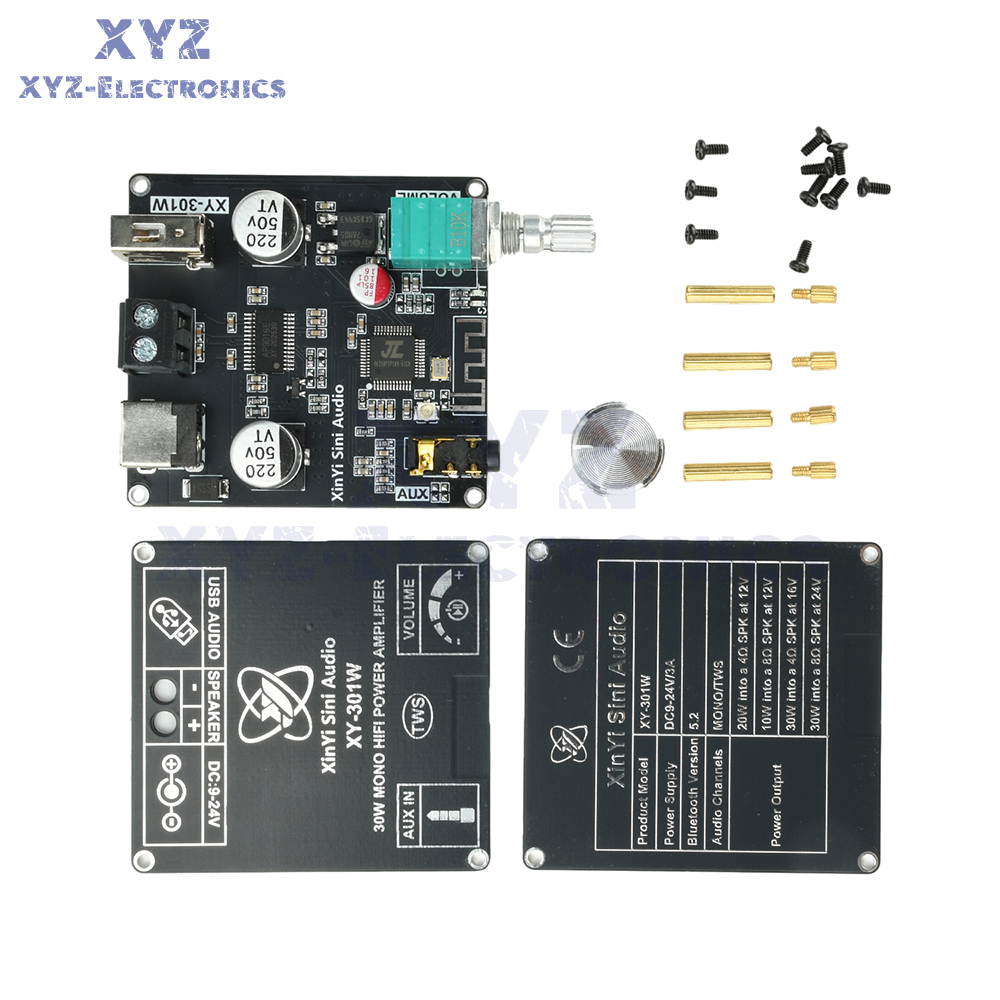

Note: Products ship unassembled with components separated. Self-assembly is required; a screwdriver is included.
