Features
1. Pure sine wave
2. Powerfactor1.0
3. PVinput 500Vdc Max
4. Built-in MPPT120A
5. Capable to work without battery
6. Detachable dustcoverforharshenvironment
7. WiFiremote monitoring optional
8. Compatible work with lifepo4 battery
9. Support multiple output priority:UTL,SOL,SBU,SUB
10.EQ function to optimize battery performance andextend lifecycle
|
MODEL |
ISolar SMG II 6.2KP 48V WiFi |
|
Capacity |
6.2KVA/6.2KW |
|
Parallel Capability |
NO |
|
INPUT |
|
|
Nominal Voltage |
230VAC |
|
Acceptable Voltage Range |
170-280VAC(For personal Computer);:90-280vac(For Home Appliances) |
|
Frequency |
50/60 Hz(Auto sensing) |
|
OUTPUT |
|
|
Nominal Voltage |
220/230VAC+5% |
|
Surge Power |
12400VA |
|
Frequency |
50/60Hz |
|
Waveform |
Pure Sine wave |
|
Peak Eficiency(PV to INV) |
96% |
|
Peak Efficiency(Battery to INV) |
93% |
|
Crest Factor |
3:1 |
|
BATTERY |
|
|
Battery Voltage |
48VDC |
|
Floatig Charge Volage |
54VDC |
|
OverCharge Protectin |
63VDC |
|
Charging Method |
CC/ CV |
|
Solar Charger & AC Charger |
|
|

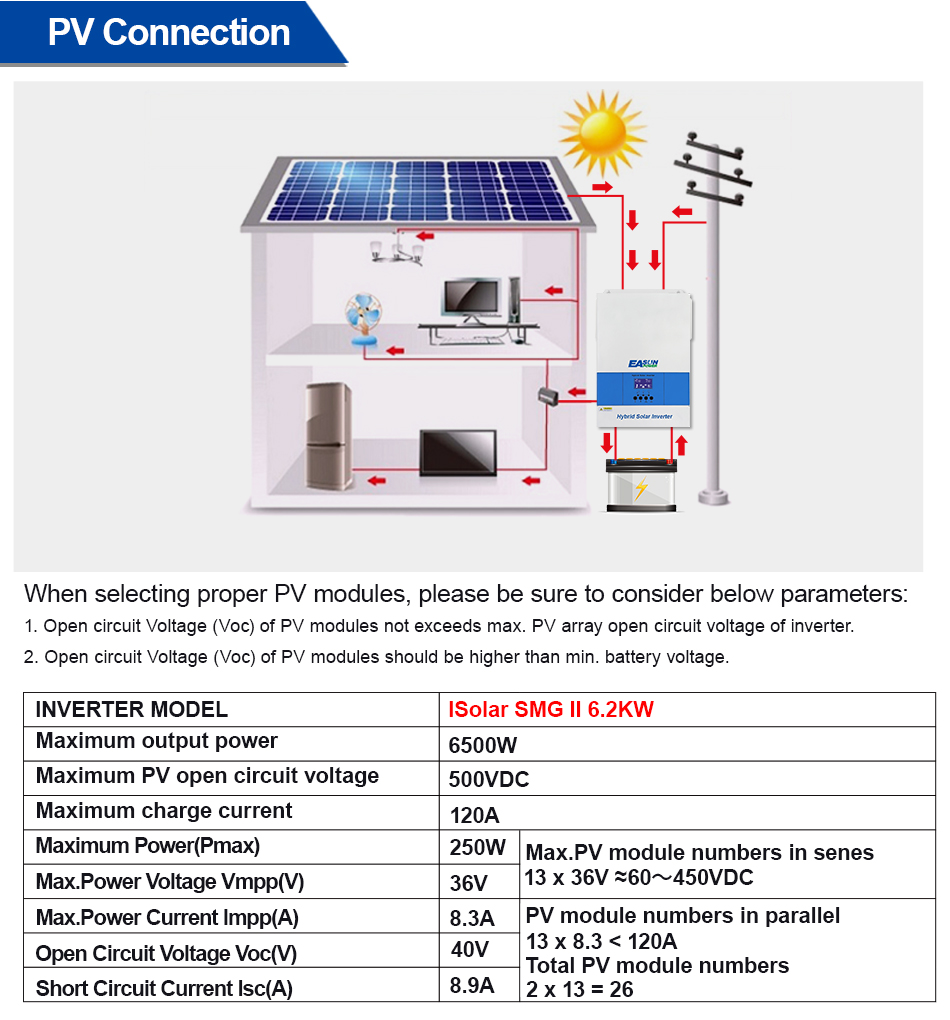

Max.PV Array Power |
6500W |
|
Max.PV Array Open Circuit Voltage |
500VDC |
|
PV Array MPPT Voltage Range |
60VDC~450VDC |
|
Max.Solar Input Current |
27A |
|
Max.Solar Charge Current |
120A |
|
Max.AC Charge Current |
80A |
|
Max.Charge Current |
120A |
|
PHYSICAL |
|
|
Dimensions,D x W x H(mm) |
450*300*130 |
|
Package Dimensions,D x W x H(mm) |
540x390x210 |
|
Net Weight(Kg) |
12 |
|

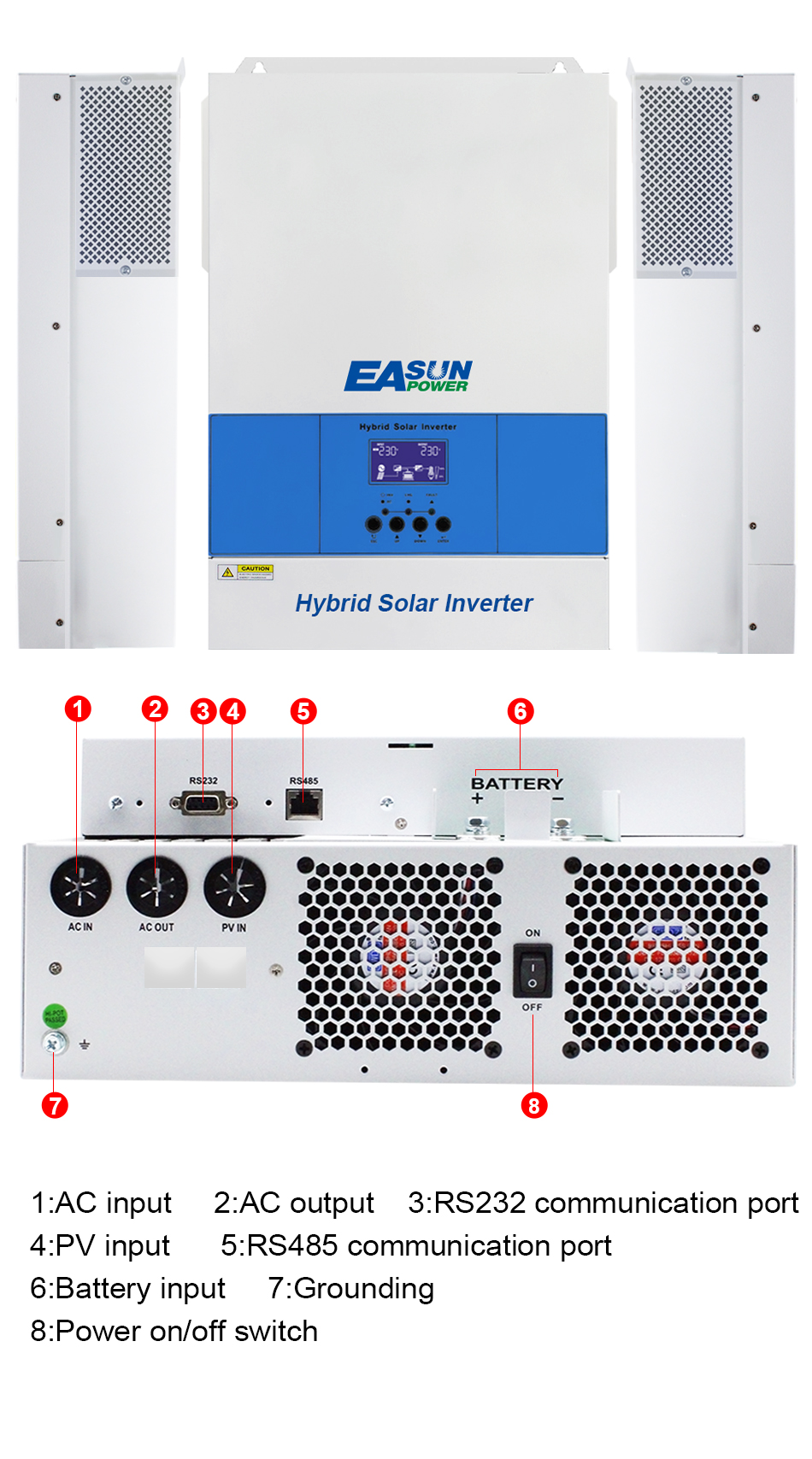

Communication Interface |
RS232 / RS485 / Dry-contact |
|
ENVIRONMENT |
|
|
Operating Temperature Range |
(-10°C to 50°C) |
|
Storage Temperature |
(-15°C ~ 50°C) |
|
Humidity |
5% to 95% Relative Humidity ( Non-condensing ) |
