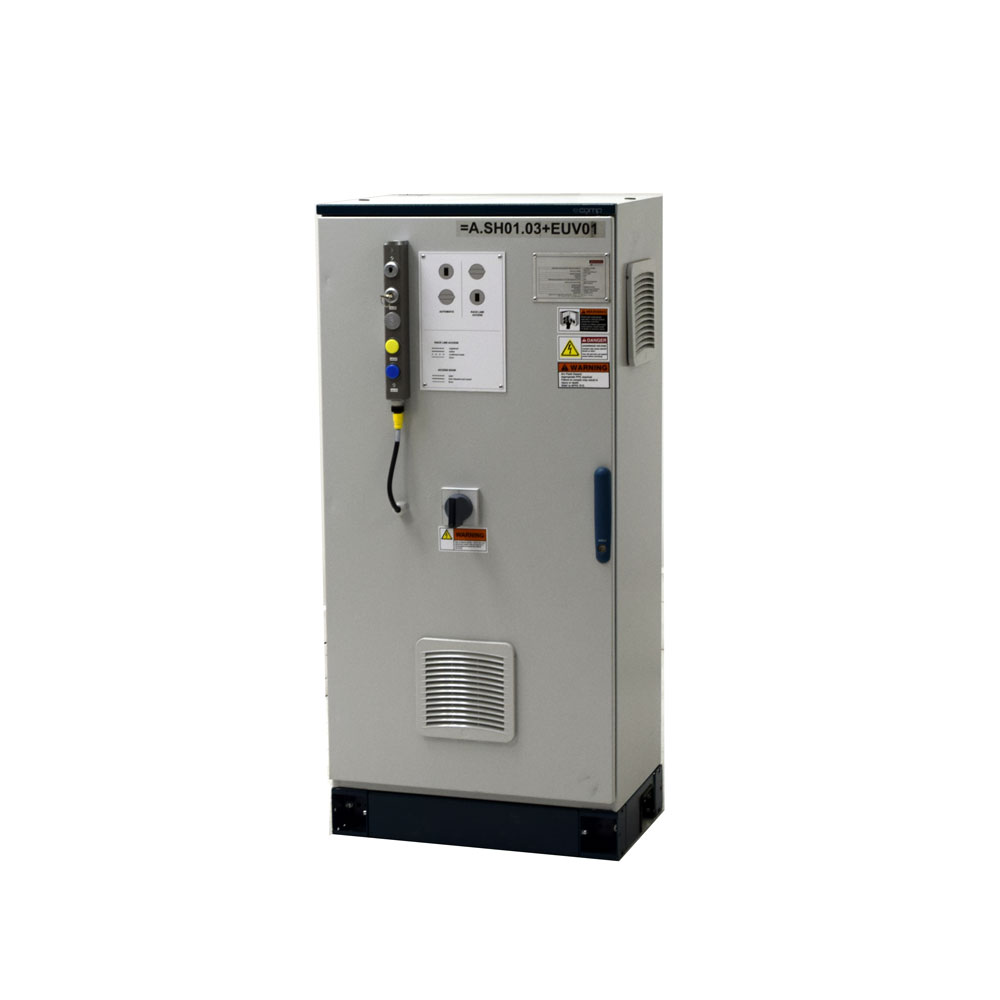

ETA ENUX ECOMP Industrial Automation Enclosure 1-Door PLC Cabinet 1200x600x400mm
Manufacturer: ETA
Model: ECOMP61240
Condition: Used
- Residential area?
- Dock or forklift?
- Zip code?
*Shipping to be arranged by seller
Manufacturer: ETA
Condition: Used. Comes in non-original packaging. The cabinet is in good, used condition with some scuffs and scratches on the exterior, as shown in the photos.
Notes: The cabinet was removed from a decommissioned automation setup. The panel door opens and closes with no impediment. The front door has a twist lock mechanism to secure the cabinet and it is currently unlocked, but no key is included. One of the keys for the fortress interlock is included but not the second key required for the interlock operation. No further testing was performed. No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) ETA ECOMP61240 Type 1,12 Automation Control Enclosure 51.75"Lx23.75"Wx16"D
- (1) Schneider Electric LC1D25BL Contactor 25A
- (2) Schneider Electric LC1D09BL Contactor 9A
- (1) Siemens 3RV2926-2B Rotary Operator Switch
- (1) Fortress Interlocks THCABSNSSLYLBQ7 Safety Guard Operator Interlock w/ 1 Key
- Various DIN Mounted I/O Terminal Blocks
Specifications:
- Manufacturer: ETA
- Series: E NUX
- Model: ECOMP61240
-
Type 1,12 Industrial Control Panel Enclosure
- Total Outer Dimensions: 1200mm x 600mm x 400mm, ~51.75" x 23.75" x 16", Base Stand Has ~100mm Height
- Construction: High-Strength, Low Alloy Sheet Steel
- Degree Of Protection: IP55
- NEMA 12
- Other Manufacturer Information:
-
Jobstl & Liska Group
- Designation: =A.SH01-03+EUV01
- Industrial Control Panel For Machinery
- Max Voltage: 480Y/277V, Solid Grounded WYE
- Phase: 3 PH + GND
- Frequency: 60 Hz
- Total: 5 A
- Overcurrent Protection: 20A
- Short Circuit Rating: 5kA, 480V Max
- Manufacturer: Schneider Electric
-
TeSys IEC Non-Reversing Contactor
- Up To 100kA SCCR
- 3 Phase
- 3 N.O.
- 24VDC Coil
- Manufacturer: Schneider Electric
-
Model: LC1D25BL
- Contactor
- Current Rating: 25 Amps
- Manufacturer: Schneider Electric
-
Model: LC1D09BL
- Contactor
- Current Rating: 9 Amps
- Manufacturer: Siemens
-
Model: 3RV2926-2B
- Rotary Operator Switch
- Degree Of Protection: IP65
- Shaft Length: 300mm
- Manufacturer: Fortress Interlocks
-
Model: THCABSNSSLYLBQ7
- Safety Guard Operator interlock
- Voltage: 24V
- Current Rating: 1A
- Type: Switching Circuits
- 100mA
- F=2500N
- IP65
- TUV Certified
- 1 Key Included
