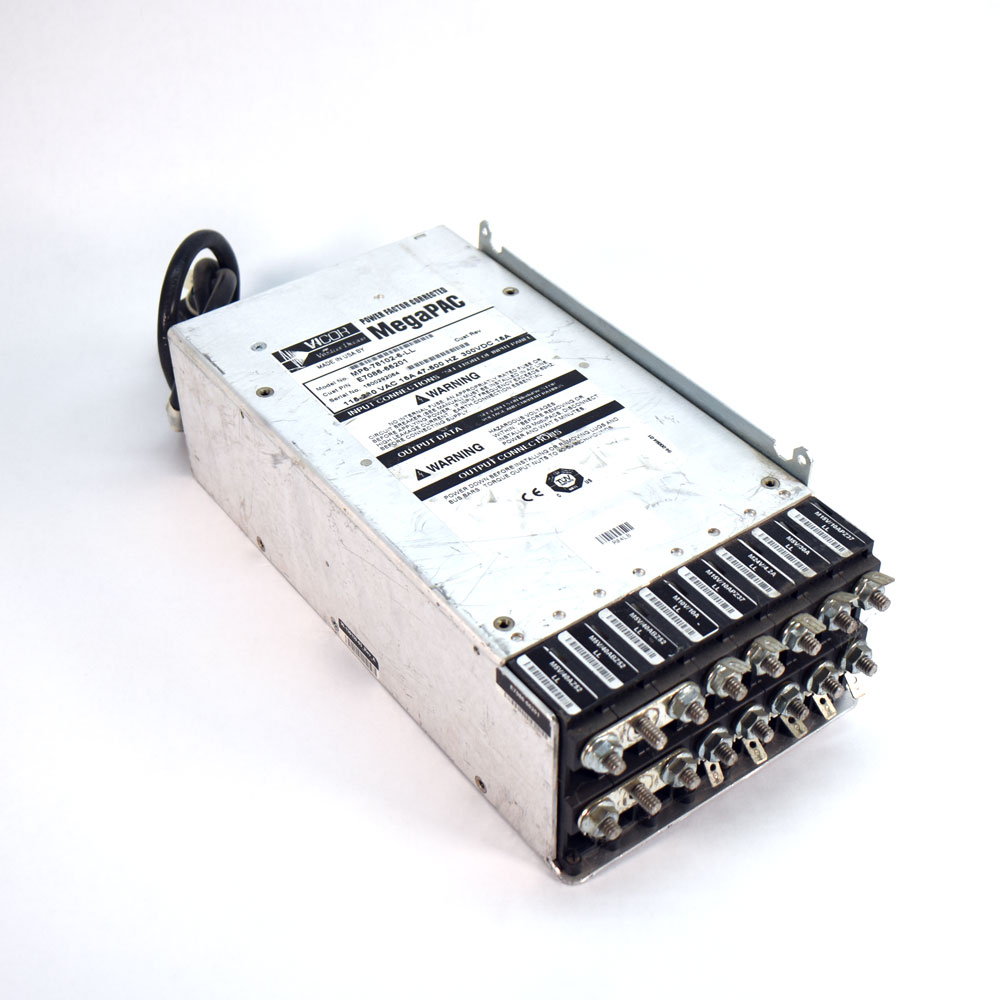

Vicor PFC MegaPAC MP6-78102-6-LL Power Supply 115/230V 47-500Hz E7086-66201
Manufacturer: Vicor
Model: MP6-78102-6-LL
Condition: Used
Manufacturer: Vicor
Condition: Used. Comes in non-original packaging. This PSU is in fair cosmetic condition and has minor scuffs and scratches on it from previous use but nothing that would affect functionality.
Notes: This power supply was plugged in to 115VAC power and the fan turned on. Voltages seen in the photo are from one of multiple PSUs we have in stock and other PSUs voltage may vary slightly. However all PSUs provide voltages within 1% of the rated specifications.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
-
(1) Vicor PFC MegaPAC MP6-78102-6-LL Power Supply 115/230V 47-500Hz E7086-66201
- (2) Vicor M15V/10APZ37 LL Modules
- (1) Vicor M5V/30A LL Module
- (1) Vicor M24V/4.2A LL Module
- (1) Vicor M10V/10A LL Module
- (2) Vicor M5V/40ABZ52 LL Modules
- (1) Vicor M5V/40AZ52 LL Module
Specifications:
- Manufacturer: Vicor
- Model: MP6-78102-6-LL
- Cust Part #: E7086-66201
- Series: MegaPAC
- Description: Field-Configurable Power Supply
-
Low Leakage Power Supply
- The advantage of the Low Leakage MegaPAC power supply is in multiple power supply systems that have one AC input. This option will lower the input leakage current for these products to 500µA or less. An additional external EMI filter may be required
- Voltage: 115/230 VAC
- Amps: 15A
- Hertz: 47 - 500 Hz
- Power Factor Correction; 0.99 at 115VAC, 0.95 at 230VAC - both at full load (47 – 63Hz)
- Input: 47 – 500Hz
- Soft start for limiting inrush current
- Overcurrent protection on all outputs
-
Operating Temperature:
- Full-power to 40ºC
- Half Power to 60ºC
-
Power Outputs:
- Standard Chassis:
- 1,600W at 230VAC
- 1,200W at 115VAC
-
Outputs:
- up to 16 Outputs
- Fan Cooled
- Side Mounting Bracket
-
Power Supply Modules:
-
(2) M15V/10APZ37 LL
- VI-262-CV
-
(1) M5V/30A LL
- VI-260-CV
-
(1) M24V/4.2A LL
- VI-263-CW
-
(1) M10V/10A LL
- VI-26M-CW
-
(2) M5V/40ABZ52 LL
- VI-B60-CU
-
(1) M5V/40AZ52 LL
- VI-260-CU
-
(2) M15V/10APZ37 LL
