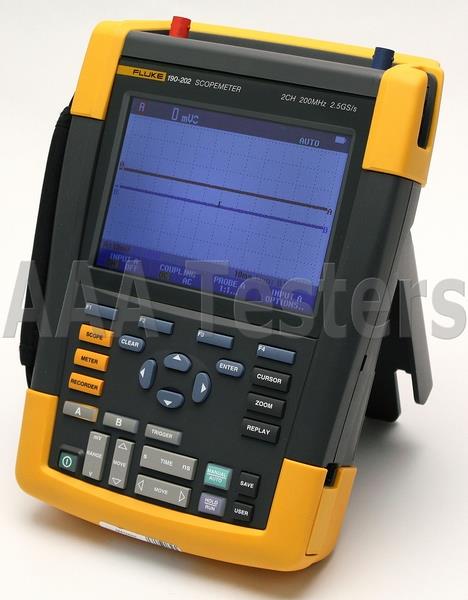

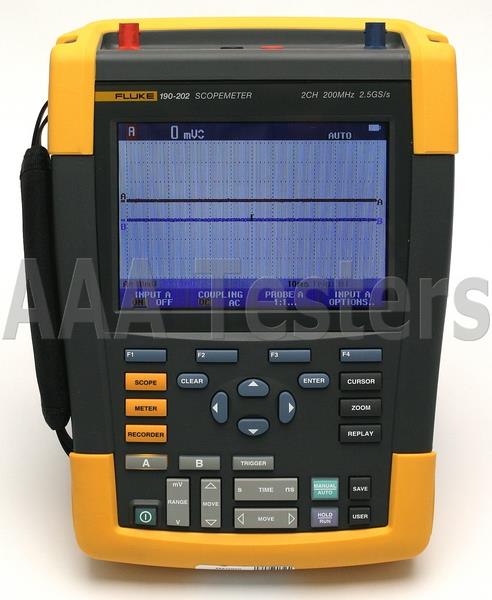

Fluke 190-202 Series II Scopemeter 2 Channel 200MHz Oscilloscope
High-speed sampling: Up to 2.5 GS/sec on 2 channels simultaneously

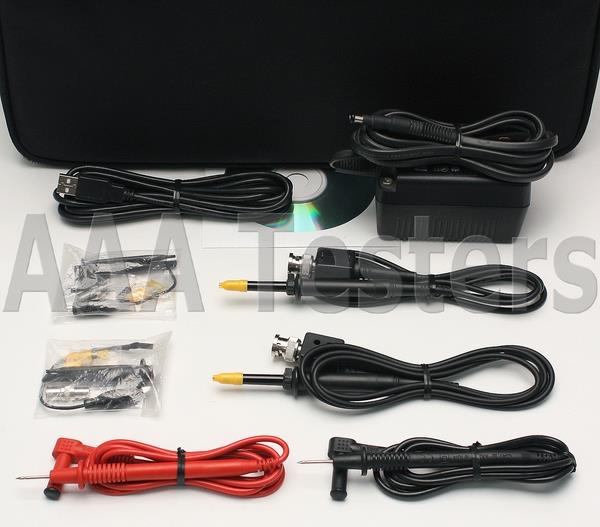

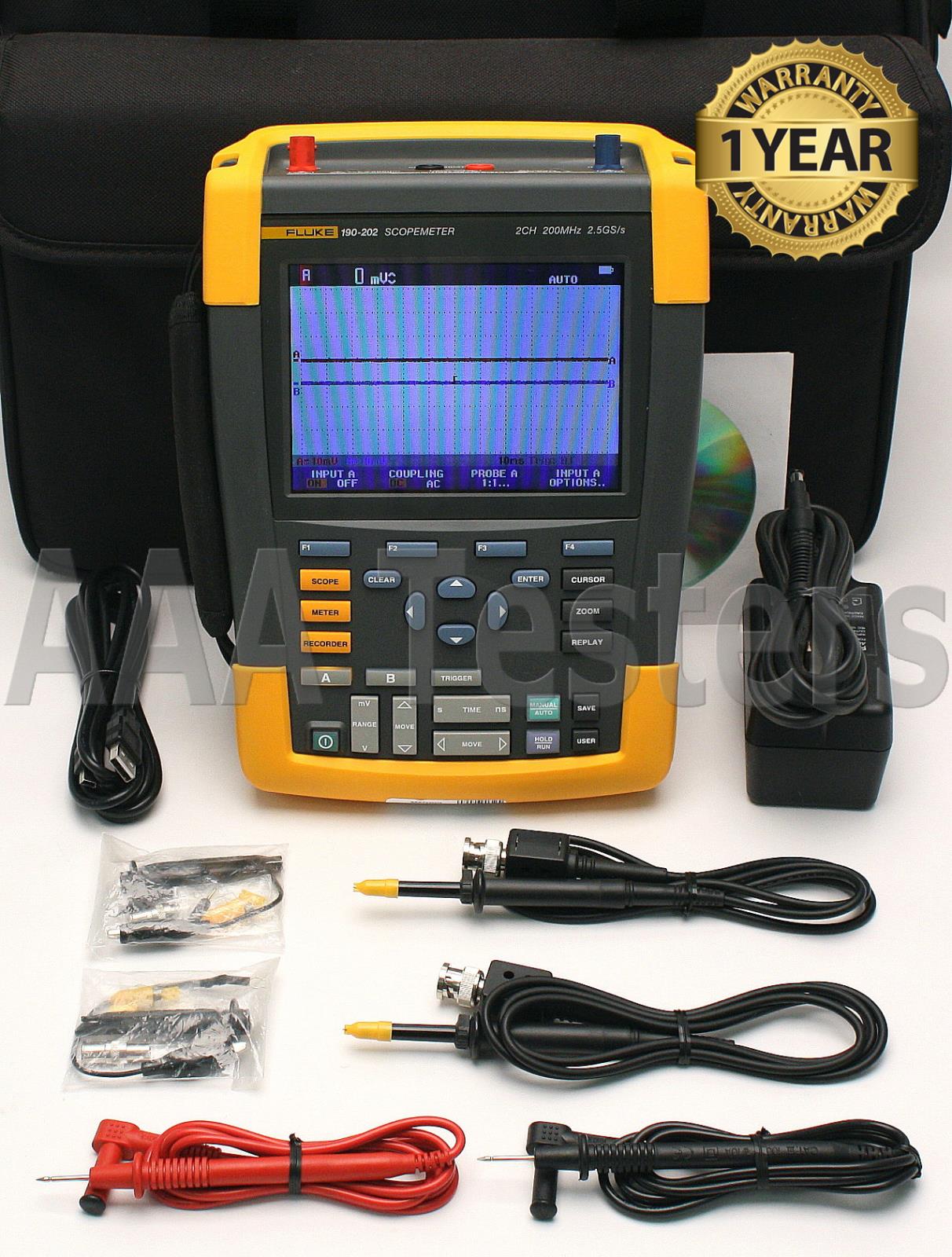

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished

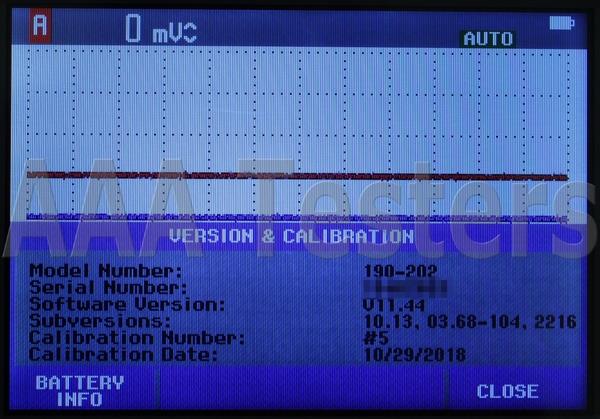

Calibrated: Yes
Warranty: 1 YEAR WARRANTY
190 Series II – a new generation of ScopeMeter
- 200 MHz, 2-Channels plus external trigger
- 2.5 GS/sec on 2 channels simultaneously
- Deep memory: 10,000 points per trace waveform capture (scope mode)
- CAT III 1000 V/CAT IV 600 V safety rated for industrial environments
- Up to seven hours of battery operation using BP291

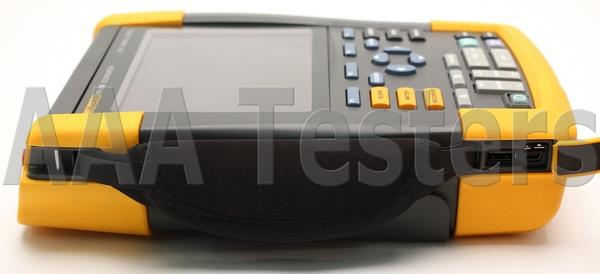

- Isolated USB host port for direct data storage to a USB memory device; USB device port for easy PC communication
- Easy access battery door for quick battery swaps in the field
- Compact and only 2.2 kg (4.8 lb)
- Security slot: lock down oscilloscope with Kensington® lock while unattended
- IP 51 rating, dust- and drip-proof
- Connect-and-View™ triggering for intelligent, automatic triggering on fast, slow and even complex signals
- Frequency Spectrum using FFT-analysis
- Automatic capture and REPLAY of 100 screens
- ScopeRecord™ Roll mode gives 30,000 points per input channel for low frequency signal analysis
- TrendPlot™ paperless recorder mode with deep memory for long-term automatic measurements

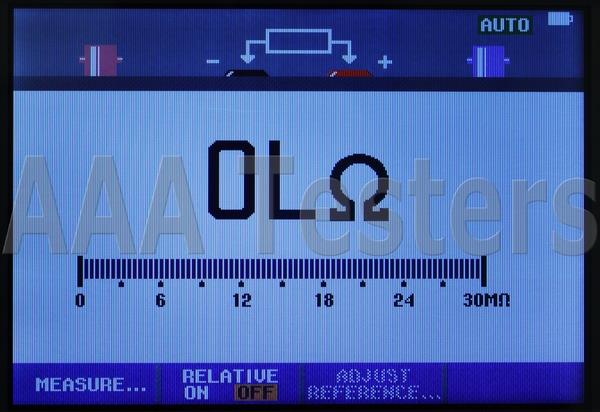

- 5,000 count DMM function included
- Replaces the 199C, 199CM, 196C and 192C models
The Fluke 190-202 ScopeMeter II: Built to withstand harsh environments with the highest safety ratings.
The FLUKE 190-202 ScopeMeter oscilloscope has two electrically isolated channels, and is safety rated for industrial applications. This scope combines rugged portability with the high performance of bench oscilloscopes to take you from troubleshooting microelectronics all the way into power electronic applications.
Its 200 MHz of bandwidth, 2.5 GS/sec sampling rate and deep memory of 10,000 samples per channel allows high-accuracy capture and display of waveform details, noise, and other disturbances.
Perform timing or amplitude related measurements on three phases or three-axis control systems or simply compare and contrast multiple test points in a circuit under test. Features like TrendPlot™, ScopeRecord™, and Connect-and-View™ help you quickly diagnose industrial machinery, automation and process controls, and power electronics to minimize repair costs and downtime. These features make the oscilloscopes easy to use especially when diagnosing the most difficult problems like complex waveforms, intermittent events and signal fluctuations or drift.
Model
|
190-202
|
Number of Channels
|
2
|
Bandwidth
|
200 MHz
|
Rise Time
|
1.7 ns
|
Number Of Scope Inputs
|
2 input channels plus external trigger
|
Channel Architecture
|

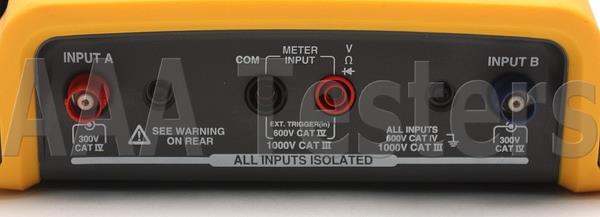

All inputs fully insulated from each other and from ground
Inputs may be activated in any combination
|
Input Coupling
|
AC or DC, with ground level indicator
|
Input Sensitivity
|
2 mV/div to 100 V/div, plus variable attenuation
|
Bandwidth Limiter
|
User selectable: 20 kHz, 20 MHz or full bandwidth
|
Normal / Invert / Variable
|
On each input channel, switched separately
|
Input Voltage
|
CAT III 1000 V/CAT IV 600 V rated,
|
Accuracy
|
8 bit
|
Input Impedance
|
1 MΩ ± 1 % // 14 pF ± 2 pF
|
Horizontal
|
Maximum real-time sample rate (sampled simultaneously)
|
2.5 GS/s (2ch)
|
Record Lenght
|
Up to 10,000 samples per channel
|
Time base range
|
2 ns/div to 4 s/div
|
Maximum record length
|
10,000 samples per channel in scope mode;
30,000 points per channel in ScopeRecord™ Roll mode (see ‘Recorder mode’)
|
Timing accuracy
|
± (0.01 % of reading + 1 pixel)
|
Glitch capture
|
8 ns peak detect on each channel
(using real time sampling and data compression, at any timebase setting)
|
For full Fluke 190-202 product specifications, please click here: Fluke 190-202
|
