Details
Features

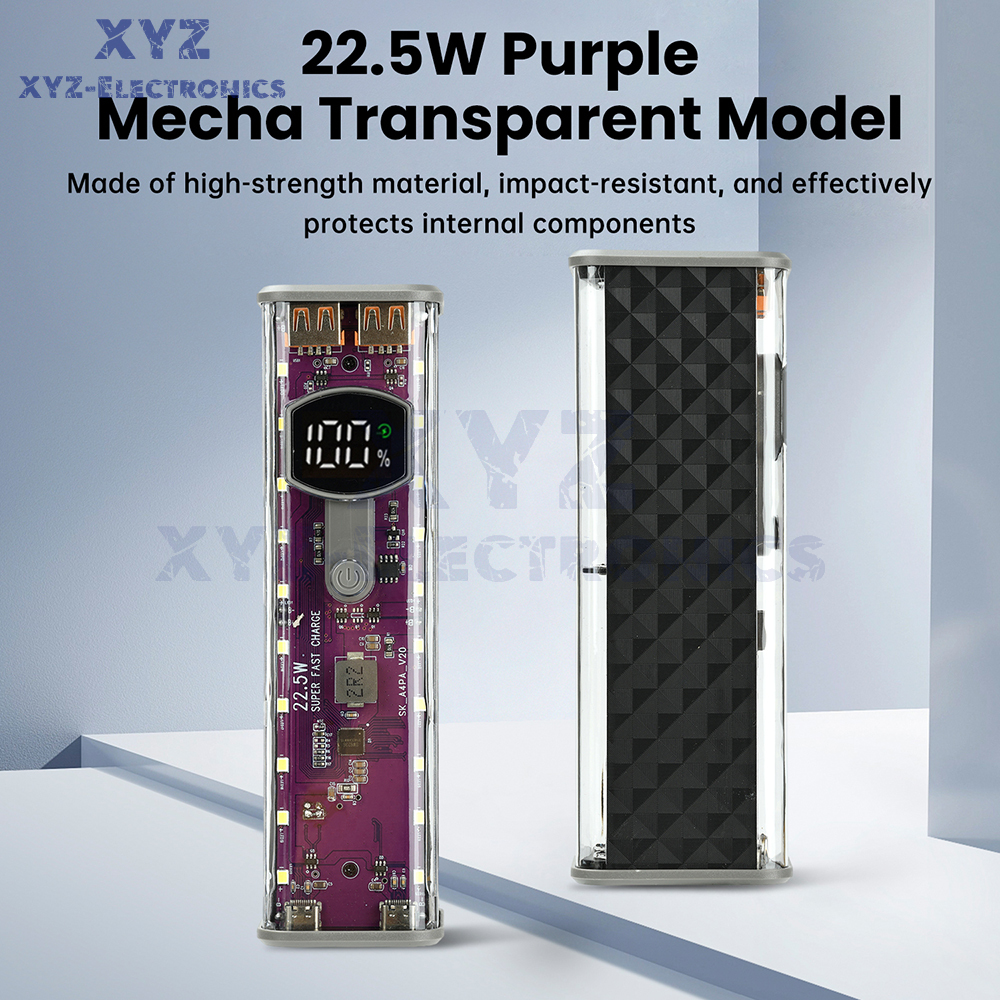

1. Constructed with high-strength materials for impact resistance and effective internal component protection

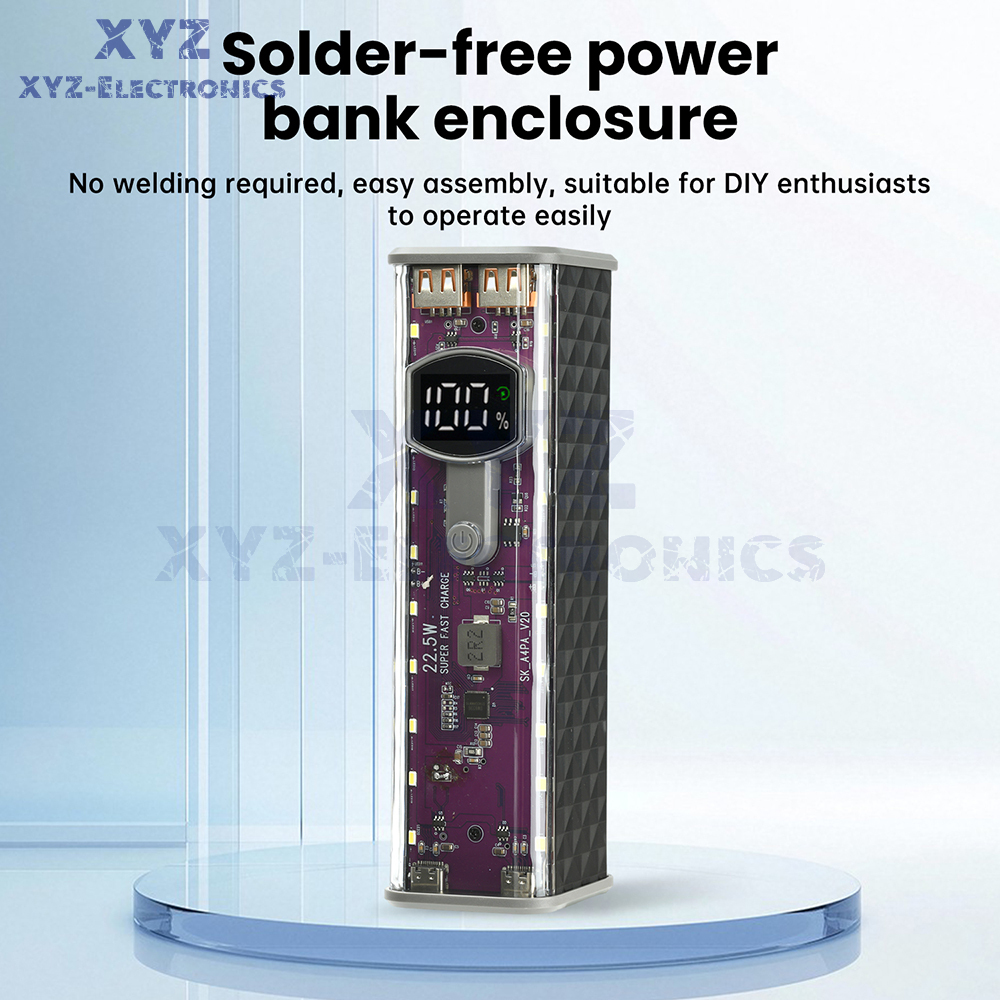

2. Solder-free design enables simple assembly, ideal for DIY enthusiasts

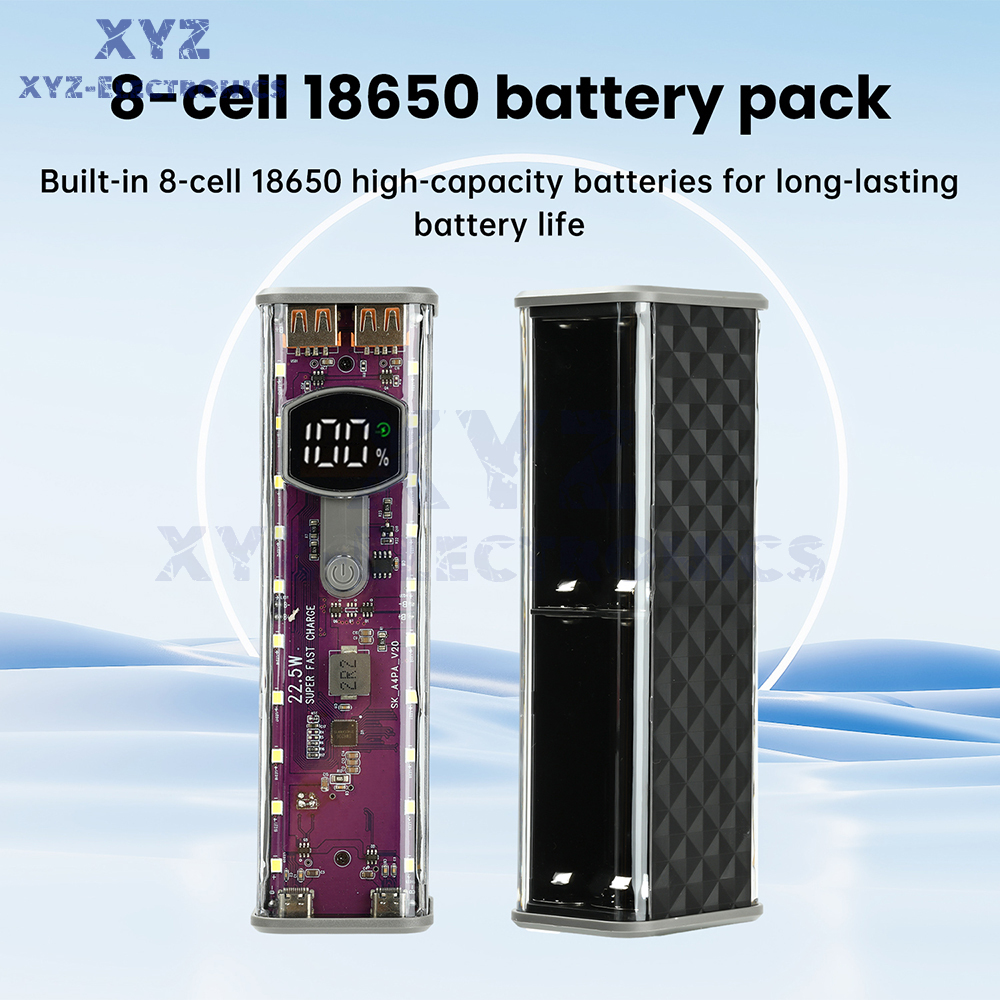

3. Built-in 8 high-capacity 18650 batteries deliver extended runtime
4. Equipped with efficient voltage regulation circuitry for stable output and connected device protection
5. Integrated multi-protection functions ensure safe and stable operation

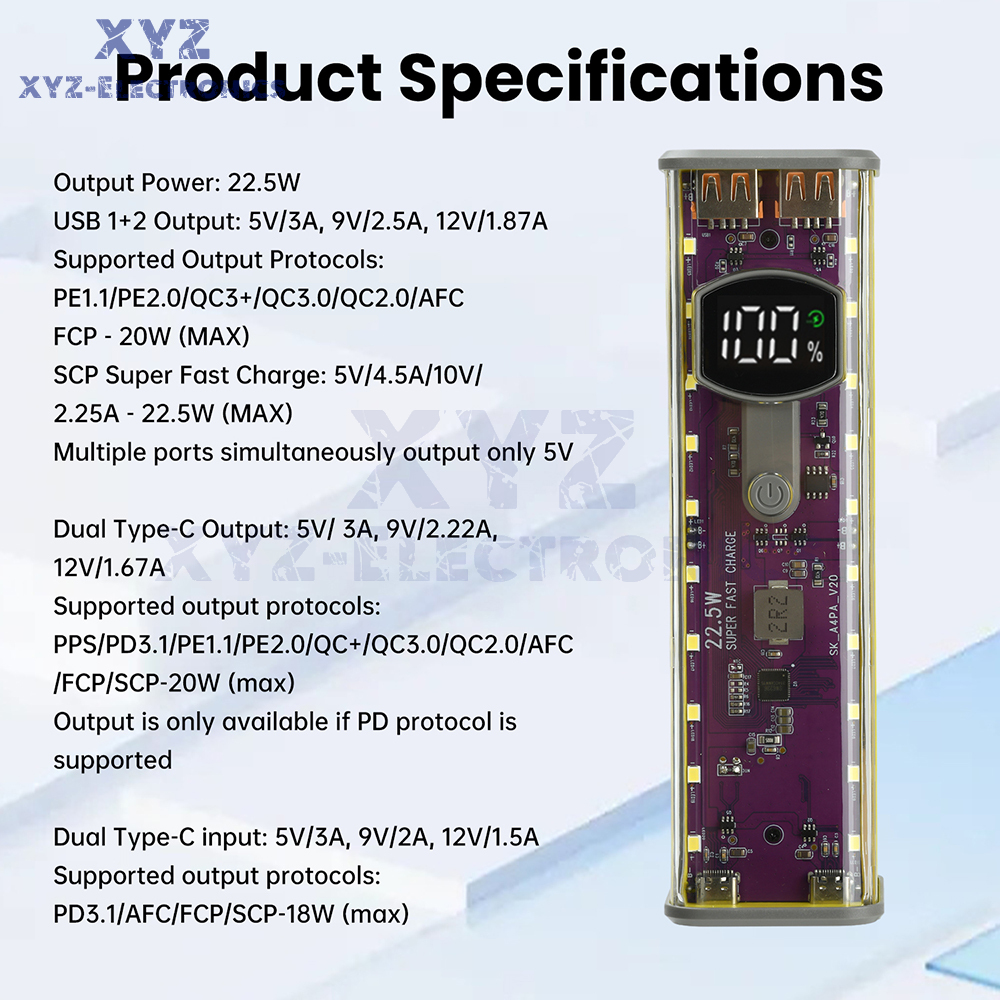

Parameter
Output Power: 22.5W
USB1+2 Output: 5V/3A, 9V/2.5A, 12V/1.87A
Supported Output Protocols: PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP-20W (MAX)
SCP Super Fast Charging: 5V4.5A/10V2.25A-22.5W (MAX)
Multi-port simultaneous output limited to 5V
Dual Type-C Output: 5V/3A, 9V/2.22A, 12V/1.67A
Supported Output Protocols: PPS/PD3.1/PE1.1/PE2.0/QC+/QC3.0/QC2.0/AFC/FCP/SCP-20W (MAX)
Output requires PD protocol support
Dual Type-C Input: 5V/3A, 9V/2A, 12V/1.5A
Supported Output Protocols: PD3.1/AFC/FCP/SCP-18W (MAX)
Supports 5V simultaneous charging and discharging
If proprietary phone protocols are unsupported (USB lacks fast charging), use PD charging (TYPE-C output) for more stable output via PD public protocols
Button functions:
Single click displays battery level; double click disables output.

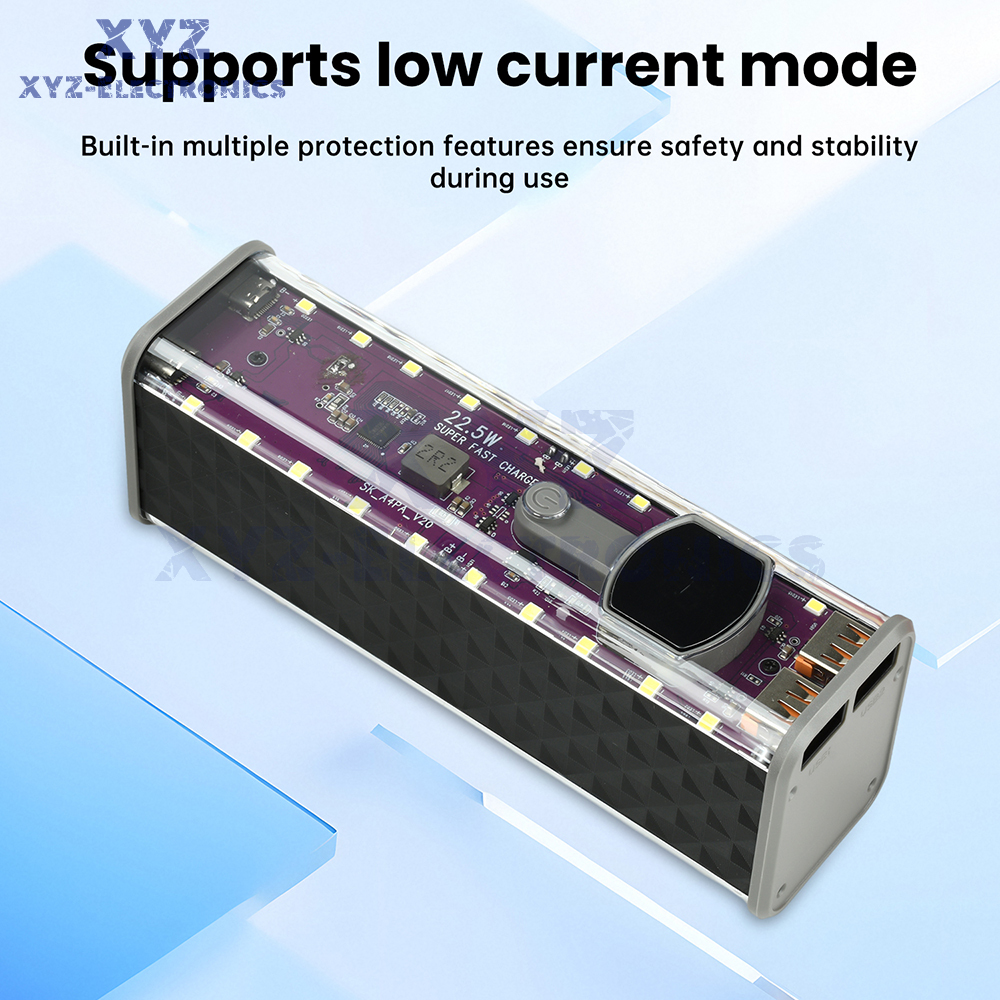

Long press activates LED outdoor light and low-current mode.
After activation:
Single click adjusts light control mode; double click disables low-current mode.
Important Notes
1. After assembly, activate the power bank by charging it with a charger.
2. After activation, fully discharge the power bank first, then charge for approximately 20 hours to fully balance the battery.
3. Only use flat-top 18650 batteries without protection boards. Batteries must be in good condition with undamaged positive terminals. If the positive terminal is damaged (e.g., peeling), it must be insulated. Do not use pointed-top batteries or batteries with protection boards.

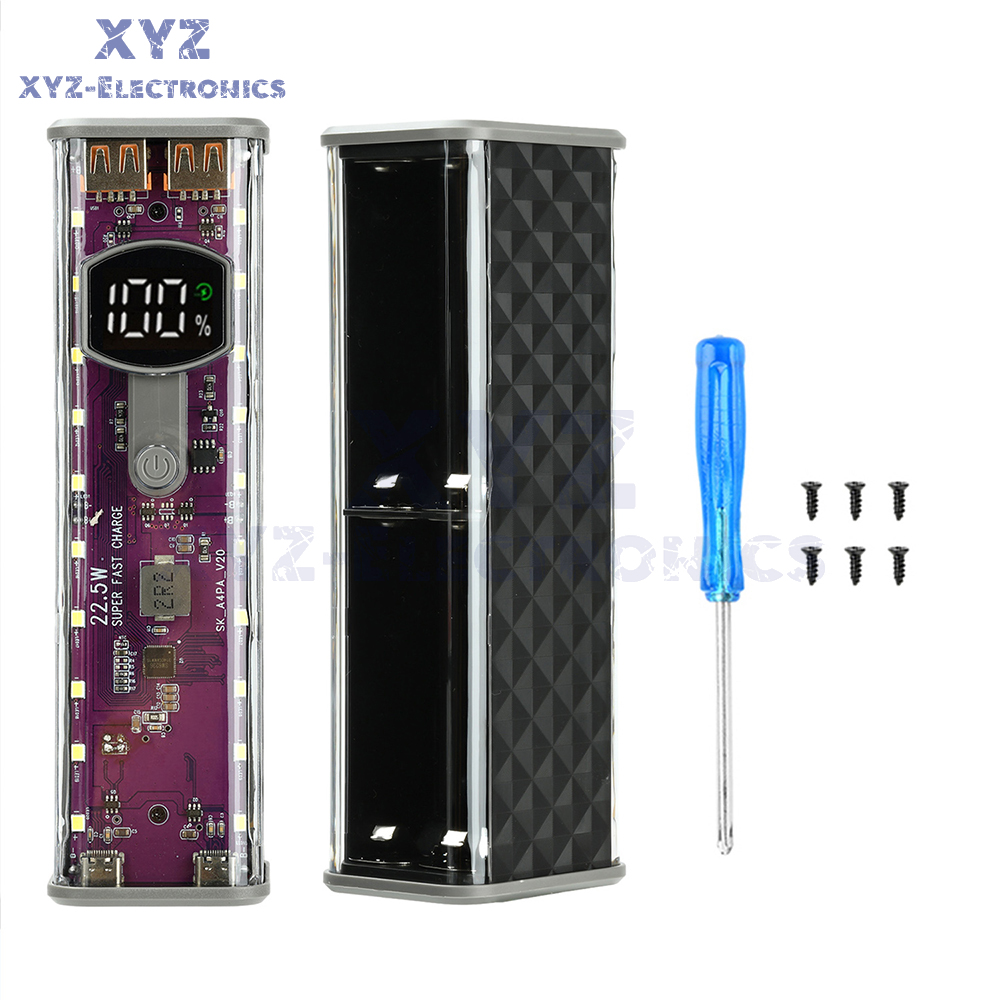

Package include
Power Bank Kit*1
Accessory Pack*1
