Details
Features:

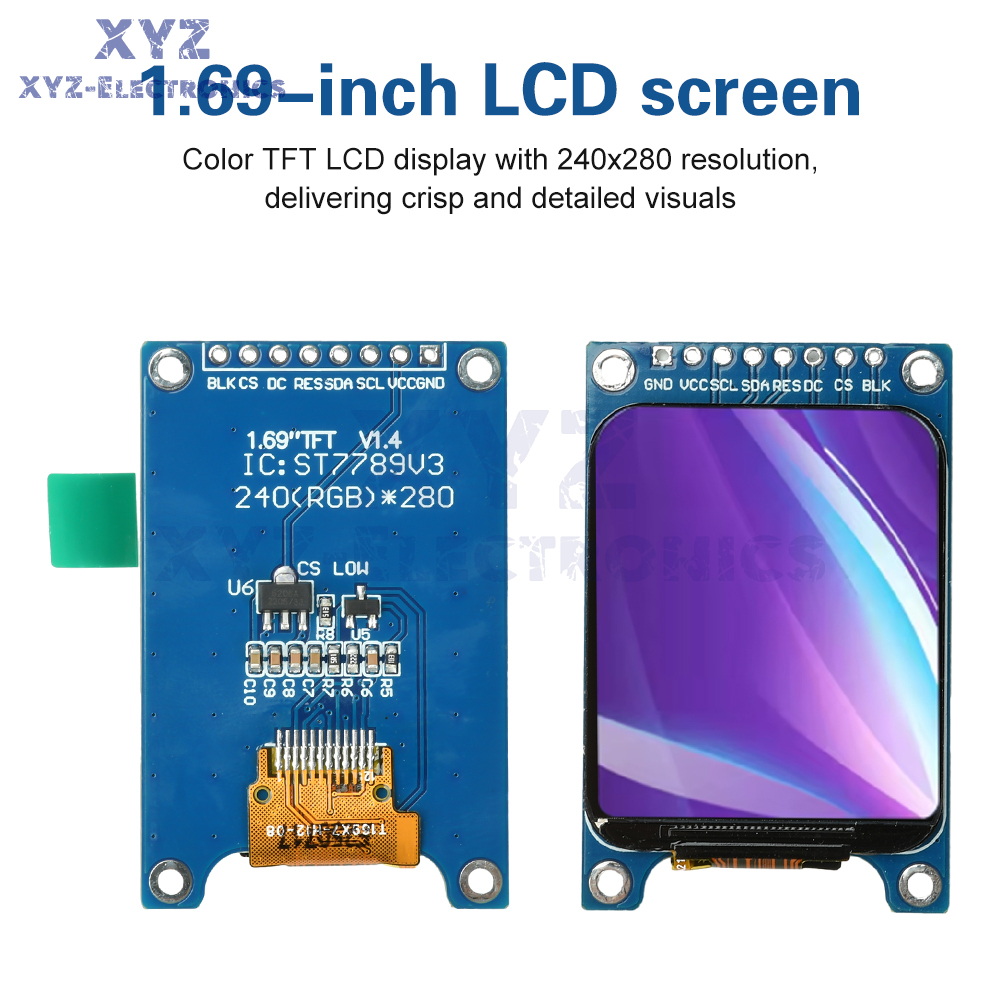

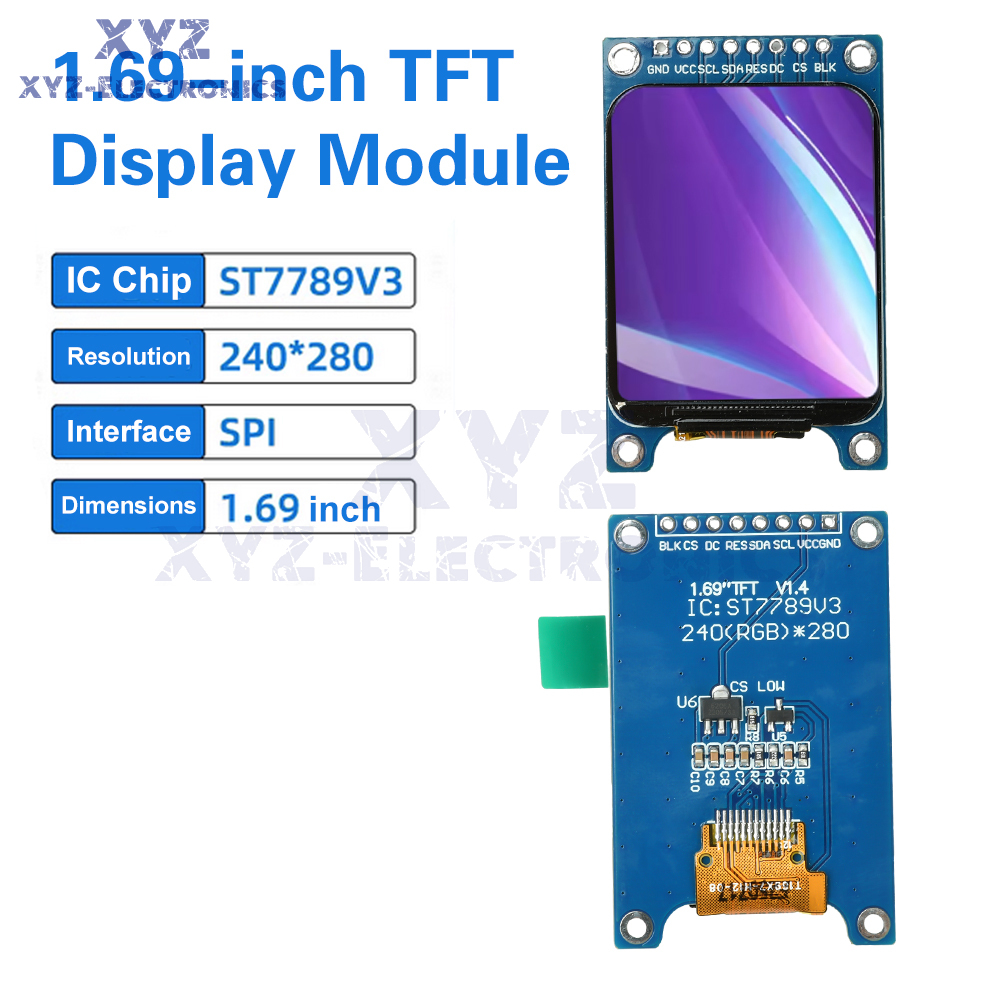

1.1.69 inch color TFT LCD screen with a resolution of 240x280, displaying clear and delicate images.

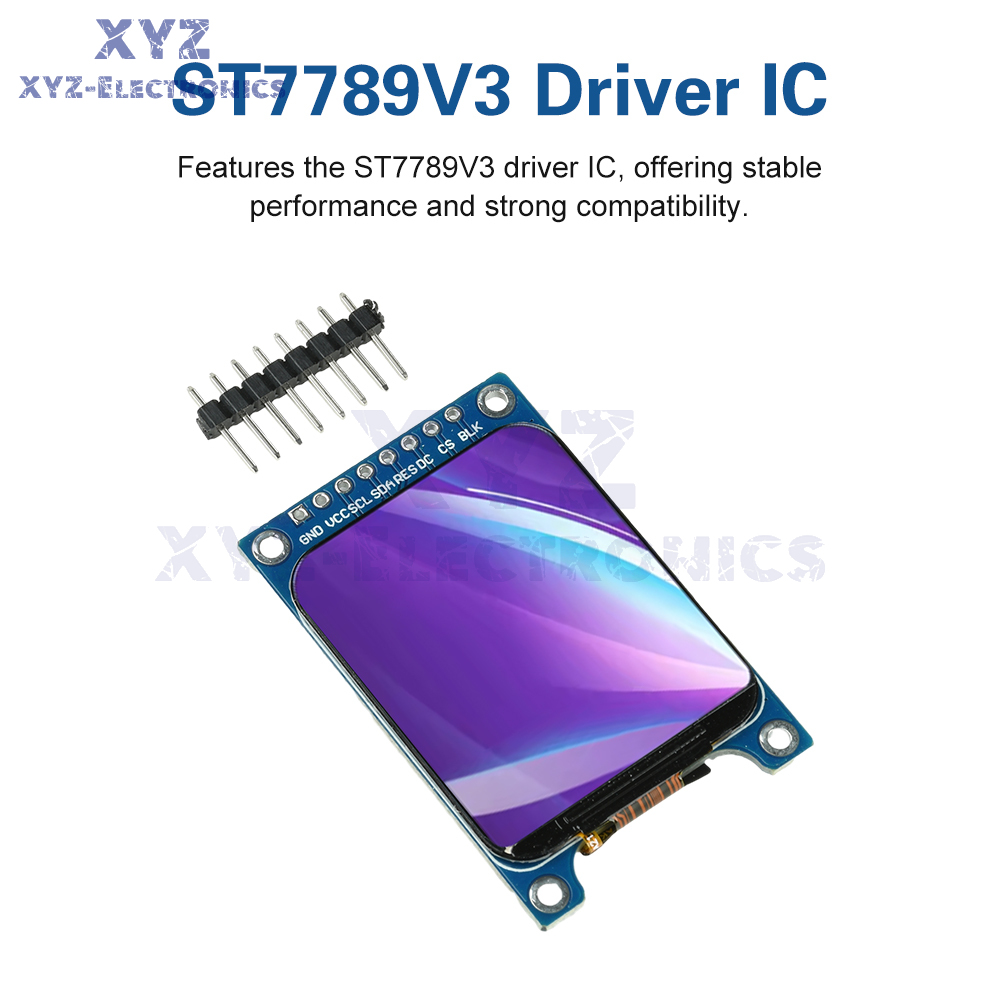

2. Adopting ST7789V3 driver IC, with stable performance and strong compatibility.

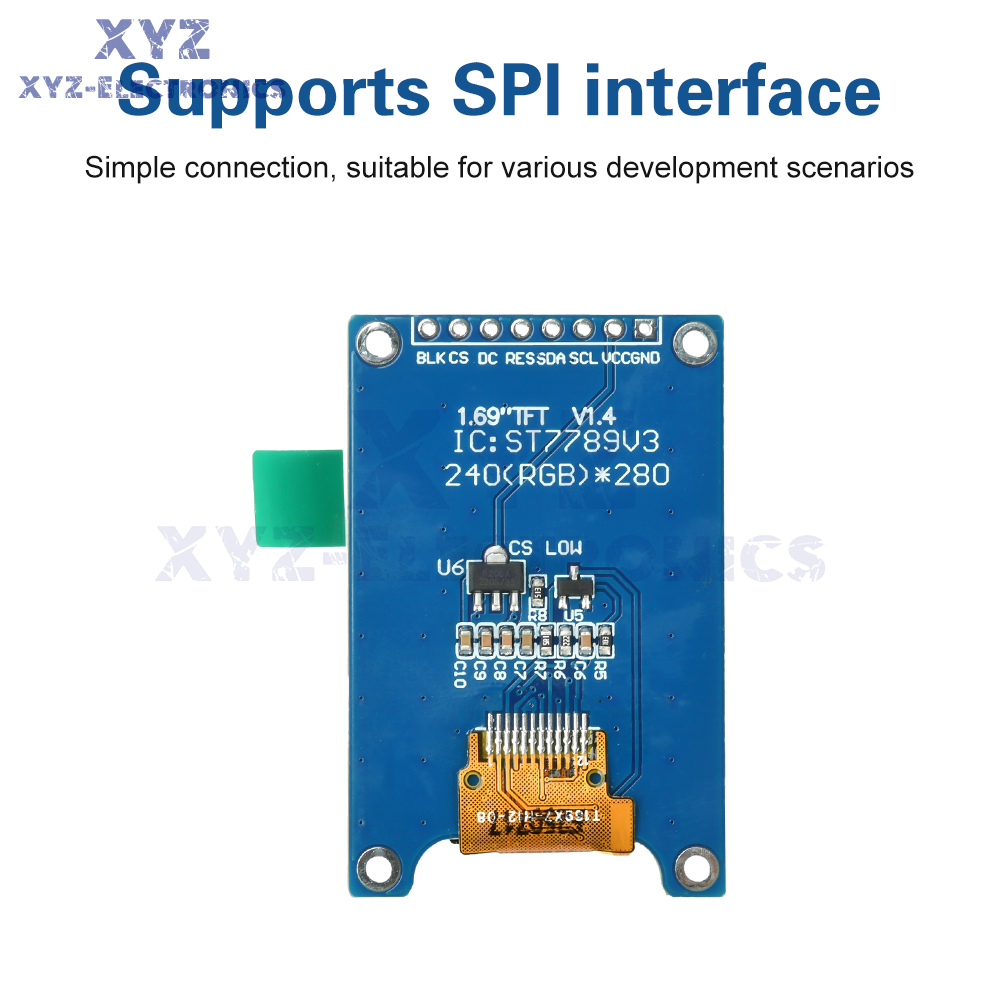

3. Supports SPI interface, easy to connect, suitable for various development scenarios.

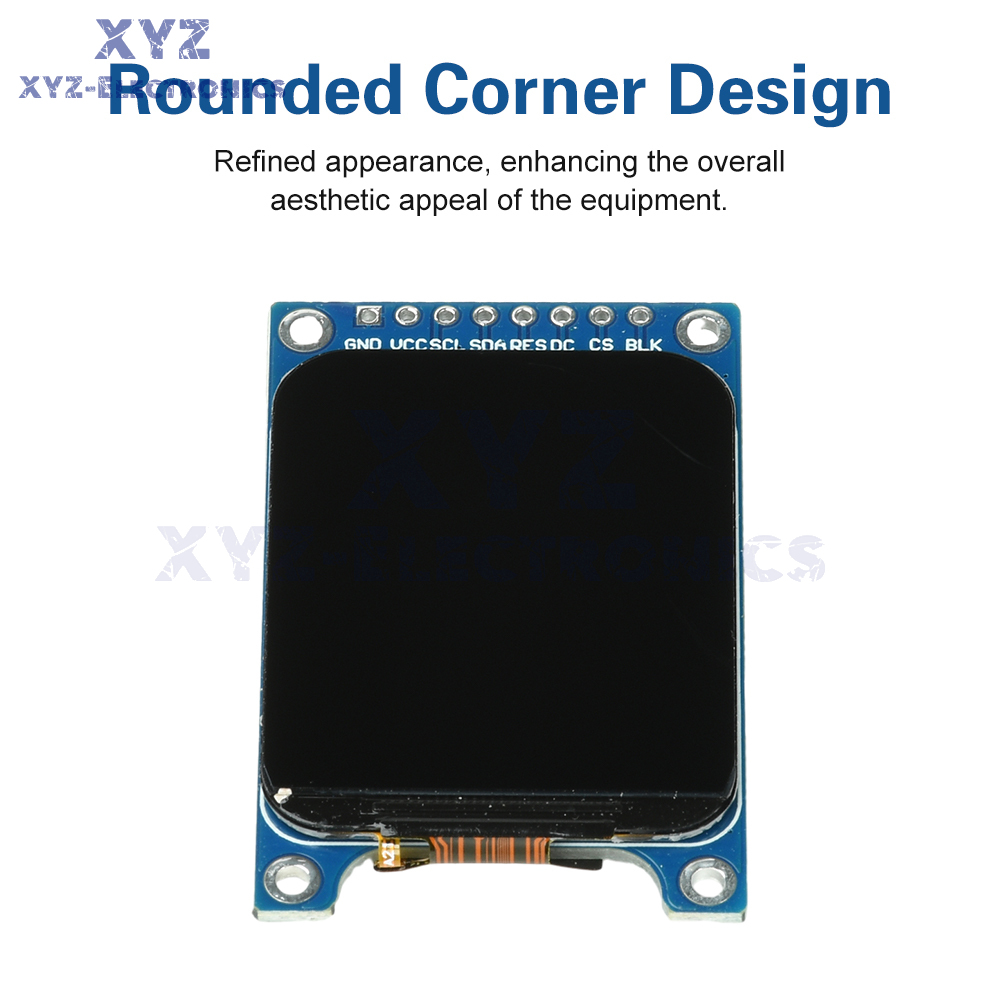

4. Rounded corner design, exquisite appearance, enhances the overall beauty of the equipment.

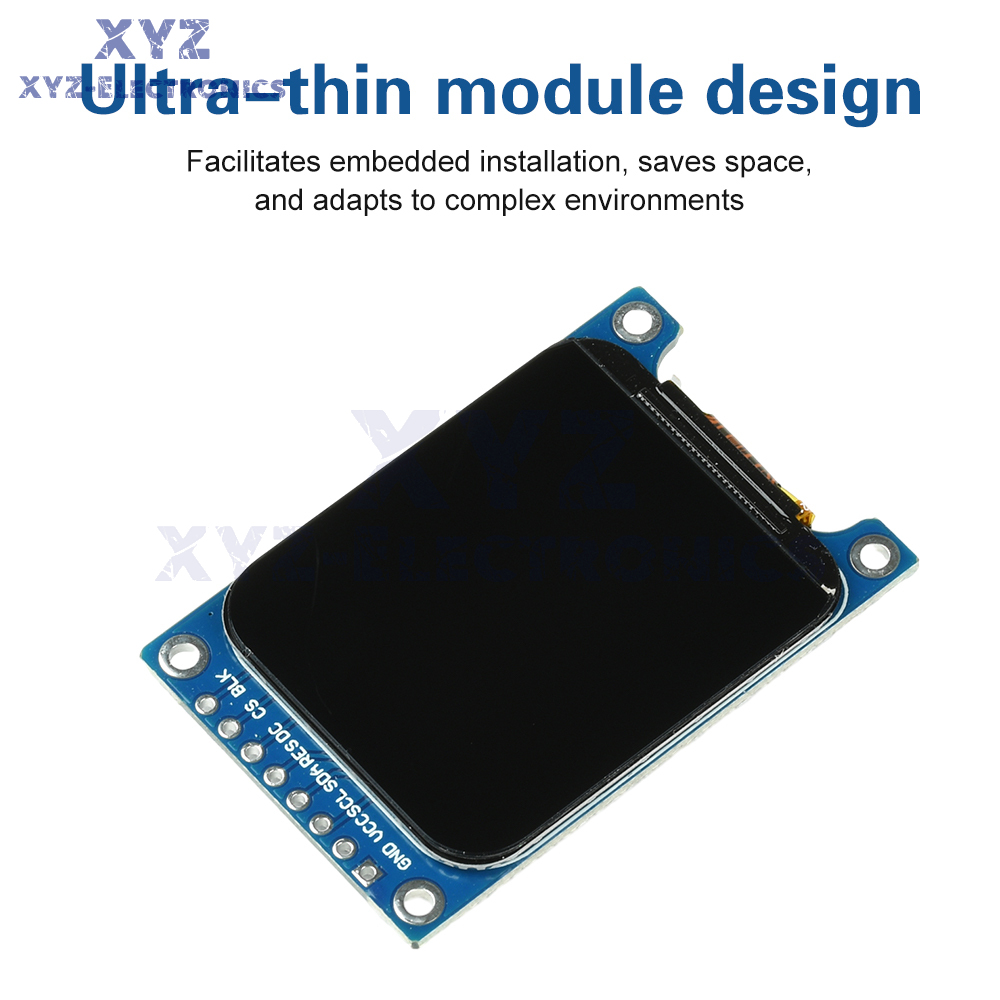

5. Ultra thin module design, convenient for embedded installation, space saving, and adaptable to complex environments.
Parameters:
Size: 1.69 inches
Resolution: 240 * 280
Driver IC: ST789V3
Interface type: SPI
Display color: Color
Power supply: 2.8V~3.3V
Working temperature: -20 ℃~70 ℃
Link method: 8-pin
Display size (mm): 27.97mm * 32.63mm
Screen size (mm): 30.07mm * 37.43mm * 1.56mm
Module size (mm): 31.38mm * 48.56mm * 3mm
Package Include:
1X module
1X pin arrangement (optional with or without welding)
