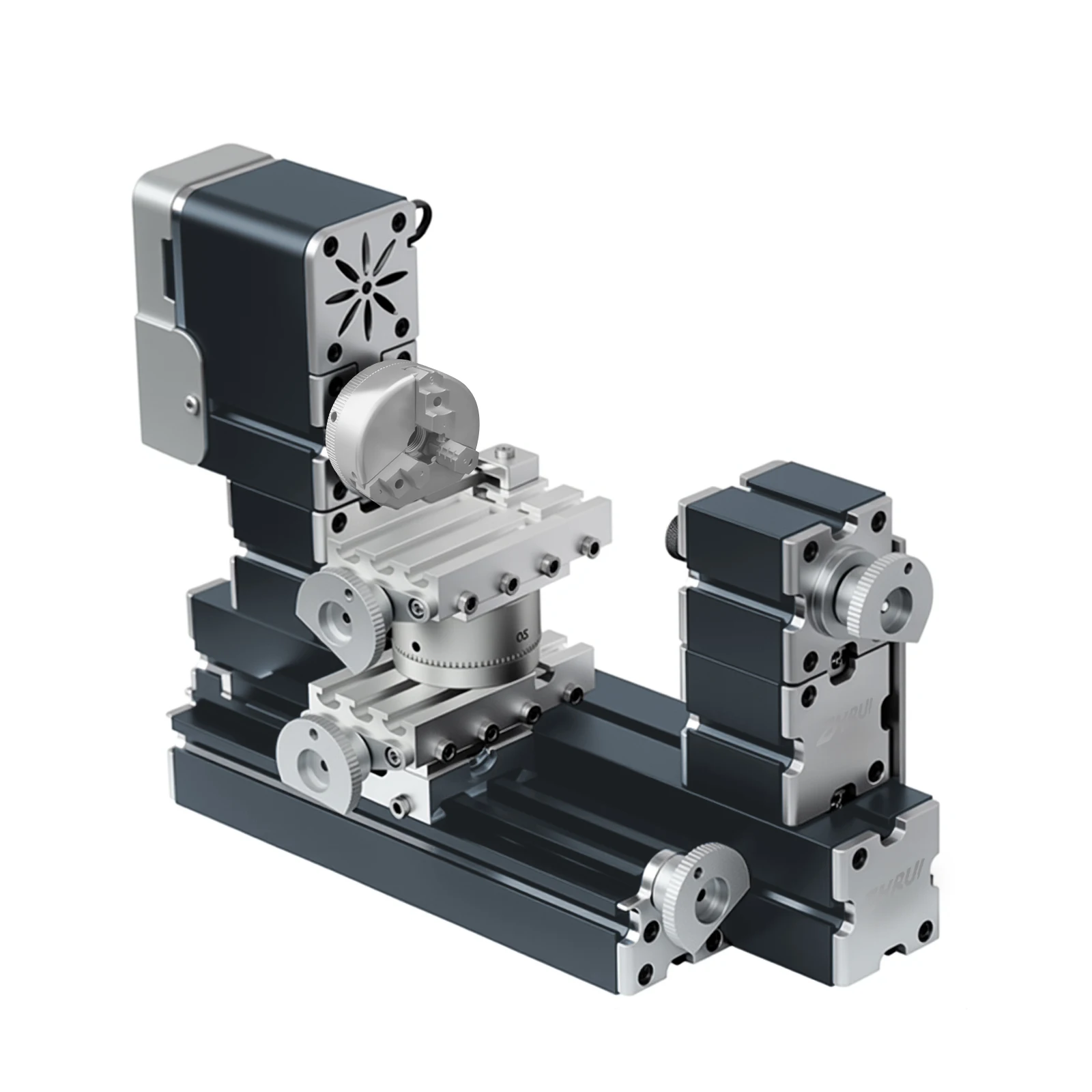

Powerful 60W Electroplated Metal Mini Rotating Lathe/60W, 12000rpm Miniature Lathe for Hobbyist Modelmaking

Features:
4-axis Rotary Mini ature Metal Lathe is generally used in educational field, big power mini metal machine will enlarge the the diameter to 150mm by adding intermediate piece, and the a-axis of 4-axis rotary miniature lathe could rotate from -90 degree to +90 degree and the positioning accuracy is 2.5 degree by featuring with fast angle positionning processing function compared with mini metal lathe. Children can use it to make DIY handcraft with bigger size.

Technical Parameter:

1. Hi-power motor is adopted with all drive axes, maximum speed up to 12000RPM , motor power supply is 144W
2. Input voltage/Current /Power: 12V/5A/60W
3. Input Voltage of Switch Power Supply: 110V - 240V
4. 3-jaw chuck can be used to clamp the material at a maximum diameter of 50mm, single-action 4-jaw chucks is available, maximum diameter is expanded to 60 mm. It is perfect optional choice for irregular shape (such as square, elliptical, hexagonal material), also expand the effective work area.
5. The length of processed material: 150 mm
6. The chuck and collets is 1 to 6mm
7. X-axis slider travels: 150mm
8. Center height-75mm,center distance- 150 mm.
9. Machine size:330mm*130mm*200mm
