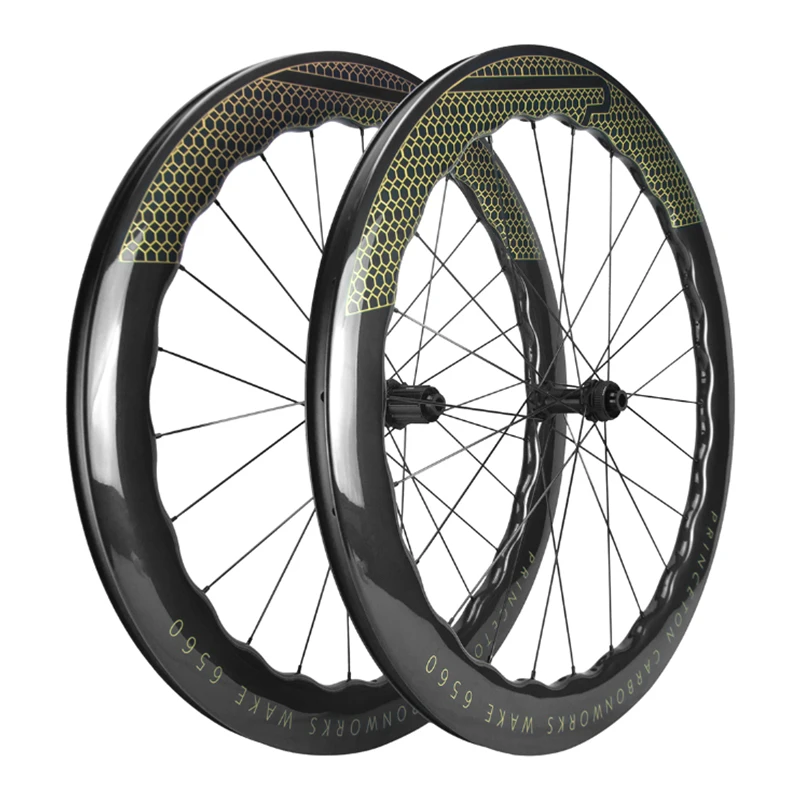

gold color photo:

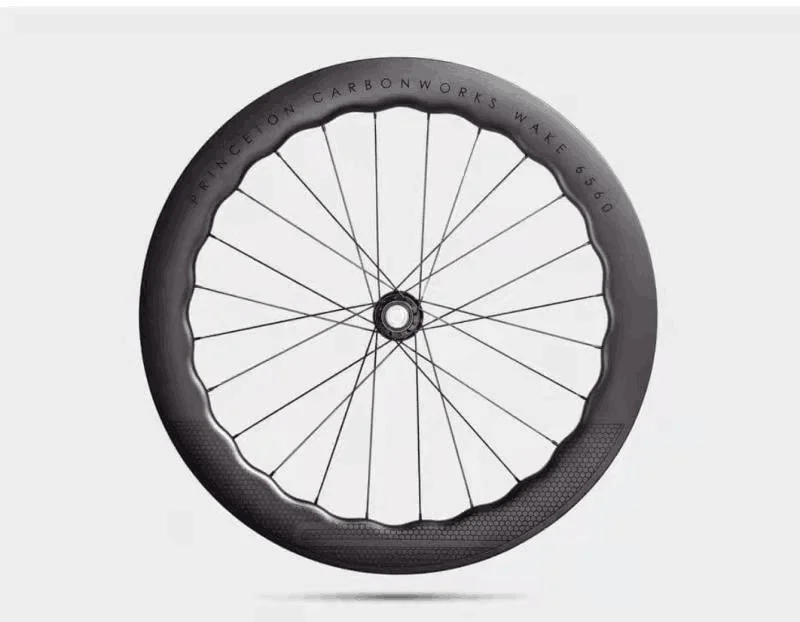

white color photo:

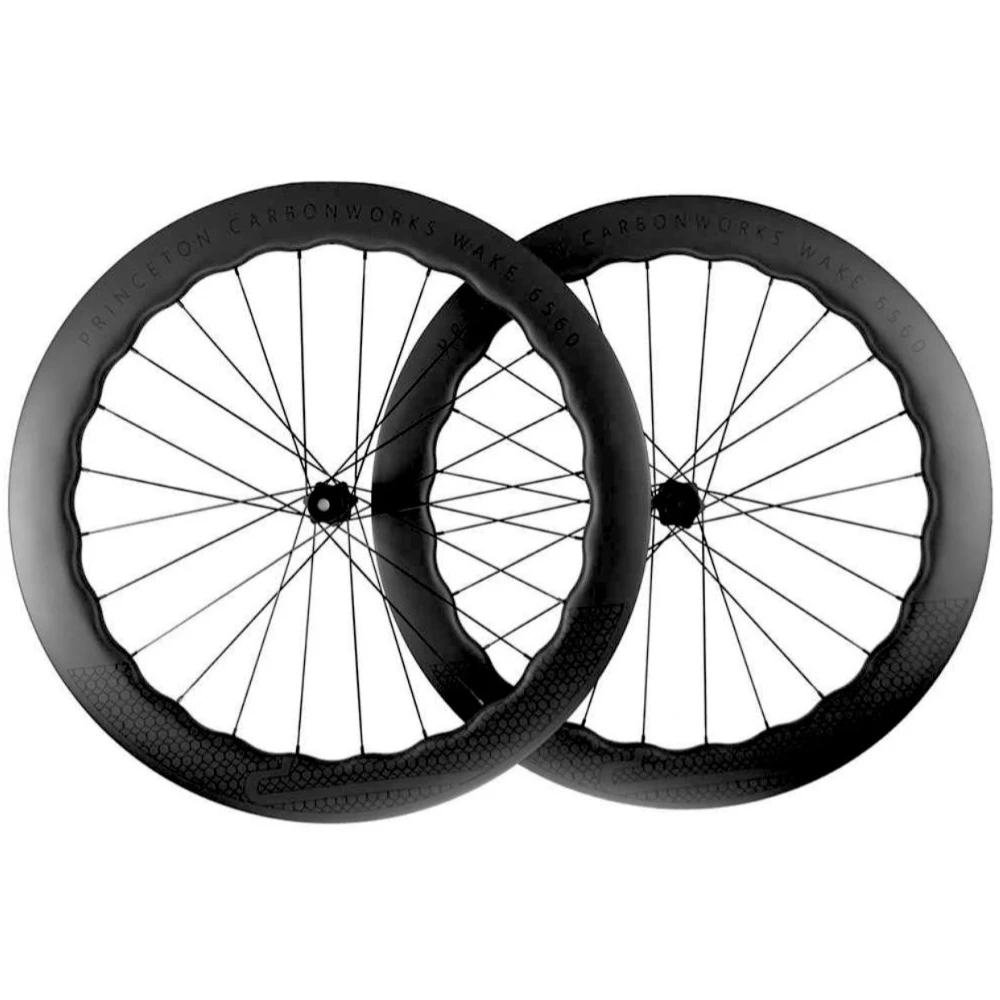

black color photo:
silver color photo:


no logo no Stickers:


Thru Axle style and QR skewers style comparison chart:
DESCRIPTION & MATERIALS

  • Size: 700C

  • Model: 60/65mm wave shape clincher tubeless wheelset-disc brake

  • Rim width: 25mm

  • Finish: matt ; gloss (please choose your favorite finish)

  • Material: UD(Japan T800 carbon fiber)

  • Color: white ; gold ; black ; silver ; no logo (please choose your favorite color)

  • Hole count: 24 spokes

  • 1pair wheelset(one front wheel and one rear wheel ,QR skewers style with skewers,Thru Axle style without skewers.)

  • include spokes(black color bladed spokes, Stainless steel material.)

  • DK01 black Direct pull disc brake hubs(QR Skewers style or Thru Axle style, Center lock style or Six nail style ,please choose your favorite.can use for SHIMANO/SRAM 8/9/10/11 speed.)

  • Skewers style hubs is front 9mm*100mm ,rear 10mm*135mm ;Thru Axle style hubs is front 12mm*100mm ,rear 12mm*142mm

  • Suitable for disc brake ,center lock style or six nails style support.

  • Default without brake surface

  • Weight: approx Front wheel 0.85kg , Rear wheel 0.99kg

  • Bike Type: Road Bike

  • Passed Europe EN14781 Standards and the JAPAN JIS Standards.

  • One year quality warranty

Important parameters of the wheelset:

Max recommend rider weight: 150KG

Max recommend tyre pressure: clincher-120PSI ; tubular-220PSI

Rim outer diameter: approx 633mm

Front wheel spokes tension: approx 80-100kg

Rear wheel spokes tension: approx 80-100 / 100-120kg

Flatness and Yaw: <0.2mm

Roundness: <0.5mm
