700C 88mm depth carbon wheels 25mm width clincher/Tubular Road bike full carbon fiber wheelset 3K matte finish U-shape rim
When you order, you will see "Leave a message for this seller" , you can write your request in the message.
Description
| Rim | Used for | Road bike |
| Meterial | T700 Toray Carbon Fiber | |
| Size | 700C | |
| Type | Clincher (Tubular Available) | |
| Weave options | 3K(UD/12K Available) | |
| Finish | Matte(Glossy Available) | |
| Depth | 88mm | |
| Brake track width | 25mm(if you want 23mm,pls contact us) | |
| Weight | 630g+/-15g | |
| Hole count | 20/24 | |
| Hole type | External or Internal | |
| ERD | 464mm | |
| Hub | Model name | Powerway R36 |
| Sealed Bearlings | Front:2 Rear:4 | |
| O.L.D | Front:100mm Rear:130mm | |
| Compatible | shiman0 8/9/10/11speed or Campagn0l0 10/11speed | |
| Color | Black(Red Available) | |
| Weight | Front:85g Rear:213g | |
| Spoke | Pattern | Front -------------------- radial |
| Rear drive side -------------------- 2X cross | ||
| Rear non drive side --------------- radial | ||
| Length | Front -------------------- 217mm | |
| Rear drive side -------------------- 222mm | ||
| Rear non drive side --------------- 217mm | ||
| Shape | Pillar 1432/1423 Aero | |
| Color | Black(White Available) | |
| Nipple | Meterial | Pillar alloy nipples |
| Color | Black(Red/silvery Available) | |
| Brake surface | Meterial | Basalt fiber |
| Width | 11mm | |
| Paramete | Max tire pressure | 125 psi |
| Max ride weight | 120kg/240lb | |
| Quick releases color | Black/ Red | |
| Including items | Front and rear wheelsets,quick releases and gifts | |
| Warranty | 18months |

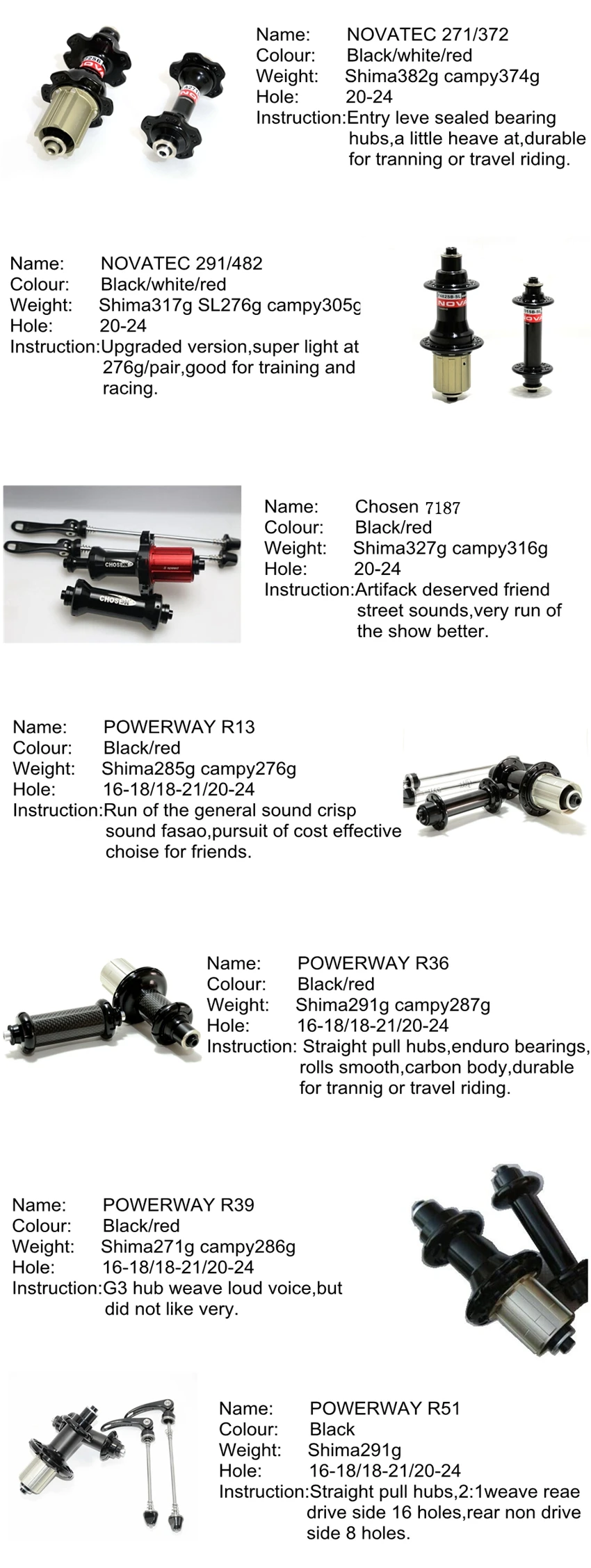

Hubs Available
Product configuration
Wheelsets Weight
88C wheel+ R36 Hub+1432spoke weight:1869+/-30g
88C wheel+ R36 Hub+1432spoke weight:1690+/-30g
| Single Rim Clincher Weight | |
| 50mm | about 490+/-20g |
| 38mm | about 460+/-20g |
| 60mm | about 530+/-20g |
| 88mm | about 640+/-20g |
| Single Rim Tubular Weight | |
| 38mm | about 360+/-20g |
| 50mm | about 400+/-20g |
| 60mm | about 430+/-20g |
| 88mm | about 550+/-20g |
| Spoke weight(spoke+nipple) | |
| pilar1432 | 7g/1pic |
| pilar1420 | 5g/1pic |
| pilar1423 | 7g/1pic |
| Sapim cx-ray | 4.5g/1pic |
NOTE:
If you decide to purchase, please choose from the following order spec template and tell us.
Weave:3K or UD
Finishing:Matte or Glossy
Hub Color:Black or Red
Hub Compatibility:Shiman0 9/10/11 Speed or Campagn0lo 10/11 Speed
Spokes Color: Black or White Color
Nipples Color:Black or Red Color
Skewer Color: Black or Red Color
Brake Pads Compatibility:Shiman0 or Campagn0l0
Product typr:carbon wheels or carbon fiber wheelset

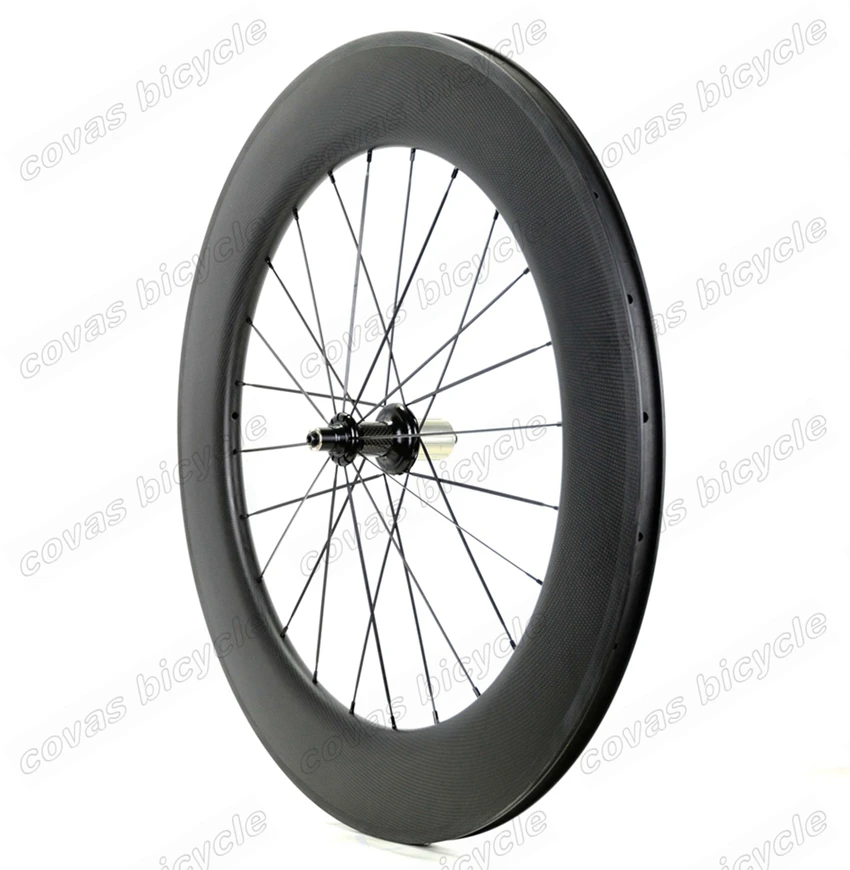

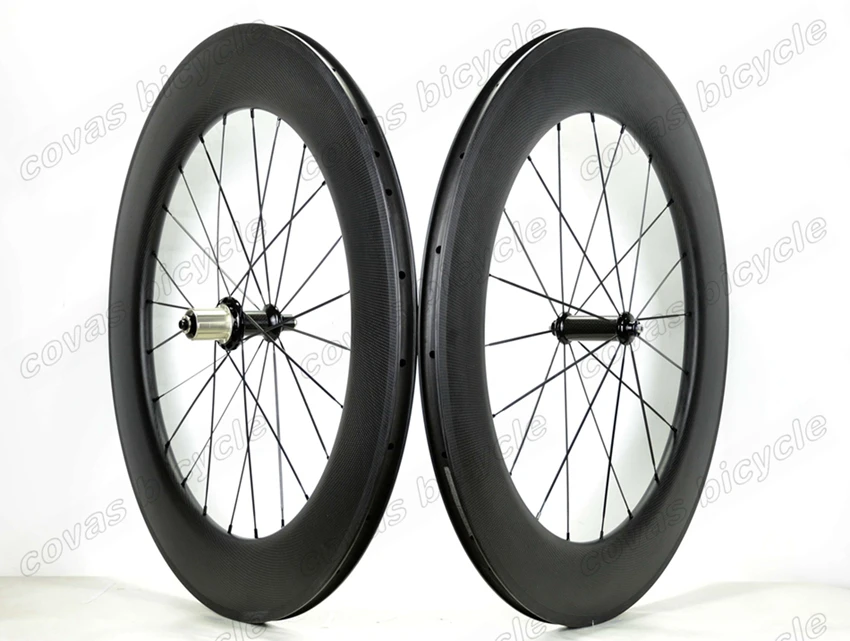

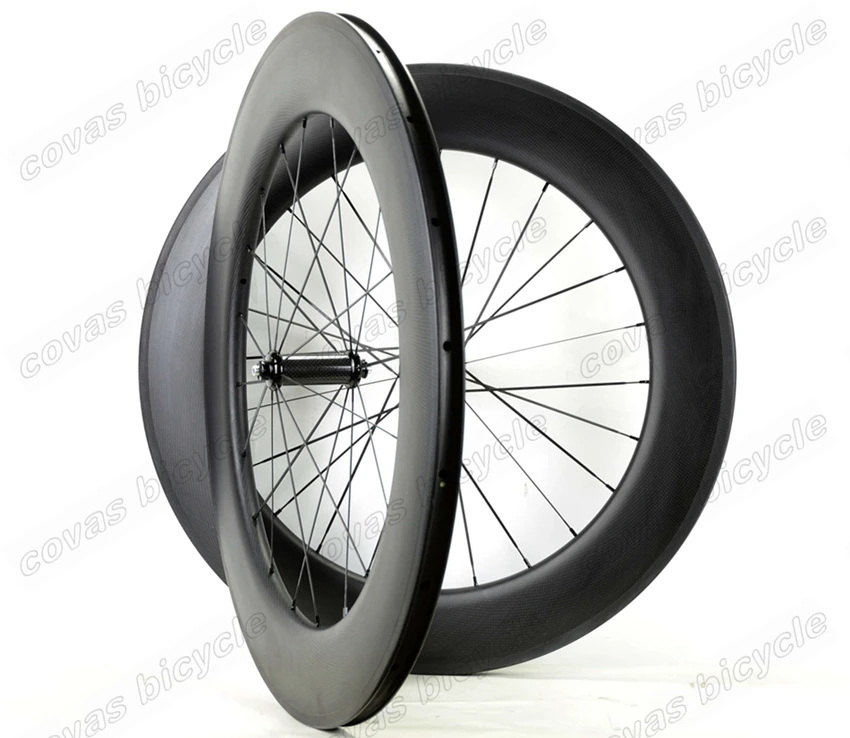

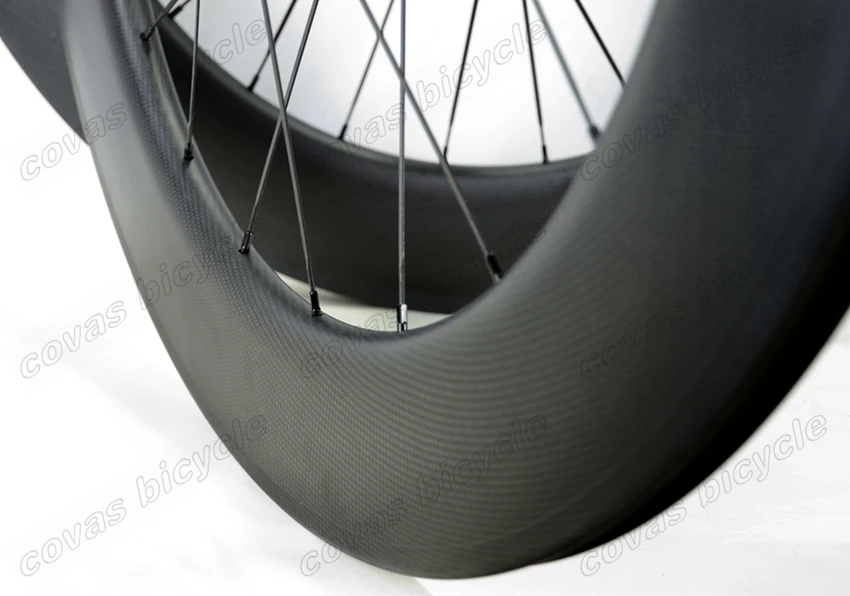

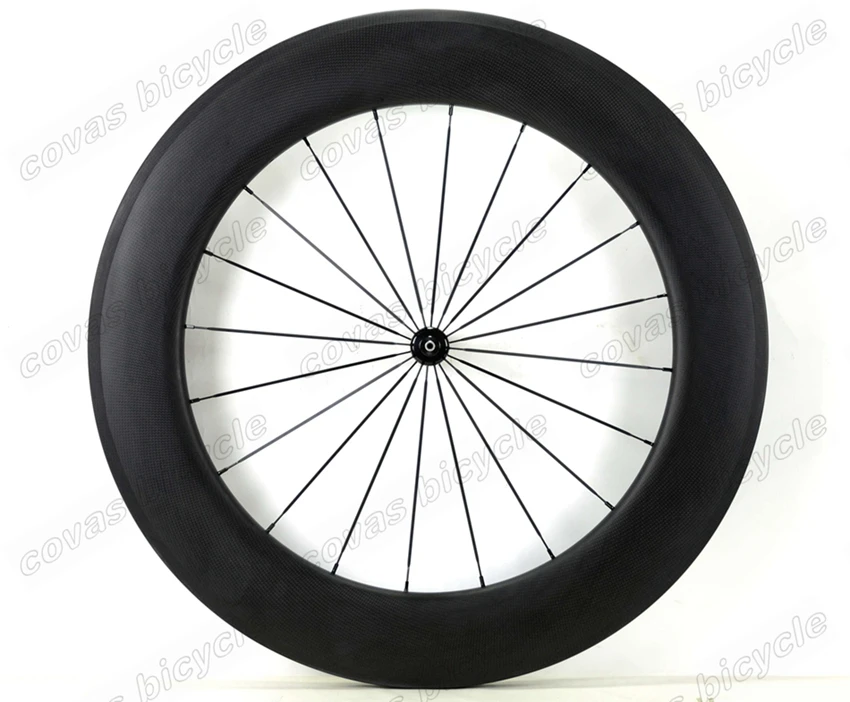

Details picture
We can make customized painting for the rims, if you want custom logos, please contact us.
Rims section drawing
Technology
