Details
1. Utilizes the QCC3034 Bluetooth solution, supporting APTX/APTX-HD/AAC high-definition decoding.
2. Equipped with dual TPA3116D2 amplifier chips for powerful output and clear, stable sound quality.
3. Supports multiple audio inputs including Bluetooth/AUX/USB to meet diverse usage needs.
4. Features a 2.1-channel design with independent bass and treble adjustment for an immersive listening experience.
5. Incorporates an enlarged heat sink for efficient cooling, ensuring stable and reliable long-term operation.

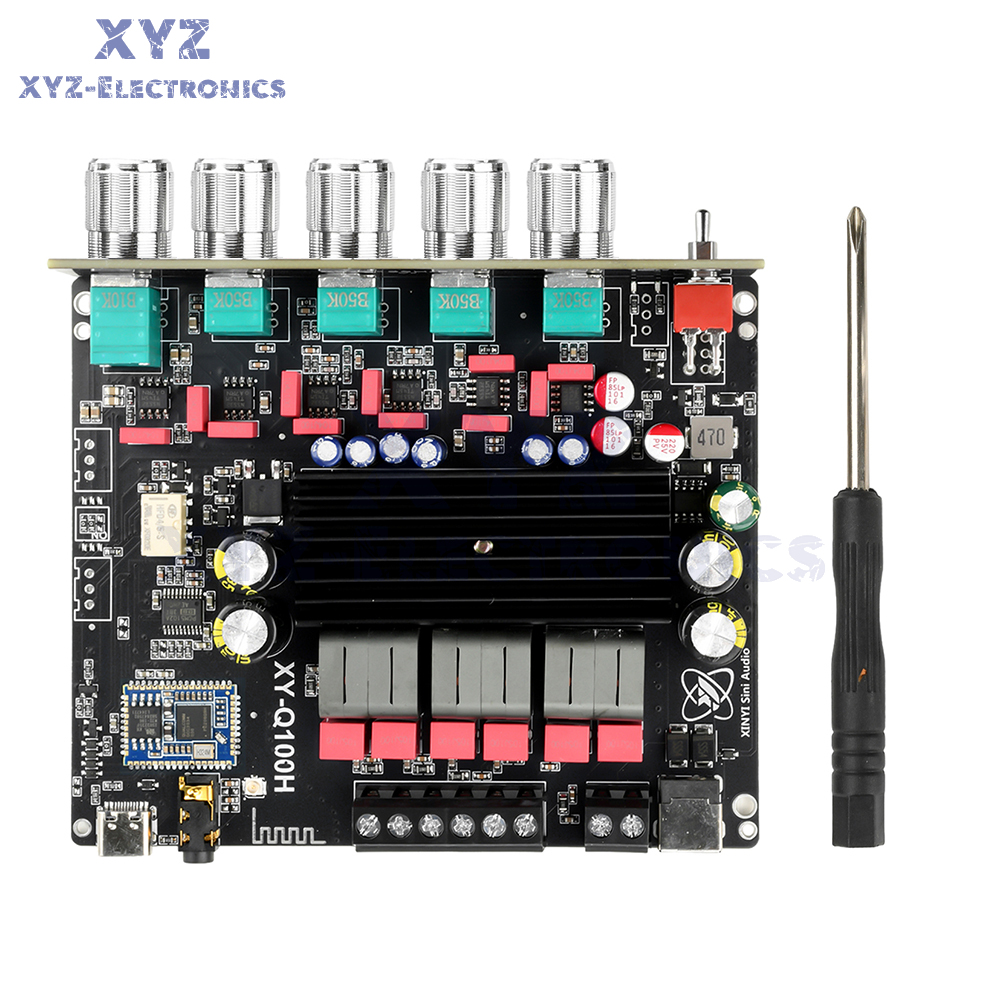

Product Name: 2.1-Channel Bluetooth Digital Audio Amplifier Board
Model Number: XY-Q100H
Power Supply: DC 12-24V / 5A or higher
Audio Inputs: Bluetooth / AUX / USB Sound Card
Bluetooth Name: Xin Yi
Bluetooth Audio Decoding: APTX / APTX-HD / SBC / AAC
Power Supply & Output:
DC Voltage: 12V
Output Power (Max):
Left/Right Channels: 10W+10W@8Ω; 20W+20W@4Ω
Subwoofer: 10W@8Ω; 20W@4Ω; 32W@2Ω
DC Voltage: 21V
Maximum Output Power:
Left/Right Channels: 25W+25W@8Ω; 50W+50W@4Ω
Subwoofer: 25W@8Ω; 50W@4Ω; 100W@2Ω
DC Voltage: 24V
Maximum Output Power:
Left/Right Channels: 35W+35W@8Ω; Not recommended at 4Ω
Subwoofer: 35W@8Ω; 70W@4Ω
Product Dimensions:
Integrated Potentiometer: 112*114*24mm

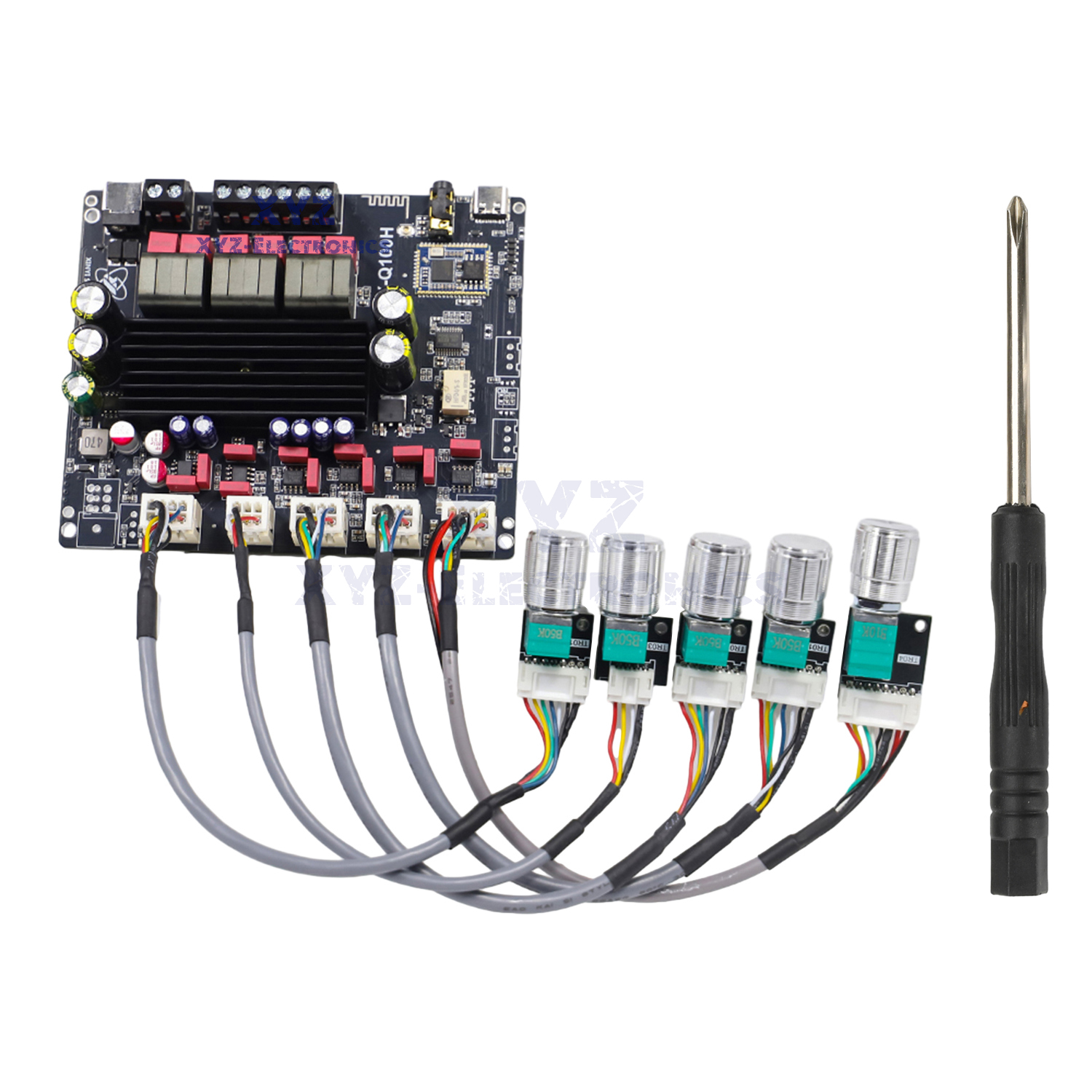

External Potentiometer: 112*94.6*24mm

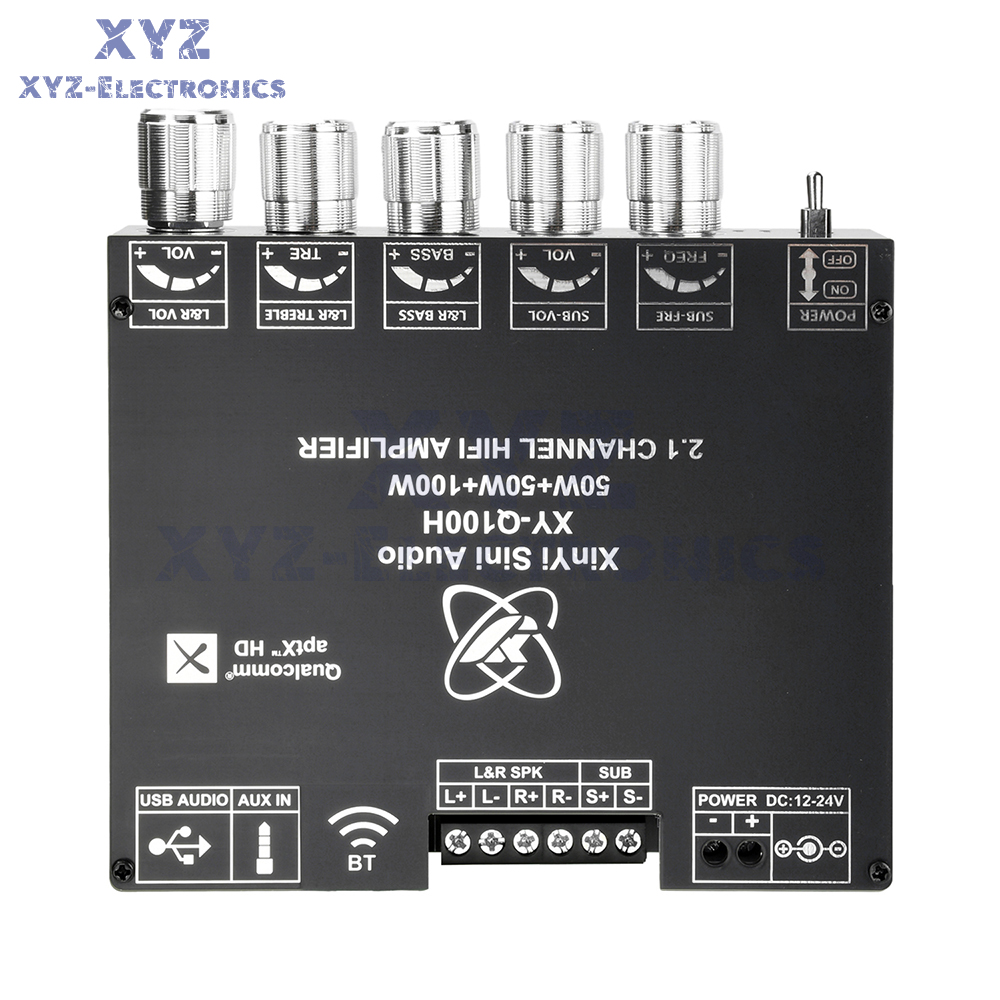

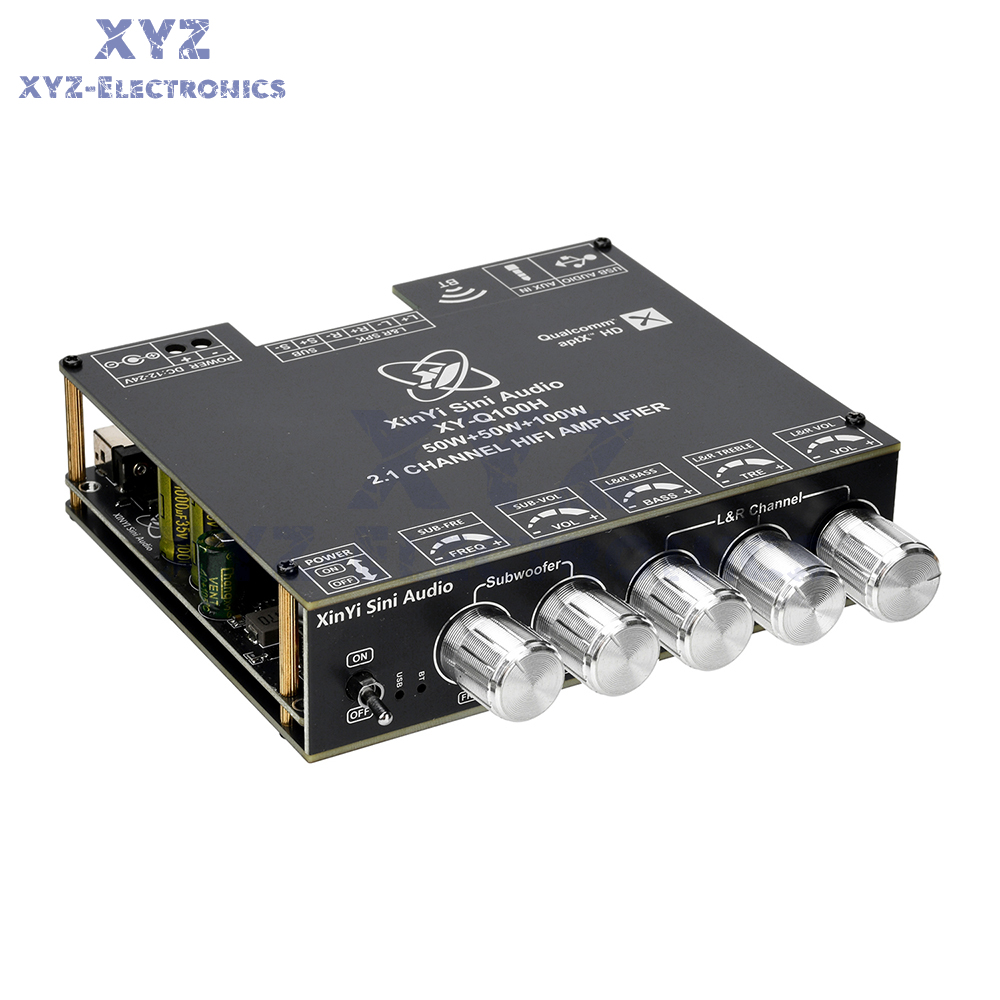

Integrated Enclosure: 112*114*30mm

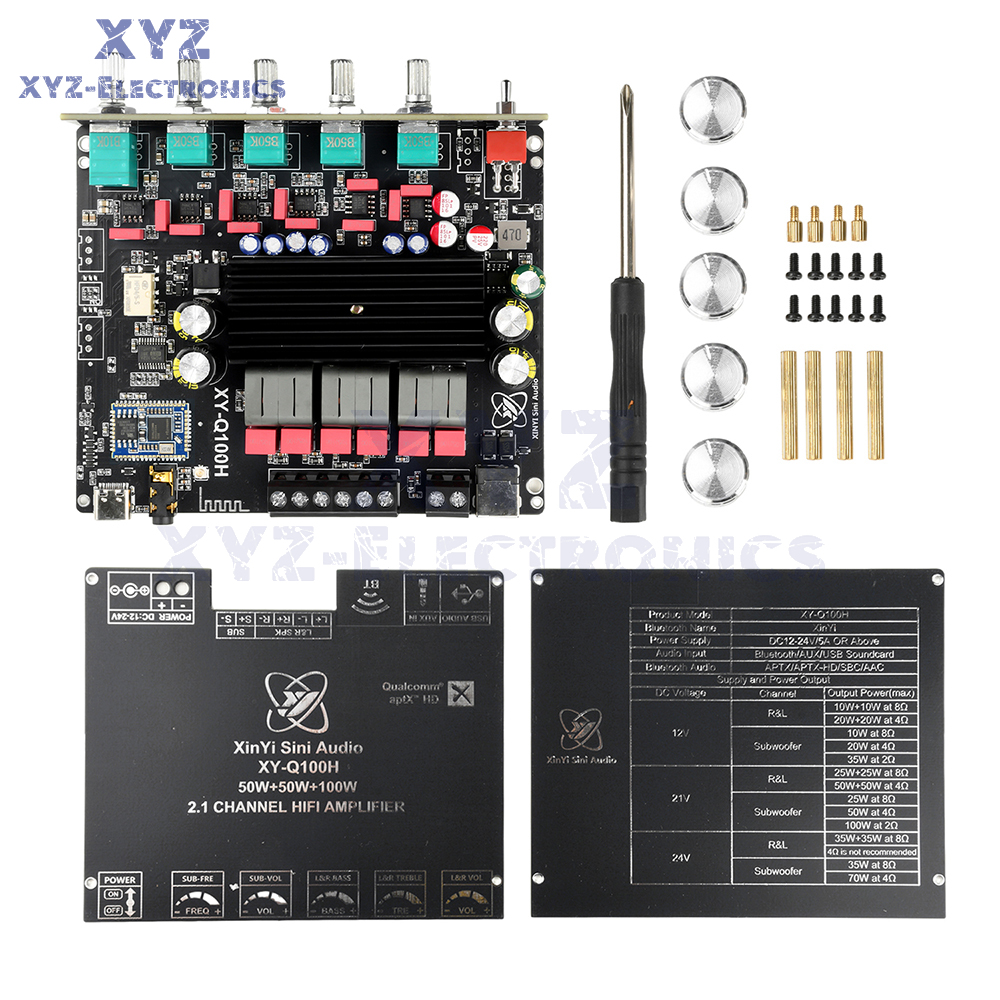

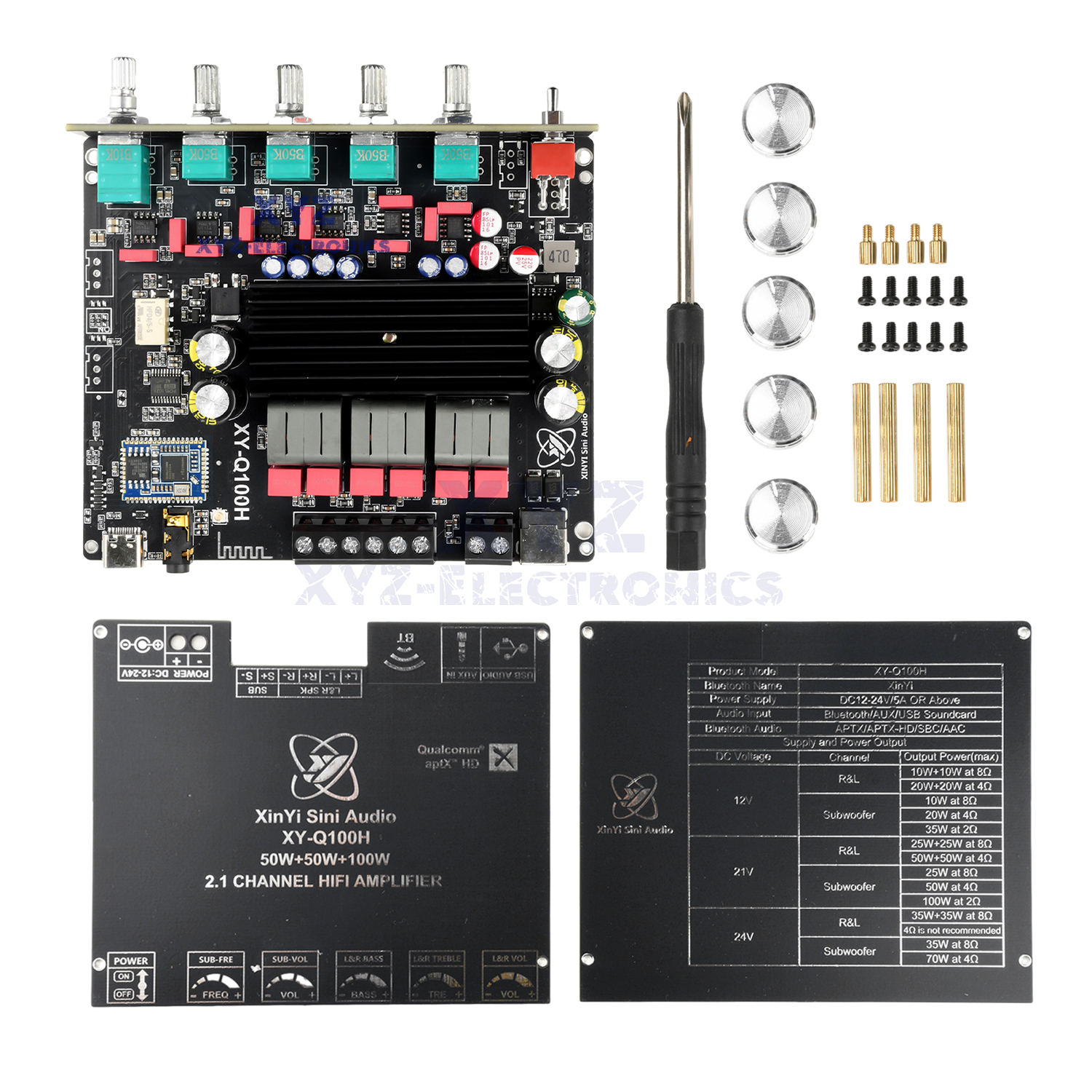

1X Amplifier Board
1X Accessory Kit
