Details

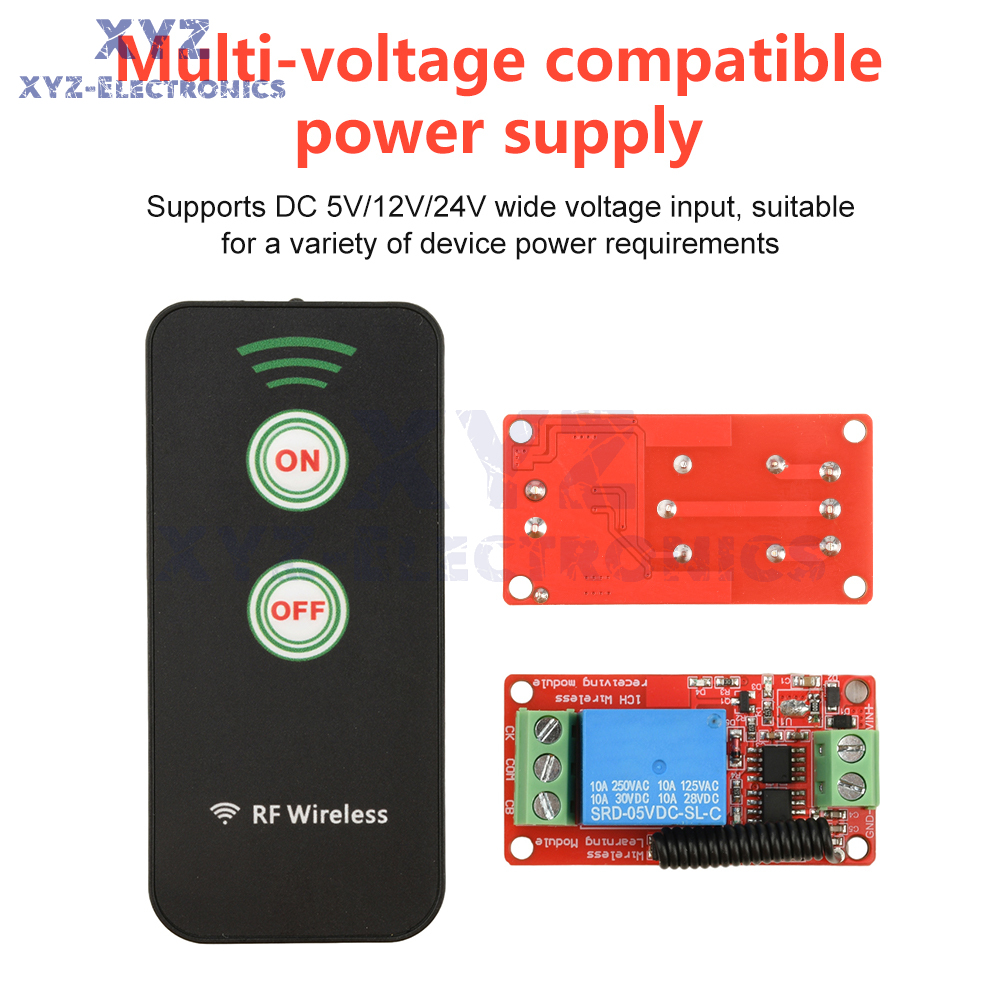

1. Multi-voltage Compatible Power Supply: Supports DC 5V/12V/24V wide voltage input, accommodating diverse device power requirements

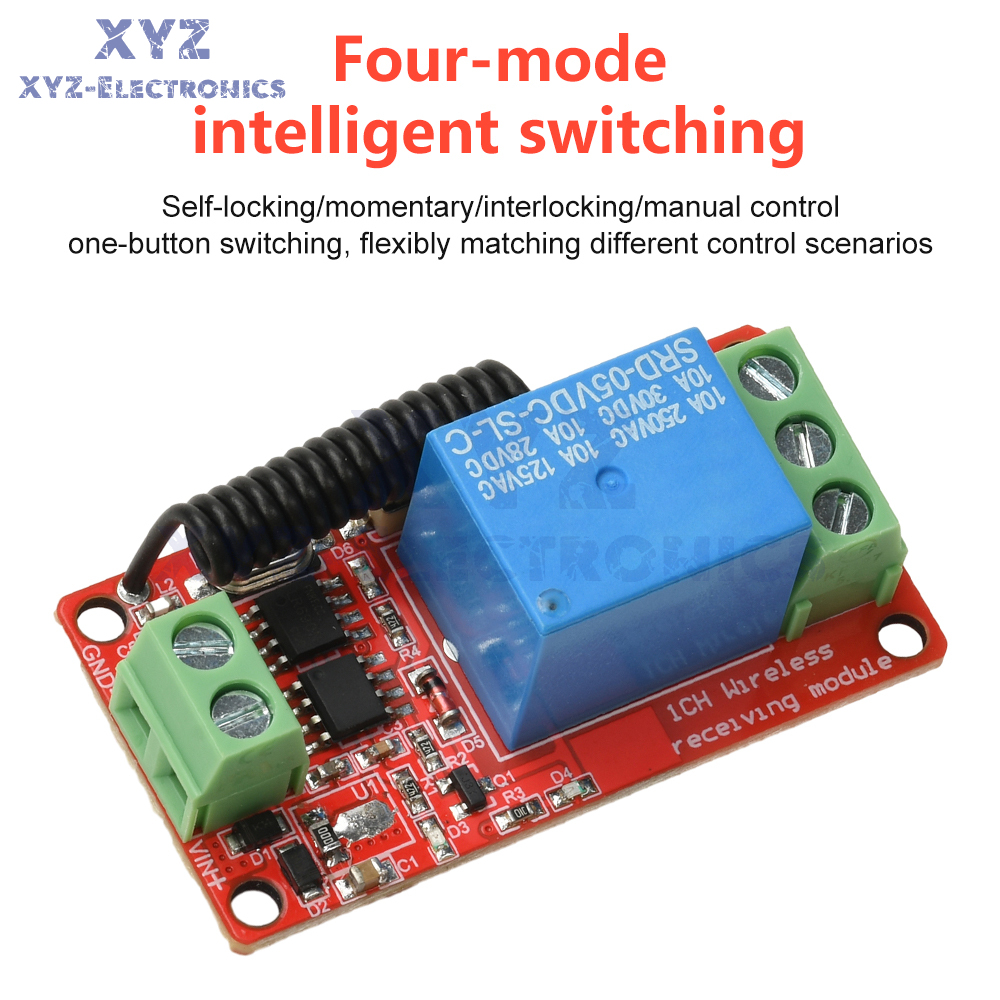

2. Four-Mode Smart Switching: One-touch switching between self-locking/momentary/interlocking/manual control modes for flexible adaptation to different control scenarios

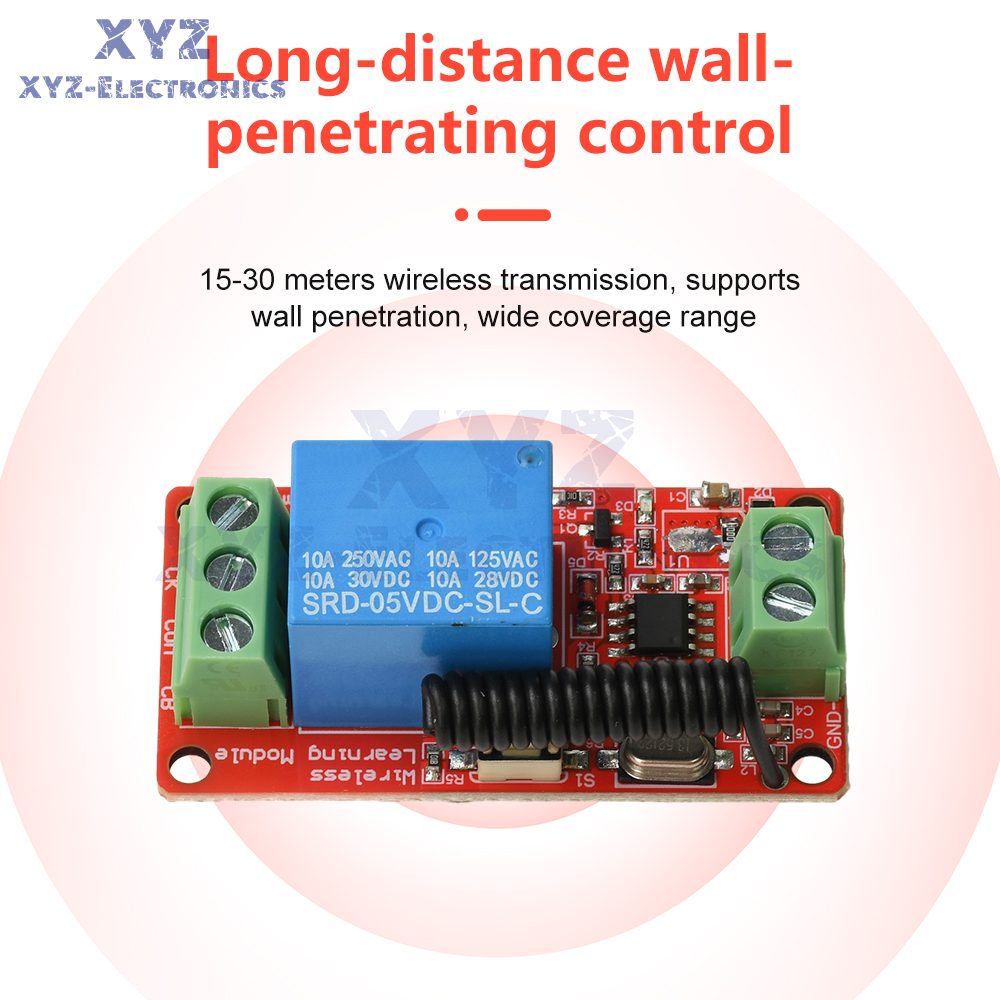

3. Long-Range Wall-Penetrating Control: 15-30m wireless transmission penetrates walls for extensive coverage

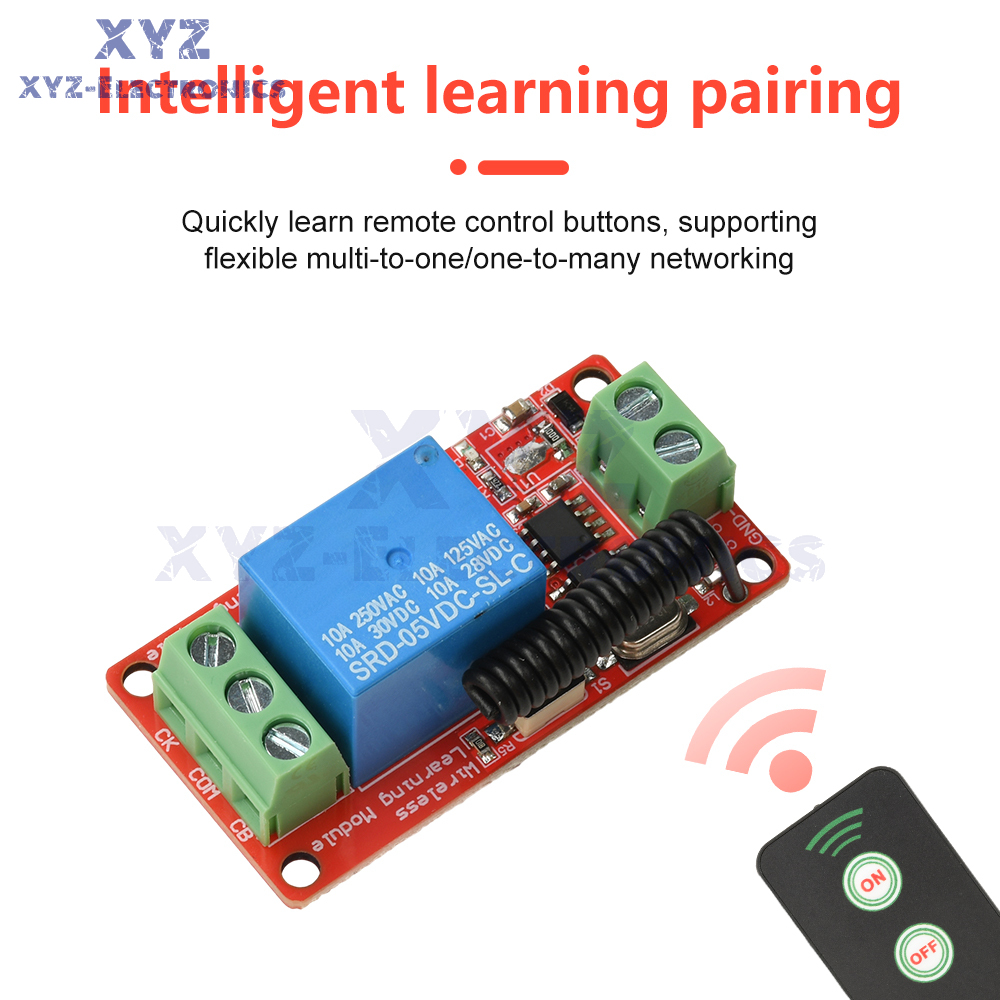

4. Smart Learning Pairing: Rapidly learns remote control buttons, supports flexible multi-to-one/one-to-many networking
5. Dual-Button Precision Control: One-button activation/deactivation; interlock mode enhances equipment control safety

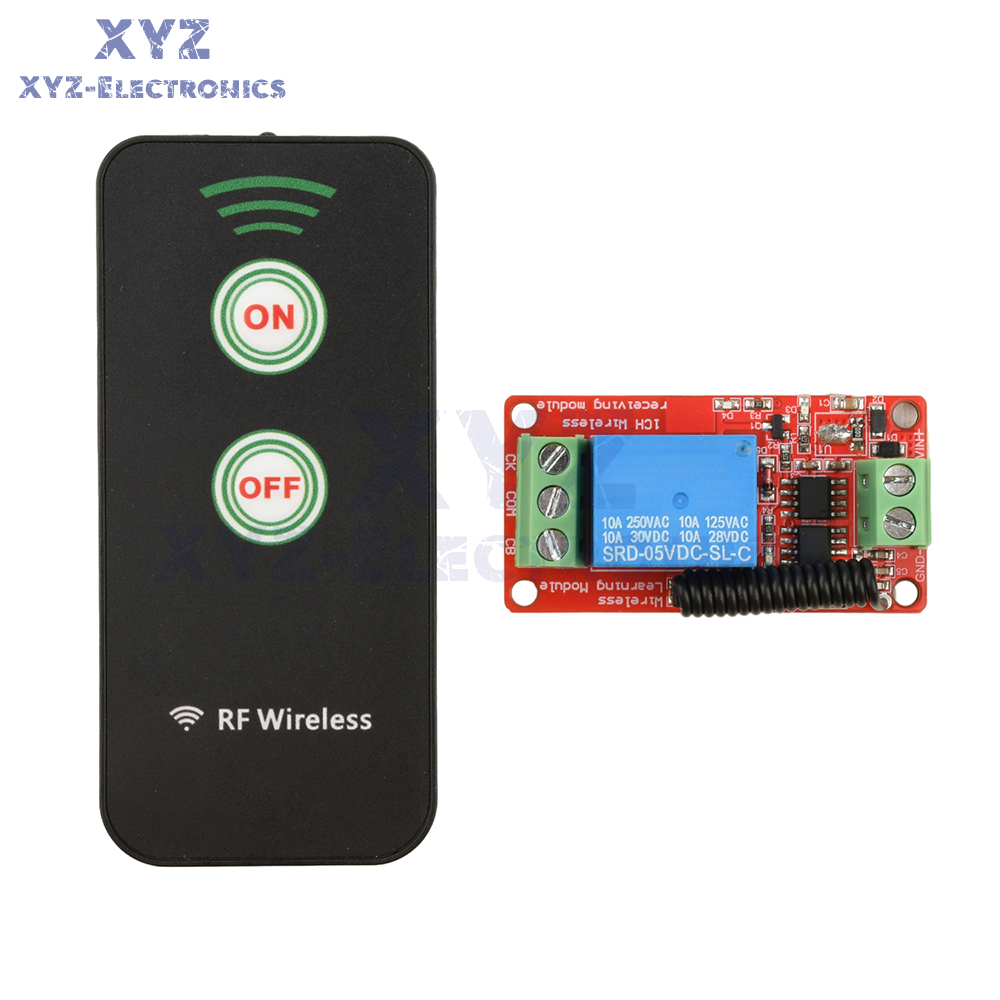

Product Name: Wireless Remote Control Receiver Module
Operating Voltage: DC 5V/12V/24V
Wiring: VIN(+) to power positive terminal, GND(-) to power negative terminal, CK/CB/COM to output
Operation Mode: 1-channel 433MHz wireless learning module
Operating Modes: Freely switch between 4 modes: momentary, self-locking, interlocking, manual control
Remote Control Range: 15-30 meters (wall-penetrating)
Pairing Method: Supports one-to-one, many-to-one, or one-to-many control between remote and module
Remote Battery Type: CR2025 *1 (battery not included)
1. Press and immediately release the button on the module. Then quickly press and hold the module's learning button (action must be swift).
The module's learning indicator flashes once. Release the button, then hold down button A on the remote to be programmed. The module's learning indicator flashes three times and stops. Release the remote button. Learning is complete.
2. Press the button on the module and release immediately; then press and hold the learning button on the module. The learning indicator flashes twice. Release the button,
then press and hold button B on the remote to be learned. The learning indicator flashes three times and stops. Release the remote button; learning is complete.
3. Press the button on the module and release immediately; then press and hold the learning button on the module. If the learning indicator flashes 3 times and stops, release to set the module to self-locking mode.
If it flashes 4 times and stops, release to set the module to interlocking mode. If it flashes 5 times and stops, release to set the module to momentary mode. If it flashes 6 times and stops, release to clear the module.
4. Direct control via the module button: Press the button on the module once to activate the relay; press again to deactivate the relay.
Self-Locking: Press the button once to activate the relay; press again to deactivate.
Jog Mode: Hold the button to keep the relay activated; release to deactivate.
Interlock Mode: Pressing Button A activates the relay; pressing Button B deactivates the relay.
Module x1
Remote Control x1
