3Mo Waterproof Controller Functions:

1. Sine wave brushless waterproof controller, with lower and more stable noise during cycling.

2. The controller comes with a XT60 battery waterproof plug, which is compatible with XT60 battery plugs.

3. The controller can adjust the phase angle and forward/reverse motor function, and can work with or without Hall effect.

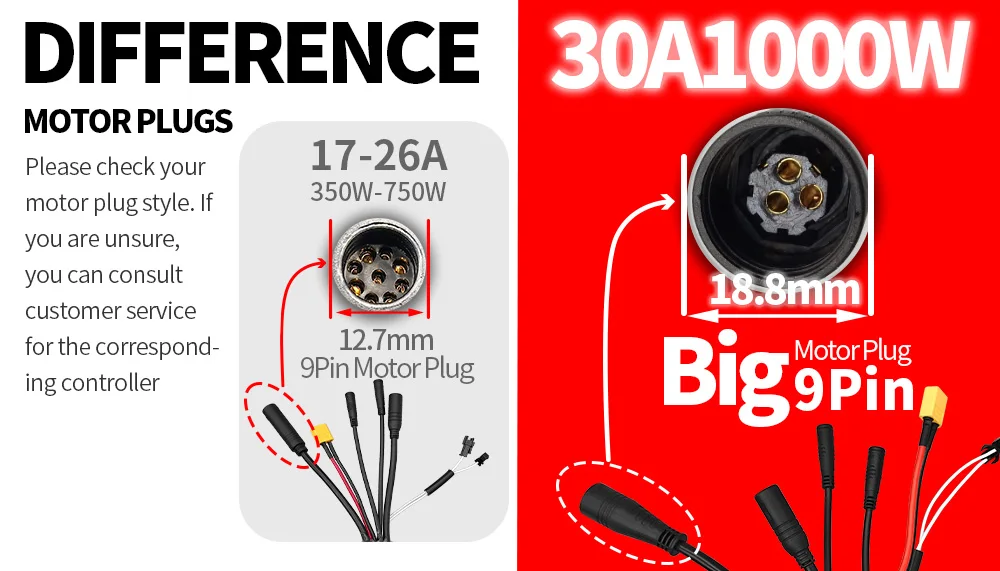

4. The complete set of electric bicycles can be used by simply connecting them. However, it should be noted that the motor wires of 30A1000W are different from those of other controllers. Please check if your bicycle motor can be used properly before purchasing.

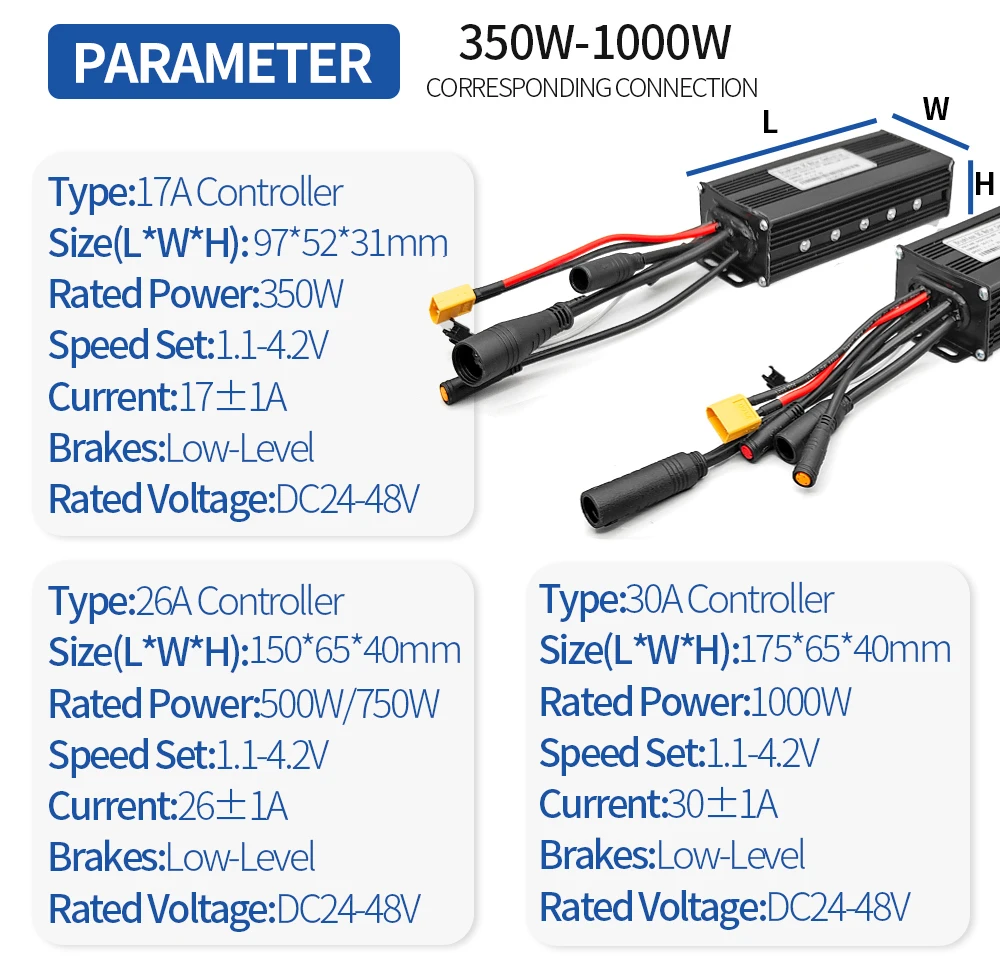

Controller

• Type:17A Sine WaveController

• Size(L*W*H):About 97*30*52mm

• Rated Power:350W

• Speed Set:1.1-4.2V

• Mosfet:Big 6 Mosfets

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC24V/36V/48V

• Compatible with motors with or without Hall

• With motor forward and reverse learning function

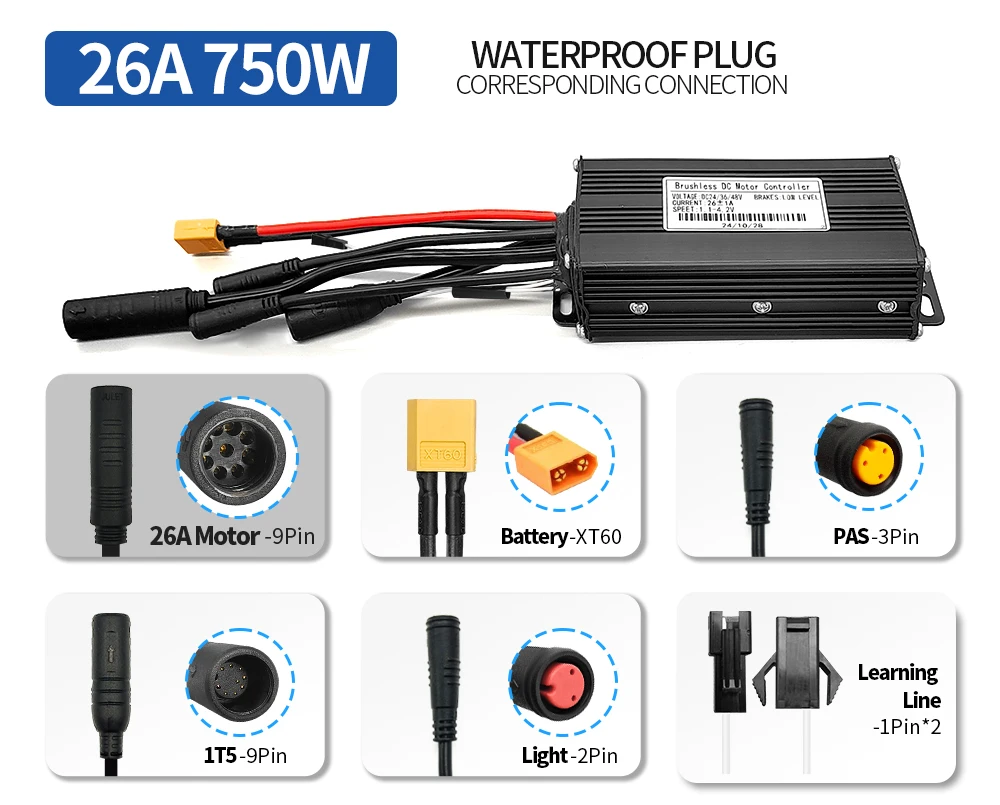

• Type:26A Sine WaveController

• Size(L*W*H):About 150*40*65mm

• Rated Power:500W/750W

• Speed Set:1.1-4.2V

• Mosfet:Big 9 Mosfets

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC24V/36V/48V

• Compatible with motors with or without Hall

• With motor forward and reverse learning function

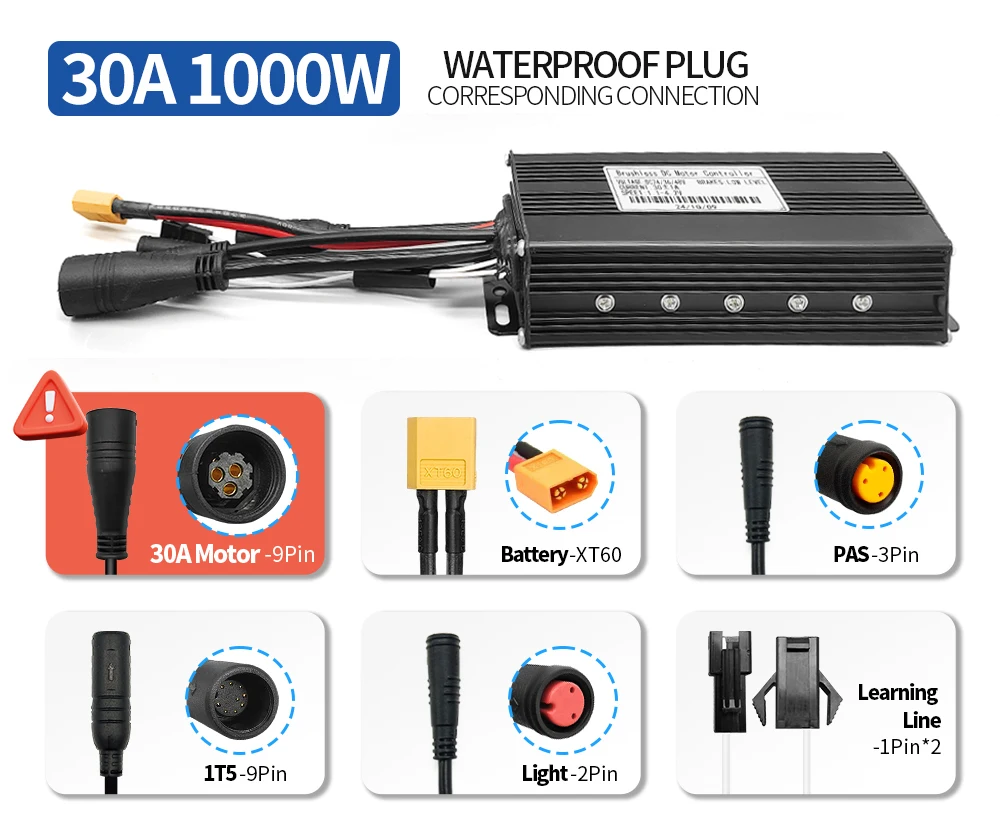

• Type:30A Sine WaveController

• Size(L*W*H):175*40*65mm

• Rated Power:1000W

• Speed Set:1.1-4.2V

• Mosfet:12 Mosfet

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC24V/36V/48V

• Compatible with motors with or without Hall

• With motor forward and reverse learning function

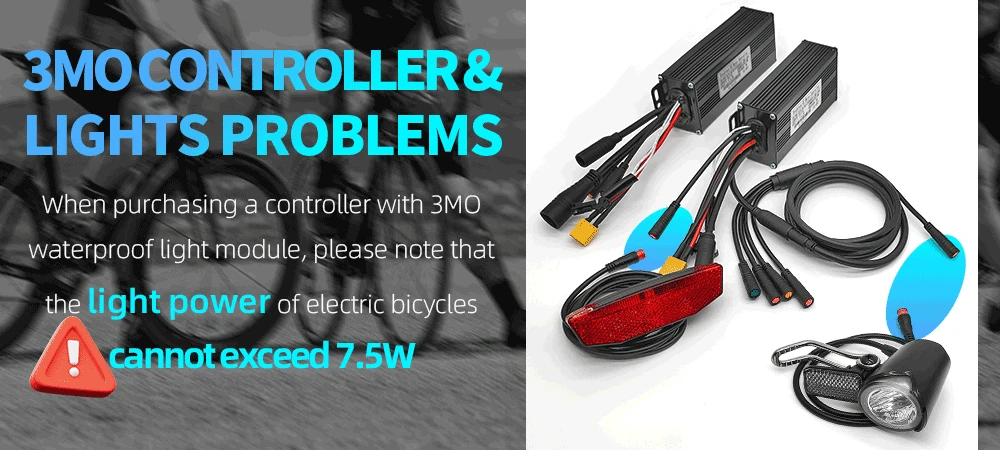

When purchasing a controller with 17A-30A 3MO waterproof plug light module, please check that the light power of the electric bicycle you purchased cannot exceed 7.5W, otherwise the 17A-30A 3MO waterproof plug light module will not be able to be used!!!

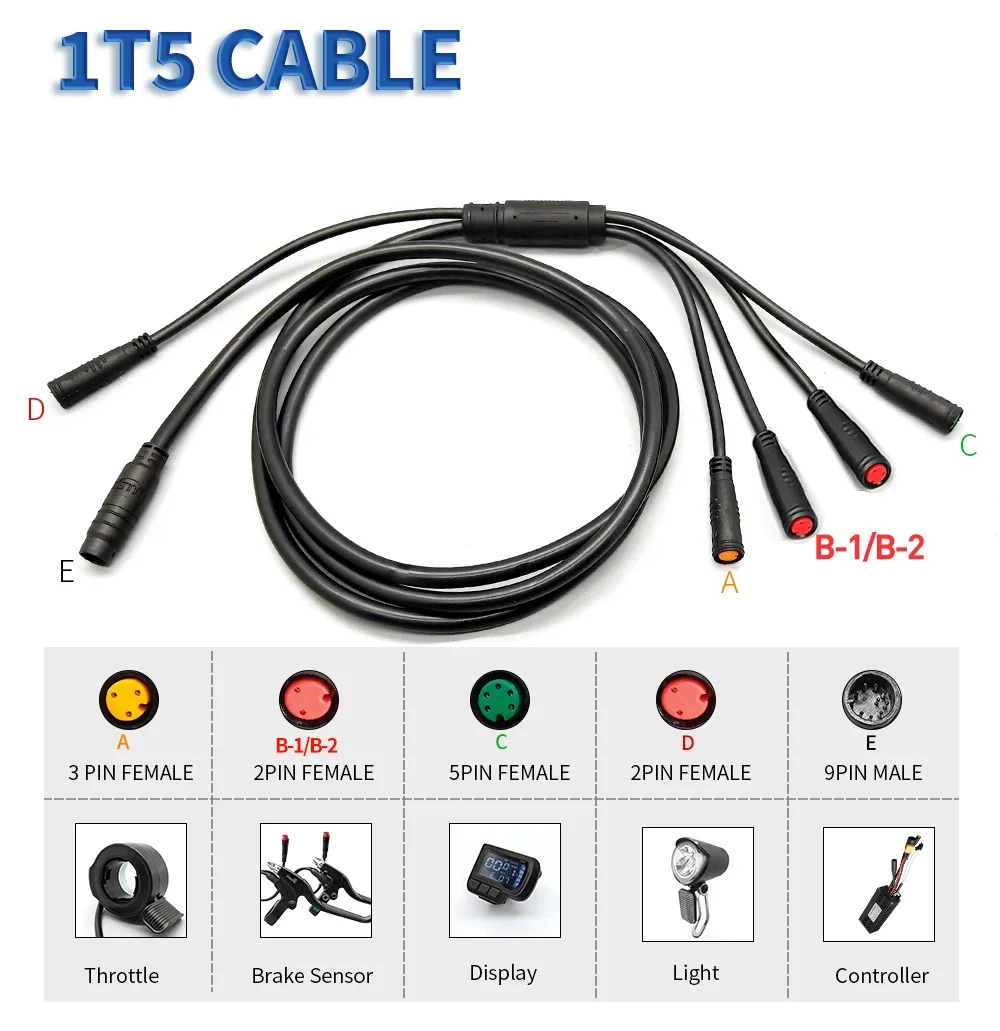

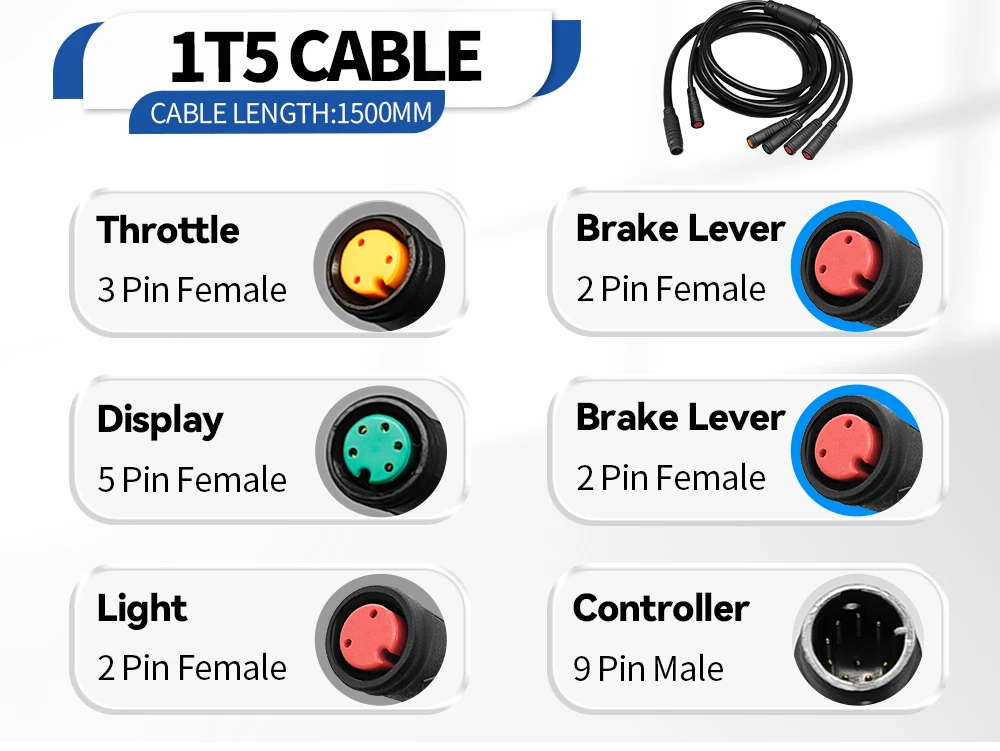

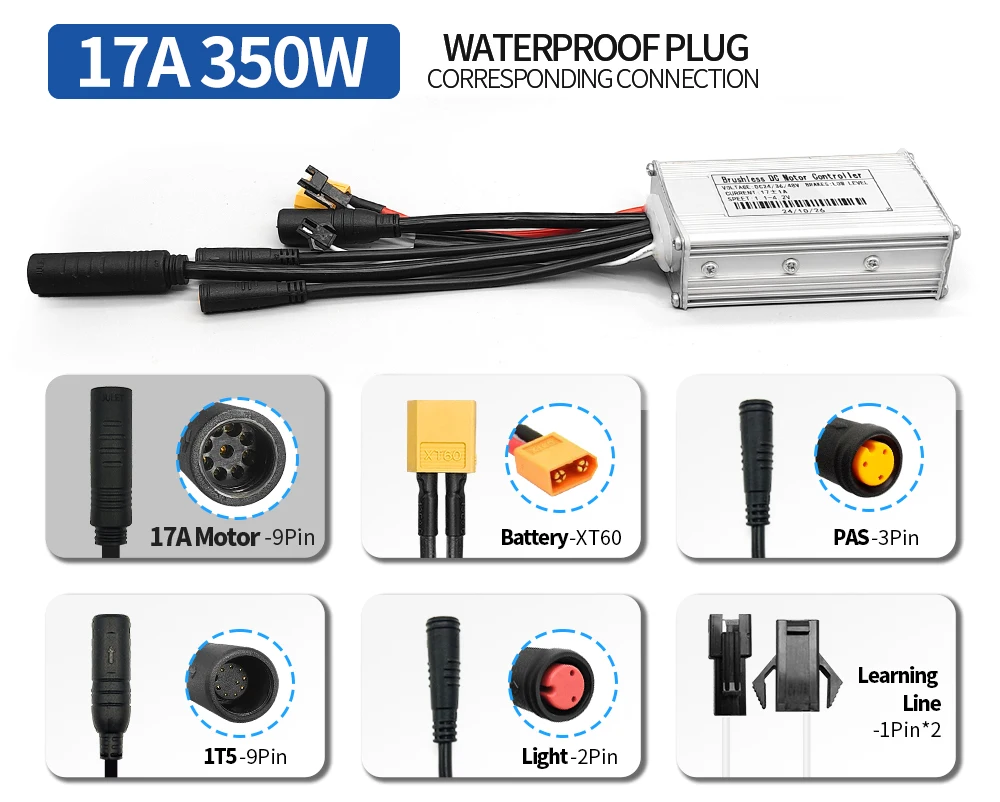

1T5 Cable (Julet Brand) Cable Length:1500mm/59.1inPlease note that when purchasing a waterproof controller, the size measurement of the motor connection plug should be accurate to ensure that it can be connected▲△17A Controller Cable Length

Battery plug wire length:13cm/5.1in                  1T5 plug wire length:15cm/5.9in

PAS plug wire length:15cm/5.9in                       Light plug wire length:14.5cm/5.7in

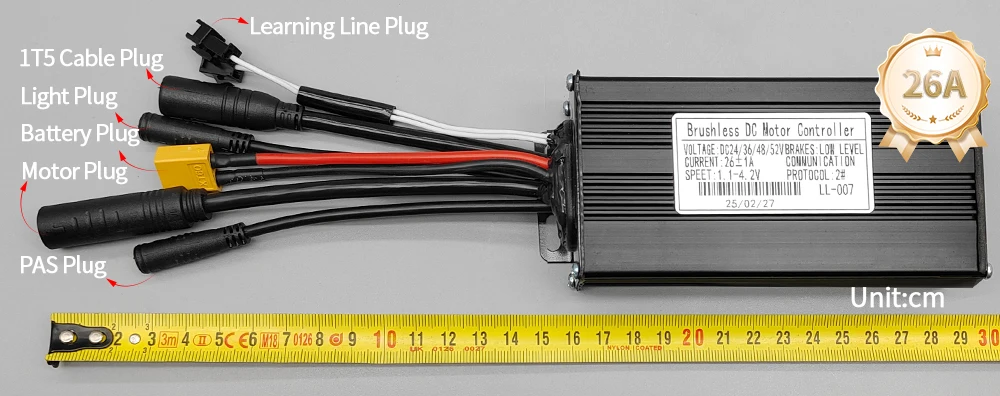

Motor plug wire length:18.5cm/7.3in                  Learning line plug length:14.5cm/5.7in△26A Controller Cable Length

Battery plug wire length:12.5cm/4.9in                  1T5 plug wire length:12.5cm/4.9in

PAS plug wire length:13cm/5.1in                          Light plug wire length:13cm/5.1in

Motor plug wire length:15.5cm/6.1in                    Learning line plug length:13cm/5.1inPlease note that when purchasing a waterproof controller, the size measurement of the motor connection plug should be accurate to ensure that it can be connected▼△30A Controller Cable Length

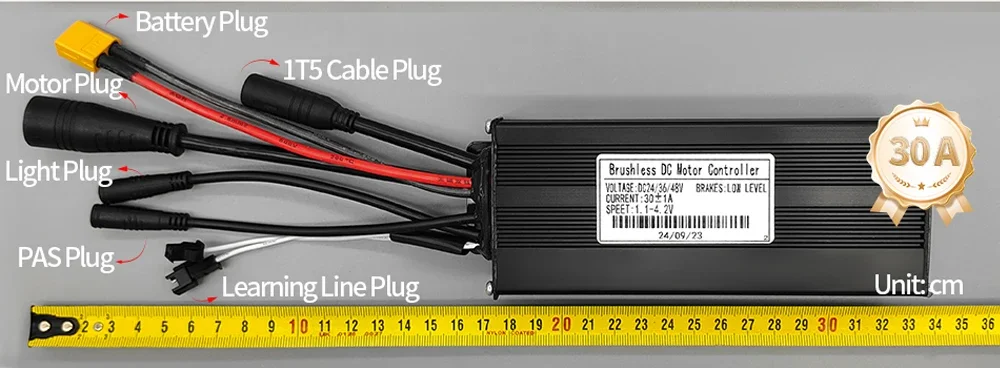

Battery plug wire length:17cm/6.7in 1T5 plug wire length:9cm/3.5in

PAS plug wire length:15cm/5.9in                          Light plug wire length:15cm/5.9in

Motor plug wire length:17cm/6.7in                       Learning line plug length:11.8cm/4.6in
