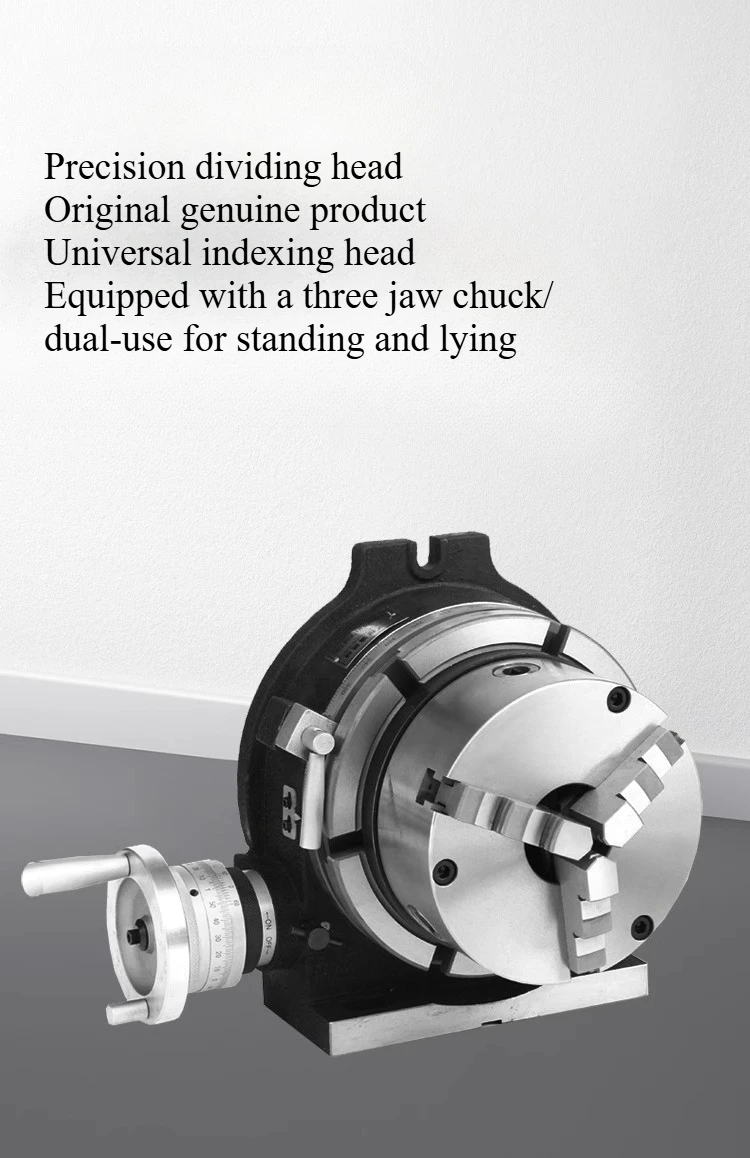

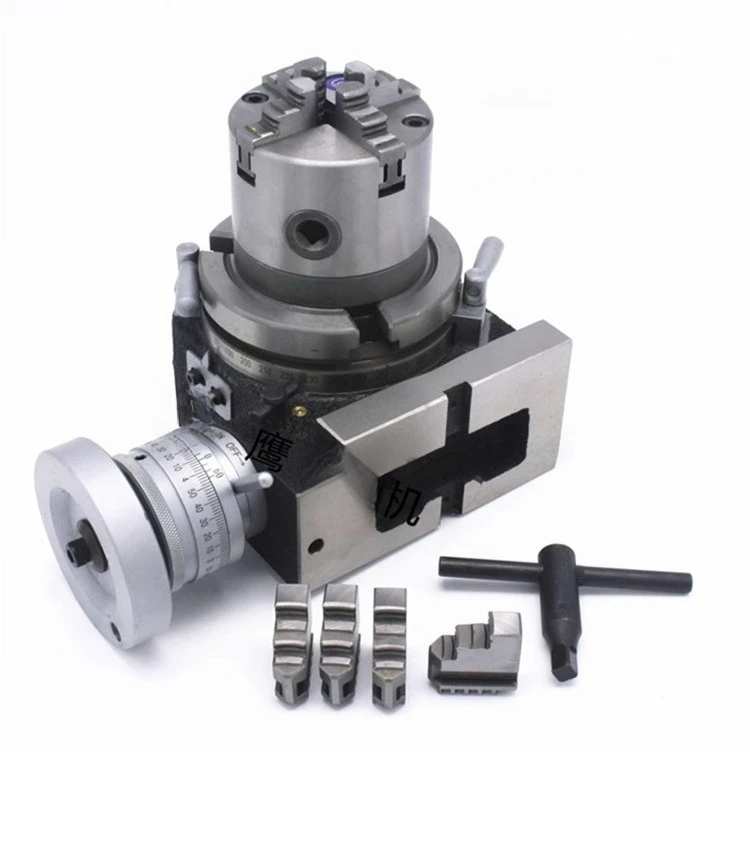

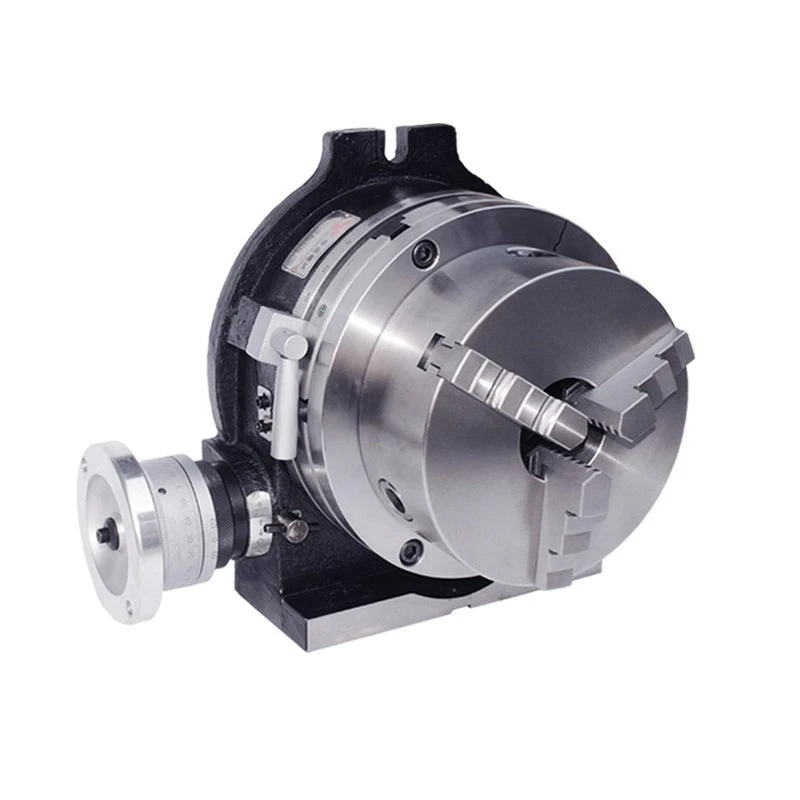

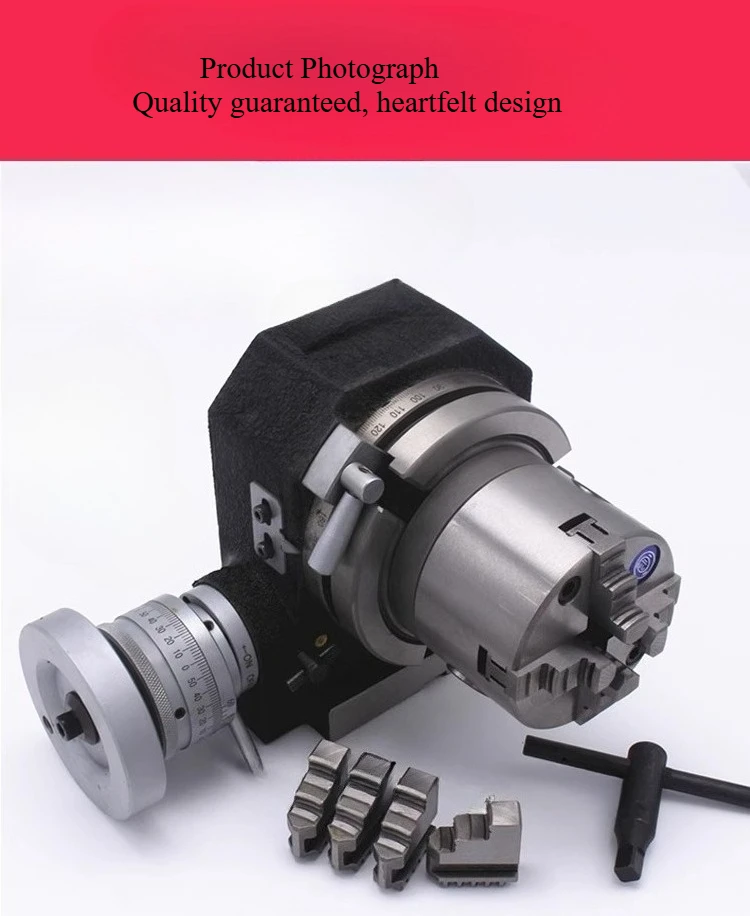

Manual Milling Indexing Head Rotary Table Three-jaw Chuck Universal Indexing
Name: Milling machine indexing head rotary worktable three jaw chuck
Graduated disc diameter: 125mm
Center taper hole of countertop: MT2
Table T-shaped groove width: 12
Positioning pin width: 12
Number of countertop slots: three
Turbine ratio: 1:75
Maximum load capacity (horizontal): 50kg
Maximum load capacity (vertical): 25kg
Dividing error: 0.03 °
Scale division: 360 °
Vertical height: 155mm
Bottom length: 127mm

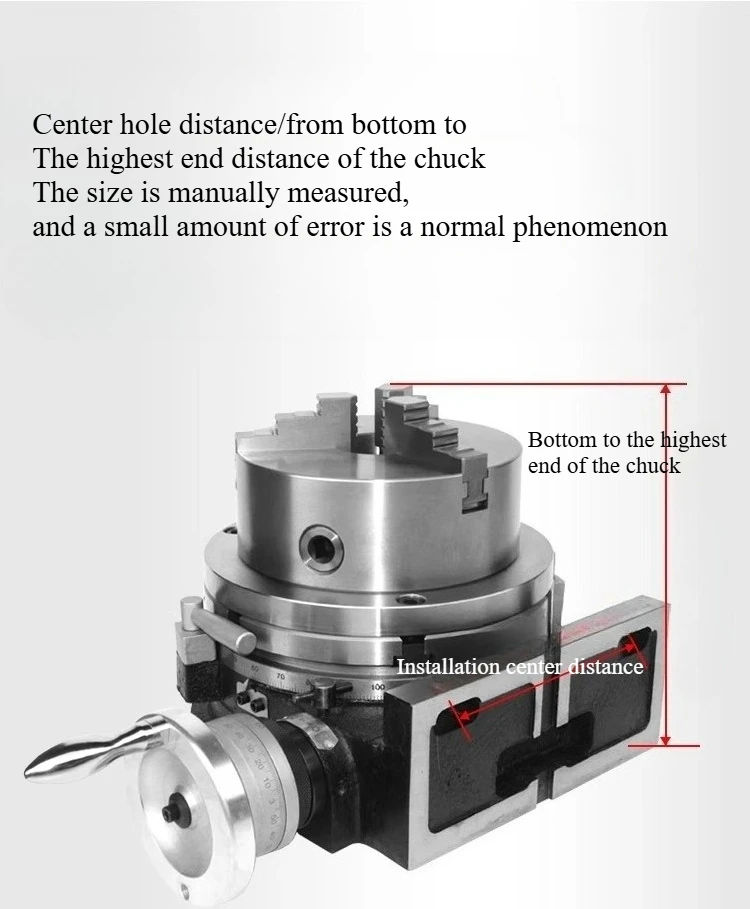

Center height: 90mm
Chuck diameter: 100mm/125mm
Horizontal height: 160mm/170mm
Bottom length: 140mm
