Electric Drum Cable Reel Automatic Retractable Cable Reel Multi-strand Copper Core Wire Suspended Cable Reel National Standard Cable Reel
Trumpet:
Self-locking device: Default with self-locking (customizable without self-locking)
Rotation angle: 180° rotation
Spring material: 62Si2MnA high-performance coil spring
Operating temperature: -30°C to 60°C
Dimensions: 21 x 18 x 7 cm
Weight: 1.5 kg

Medium:
Self-locking device: Default with self-locking (customizable without self-locking)
Rotation angle: 180° rotation
Spring material: 62Si2MnA high-performance coil spring
Operating temperature: -30°C to 60°C
Dimensions: 32 x 28 x 15 cm
Weight: 6 kg

Parameter:

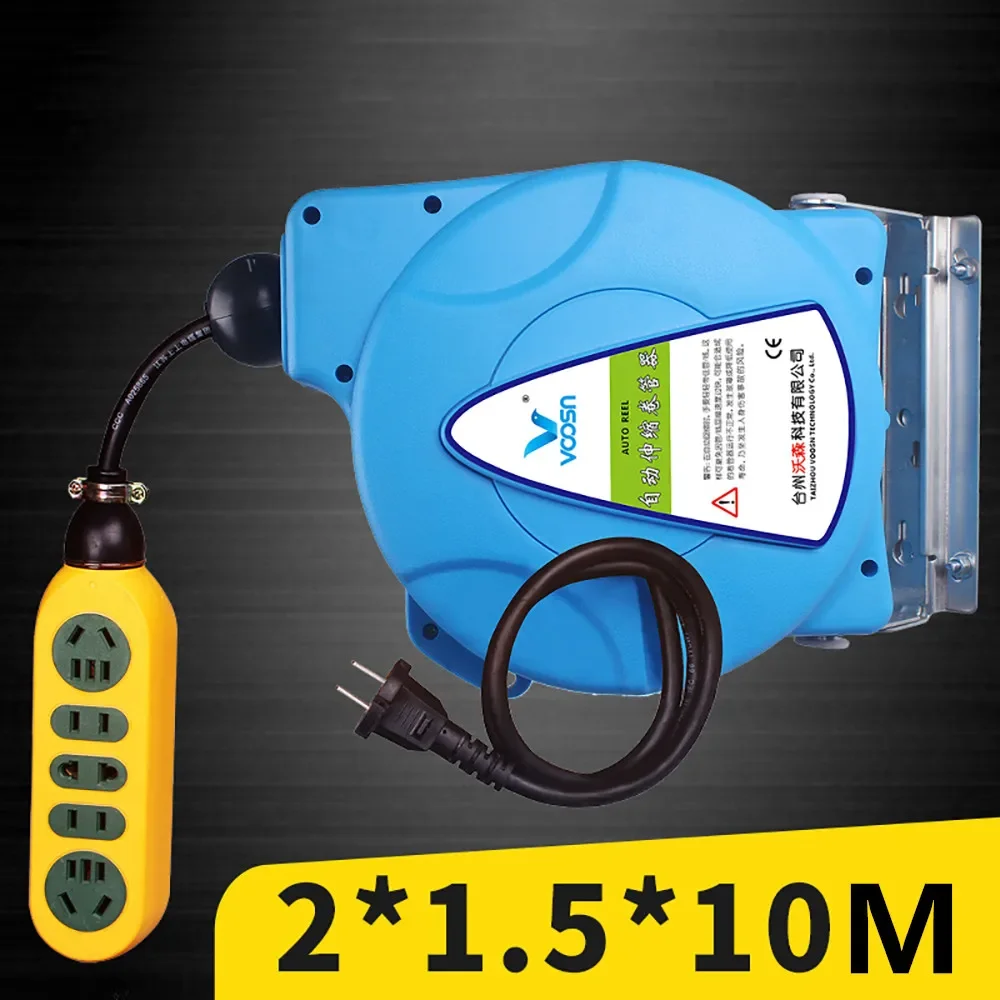

Product Name: Automatic Telescopic Mini Cable Reel
Input wire length: 1M
Output wire length: 9M
Actual output wire length: 8.5M
Number of cable cores: 2 Cores
Cable square: 1.5MM2
Maximum power: 3000W
Socket: Universal 16A 10A

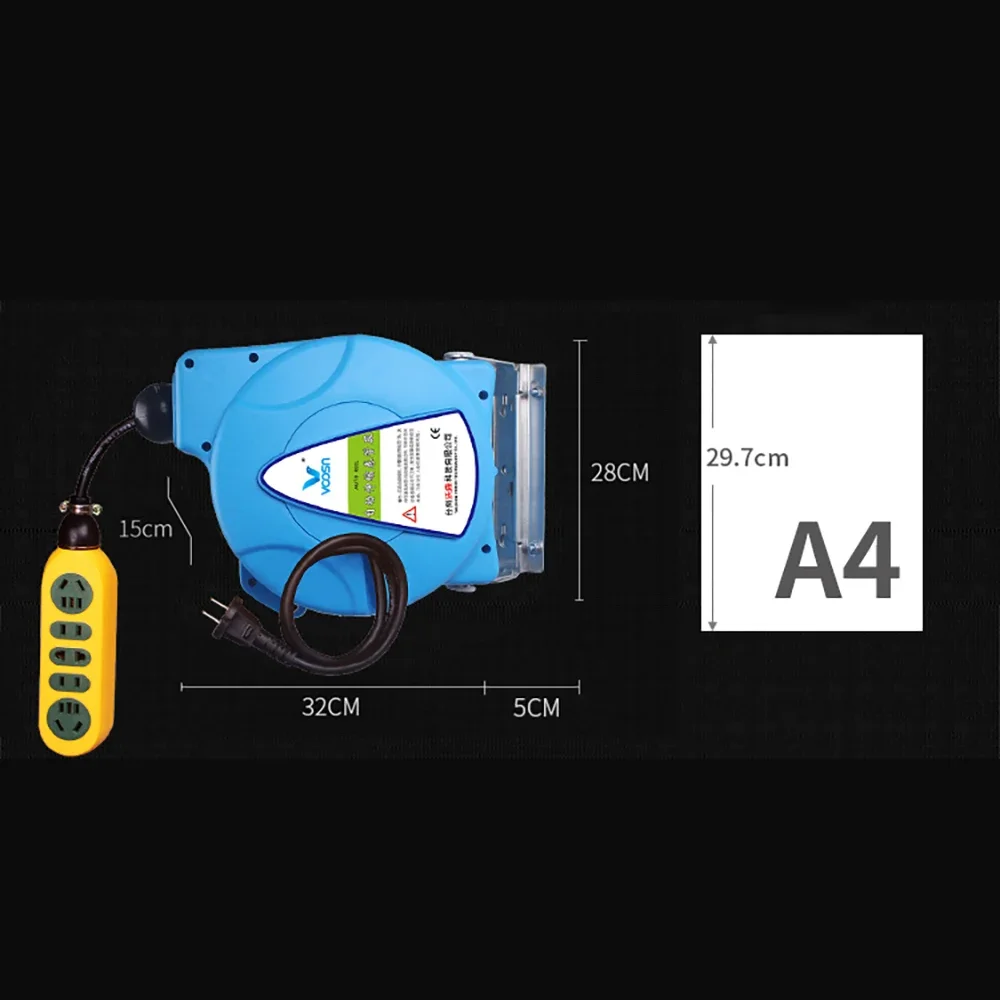

Product size: 32x28x15CM
Package weight: 6KG



Features:

1. High-power universal socket
2. High flame retardant safety wire
3. Built-in self-locking device, automatic telescopic design
4. Positioning ball design, can control the output line length
5. High-performance coil spring with a service life of more than 100,000 times

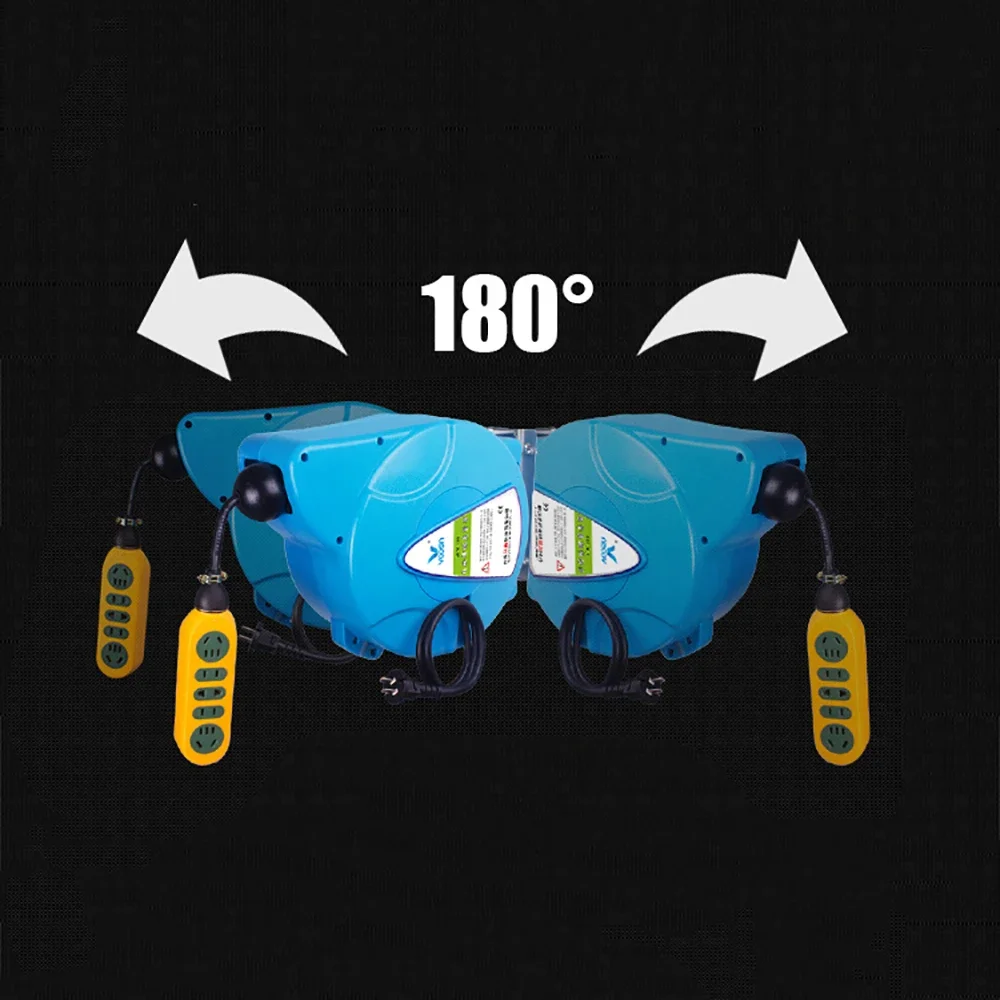

6. Angle 180° adjustment
7. Special anti-fall safety packaging
