WaterProof 12V/24V to 5V 3-40A Step Down DC/DC Power Converter Regulator
Feature:
1:Made of high-quality materials, long service life, long term stable and reliable.
2:With overcurrent, overvoltage, overtemperature and short circuit protection, reliable multi-protection design to enhance your using safety.
3:Waterproof, shockproof Design,good heat dissipation, easy to install
4:This product does not have the function of charging the battery, it is only used for voltage conversion.
5:Widely used in LED photo lighting, LED display screens, monitoring systems, power automation, communication systems and other fields.
Specifics:
Condition: 100% Brand New
Input rated voltage: 12V/24V DC
Input voltage range: 10 ~ 35V DC
Output voltage: 5V DC
Model: There are 15 options as follows:

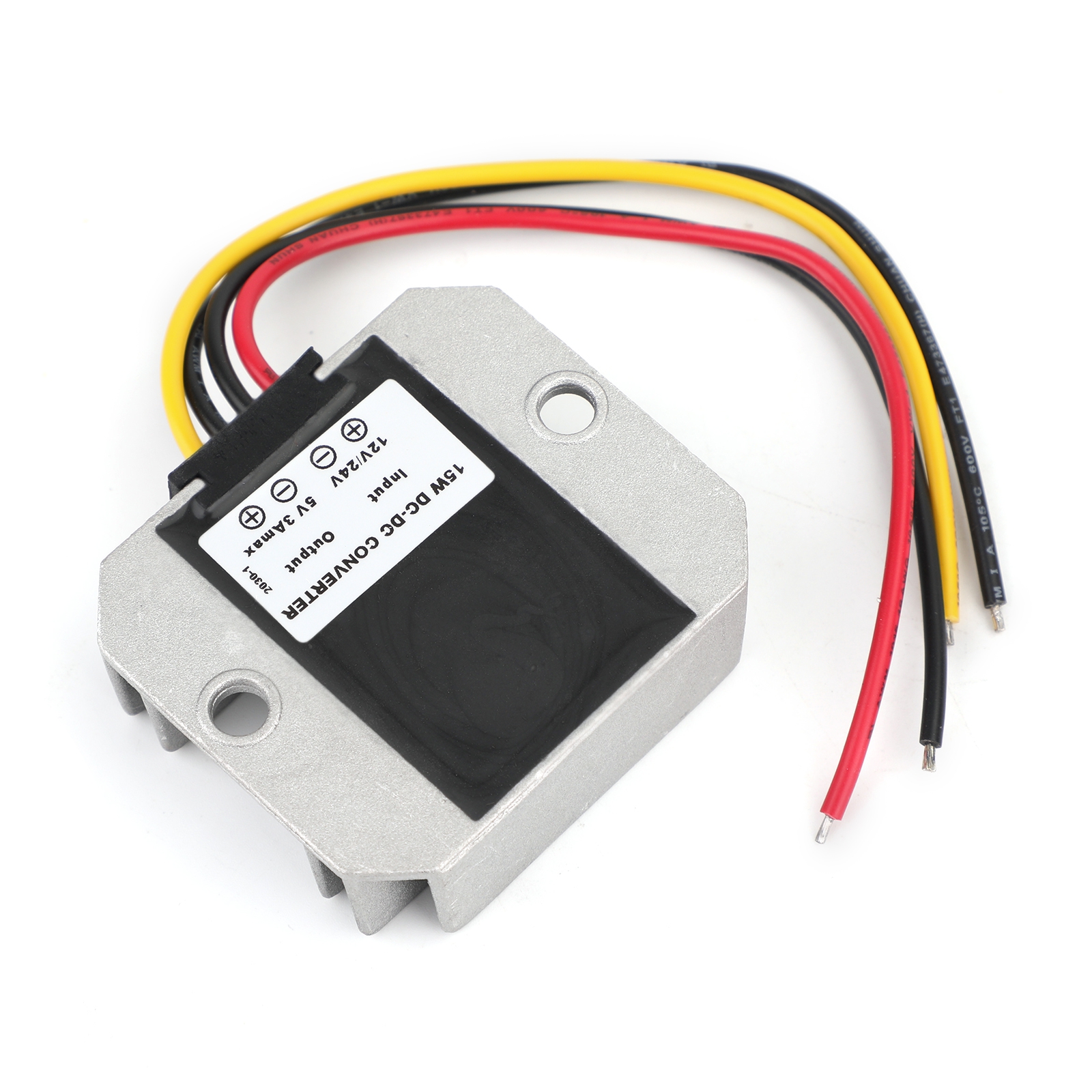

Option 1:DC12V/24V To 5V 3A 15W 4L
Option 2:DC12V/24V To 5V 5A 25W 4L

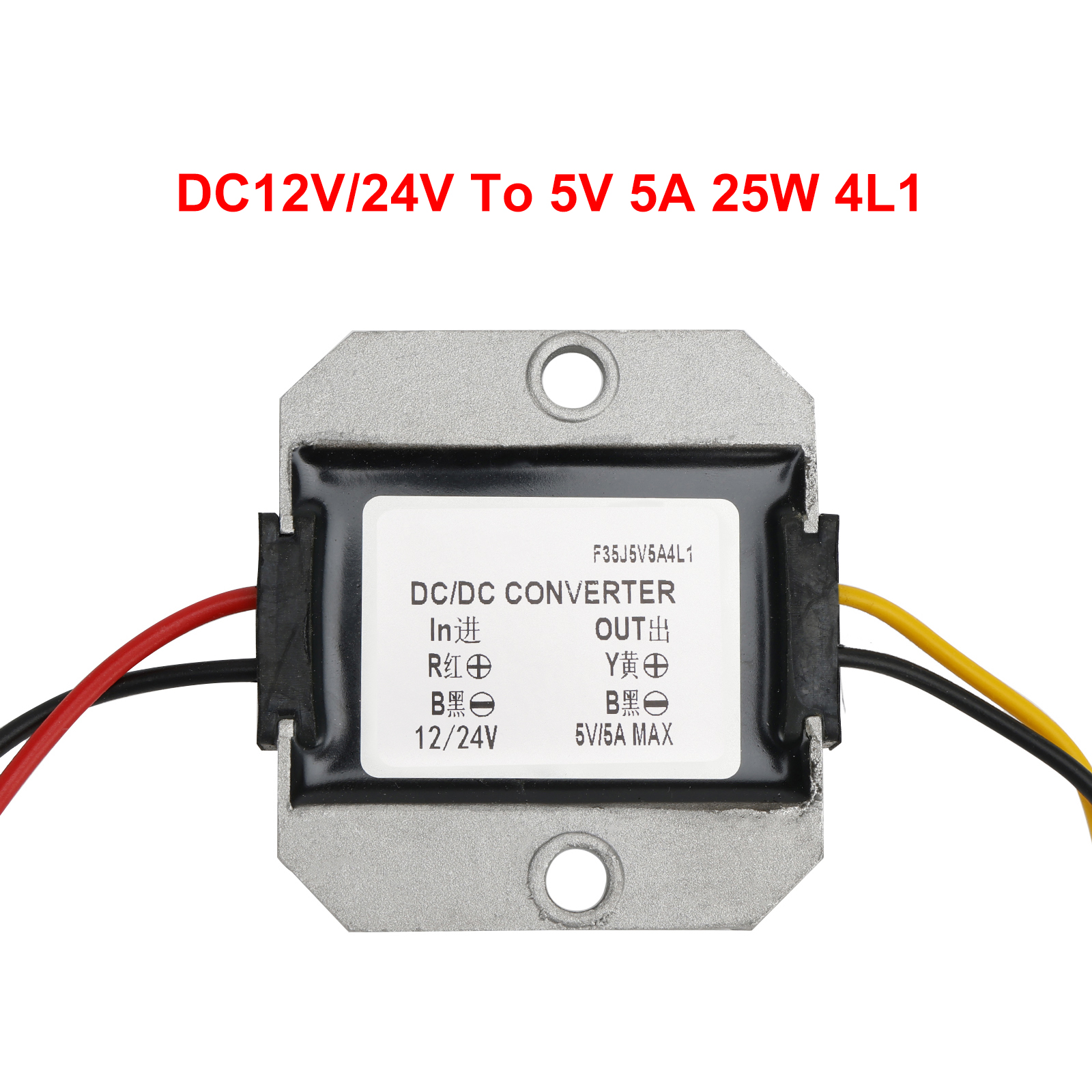

Option 3:DC12V/24V To 5V 5A 25W 4L1
Option 4:DC12V/24V To 5V 6A 30W 4L

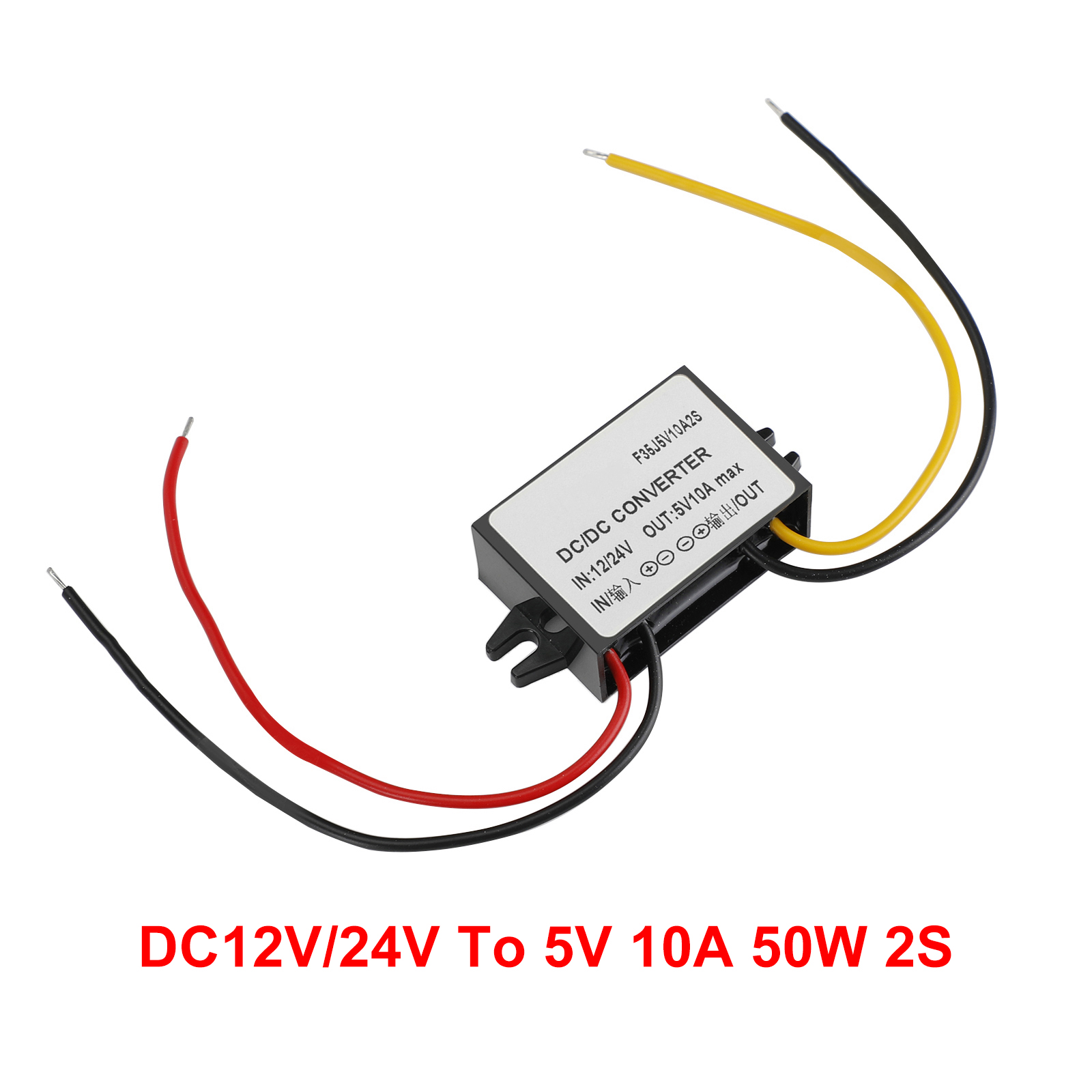

Option 5:DC12V/24V To 5V 10A 50W 2S
Option 6:DC12V/24V To 5V 10A 50W 4L

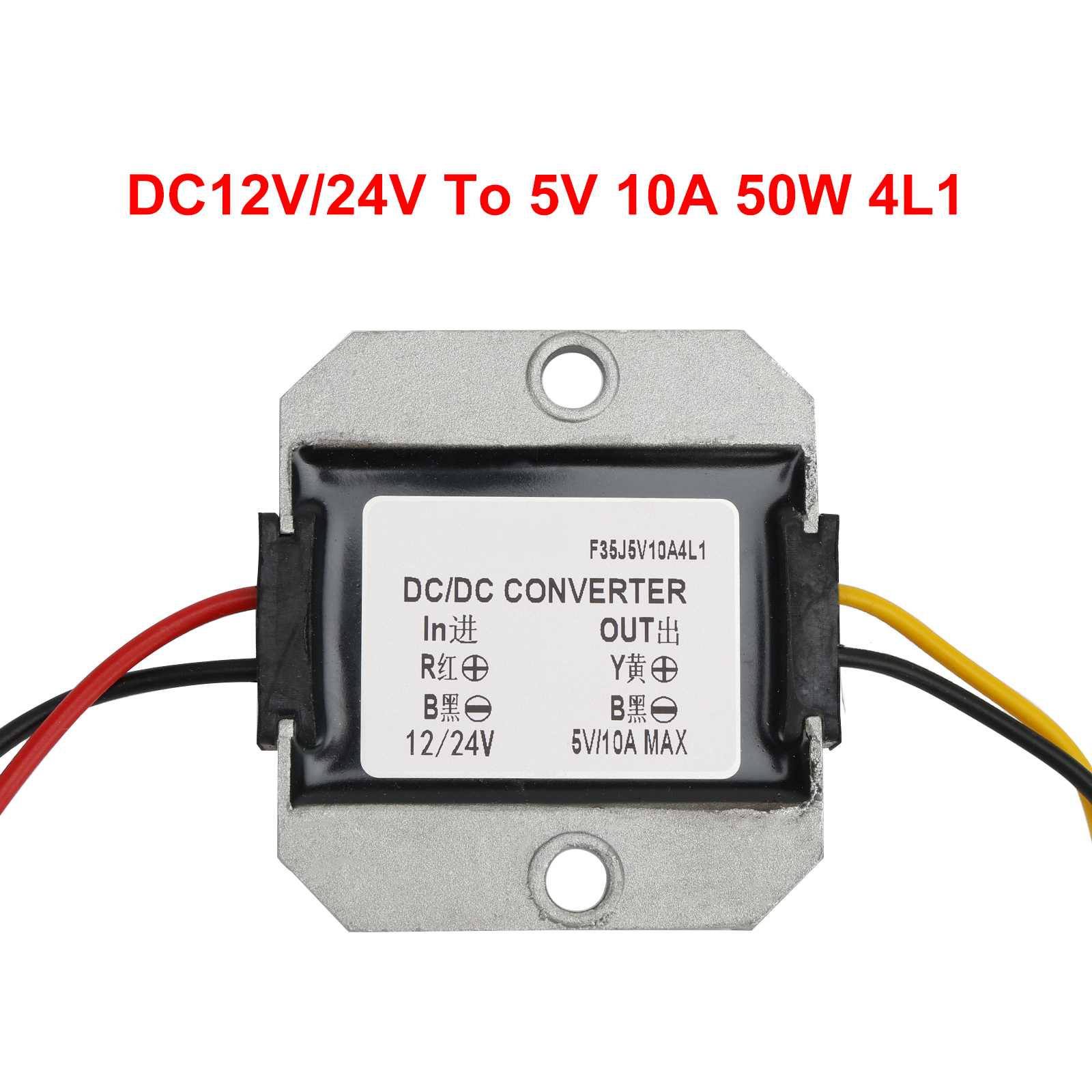

Option 7:DC12V/24V To 5V 10A 50W 4L1
Option 8:DC12V/24V To 5V 10A 50W 5L
Option 9:DC12V/24V To 5V 15A 75W 5L

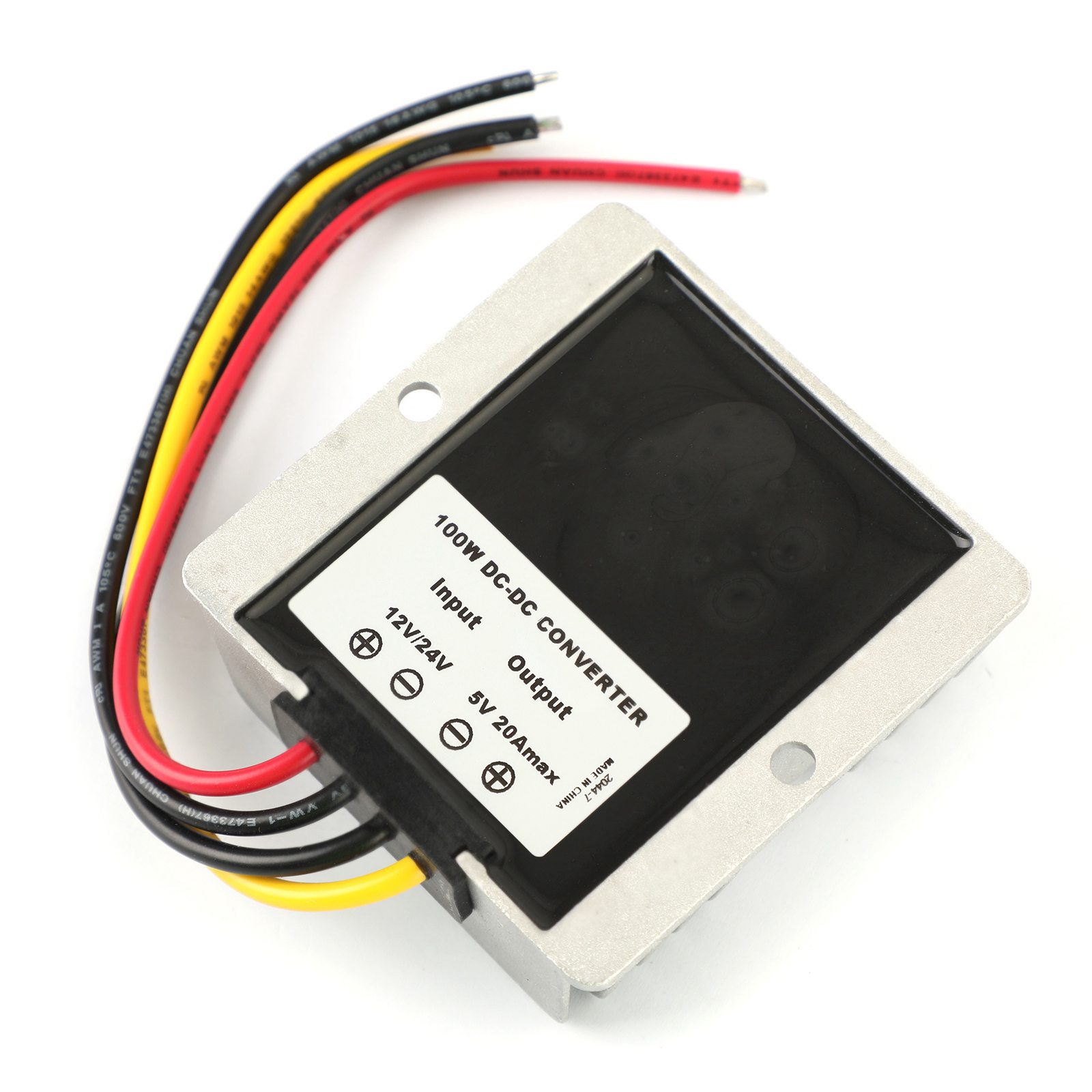

Option 10:DC12V/24V To 5V 20A 100W 5L

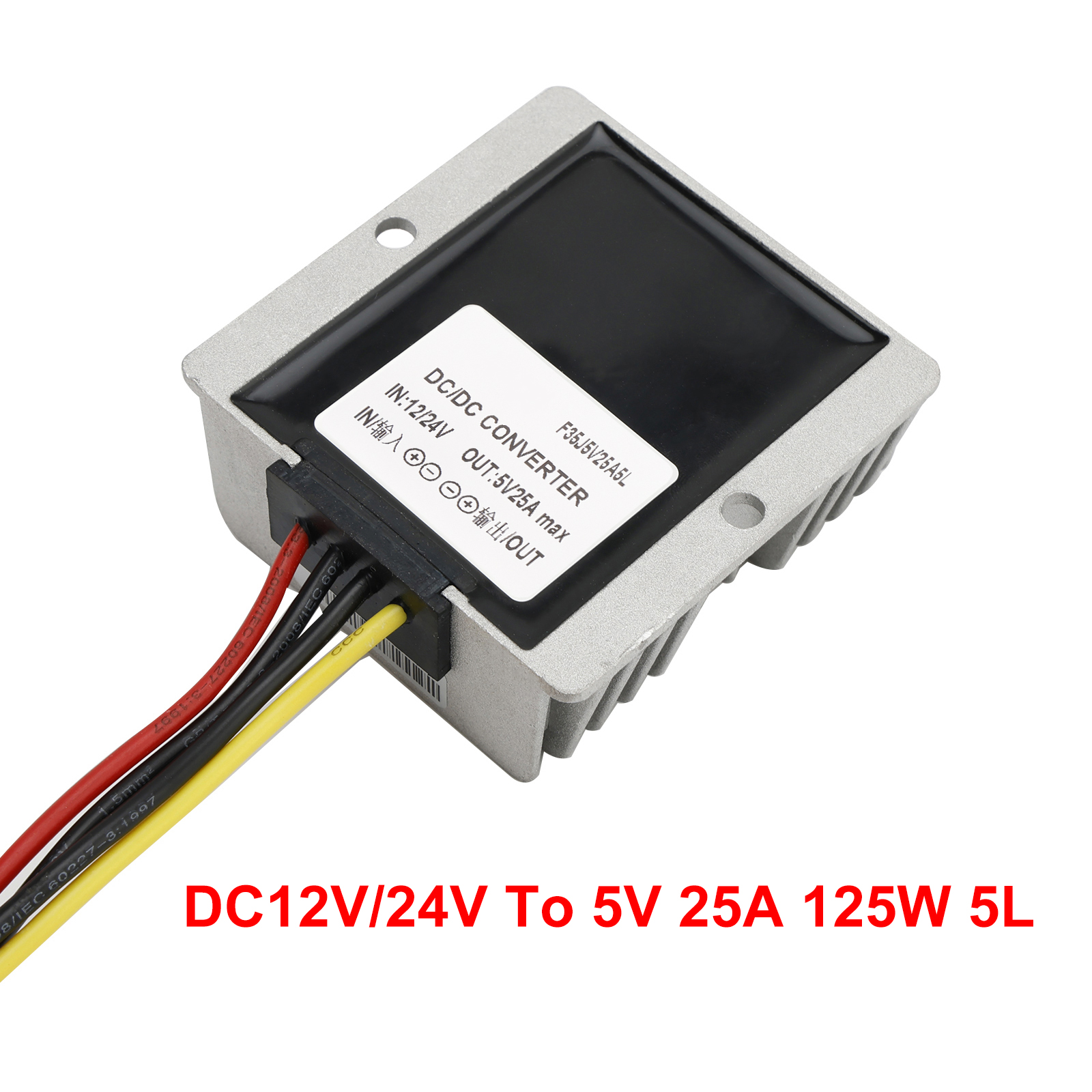

Option 11:DC12V/24V To 5V 25A 125W 5L
Option 12:DC12V/24V To 5V 30A 150W 5L
Option 13:DC12V/24V To 5V 30A 150W 6L
Option 14:DC12V/24V To 5V 35A 175W 6L

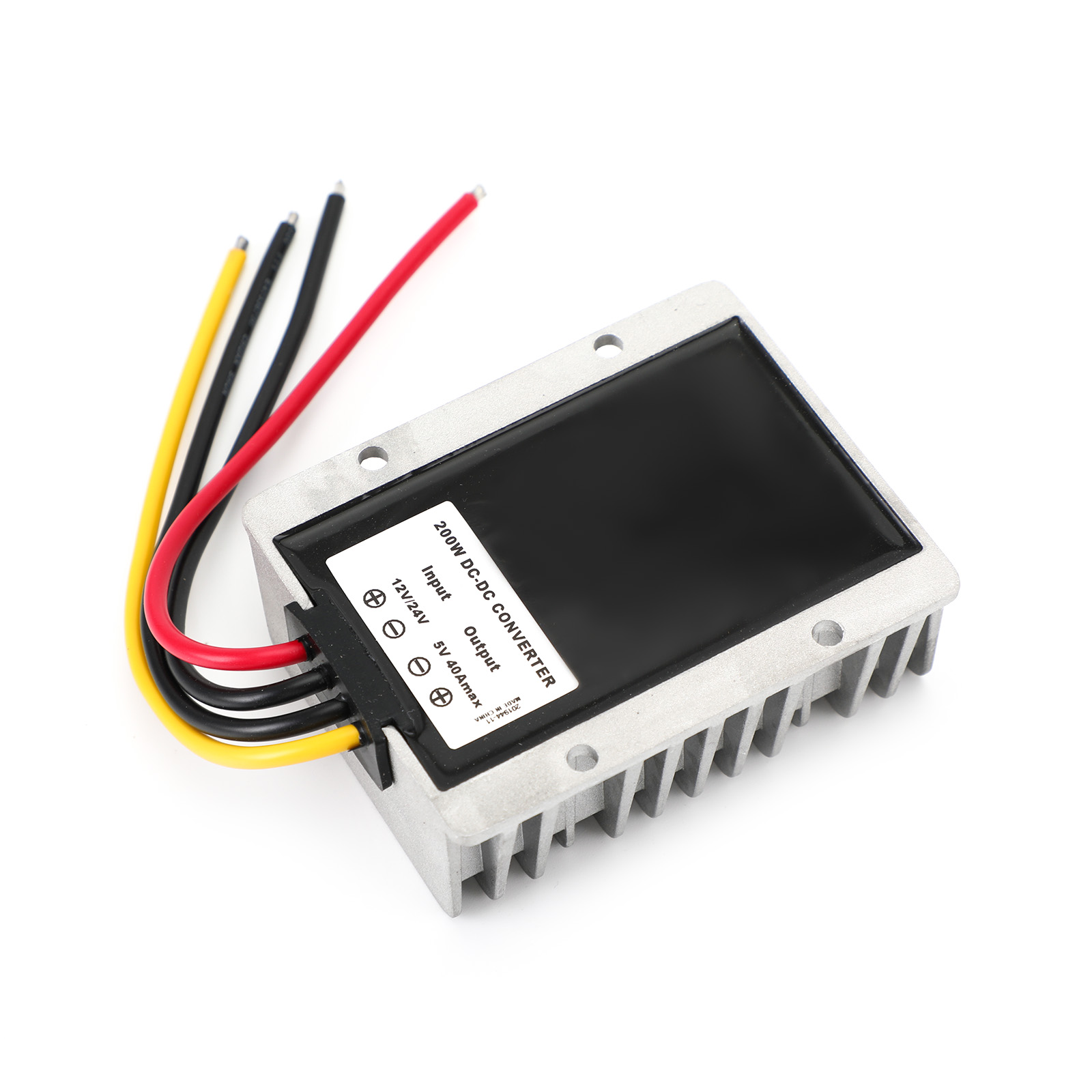

Option 15:DC12V/24V To 5V 40A 200W 6L

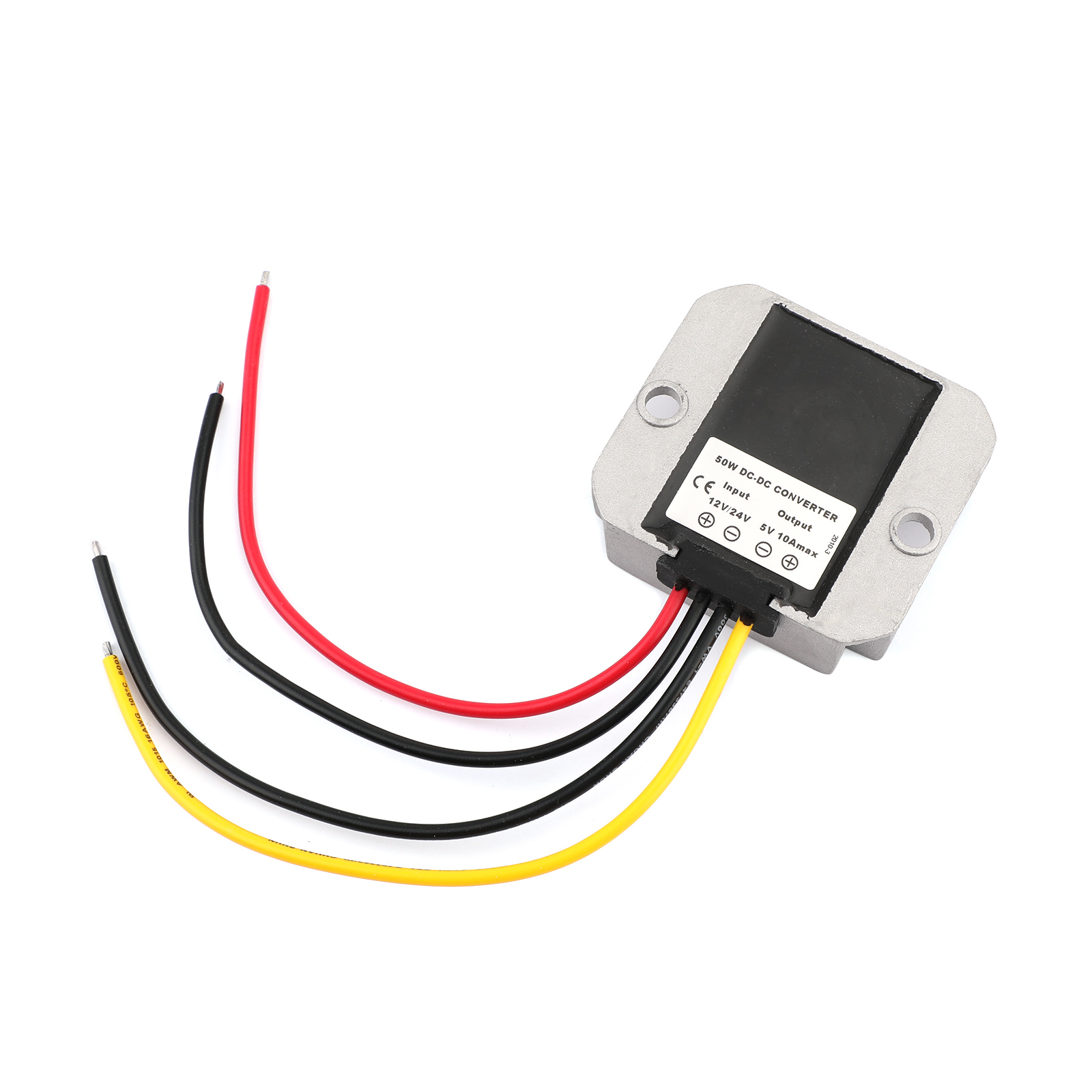

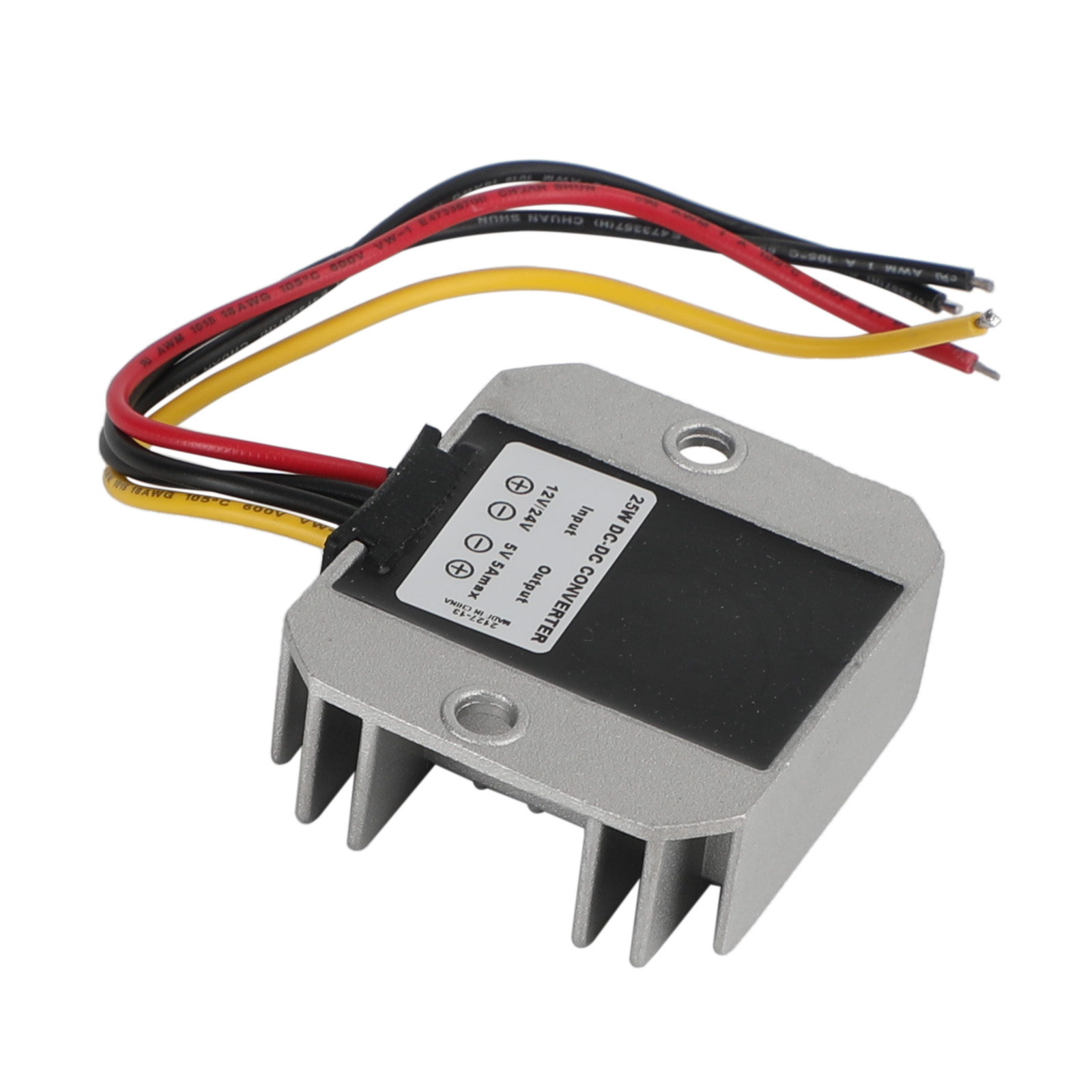

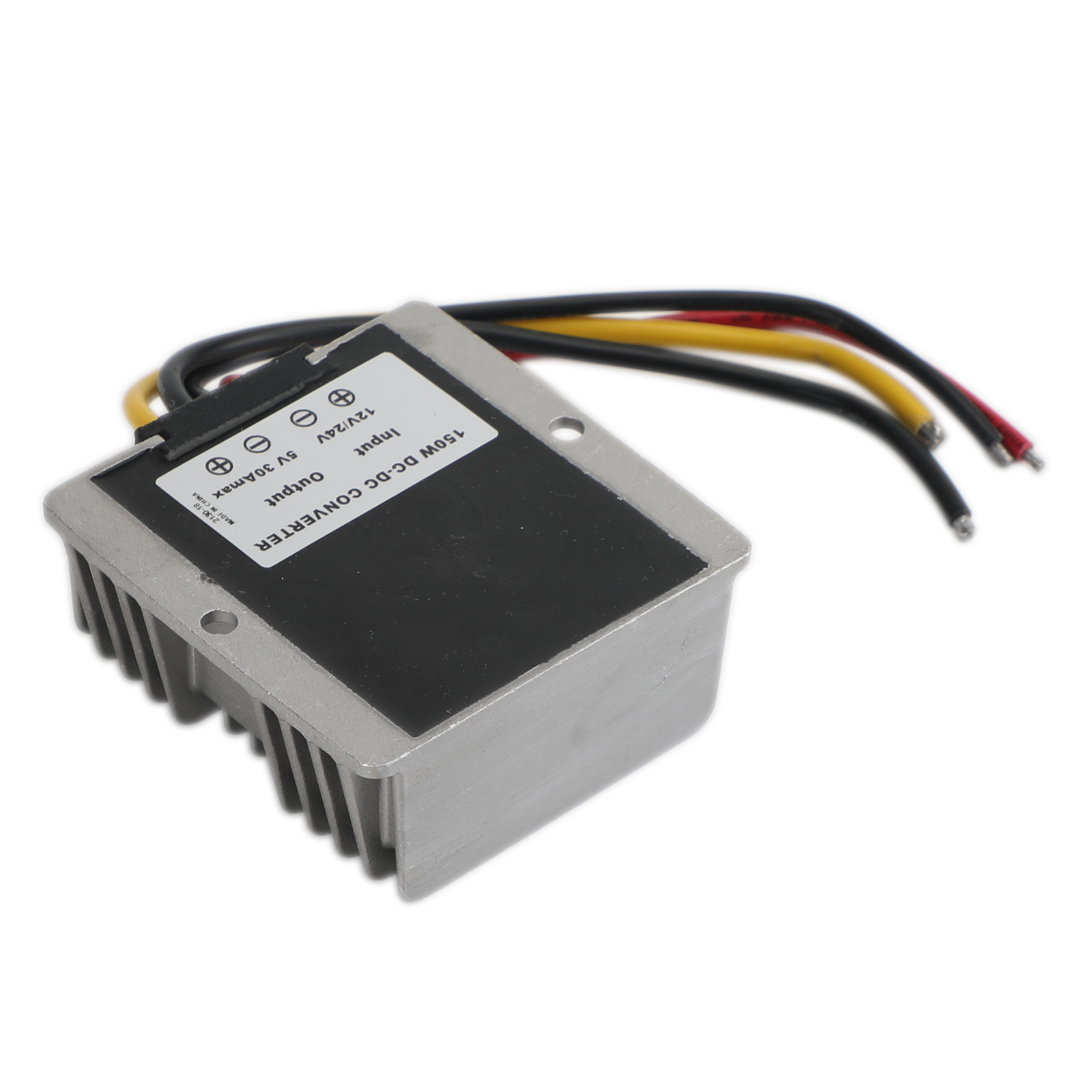

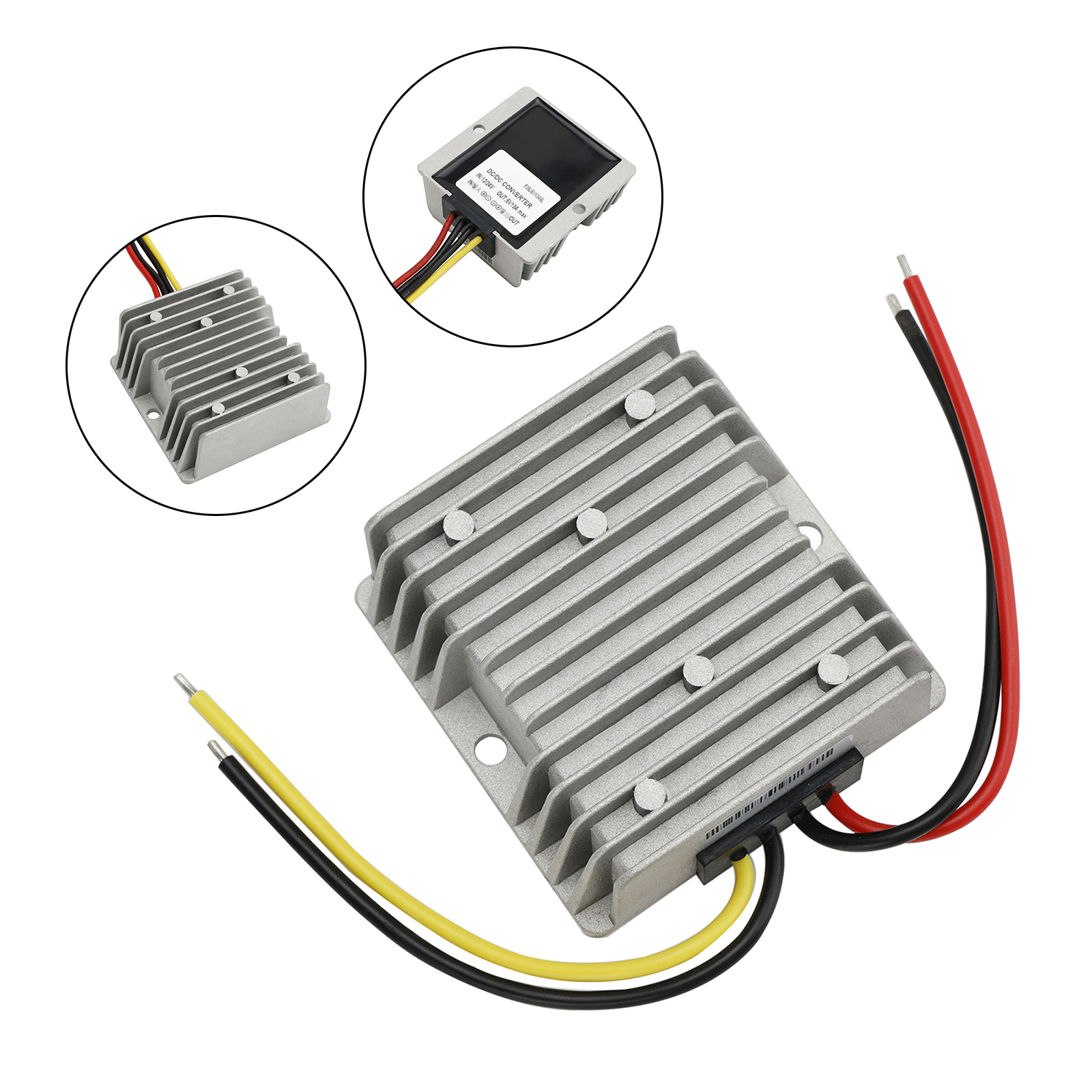

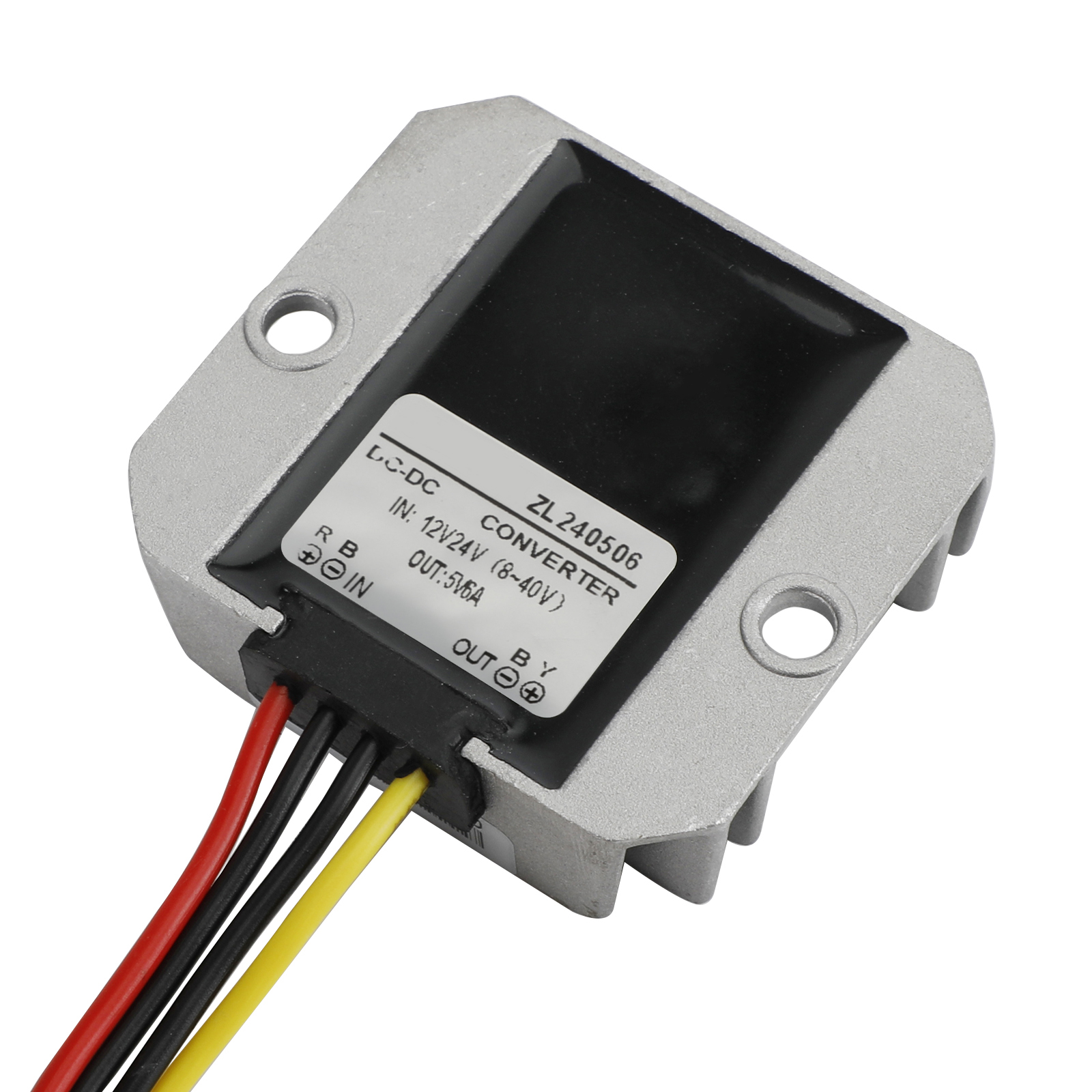

Note: Product appearance can be viewed in pictures
Conversion efficiency: Over 90%
Static consumption: 10MA
No-load adjustment rate: ±1%
Load regulation: ±5%
Operating temperature: -25°C ~ +80°C
Wire lengths: About 13~14cm
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.

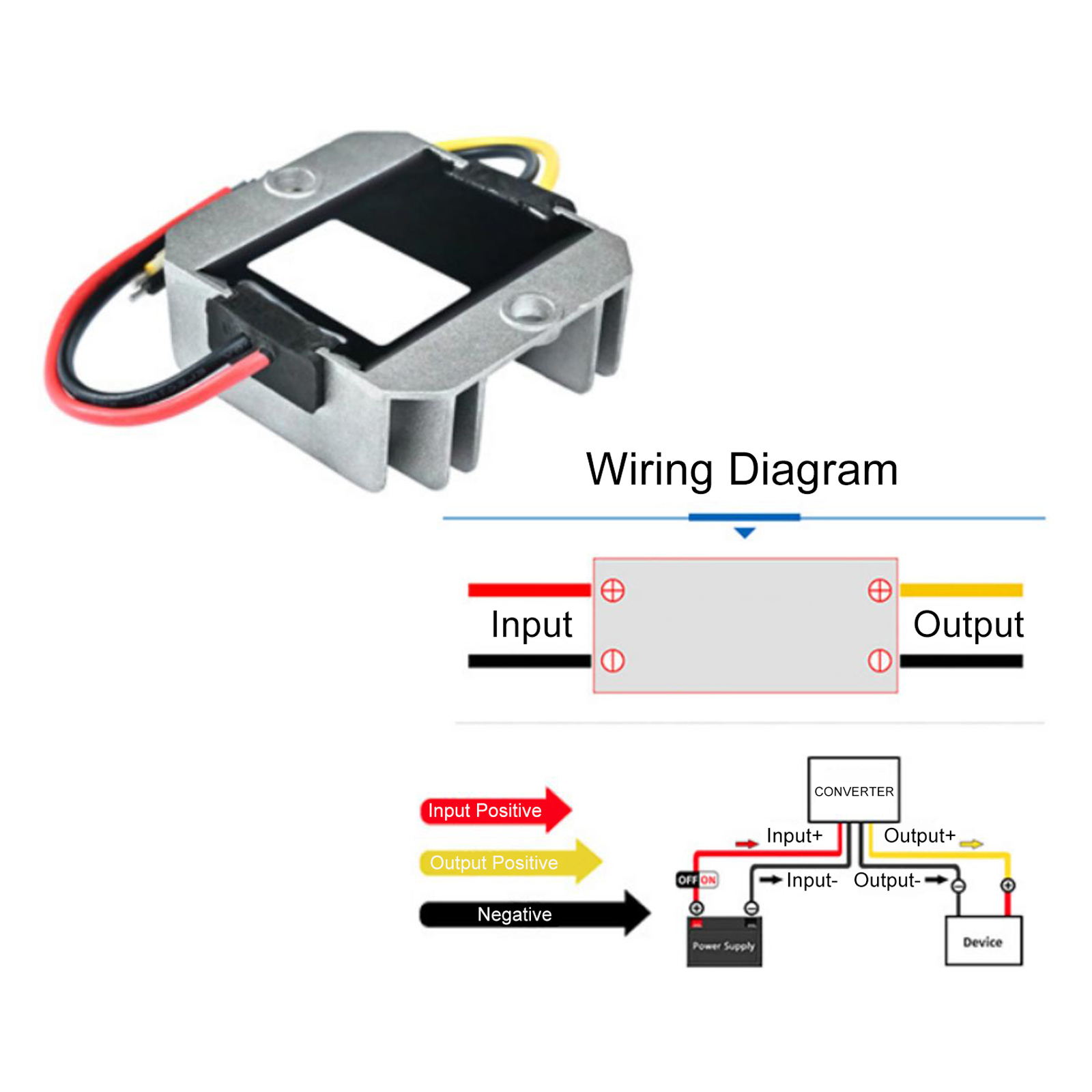

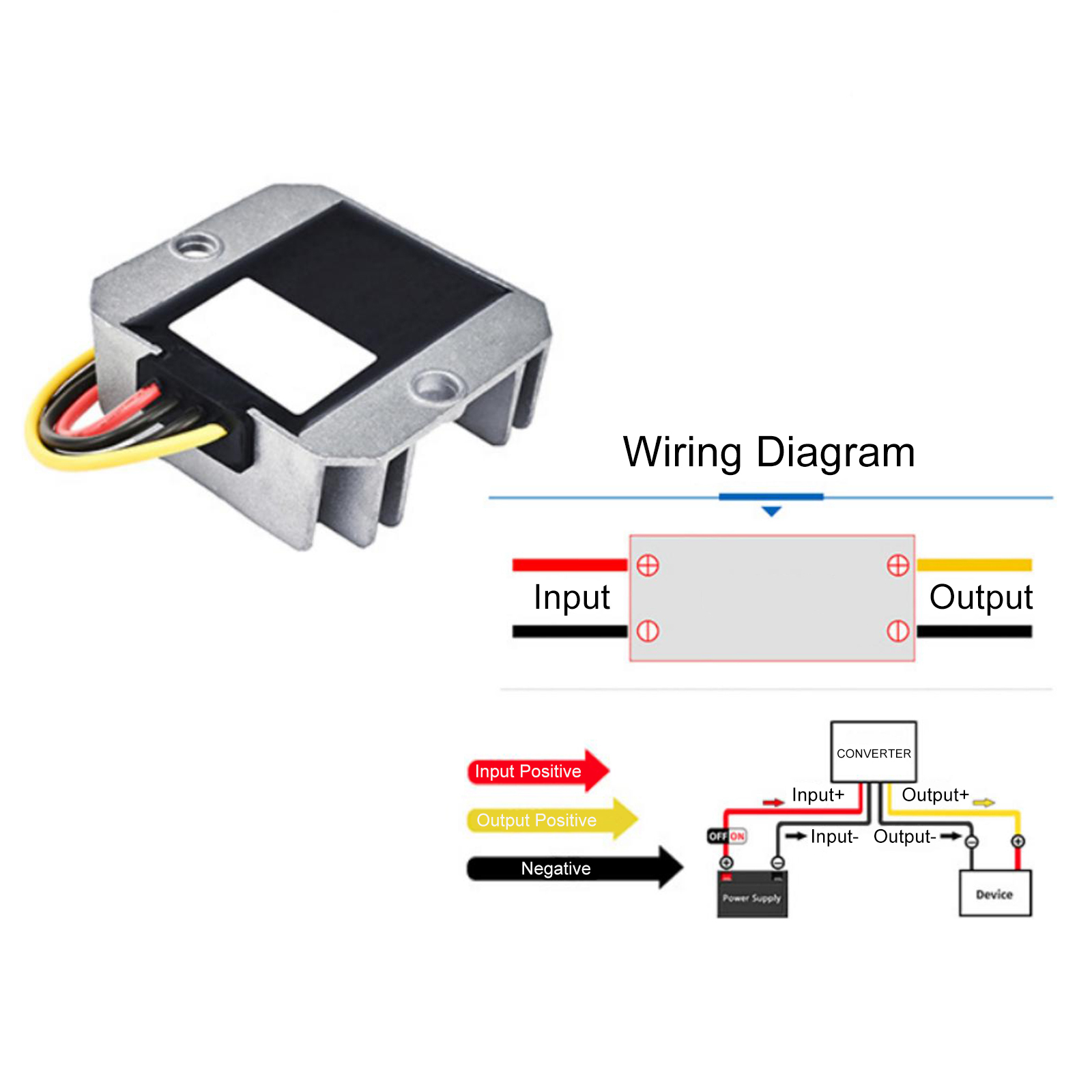

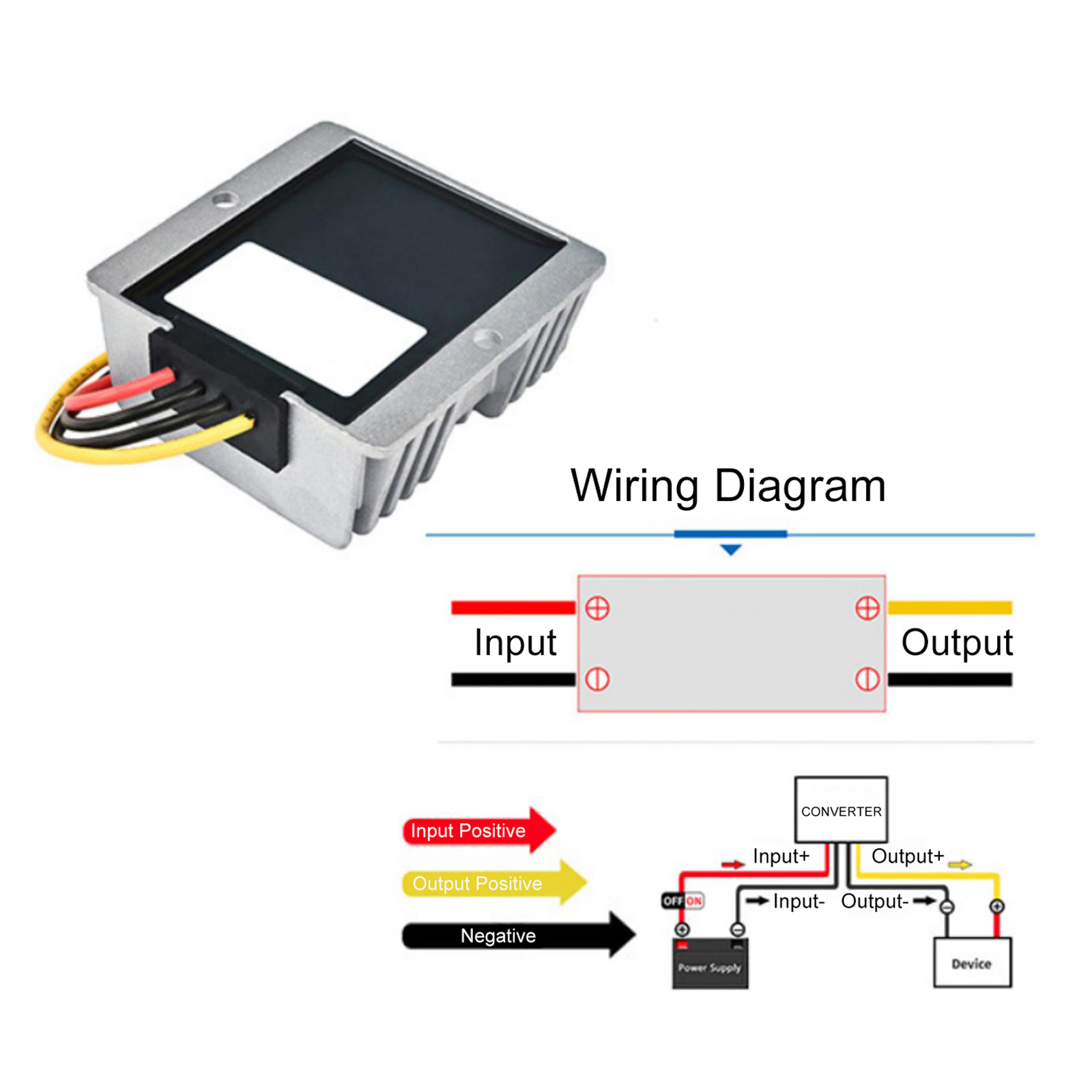

4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
Deutsch
Wasserdichter 12V/24V auf 5V 3-40A Abwärts-DC/DC-Stromrichterregler
Merkmal:
1: Aus hochwertigen Materialien hergestellt, lange Lebensdauer, langfristig stabil und zuverlässig.
2: Mit Überstrom-, Überspannungs-, Übertemperatur- und Kurzschlussschutz, zuverlässiges Mehrfachschutzdesign zur Verbesserung Ihrer Nutzungssicherheit.
3: Wasserdichtes, stoßfestes Design, gute Wärmeableitung, einfach zu installieren
4: Dieses Produkt hat nicht die Funktion, den Akku aufzuladen, es wird nur zur Spannungsumwandlung verwendet.
5: Weit verbreitet in LED-Fotobeleuchtung, LED-Anzeigebildschirmen, Überwachungssystemen, Energieautomatisierung, Kommunikationssystemen und anderen Bereichen.
Besonderheiten:
Zustand: 100 % neu
Eingangsnennspannung: 12 V/24 V DC
Eingangsspannungsbereich: 10 ~ 35 V DC
Ausgangsspannung: 5 V DC
Modell: Es gibt 15 Optionen, wie folgt:
Option 1: DC12 V/24 V auf 5 V 3 A 15 W 4L
Option 2: DC12 V/24 V auf 5 V 5 A 25 W 4L
Option 3: DC12 V/24 V auf 5 V 5 A 25 W 4L1
Option 4: DC12 V/24 V auf 5 V 6 A 30 W 4L
Option 5: DC12 V/24 V auf 5 V 10 A 50 W 2S
Option 6: DC12 V/24 V auf 5 V 10 A 50 W 4L
Option 7: DC12 V/24 V Auf 5 V 10 A 50 W 4L1
Option 8: DC12 V/24 V auf 5 V 10 A 50 W 5L
Option 9: DC12 V/24 V auf 5 V 15 A 75 W 5L
Option 10: DC12 V/24 V auf 5 V 20 A 100 W 5L
Option 11: DC12 V/24 V auf 5 V 25 A 125 W 5L
Option 12: DC12 V/24 V auf 5 V 30 A 150 W 5L
Option 13: DC12 V/24 V auf 5 V 30 A 150 W 6L
Option 14: DC12 V/24 V auf 5 V 35 A 175 W 6L
Option 15: DC12 V/24 V auf 5 V 40 A 200 W 6 L
Hinweis: Das Aussehen des Produkts kann auf den Bildern betrachtet werden
Umwandlungseffizienz: Über 90 %
Statischer Verbrauch: 10 mA
Leerlauf-Anpassungsrate: ±1 %
Lastregelung: ±5 %
Betriebstemperatur: -25 °C ~ +80 °C
Kabellänge: ca. 13 ~ 14 cm
Hinweis:
1. Bitte stellen Sie sicher, dass die Eingangsversorgungsspannung und -leistung ausreichend sind, damit das Modul genügend Spannung und Leistung ausgeben kann.
2. Bitte nehmen Sie eine durchschnittliche Last, verschmelzen Sie nicht, wenn sich mehrere Ausgangskabel im Ausgangsanschluss befinden.
3. Sie müssen darauf achten, dass das Leistungsmodul abgekühlt wird, wenn die Ausgabe den maximalen Stromwert erreicht.
4. Sichern Sie die Eingangsspannungspolarität streng gemäß der Verdrahtungsanweisungen und vertauschen Sie sie nicht, da dies das Stromversorgungsmodul beschädigen kann. Wenn die Ausgangsspannungspolarität umgekehrt wird, kann dies zu Schäden an elektrischen Geräten führen.
Lieferumfang:
1x DC/DC-Wandlerregler
