CHONGYTTUO®

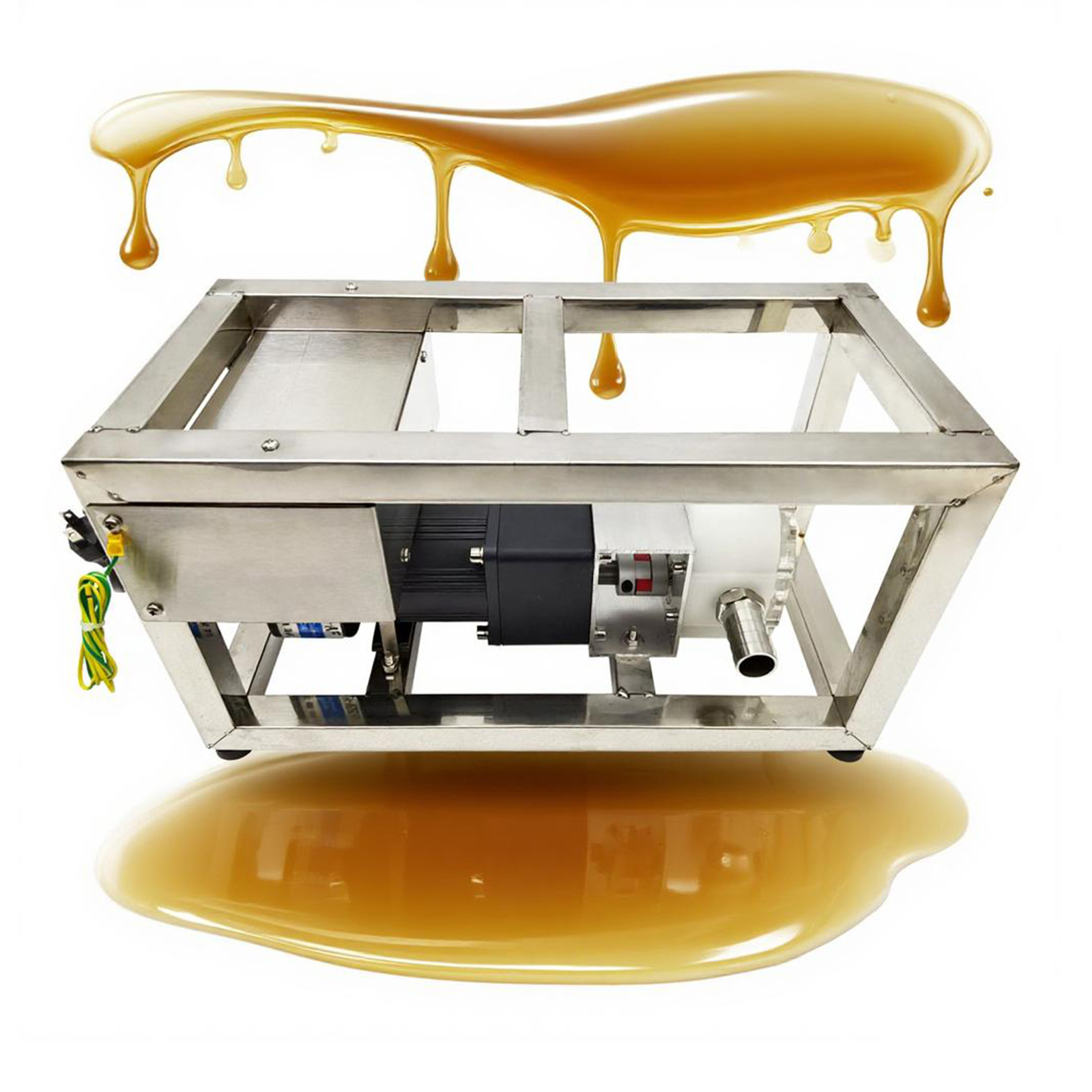

Cam Rotor Pump Honey High Viscosity Fluid
Transfer Pump Speed Adjustable 110V

This pump is a low-speed and low-pressure gear pump for filling or conveying, suitable for conveying viscous liquids without particles from 1000-4000 centipoise; This product is not suitable for organic solvent transportation.
Actual test: 60 revolutions per minute speed, flow rate: 8 kilograms per minute; This series of pumps requires material filling before use, and it is not recommended to use them at speeds below 75%.
Voltage: AC110V
Power: 90W
Speed: 60 RPM
Flow rate: 5.7 LMp
Suction lift: 9.8ft(3m)
 Head: 16.4ft(5m)
Import and Export: 3/4"(1.9cm)
Displacement: 96mL/rev
Inner diameter of input pipe: 0.8"(21mm)
Inner diameter of ouput pipe: 0.8"(21mm)
Applicable product: Viscous liquids, non-corrosive to 304 stainless steel, cleaning liquids (dishwashing liquid, body lotion, body wash), chemical liquids, etc.
Material: 304 stainless steel, PP, fluorine rubber sealing ring
Package size: 19.3"*16.5"*12.2"(49cm*42cm*31cm)
Net weight/Gross weight: 21lbs(9.7kg)/25lbs(11.25kg)

Please note:

1.It cannot be used to hold food!
2.When filling industrial liquids, it is necessary to ensure that the liquid does not corrode 304 stainless steel.
3. Pump stops completely before switching forward and reverse.
4. The rotation speed should not be lower than 70%.


Pure Copper Motor
　

Adopts pure copper motor, strong power, high efficiency; Simple structure, can work stably for a long time, high reliability, low maintenance cost.
Besides, the speed can be adjusted according to the actual situation, which helps you transfer liquid more conveniently.

Pump Head
　

The pump head adopts non-stick plastic, acid and alkali resistance, swelling resistance, suitable for all kinds of viscous liquids (Not applicable to food). Whether in forward or reverse rotation, cam-rotor pumps maintain consistent performance and efficient delivery, ensuring accurate flow and pressure control.

Coupling
　

The coupling can effectively reduce the vibration and noise generated by the pump in the working process, thus improving the smoothness of the equipment, extending the service life of the pump and reducing maintenance costs.

Supporting Leg
　

Four rubber supporting legs at the bottom, which are non-slip, wear-resistant, good silence, can ensure the stability of the machine, and can prevent water from entering the machine from the bottom.

Hose
　

A 3m hose is included with the machine. Customers no longer need to purchase it themselves, making it more convenient to use. The hose is made of high-quality materials, is not easy to be damaged and has a long service life!
- 10L/Min transfer pump.

- Adjustable speed motor.

- Made of stainless steel, easy to clean.
Usage Method
Usage Steps

1. The first step in filling is to fill the pump. There is a syringe in the accessory package. Draw the material and fill it into the receiving port to ensure there is material in the pump head.

2. Connect the material pipe and it can be used immediately after turning on the machine.

3. Cleaning method for the pump head: Clean with water to ensure that the machine and water are on the same plane. When cleaning, directly turn the speed control knob to the maximum.
Precautions

1. Pay attention to electrical safety. Pause for 2 seconds when switching between forward and reverse rotation.

2. Do not touch the rotating shaft part with your hands when it is rotating!!

3. If this machine is not used for a long time, please rinse it with clean water and dry it.

Item Included(057153)

Viscous Liquid Pump *1

 3m Hose *1
