Details

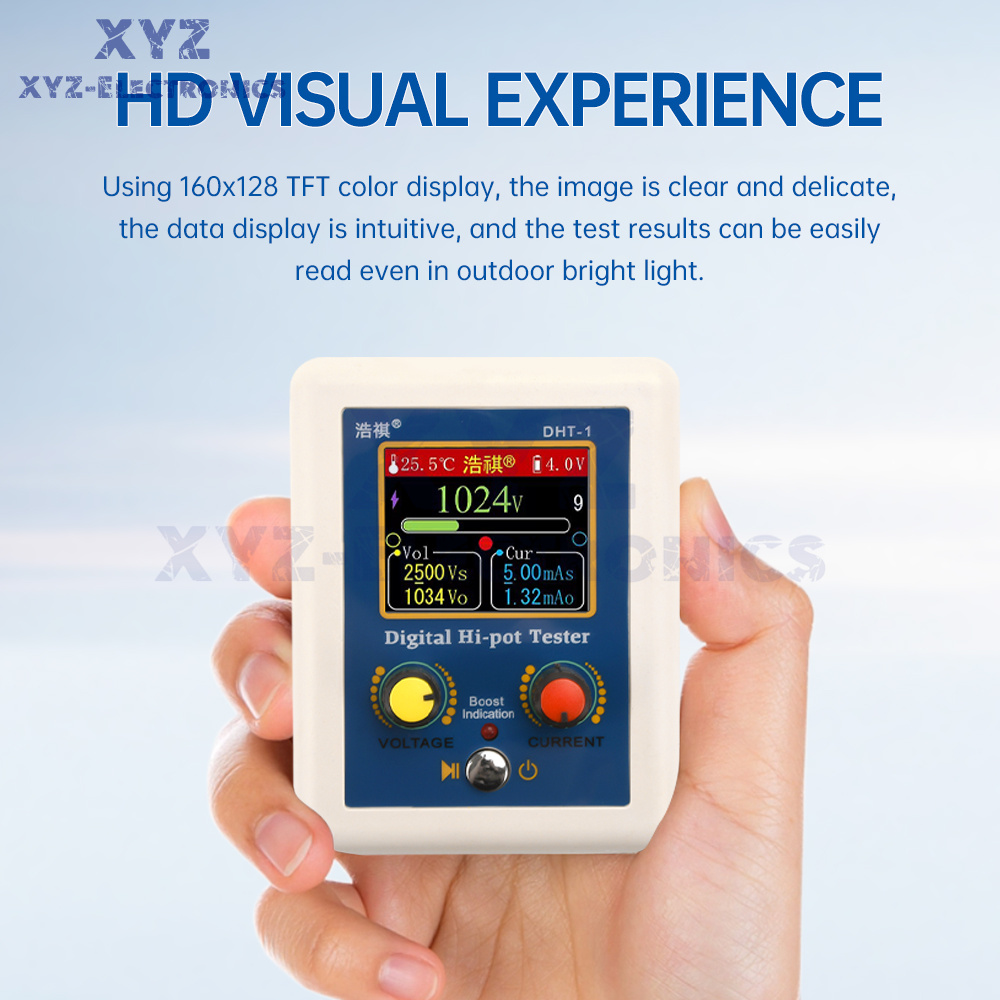

1. high-definition visual experience: 160x128 TFT color display, the image is clear and delicate, the data display is intuitive, even in the outdoor bright light can easily read the test results, improve work efficiency.
2. Flexible voltage and current regulation: with adjustable voltage and current function, users can accurately set the test conditions according to the actual test requirements, widely applicable to the high-voltage testing of different electronic components, to ensure the accuracy and applicability of the test.
3. Convenient Type-C charging: equipped with Type-C charging interface, supports fast charging, compatible with mainstream charging devices, convenient and fast, to ensure that the tester is always on standby, not bound by the power.
4.Can be used to measure the voltage withstand of electronic components such as NMOS, PMOS, IGBT, transistors, rectifier bridges, zener, LEDs, thyristors, capacitors and so on.
5. Insulation voltage between two pins of switches, buttons, connectors and other devices, as well as between motor and transformer windings.
Output voltage: 10~2500V
Output current: 0.05~5.00mA
Output power: 1.5W
Overall power: 3.8W
Voltage measurement resolution: 0.1V (Vo<100V), 1V (Vo≥100V)
Current measurement resolution: 0.01mA
Voltage adjustment step: 10~1000V
Current adjustment step: 0.1~1mA
Output voltage accuracy: 1%
Output current accuracy: 1%
Battery capacity: 500mAH
Charging voltage: 4~6.5V
Charging current: 800~1000mA
Battery alarm voltage: 3.2V (below this voltage, alarm)
Battery shutdown voltage: 3.0V (below this voltage will shutdown)
Product size: 9*7*3.5cm
Tester *1
