Details
1. Unlimited channel customization: supports free editing of an unlimited number of channels, accurately matching usage scenarios

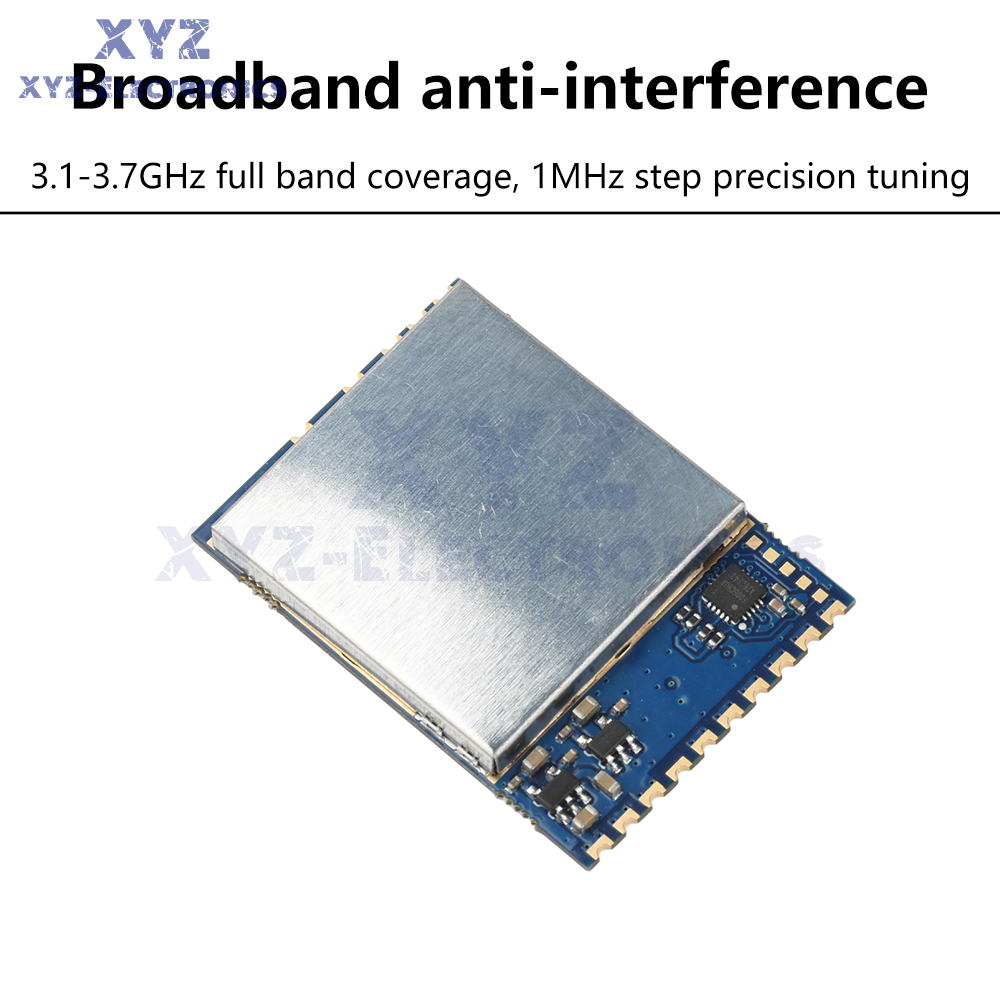

2. Strong broadband anti-interference: 3.1-3.7GHz full frequency coverage, 1MHz step precise frequency modulation

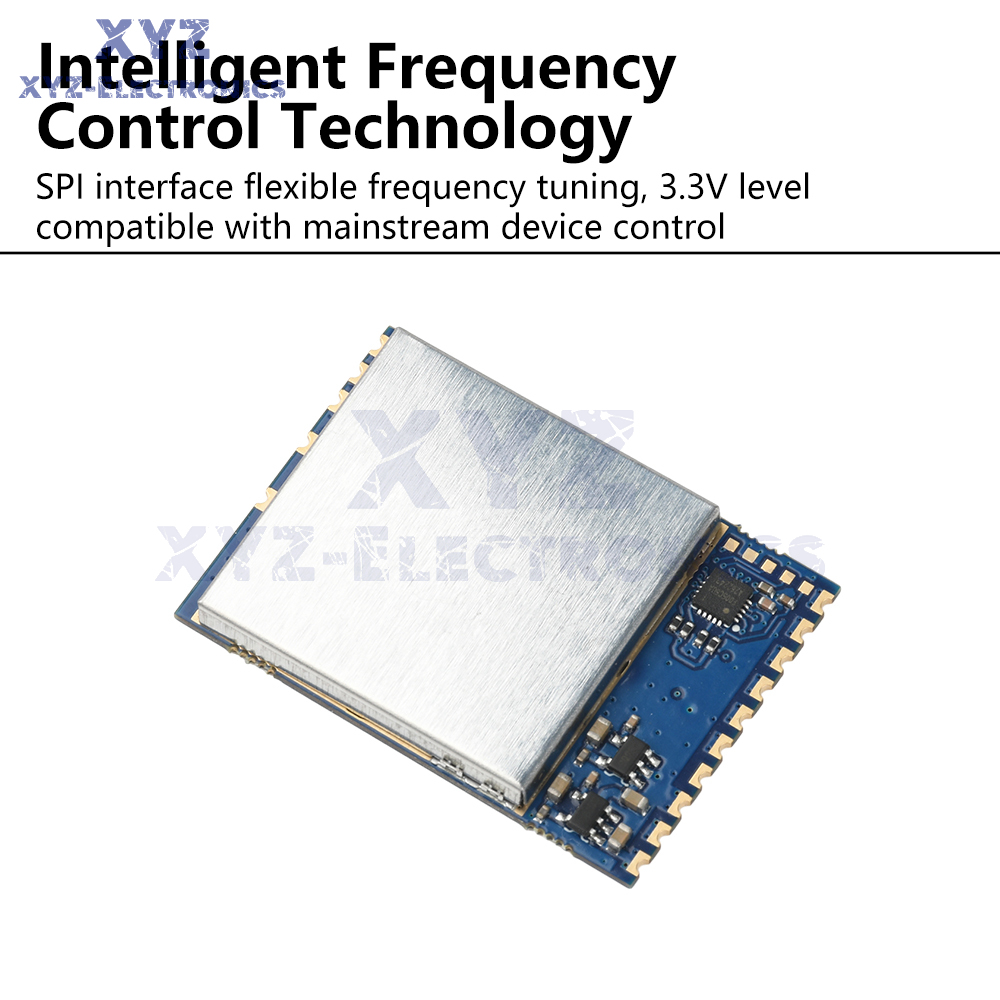

3. Intelligent frequency control technology: SPI interface flexible frequency modulation, 3.3V level compatible with mainstream device control
4. High definition picture quality guarantee: 38dB signal-to-noise ratio+16.5MHz bandwidth, smooth video without buffering

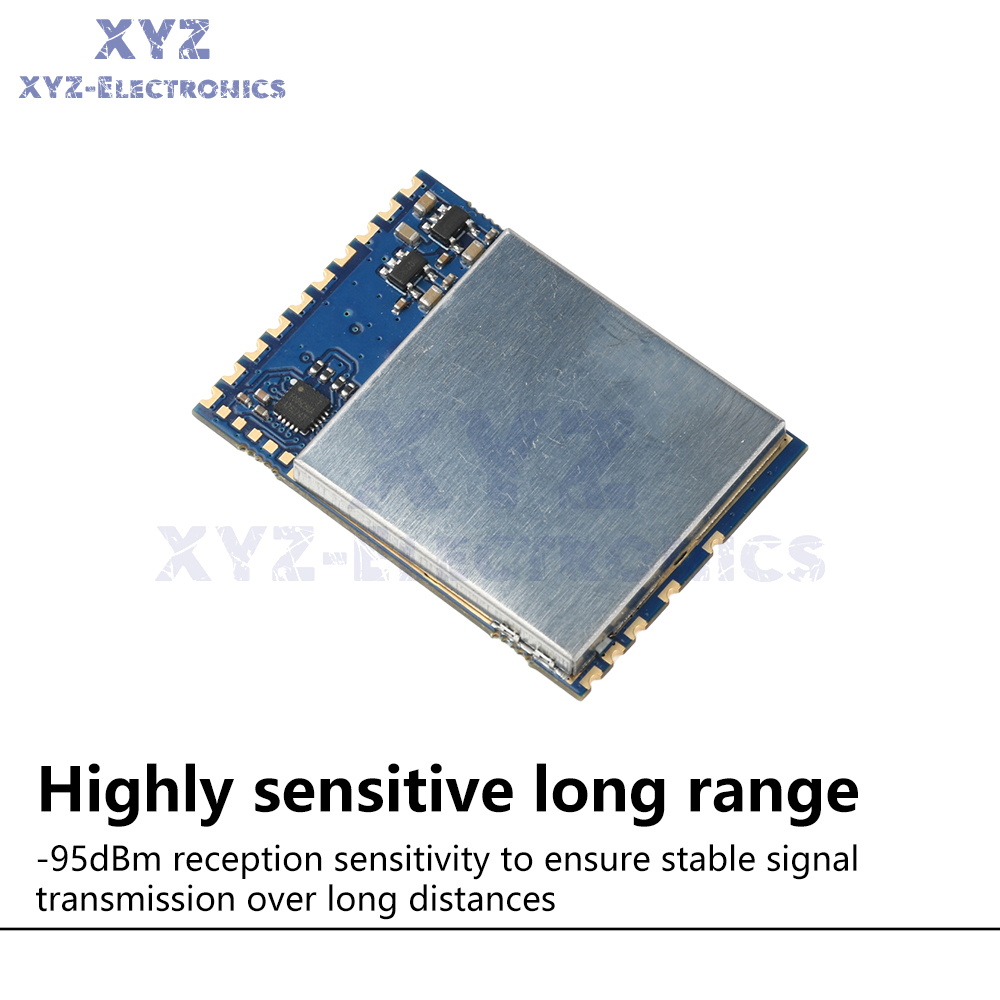

5. High sensitivity long-distance: -95dBm receiving sensitivity, ensuring stable transmission of long-distance signals

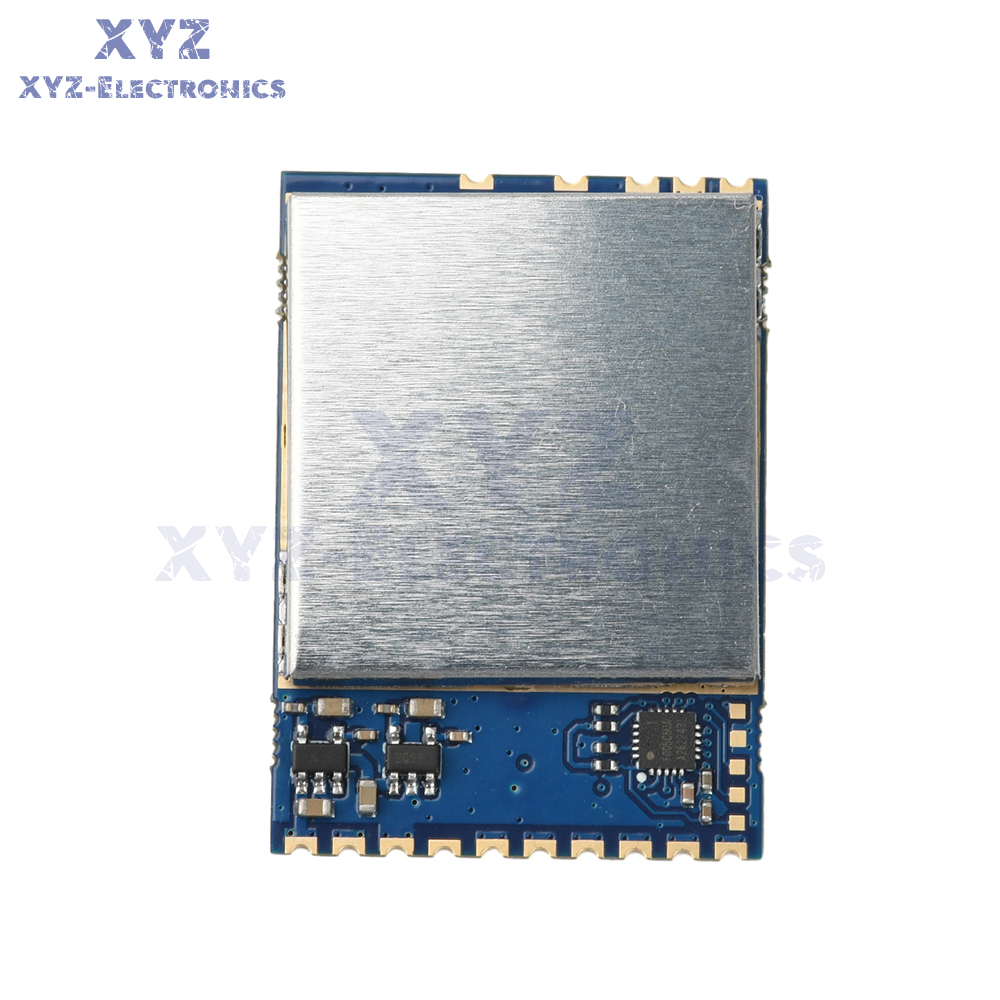

Product Name: 3.3GHz Video Receiver Module
Channel: Users can freely edit channels without any quantity limit
Supply voltage: DC 5V
Current consumption: 300 Max
Working temperature: -10~+65 º C
Storage temperature: -30~+85 º C
Working humidity: 85% RH
Size: 37x26x3.7mm
Receiving frequency range: 3100~3700MHz
Input standing wave ratio: 2:1
Demodulation method: FM/PLL
Intermediate frequency IF: 480MHz
Receiver sensitivity: -95dBm
Video output impedance: 75 ohms, Typ
Video output level: 1Vp-p, Typ
3dB intermediate frequency bandwidth: 16.5MHz
Signal to Noise Ratio (S/N): 38dB, Min
RSSI Output Voltage(-30dBm~-90dBm)：1.3~0.7V

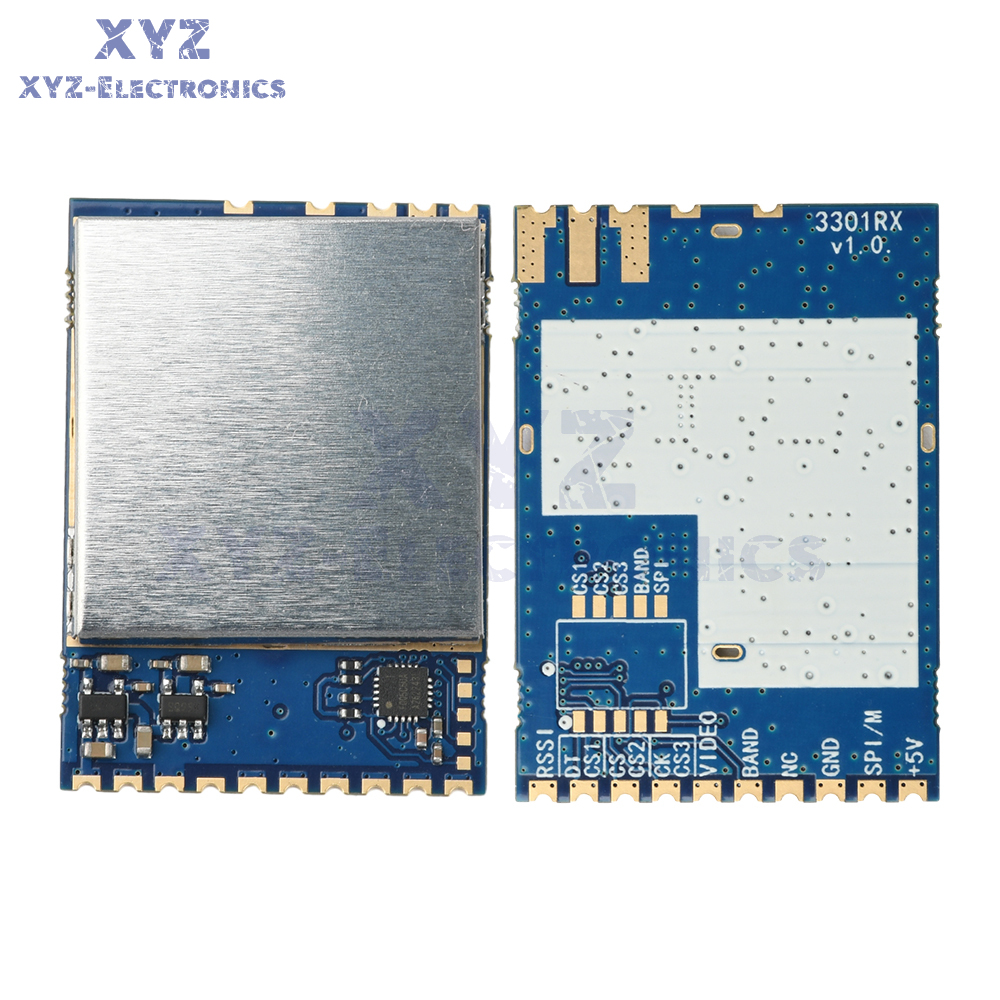

When SPI/M is at a high level, the module receives SPI signals to control the frequency. If no frequency setting is received or invalid, it defaults to 3495MHz and can be set to a frequency range of 3.1G~3.7G with 1MHz steps. SPI signal level 3.3V, maximum 100K rate.
Module x1
