Description:

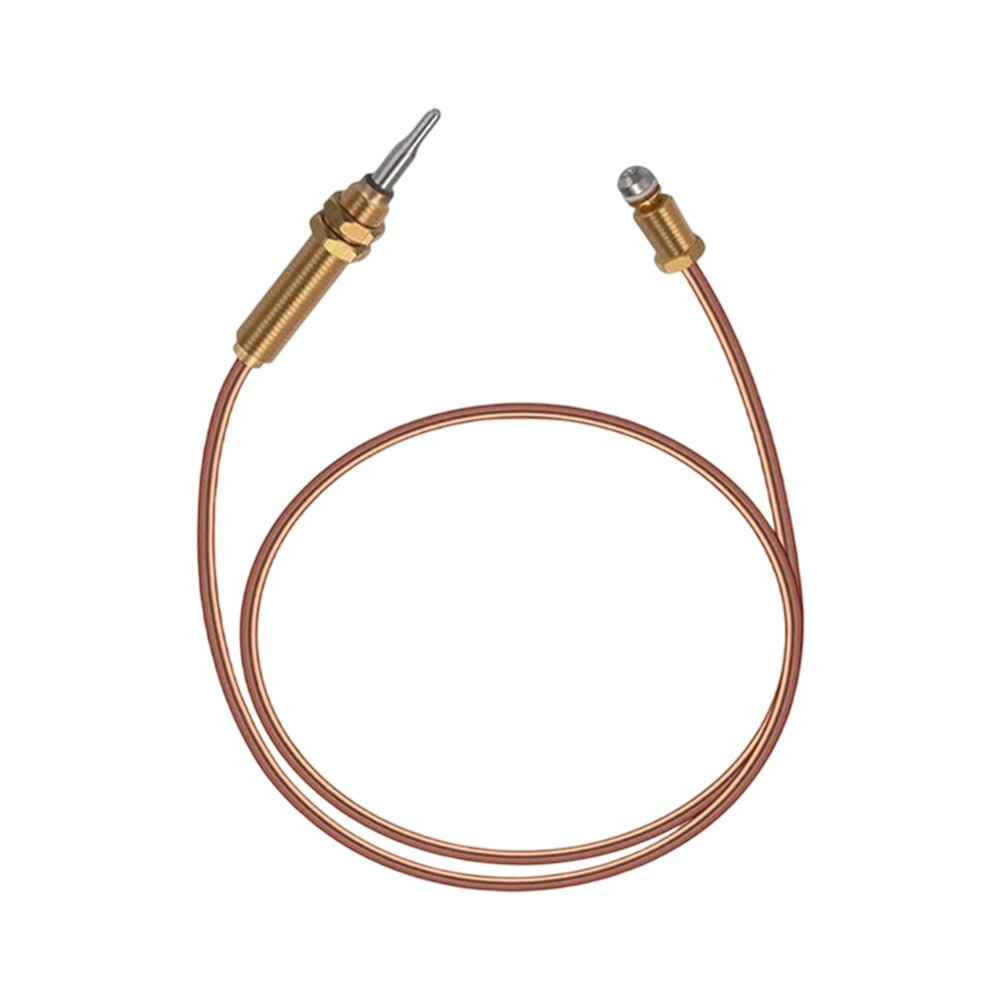

Thermocouple: The length of the thermocouple is 600mm, and the head end is m8x1 (this is a low-pressure control valve with a maximum rating of BTU 50000).
Features: It has low working pressure, maximum 1/2 psi (65mbar), main control valve inlet and outlet, with 3/8 "external flared thread.
Compatible: 40mm diameter flat black bakelite knob and "d" plug is suitable for valve 6.0-6.1mm.
Suitable: It is suitable for all kinds of low-pressure heaters, barbecue ovens and ovens.
Specification:
Colour: as shown in the picture.
Material: Brass
Size: Approx.
Air inlet and outlet thread: 5/8-18unf (3/8 "flare).
Valve shaft size: Approx. 0.61 cm/0.24 inches.
Adapter knob: 6.0-6.1mm core.
Thermocouple: m8*1, length 600mm.
Package Includes:
1 Set valve
