- Rear axle axle support
- 2x Control Arm / Spring absorption of the rear axle on the left + at the bottom right
- including rubber storage
- Inner diameter of rubber storage: 12 mm
- Material: steel
- 2x Control Arm the rear axle top left + right
- including rubber storage
- Inner diameter of rubber storage: 12 mm
- Material: steel
- 2x Control Arm the rear axle top left + right
- including rubber storage
- Inner diameter of rubber storage: 12 mm
- Material: steel
- Screw set for Control Arm

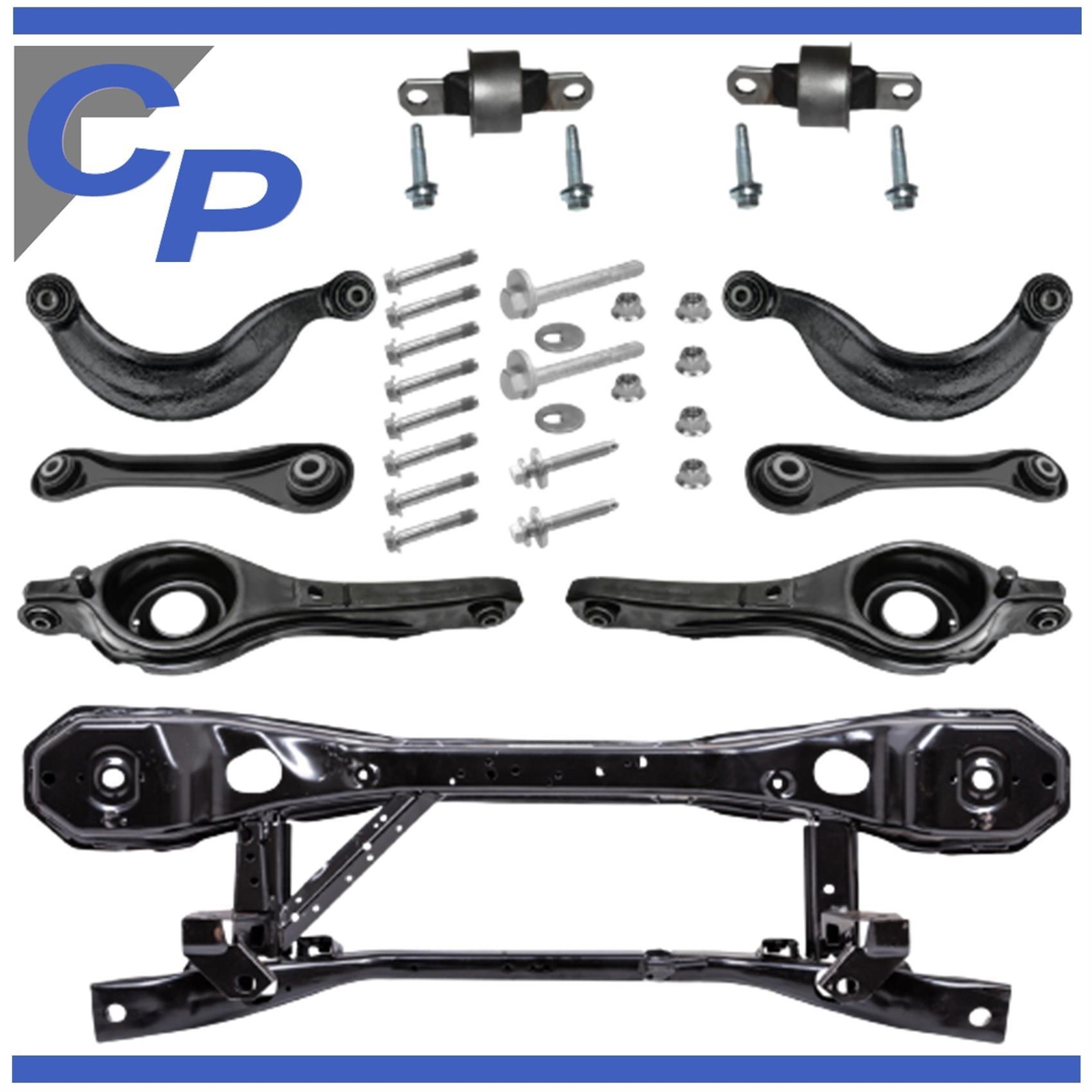

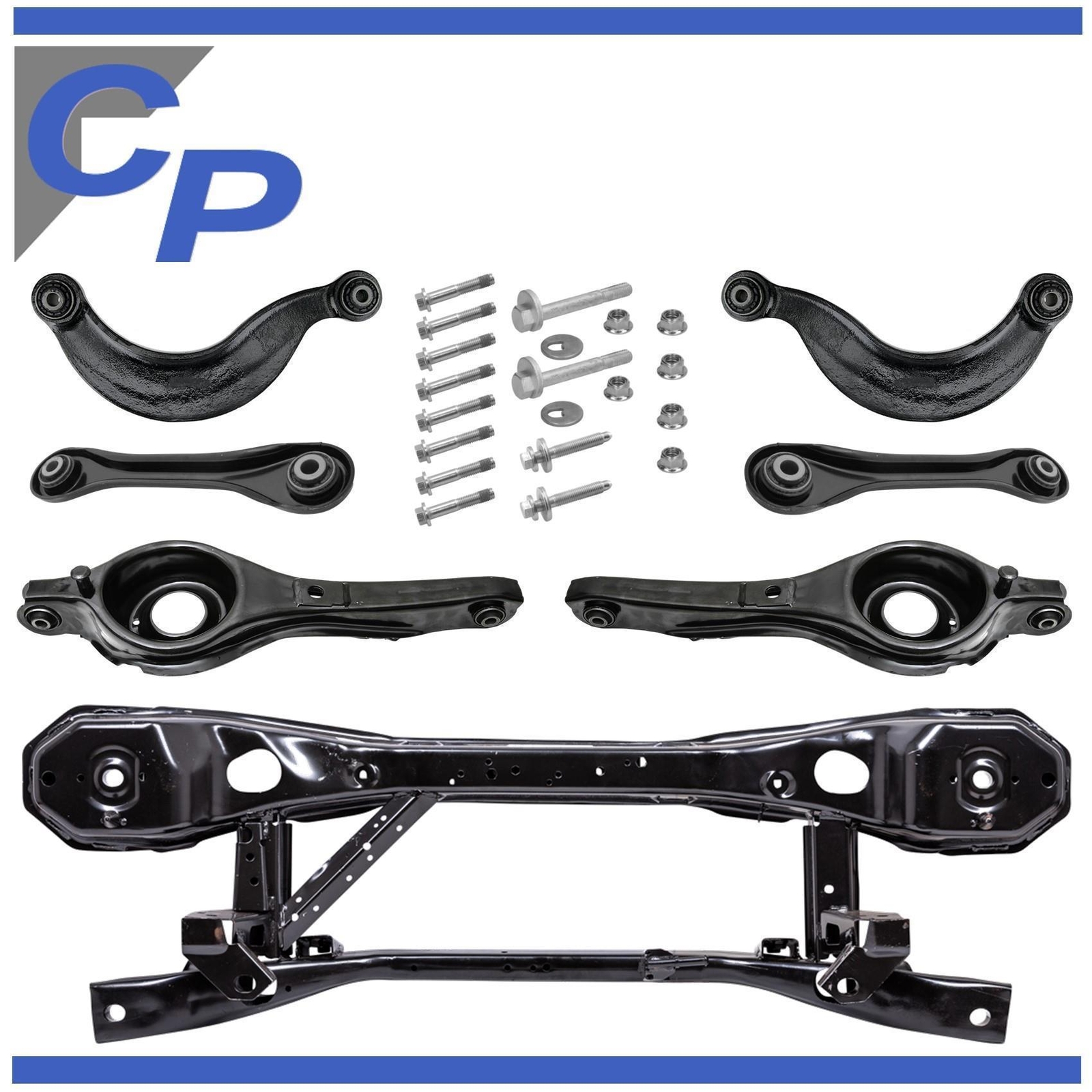

Axle carrier and Control Arm including rubber mounting
| vehicle | platform | Year of construction | Motor | KBA-Nr. |
|---|---|---|---|---|
| C-Max 1.6 with suspension package handling | DM2 | 2007/02-2010/09 | 1596 cc, 74 KW, 100 HP | 8566-AAL |
| C-Max 1.6 with suspension package handling | DM2 | 2007/04-2010/09 | 1596 cc, 85 KW, 116 HP | 8566-AAM |
| C-Max 1.6 TDCi with suspension package handling | DM2 | 2007/02-2010/09 | 1560 cc, 66 KW, 90 HP | 8566-AAK |
| C-Max 1.6 TDCi with suspension package handling | DM2 | 2007/02-2010/09 | 1560 cc, 80 KW, 109 HP | 8566-AAJ |
| C-Max 1.6 TDCi with suspension package handling | DM2 | 2007/02-2010/09 | 1560 cc, 74 KW, 101 HP | 8566-AKH |
| C-Max 1.8 with suspension package handling | DM2 | 2007/02-2010/09 | 1798 cc, 90 KW, 122 HP | 8566-AAP |
| C-Max 1.8 with suspension package handling | DM2 | 2007/02-2010/09 | 1798 cc, 92 KW, 125 HP | 8566-AAO |
| C-Max 1.8 Flexifuel with suspension package handling | DM2 | 2007/02-2010/09 | 1798 cc, 92 KW, 125 HP | 8566-ATL |
| C-Max 1.8 TDCi with suspension package handling | DM2 | 2007/02-2010/09 | 1753 cc, 85 KW, 115 HP | 8566-AAN |
| C-Max 2.0 with suspension package handling | DM2 | 2007/02-2010/09 | 1999 cc, 107 KW, 145 HP | 8566-AAG |
| C-Max 2.0 CNG with suspension package handling | DM2 | 2009/04-2010/09 | 1999 cc, 107 KW, 145 HP | 8566-AQU |
| C-Max 2.0 LPG with suspension package handling | DM2 | 2008/06-2010/09 | 1999 cc, 107 KW, 145 HP | 8566-APT |
| C-Max 2.0 TDCi with suspension package handling | DM2 | 2007/02-2010/09 | 1997 cc, 100 KW, 136 HP | 8566-AAH |
| C-Max 2.0 TDCi with suspension package handling | DM2 | 2008/02-2010/09 | 1997 cc, 81 KW, 110 HP | 8566-AOI |
| C-Max 2.0 TDCi with suspension package handling | DM2 | 2007/02-2010/09 | 1997 cc, 98 KW, 133 HP | |
| focus II 1.4 | DA_ | 2004/07-2012/09 | 1388 cc, 59 KW, 80 HP | 8566-583, 8566-ABC |
| focus II 1.6 | DA_ | 2004/07-2012/09 | 1596 cc, 74 KW, 100 HP | 8566-572, 8566-ABN |
| focus II 1.6 LPG | DA_ | 2009/10-2011/07 | 1596 cc, 85 KW, 115 HP | 8566 ATM |
| focus II 1.6 TDCi | DA_ | 2004/07-2012/09 | 1560 cc, 74 KW, 100 HP | 8566-AKF |
| focus II 1.6 TDCi | DA_ | 2005/01-2012/09 | 1560 cc, 66 KW, 90 HP | 8566-600, 8566-ABK |
| focus II 1.6 TDCi | DA_ | 2004/07-2012/09 | 1560 cc, 80 KW, 109 HP | 8566-573, 8566-ABI |
| focus II 1.6 TI | DA_ | 2004/07-2012/09 | 1596 cc, 85 KW, 115 HP | 8566-574, 8566-ABP |
| focus II 1.8 | DA_ | 2006/03-2012/09 | 1798 cc, 92 KW, 125 HP | 8566-617, 8566-ABT |
| focus II 1.8 Flexifuel | DA_ | 2006/01-2012/09 | 1798 cc, 92 KW, 125 HP | 8566-ABT, 8566-AQP |
| focus II 1.8 Flexifuel | DA_ | 2005/12-2008/01 | 1798 cc, 96 KW, 131 HP | |
| focus II 1.8 TDCi | DA_ | 2005/01-2012/09 | 1753 cc, 85 KW, 115 HP | 8566-598, 8566-ABW |
| focus II 2.0 | DA_ | 2004/07-2012/09 | 1999 cc, 107 KW, 145 HP | 8566-576, 8566-ABA |
| focus II 2.0 | DA_ | 2010/04-2012/09 | 1999 cc, 105 KW, 143 HP | |
| focus II 2.0 | DA_ | 2005/06-2008/09 | 1999 cc, 104 KW, 140 HP | |
| focus II 2.0 CNG | DA_ | 2009/04-2011/07 | 1999 cc, 107 KW, 145 HP | 8566-AQV |
| focus II 2.0 Flex | DA_ | 2008/10-2010/03 | 1999 cc, 107 KW, 145 HP | |
| focus II 2.0 LPG | DA_ | 2008/06-2011/07 | 1999 cc, 107 KW, 145 HP | 8566-APR |
| focus II 2.0 TDCi | DA_ | 2008/02-2011/07 | 1997 cc, 81 KW, 110 HP | 8566-AOF |
| focus II 2.0 TDCi | DA_ | 2004/07-2008/01 | 1997 cc, 98 KW, 133 HP | 8566-594, 8566-ABG |
| focus II 2.0 TDCi | DA_ | 2004/07-2012/09 | 1997 cc, 100 KW, 136 HP | 8566-575, 8566-ABE |
| focus II 2.5 RS | DA_ | 2009/01-2011/07 | 2521 cc, 224 KW, 305 HP | 8566-AQB, 8566-AQJ |
| focus II 2.5 RS 500 | DA_ | 2010/05-2011/07 | 2521 cc, 257 KW, 350 HP | 8566-AUA |
| focus II 2.5 ST | DA_ | 2005/10-2012/09 | 2522 cc, 166 KW, 225 HP | 8566-AAA |
| focus II Saloon 1.4 | DA_ | 2005/04-2012/09 | 1388 cc, 59 KW, 80 HP | 8566-603, 8566-AAR |
| focus II Saloon 1.6 | DA_ | 2005/04-2012/09 | 1596 cc, 74 KW, 100 HP | 8566-607, 8566-AAW |
| focus II Saloon 1.6 Flex | DA_ | 2007/04-2009/11 | 1598 cc, 77 KW, 105 HP | |
| focus II Saloon 1.6 TDCi | DA_ | 2005/04-2012/09 | 1560 cc, 74 KW, 100 HP | 8566-AKE |
| focus II Saloon 1.6 TDCi | DA_ | 2005/04-2012/09 | 1560 cc, 66 KW, 90 HP | 8566-606, 8566-AAV |
| focus II Saloon 1.6 TDCi | DA_ | 2005/04-2012/09 | 1560 cc, 80 KW, 109 HP | 8566-605, 8566-AAU |
| focus II Saloon 1.6 TI | DA_ | 2005/04-2012/09 | 1596 cc, 85 KW, 115 HP | 8566-608, 8566-AAX |
| focus II Saloon 1.8 | DA_ | 2006/03-2012/09 | 1798 cc, 92 KW, 125 HP | 8566-621, 8566-AAZ |
| focus II Saloon 1.8 Flexifuel | DA_ | 2005/12-2008/01 | 1798 cc, 96 KW, 131 HP | |
| focus II Saloon 1.8 Flexifuel | DA_ | 2006/06-2011/07 | 1798 cc, 92 KW, 125 HP | 8566-AAZ |
| focus II Saloon 1.8 TDCi | DA_ | 2005/04-2012/09 | 1753 cc, 85 KW, 115 HP | 8566-609, 8566-AAY |
| focus II Saloon 2.0 | DA_ | 2005/04-2011/07 | 1999 cc, 107 KW, 145 HP | 8566-602, 8566-AAQ |
| focus II Saloon 2.0 | DA_ | 2008/02-2011/12 | 1999 cc, 104 KW, 141 HP | |
| focus II Saloon 2.0 | DA_ | 2007/10-2016/12 | 1999 cc, 103 KW, 140 HP | |
| focus II Saloon 2.0 TDCi | DA_ | 2008/02-2011/07 | 1997 cc, 81 KW, 110 HP | 8566-AOH |
| focus II Saloon 2.0 TDCi | DA_ | 2005/04-2012/09 | 1997 cc, 100 KW, 136 HP | 8566-604, 8566-AAS |
OE numbers
The item is identical to the following OE numbers:
- 1306772
- 1330166
- 1345918
- 1381929
- 1469214
- 1483252
- 1531620
- 1713279
- 1758060
- 1548460
- 1061668
- 1329730
- 1517403
Notes
If anything is unclear, please send us an email with the First registration as well as the key numbers for 2.1 and 2.2 and the vehicle identification number (17 digits) from your vehicle registration document.
We check the accuracy and send the appropriate replacement part.
We are not the manufacturer of the product offered. If components from the manufacturer specified in the product description are temporarily unavailable, we reserve the right to deliver identical parts from other manufacturers of the same quality.
Please inquire about products that are not listed.
Due to different Shipping and weight limits Shipping may vary depending on the country. take place in several packages.
