NEW K43SG 4.0 for M.2 NVMe to PCIe 4.0 x16 External Graphics PCI-E 16X to M.2 NVMe eGPU Adapter NUC/ITX/STX/Notebook PC Laptop

Note: This product is designed for testing and use by experienced DIY enthusiasts only.

Incorrect assembly or improper operation has the risk of burning the device.

Graphics card external and installation debugging is difficult, ordinary buyers please do not order.

Support Notebook, Intel-compatible NUC motherboards, STX motherboards, ITX motherboards,

graphics card external, note that these devices need to be with M.2 NVMe interface.

Product Model:K43SG Series Products

Product Name：Video card external adapter board extension cable

Cable length: 25cm, 50cm

Graphics card compatibility: support for new graphics cards shipped after 2015 (old graphics cards before 2015 are not supported)

Motherboard Compatible: Notebook, ITX/STX motherboard, NUC, only support M.2 NVMe interface Not support M.2 SATA interface, Not support M.2 WiFi interface, Not support M.2 WWAN interface, Not support USB interface.

Power Supply Description: Support power supply DELL-compatible DA-2 series (D220P-01/ADP- 220AB) 12V/18A/220W power supply, or standard ATX 500W or above power supply, our products do not include power supply!

Purchase Tips: Be sure to buy 1~2 samples to test and verify that there is no error before purchasing large quantities!

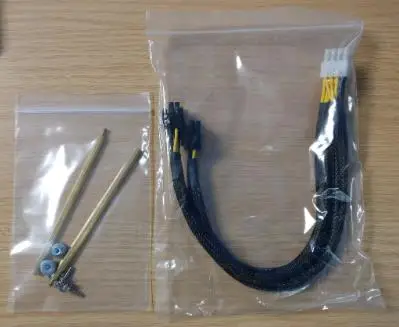

Accessories:

Hexagonal brass post and related screws for fixing the graphics card, as well as single 6P to double 8P power adapter cable for graphics card.


Installation Diagram:

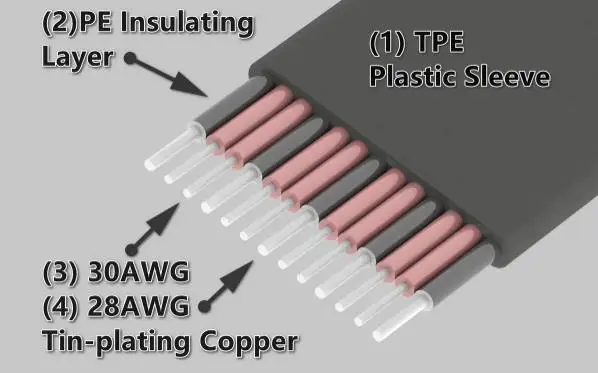

What is the quality of the wire? Is it shielded?
Yes, it is shielded, using advanced EMI shielding conductive polymers, a new type of material for EMI shielding and flat cable design.

This technology allows each cable to be completely covered by the EMI shielding of the conductive polymer to prevent incoming

or outgoing emissions of electromagnetic frequencies, minimise interference and performance degradation, and reduce the weight of the extender.

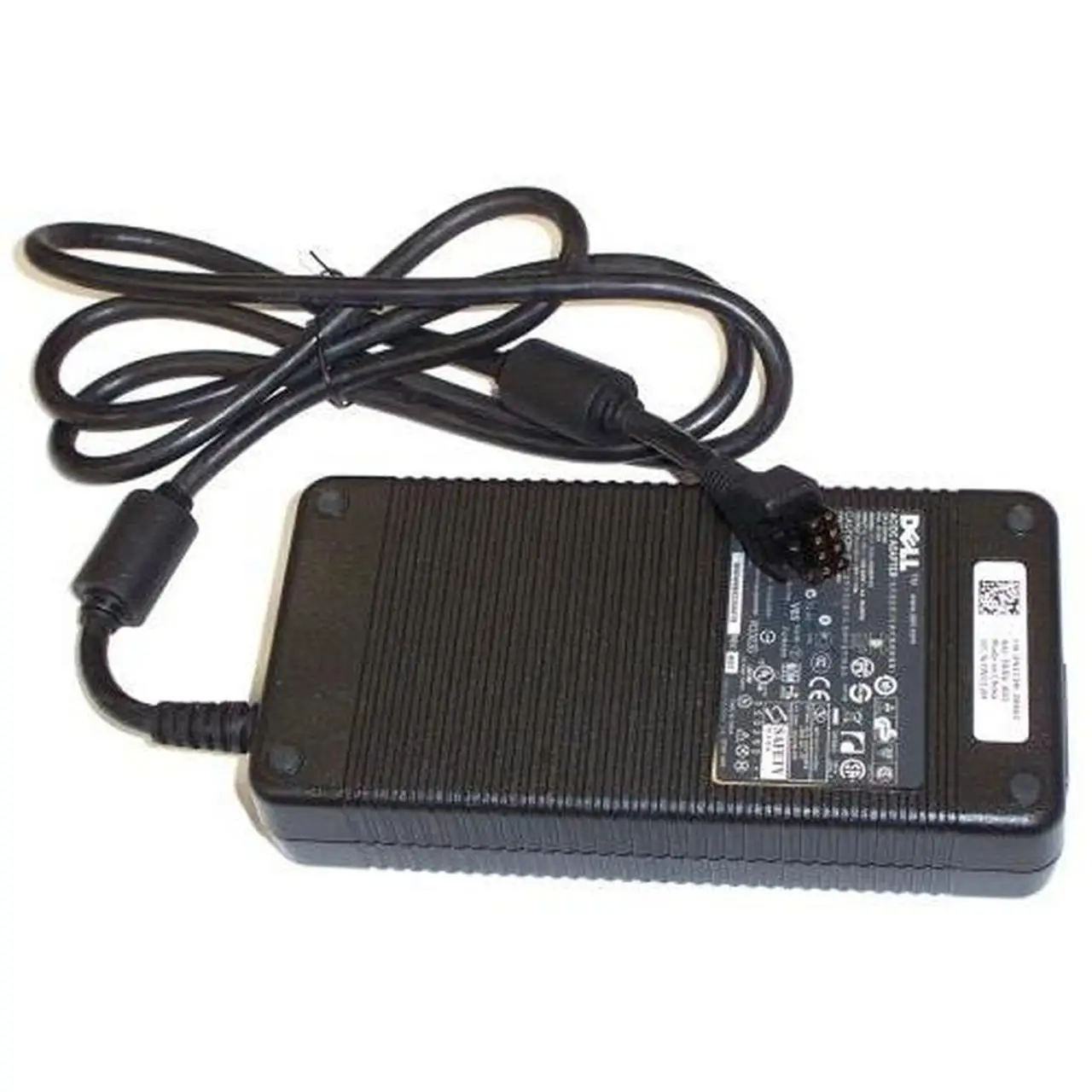

Power Supply Description:

Supporting power supply DELL-compatible DA-2 series (D220P-01/ADP- 220AB) 8PIN 12V/18A/220W PSU power supply, or standard ATX 500W or more power supply, the power supply needs to be prepared by the buyer or purchased separately.

Cable length Description:

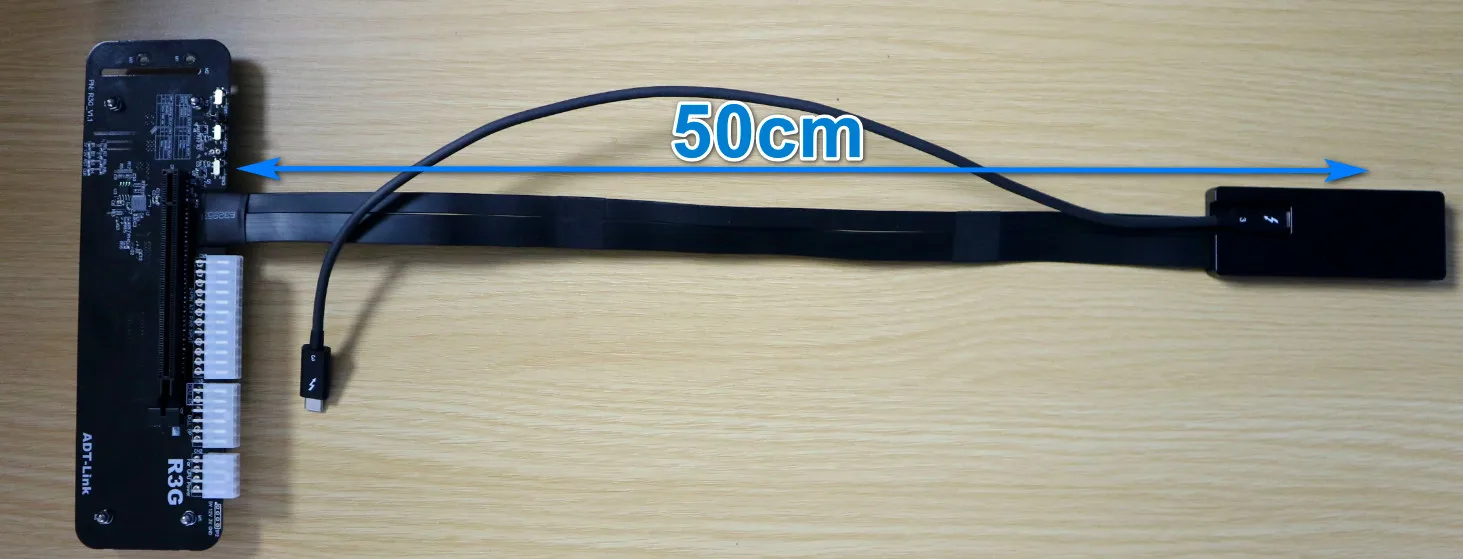

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 50cm blue arrow in the figure below.

Installation steps:

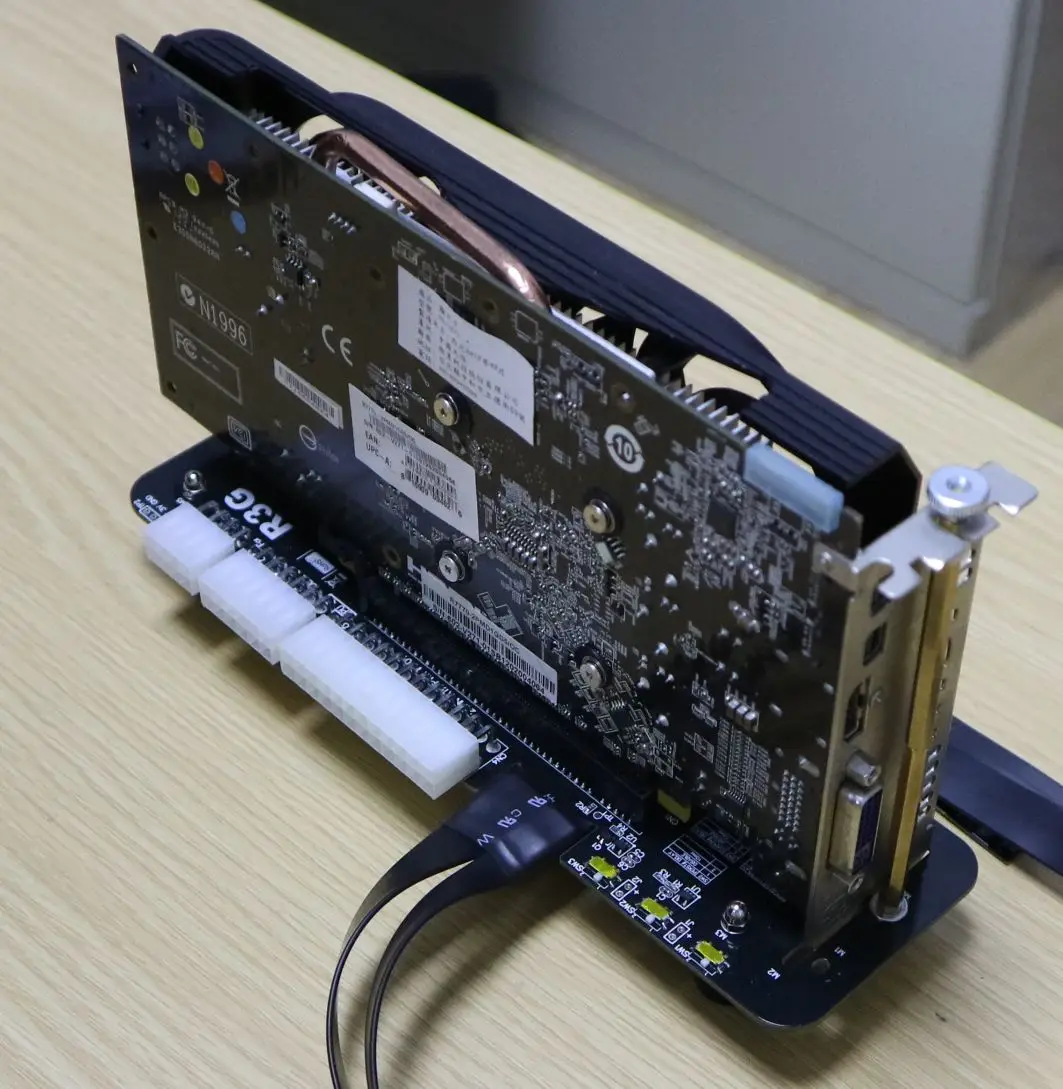

1. Install the hexagonal copper pillar and insert the graphics card into the PCIe x16 slot. The screw is tightened so that the graphics card will not shake or fall off.

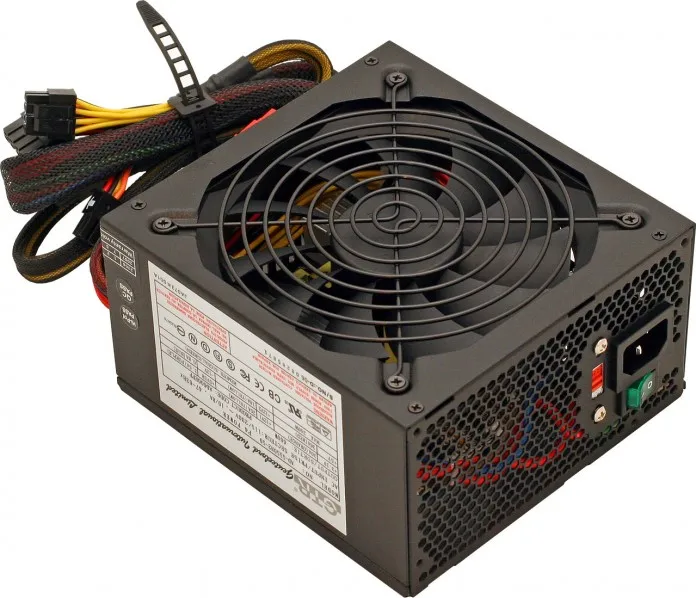

2. Install ATX power supply or DELL-compatible power supply, including graphics card power cord should also be connected, after installed, DELL-compatible power supply will light orange lights.

3. You can plug in our cable when the computer is off. After power on, the ATX power supply will automatically start the fan to turn. If you use the DELL-compatible power supply, the green light will turn on. At this time, the board will turn on two green lights. The system will recognize the card automatically. Please install the graphics card driver. The installation of the driving process may prompt the computer to restart.
