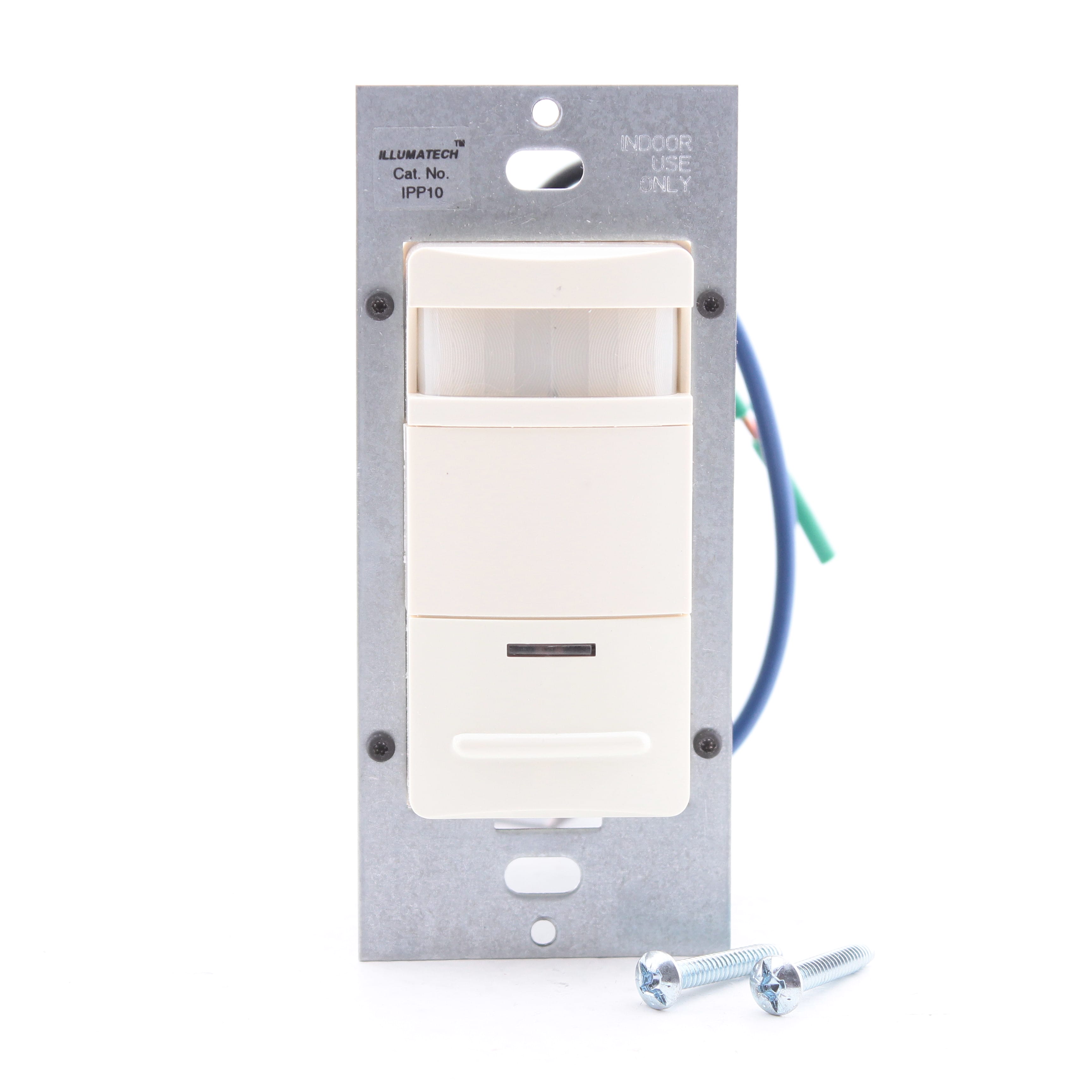

Leviton IPP10-1LA Almond Manual-ON Motion Sensor Occupancy Switch 800W 900 Feet�

Leviton IPP10-1LA almond manual-ON occupancy sensor switch. Designed to act as a regular ON/OFF wall switch; however, if you forget to turn the lights off, it will do it automatically a preselected period of time after motion has ceased. Great for locations where tenants, guests, kids and anyone else who does not pay the electric bill tends to leave lights on: utility rooms, basements, kitchens, bathrooms, laundry rooms, garages, etc. Passive infrared sensor with all of the features that you need in a Manual-ON occupancy sensor: aiming ability, manual override, minor motion detection, and adjustable time delay. Features include:

• Compatible with incandescent lamps, electronic and magnetic low-voltage ballasts, electronic and magnetic ballasts, and fans
• Single pole - controls one light circuit from one location
• Residential grade - rated 800W-6.67A @120V incandescent, 1200VA-10A @120V fluorescent, 1/4hp-5.8A@120V fan
• Manual-ON/Automatic OFF operation in accordance with California Title 24 2005 requirements
• Low-Profile design eliminates an obtrusive "scanning device" look and blends in with existing decor
• 180 degree field-of-view provides approximately 900 square feet of coverage
• Convenient push-button provides Manual ON/OFF light switching at any time
• Segmented fresnel lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected
• Horizontal field of view may be adjusted between 180 and 32 degrees of arc by using internal blinders located on either side of the lens
• Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes
• LED Indicator Light flashes when sensor detects motion to verify detection is active
• Unit can be used for 120V lighting. Compatibile with both electronic and magnetic ballasts or 1/2HP loads
• Relay switches at zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
• Fits in standard wallbox and replaces single-pole wall switch
• Requires a neutral (white) wire connection
• Wallplate sold separately
• Please note that this unit is turned ON manually like a regular switch - it is not designed to turn lights ON automatically, only to turn them OFF automatically

This is New Old Stock and is returnable for any reason. (SKU # LIPP10-1LA-EA; Weight: 0.3500 lbs.)
