The product is newly upgraded, and the upgraded product will be shipped
40kg range, 5g division value(Stainless steel material)
10kg range, 1g division value(Stainless steel material)

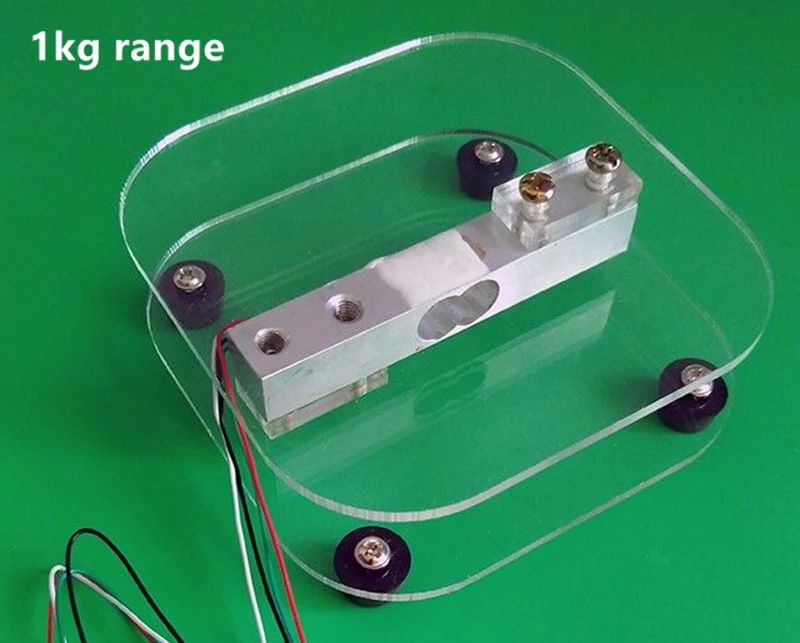

1kg range, 0.1g division value(Glass material)
In order to meet everyone's needs, the product supports customized English. as the picture shows. The left screen of the product can be customized in English.
Standard version is Chinese display
Question:
The weighing type quantitative filling has many advantages such as high stability and small error, but if the water flow of the pump is large, the filling error will also increase. How to increase the efficiency of high-flow filling and ensure accuracy with small errors?
Reply:
Use 2 output weighing quantitative controller.
How does it work?
It has 2 switch signal outputs, switch 1 is connected to a large flow pump, and switch 2 is connected to a small flow pump.
After starting, the two water pumps start fast filling at the same time. When the filling volume reaches 80% of the set volume, turn off the high-flow water pump of switch 1, and turn off the switch 2 when the remaining small flow pump reaches 100% stably. Small water pump.
In this way, both efficiency and accuracy are guaranteed!
Product name: 2-way weighing quantitative controller
Model: CSY-G2
Basic function: control the water pump solenoid valve and other feeding equipment to realize the function of automatic weighing and quantitative filling.
Applicable people: It is suitable for customers to design into weighing type quantitative dispensing machines. Customers need to understand electrical and mechanical knowledge.
Control principle: Control other equipment by controlling the conduction and disconnection of the two contacts of the terminal. The two contacts of the terminal do not output voltage, only control on-off.
Range of use: devices that can control any voltage of O-38OV. Such as: water pump, solenoid valve, vibrating discharger, screw discharger, etc.
The equipment that controls high power needs to be protected by an AC contactor.
Weigher size: length 26.5*width 20*height 4.5CM, stainless steel tray.
Weigher cord length: 1 meter.
Weigher specifications: two optional ranges of 10KG, division value of 1G, measuring range 40KG, division value of 5G.
(The range refers to the maximum weighing, and the division value refers to the minimum jump value.)
Product acessories:

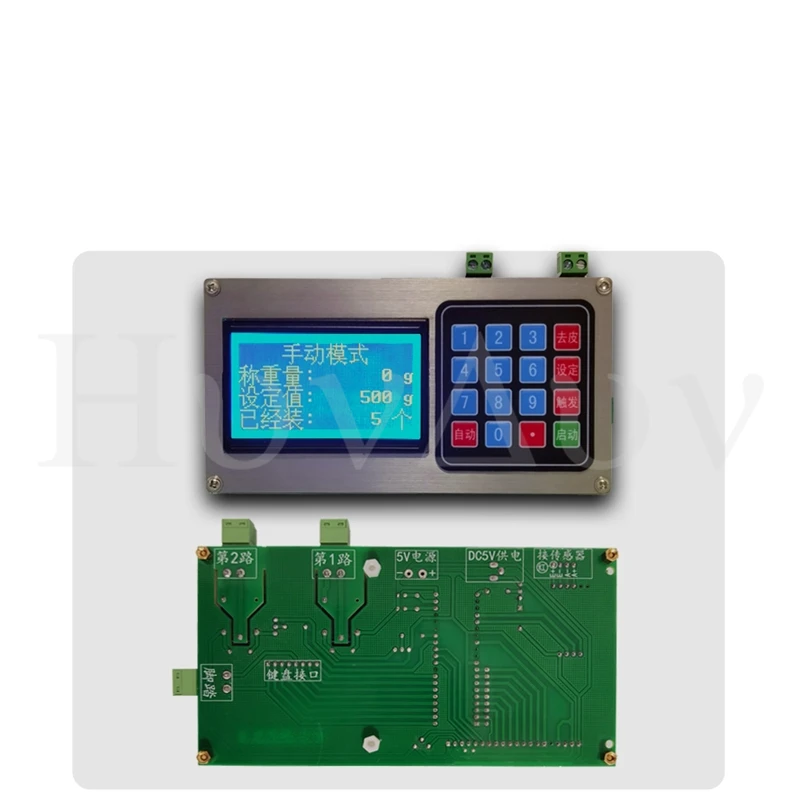

Control instrument
Steel pan weigher
5V power supply
Note: The current appearance of the 1kg range is glass (same as the picture)
