Details

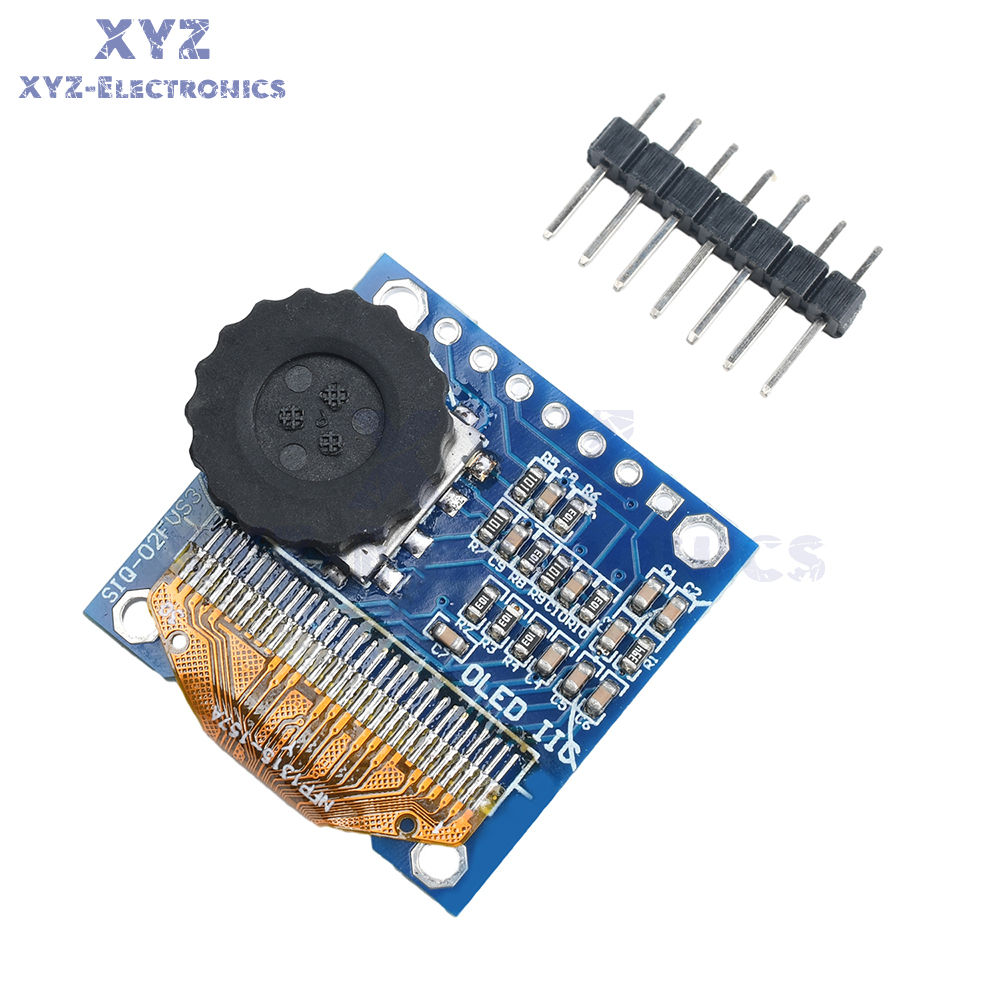

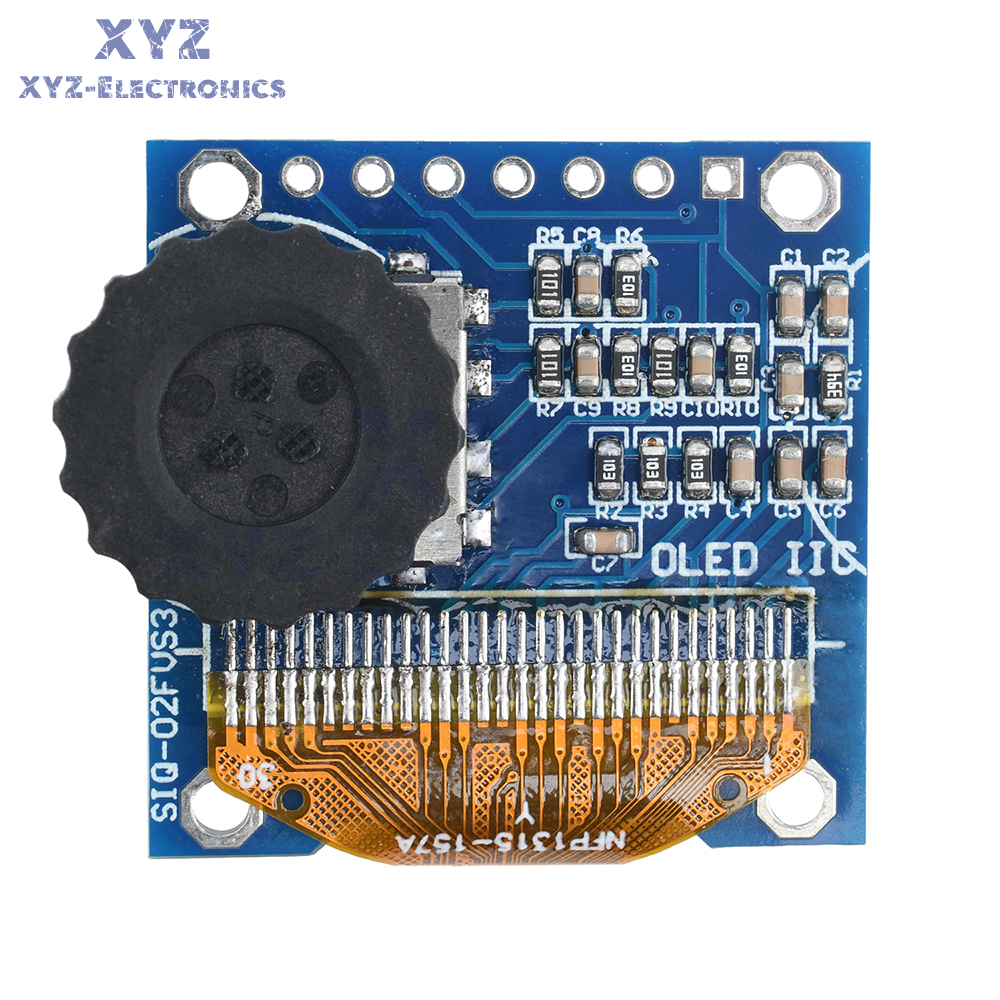

1. Integrated design: The display screen is integrated with a rotary encoder/three-position rotary switch, offering a compact and aesthetically pleasing structure.
2. Ultra-thin and compact: Utilises a 360-degree rotary encoder with a surface-mount design for enhanced portability and slimness.
3. IIC interface support: The OLED screen supports IIC communication, simplifying connection and control complexity.
4. Multi-function buttons: The three-position rotary switch provides up, down, and confirm functions, facilitating menu operations.
5. High compatibility: SSD1315 driver (compatible with SSD1306), compatible with multiple mainstream development platforms
Product name: OLED and encoder/switch combination module
OLED specifications: 0.96 inches, SSD1315 driver (compatible with SSD1306)
GND: Ground
VCC: 3.3V
SCL: IIC clock
SDA: IIC data
A: Encoder A phase
B: Encoder B phase
PUSH: Button
GND: Ground
VCC: 3.3V
SCL: IIC clock
SDA: IIC data
K1: Up button
K2: Down button
K3: Middle button

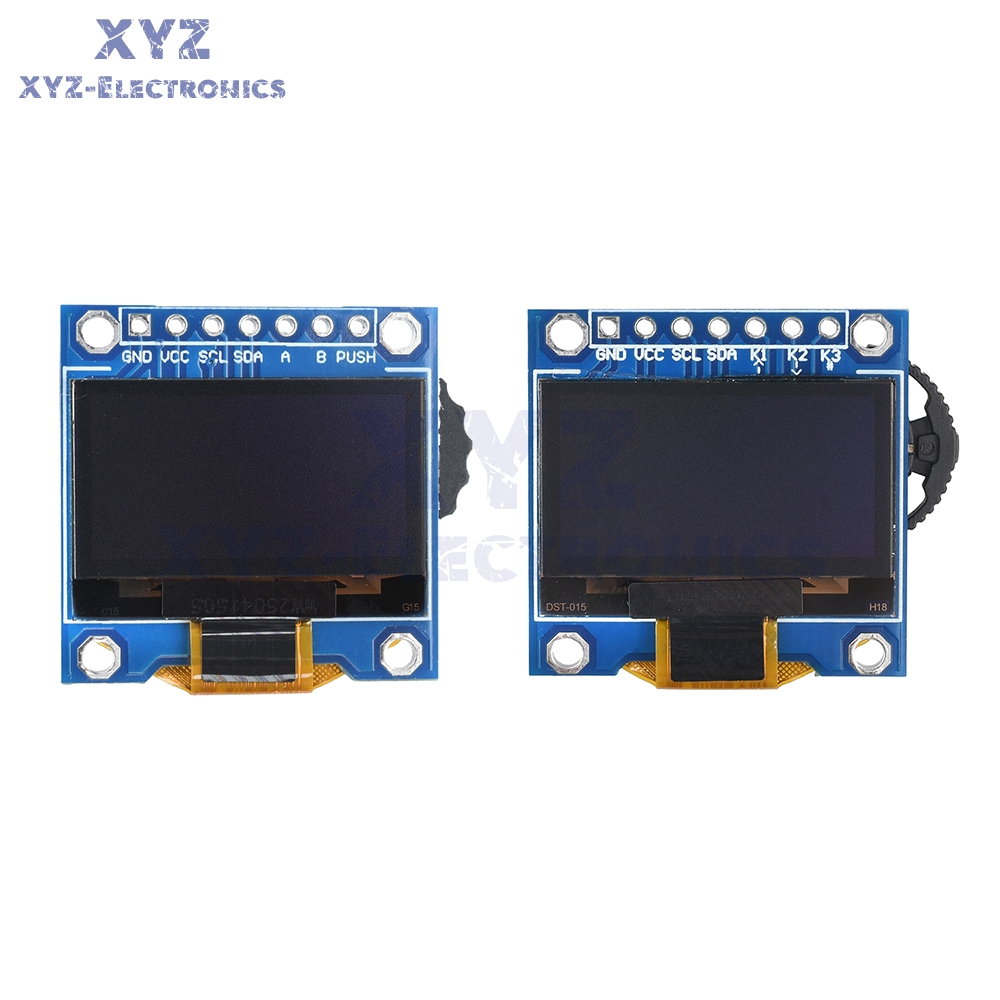

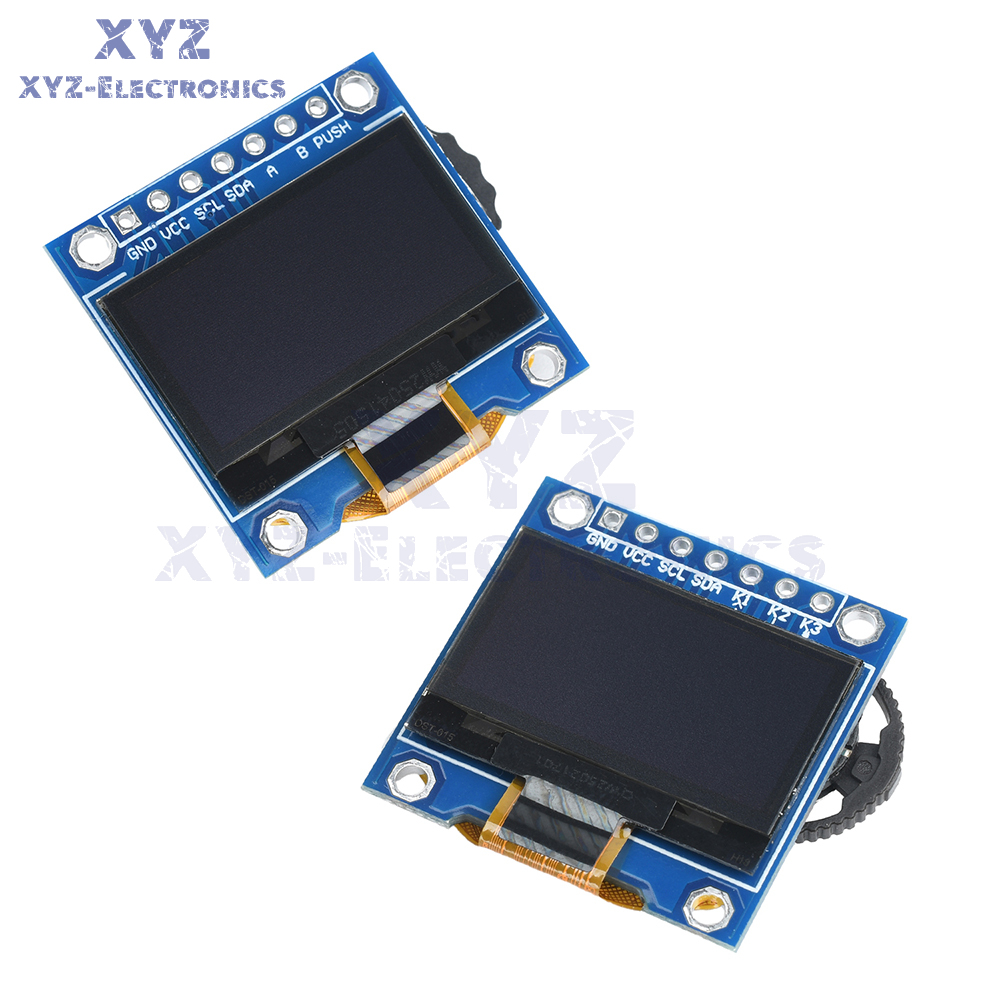

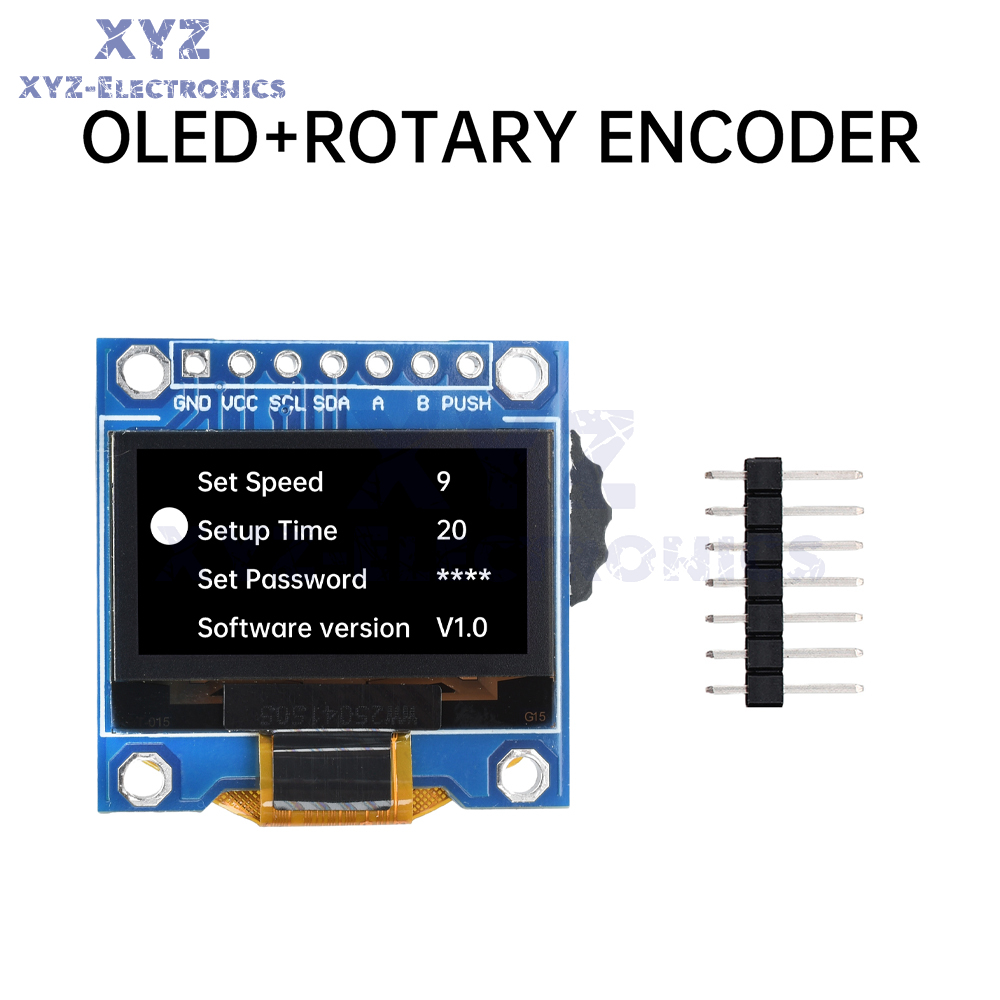

Rotary Encoder + OLED Display Combination Module:

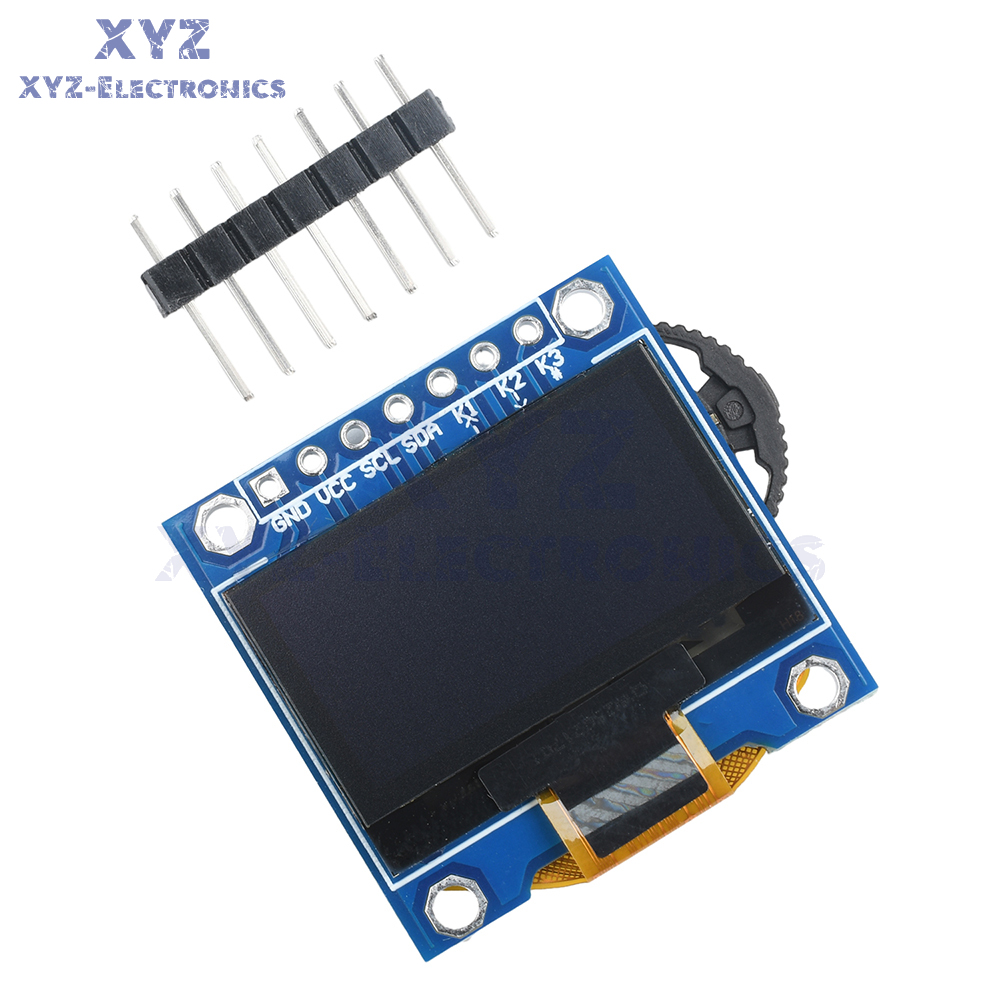

Three-position rotary switch + OLED display combination module:
Module x1
Header pin x1
