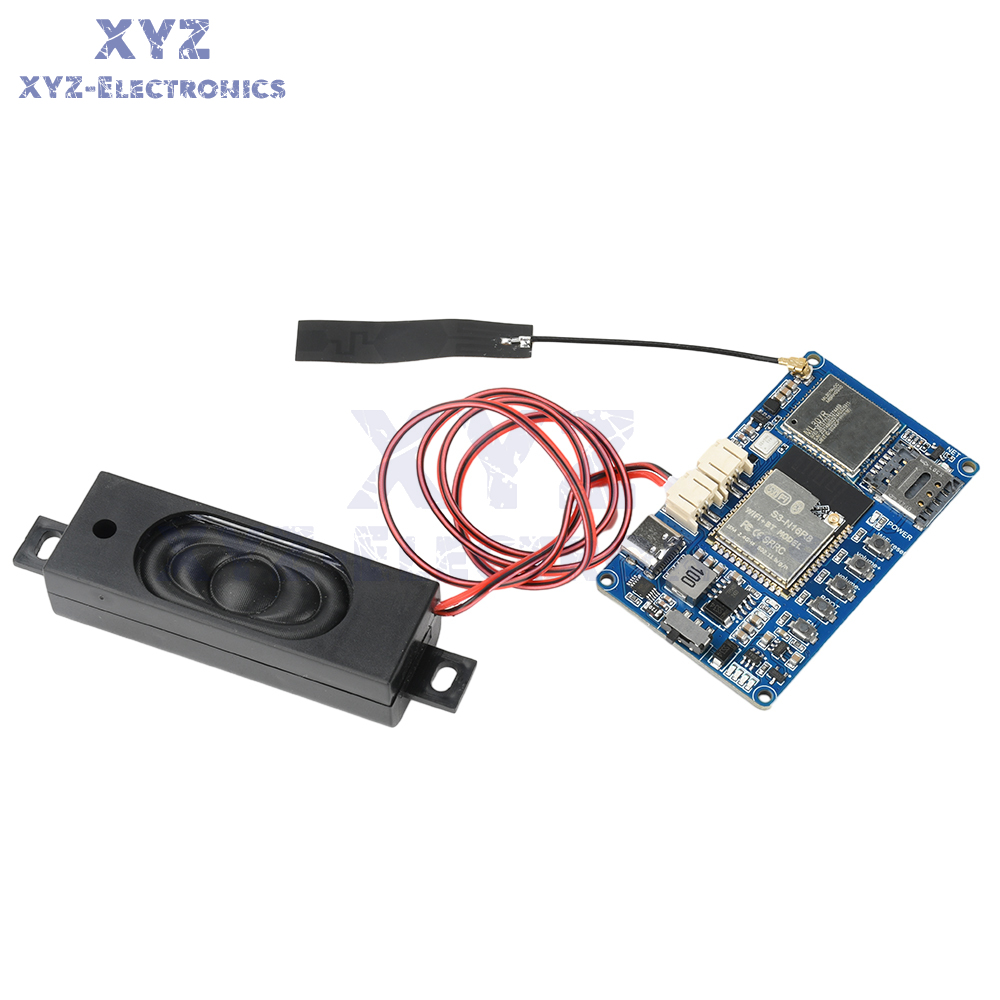

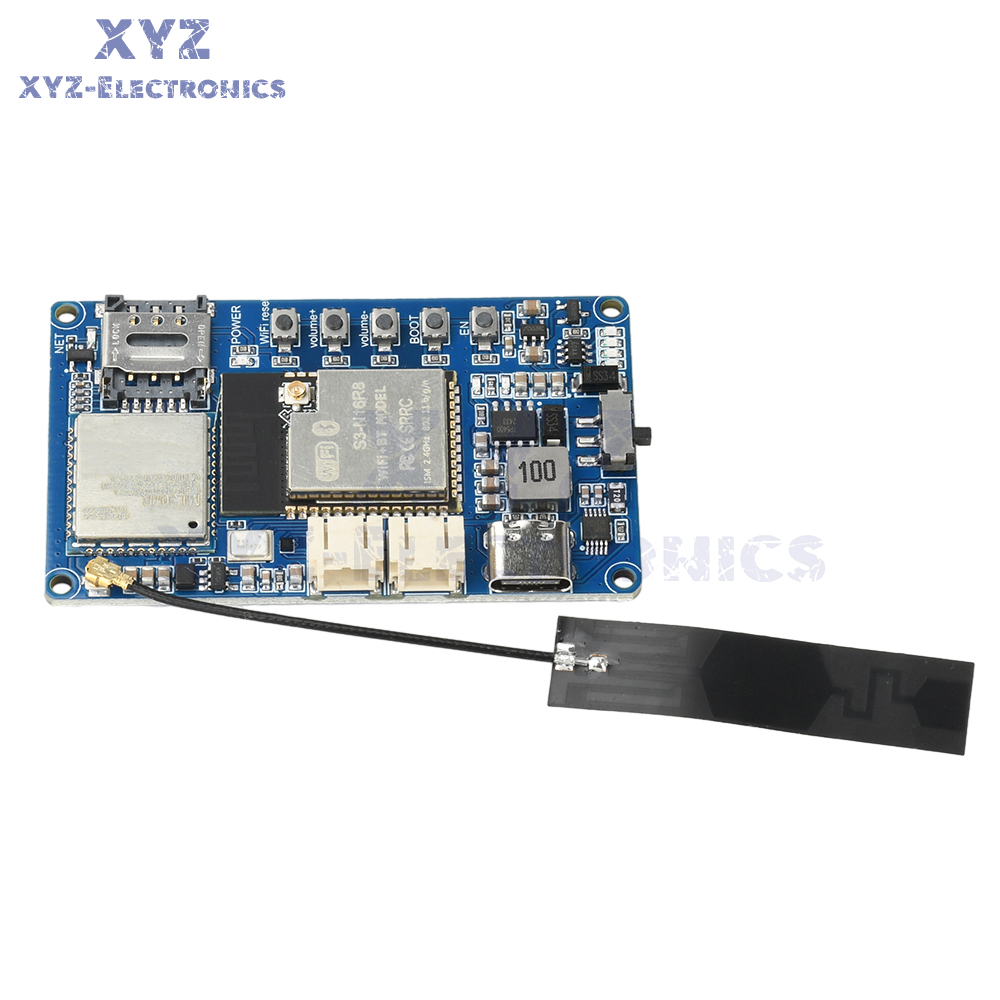

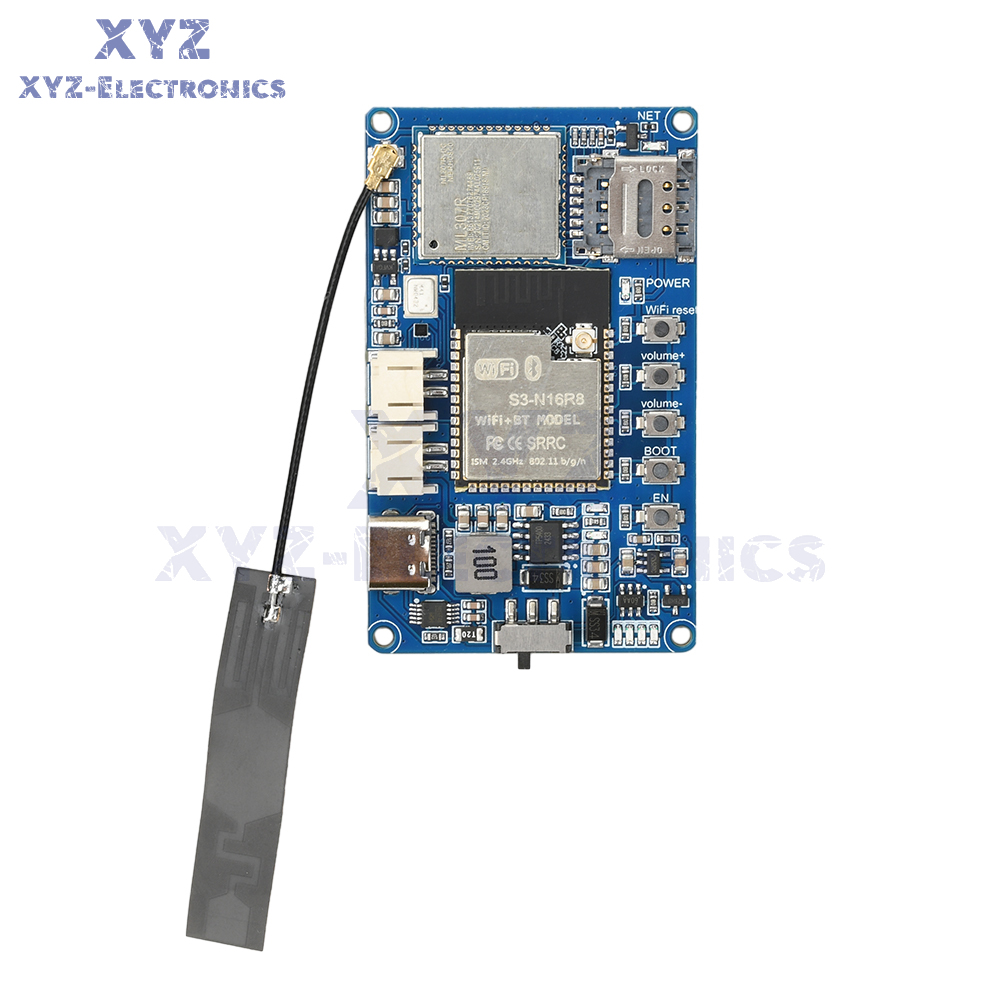

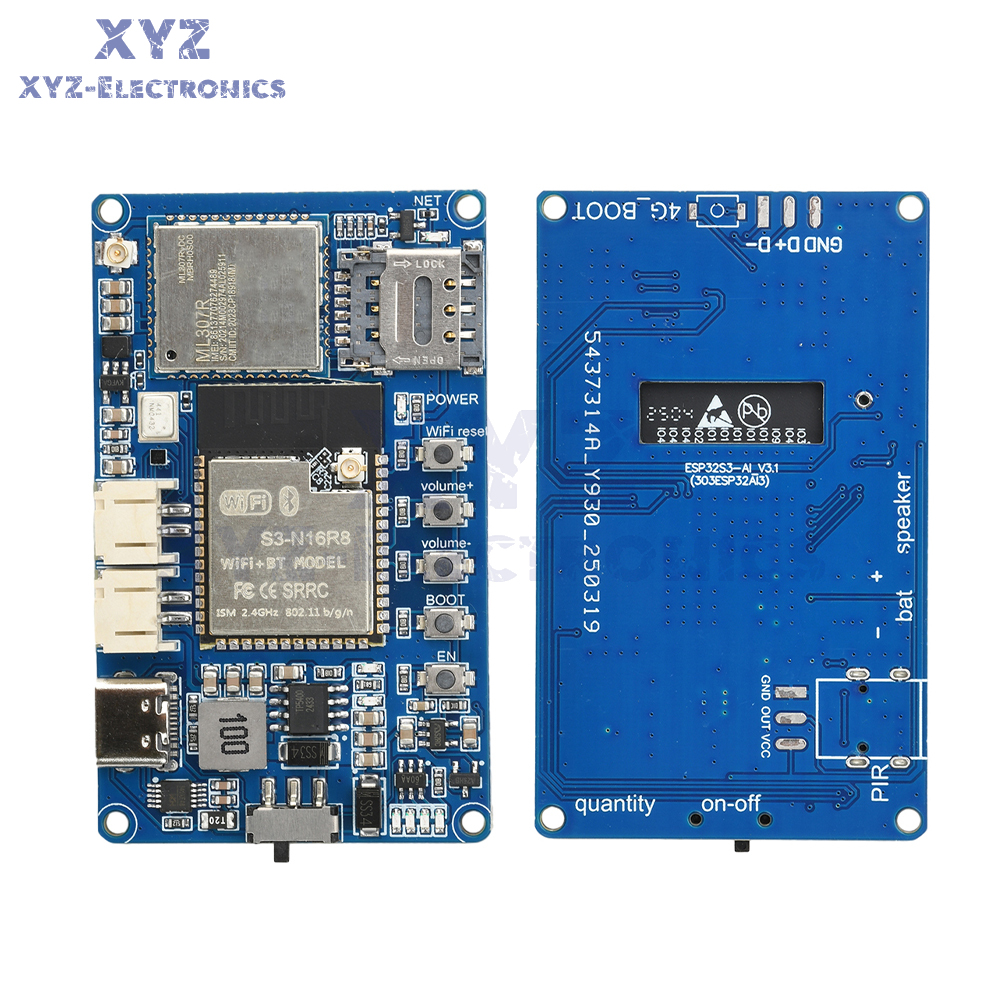

4G ESP32-S3 Development Board Intelligent Xiaozhi Ai Voice Chat Module Type-C

Details

Features:
1. AI Large Model Support: Compatible with Deepseek, Qwen and other large models, providing intelligent dialogue experience, and supporting custom role switching.
2. Excellent voice performance: Built in INMP441 microphone and MAX98357 amplifier, clear voice, sensitive dialogue, suitable for various scenarios.
3. Supports 4G card insertion and use: No need for network distribution, simply insert a 4G card to connect to the internet, convenient and fast, and supports data usage for internet access.
4. Battery management design: The onboard TP5400 battery management chip can be connected to an external battery, with a charge display and support for mobile use.
5. Development friendly design: TYPE-C interface burning program, built-in CH340X chip, one click burning, supports secondary development.

Parameter:
TYPE-C interface, rechargeable, program burning
Built in CH340X, one click burning program, no need for manual reset
Support switching between AI large models
Support Deepseek, Qwen, etc
Support custom role switching
Support secondary development
Onboard external battery interface
Built in INMP441 MAX98357
Built in TP5400 battery management, can be connected to a battery for use, with battery level display
Reserved PIR human detection interface
Supports 4G internet access, plug in and use without the need for network distribution
Size: 64mm * 39mm

Package Include:
Xiaozhi AI voice chat 4G version development board X1
Speaker X1
Type-C data cable X1

Note:
The current firmware supports both Chinese and English, and customers can conduct secondary development, but there are no relevant tutorials available, so customers need to develop it themselves.
