Description

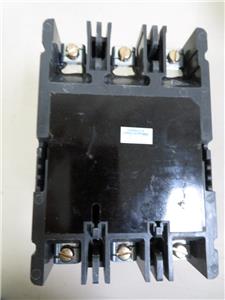

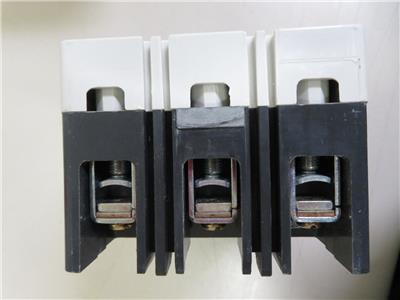

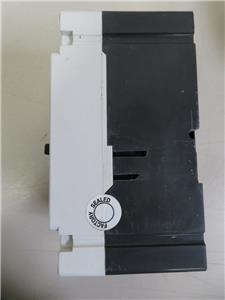

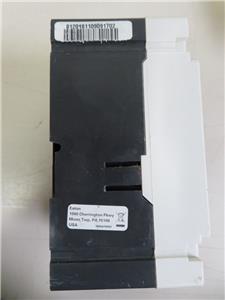

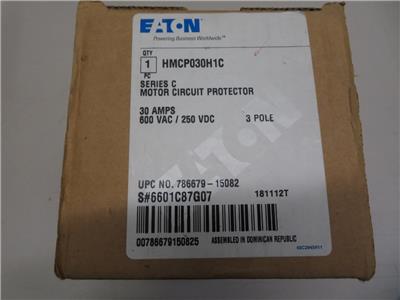

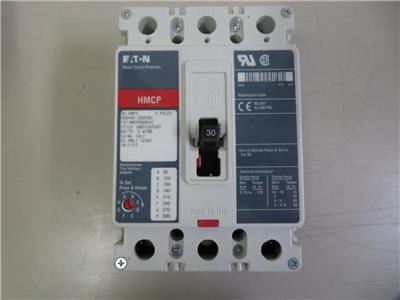

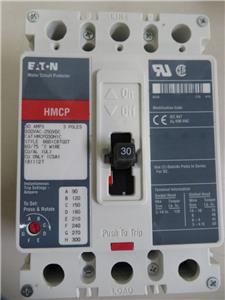

The Cutler Hammer HMCP030H1C is a Molded Case Circuit Breaker. This type HMCP circuit breaker is a member of The Series C family. The HMCP030H1C is a 3 pole, 600 Volt, 30 amp rated circuit breaker, with an AIC rating of 65kA@480V. The HMCP030H1C is manufactured by Cutler Hammer. The HMCP030H1C uses a Bolt-On connection. Includes Magnetic Only protection.
Specifications
- Part Number: HMCP030H1C
- Manufacturer : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMCP
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Terminal Connection : Line/Load Lug
- Frame Size : 250A/J
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Magnetic Only
- Phase Connection : ABC
