Name: Digital Leeb Hardness Tester

Model: LS252D / LS252DC (optional)

Instrument structure: Integral type

Measuring range:

HLD(170-960)

HV(83-976)

HB(30-651)

HRC(17.6-68.5)

HS(26.4-99.5)

HRB(13.5-100)

HRA(60-85.8)

Hardness unit: HL, HV, HB, HS, HRA, HRB, HRC

Resolution: 1HL

Measurement accuracy: ±6HL

Repeatability: 6HL

Data storage capacity: 9 groups

Language switch: Chinese, English

Charging interface: USB (Type-C)

Power supply: Rechargeable lithium battery 3.7V@250mAh

Display: 128*64 dot matrix OLED

Operating temperature range: -10~50℃, 0~85%RH (no condensation)

Storage temperature range: -10~60℃, 0~85%RH (no condensation)

Weight: 0.3kg

Versions:

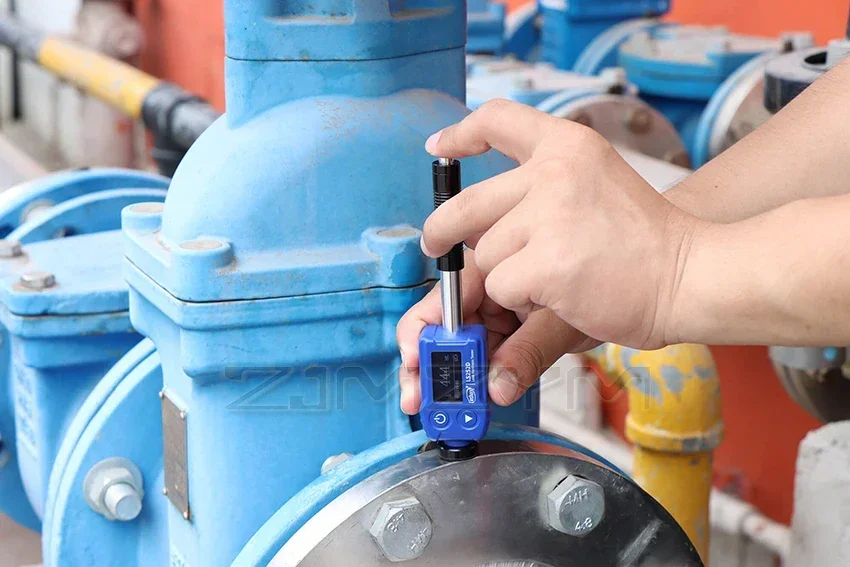

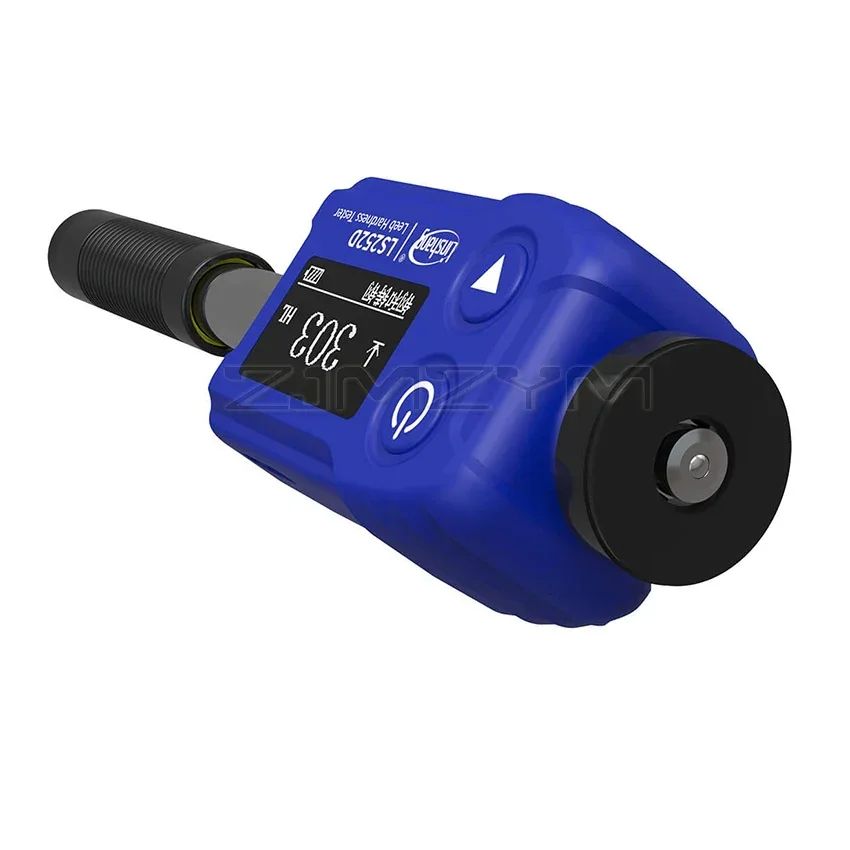

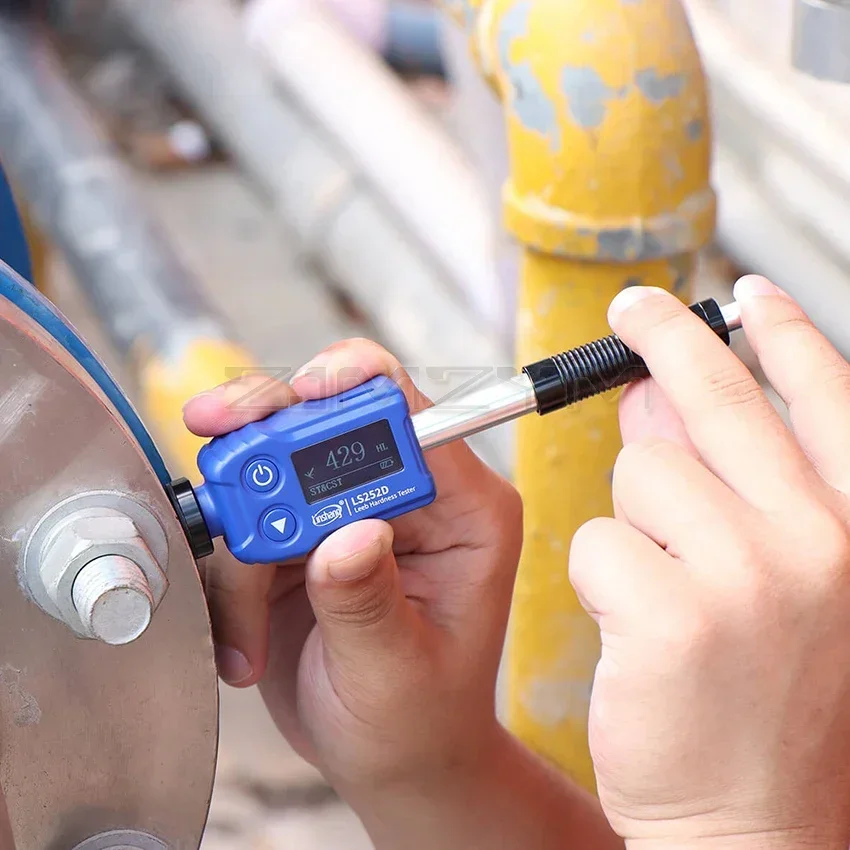

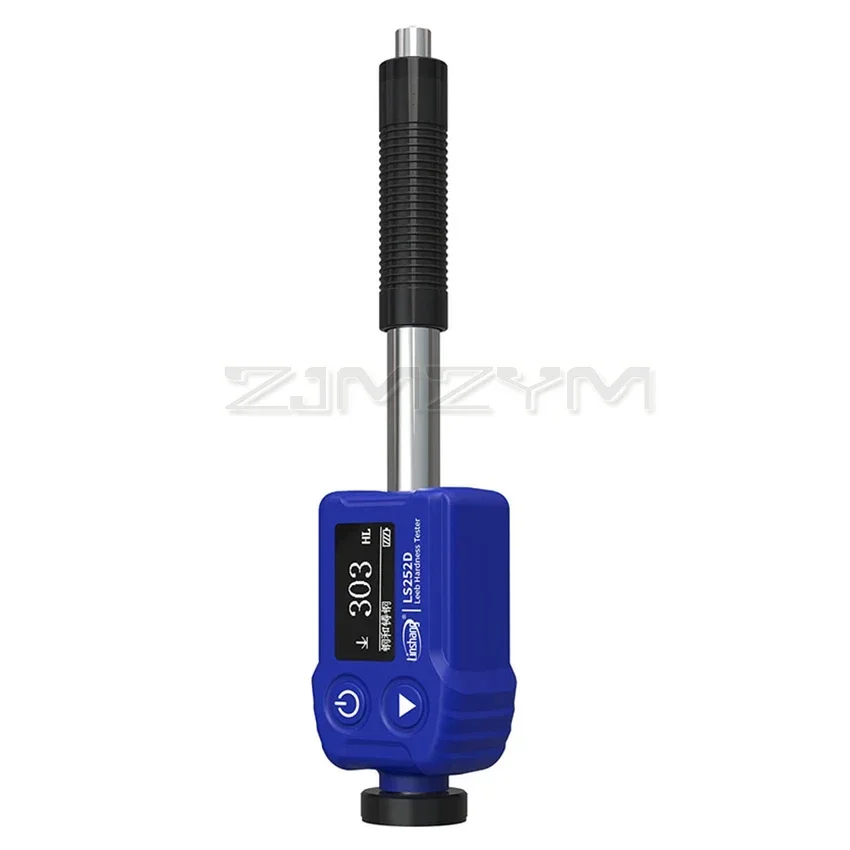

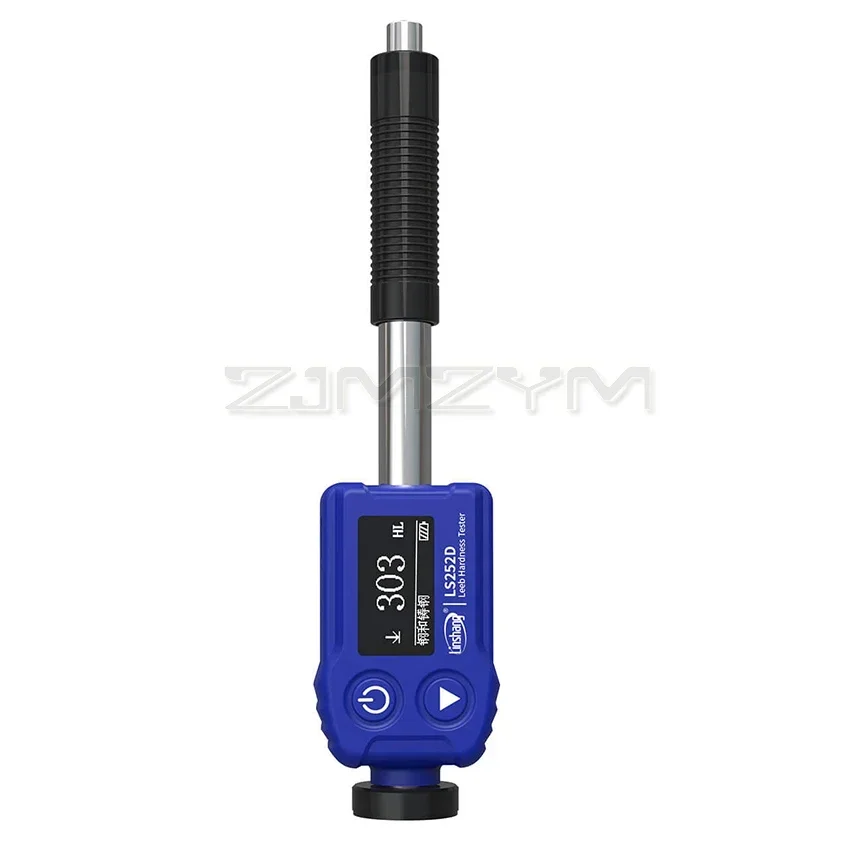

Model: LS252D

Suitable for: Hardness measurement of conventional metal parts

Probe type: D-type impact device

Size: 148*34*24mm

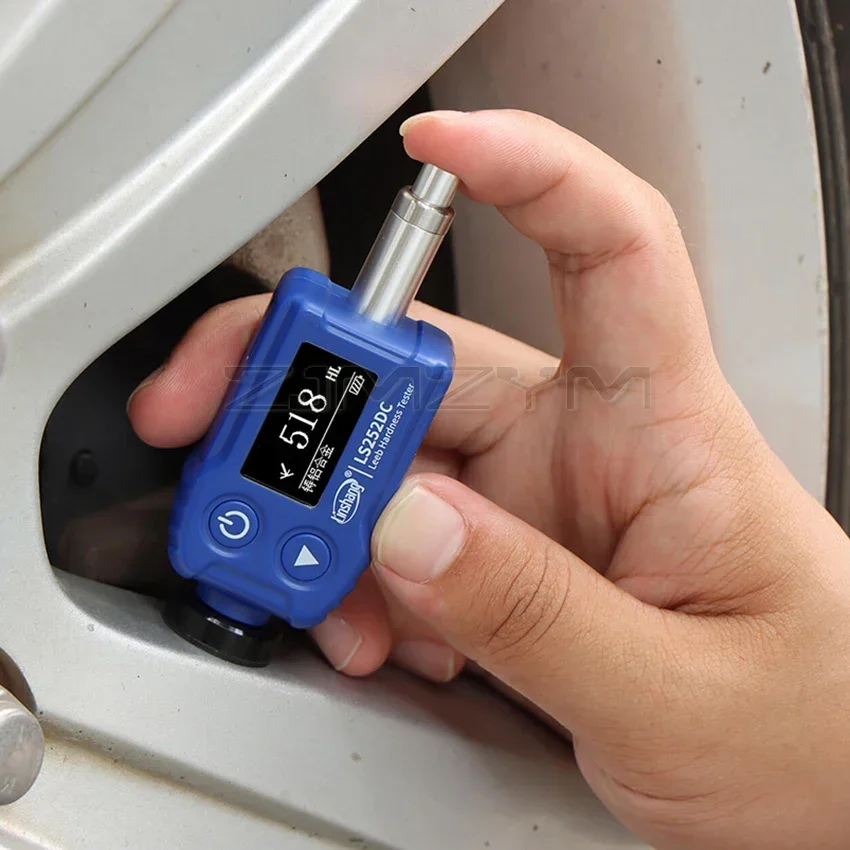

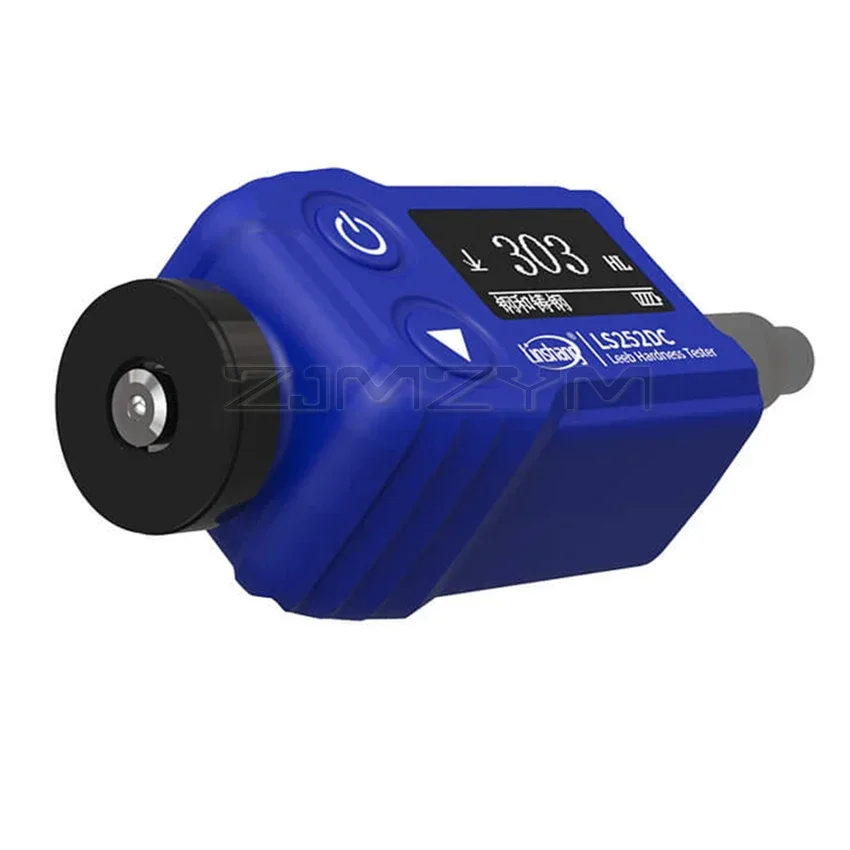

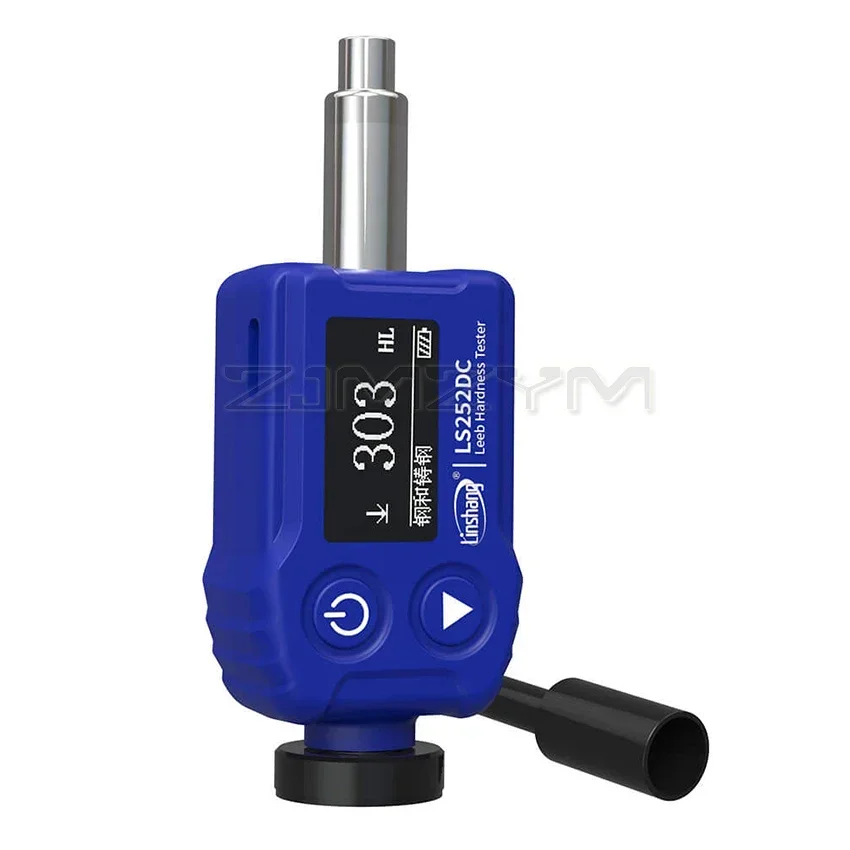

Model: LS252DC

Suitable for: Hardness measurement of bore or narrow parts

Probe type: DC-type impact device

Size: 88*34*24mm

Instructions:

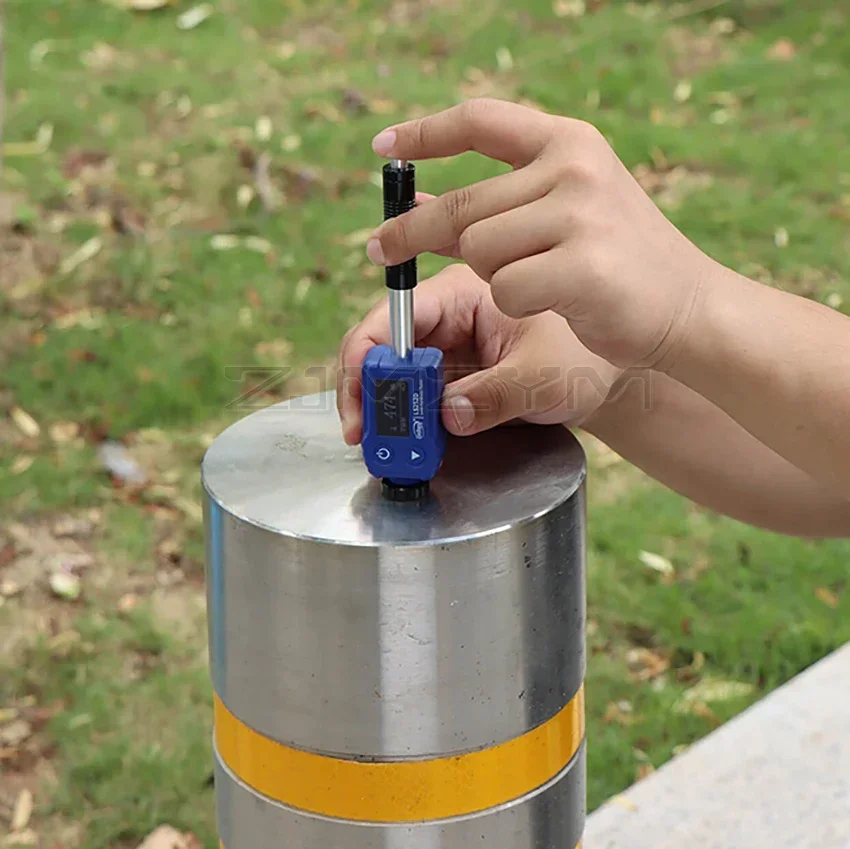

This leeb hardness tester is only suitable for large and heavy workpieces,

Small thin parts must be coupled to a solid support for testing
