Bearing Installation Tool Kit 36/24 Bearing inner diameter 10-55mm Socket Installation Hammer
Bearing installation tool kit for installing bearings
Helps prevent premature bearing failure
16% of premature bearing failures are due to poor installation (often using strong force). Bearing installation tool kits are designed for quick and precise bearing installation while minimizing the risk of bearing damage.

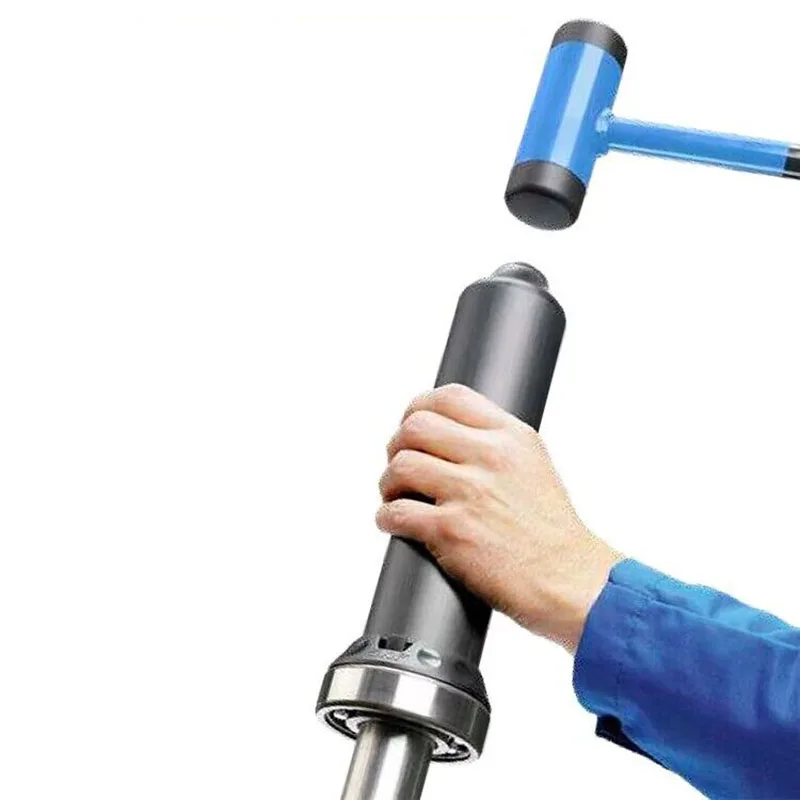

The correct combination of impact ring and sleeve can effectively transfer the installation force to the bearing rings through an interference fit, thereby minimizing the risk of damage to the bearing raceways or rolling elements. In addition to mounting bearings, it is also suitable for mounting other components such as bushings, seals and pulleys.
model number：TMFT36
Aperture 10–55 mm (0.39–2.17 in)
OD 26–120 mm (1.02–4.72 in)
sleeve
shaft length
Socket A: 220 mm (8.7 in)
Socket B: 220 mm (8.7 in)
Socket C: 225 mm (8.9 in)
hammer
6-H, weight 0.9 kg (2.0 lb)

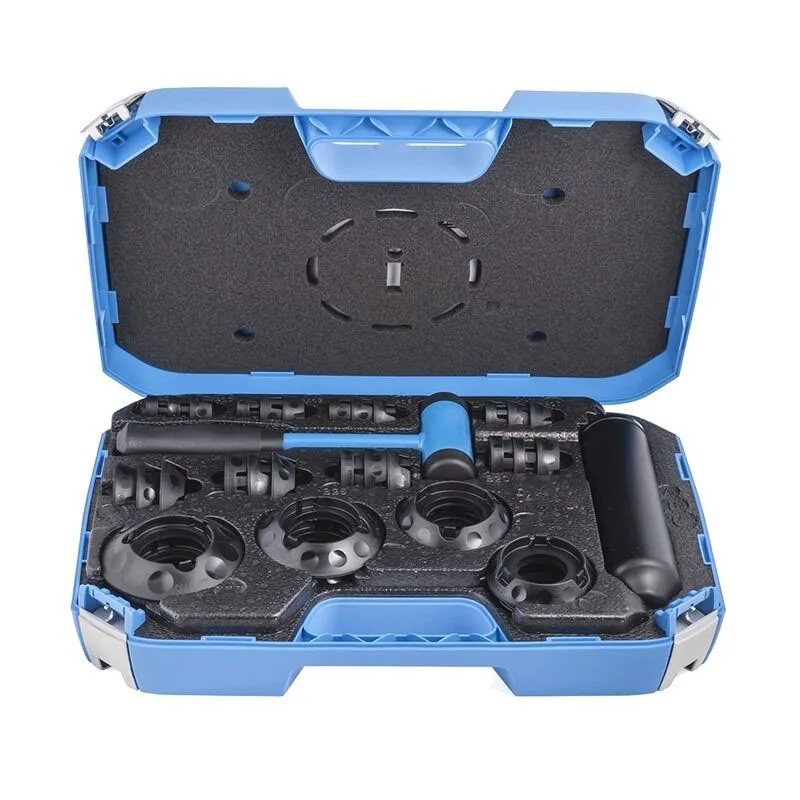

suitcase size
530 × 110 × 360 mm (20.9 × 4.3 × 14.2 inches)
ring number 36
Sleeves 3
Weight (including carrying case) 4.4 kg (9.7 lbs)
Suitable for bearing series
Deep Groove Ball Bearings
6000-6011, 6200-6211, 6300-6311, 6403-6409, 629, 62/22, 62/28, 63/22, 63/28, 16002-16011, 16100-16101, 98203-98206
Deep groove ball bearings (sealed)
62200-62211, 62300-62311, 63000-63010
Self-aligning ball bearings
1200-1211, 129, 1301-1311, 2200-2211, 2301-2311, 11207-11210
Single Row Angular Contact Ball Bearings
7000-7011, 7200-7211, 7301-7311
Double Row Angular Contact Ball Bearings
3200-3211, 3302-3311
Spherical roller bearing
21305-21311, 22205/20, 22205-22211, 22308-22311
Cylindrical Roller Bearings
N 1005-N 1011, N 202-N 211, N 2203-N 2211, N 2304-N 2311, N 3004-N 3011, N 303-N 311
Tapered Roller Bearings
30203-30211, 30302-30311, 31305-31311, 32004-32011, 32205-32211, 32303-32311, 33010-33011, 33205-33211
Toroidal Roller Bearings
C 2205-C 2211, C 4010, C 6006
