Details
1: Wide range of applications
2：Easy to use
3：Stable performance
4: Small size
5：High cost performance
Specification Model：XH-M139
Voltage：DC12-24v
Power：2*50W+100W
Output load 4-8 ohms
There will be enough output power only when the audio input is sufficient and the power supply voltage/current is sufficient. Higher power supply voltage will be relatively more powerful, and speakers with different impedance will have different output power. With sufficient voltage and current, the higher the speaker ohms, the lower the relative sound power, please note!

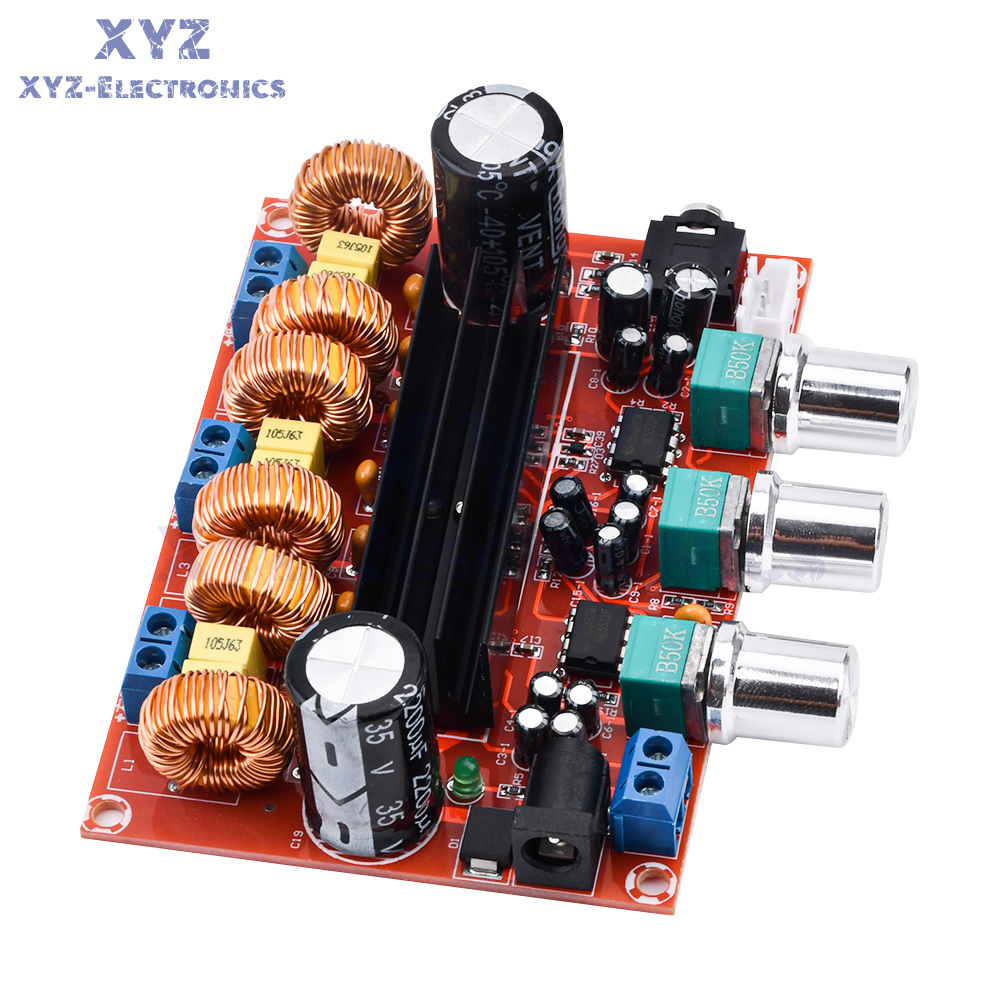

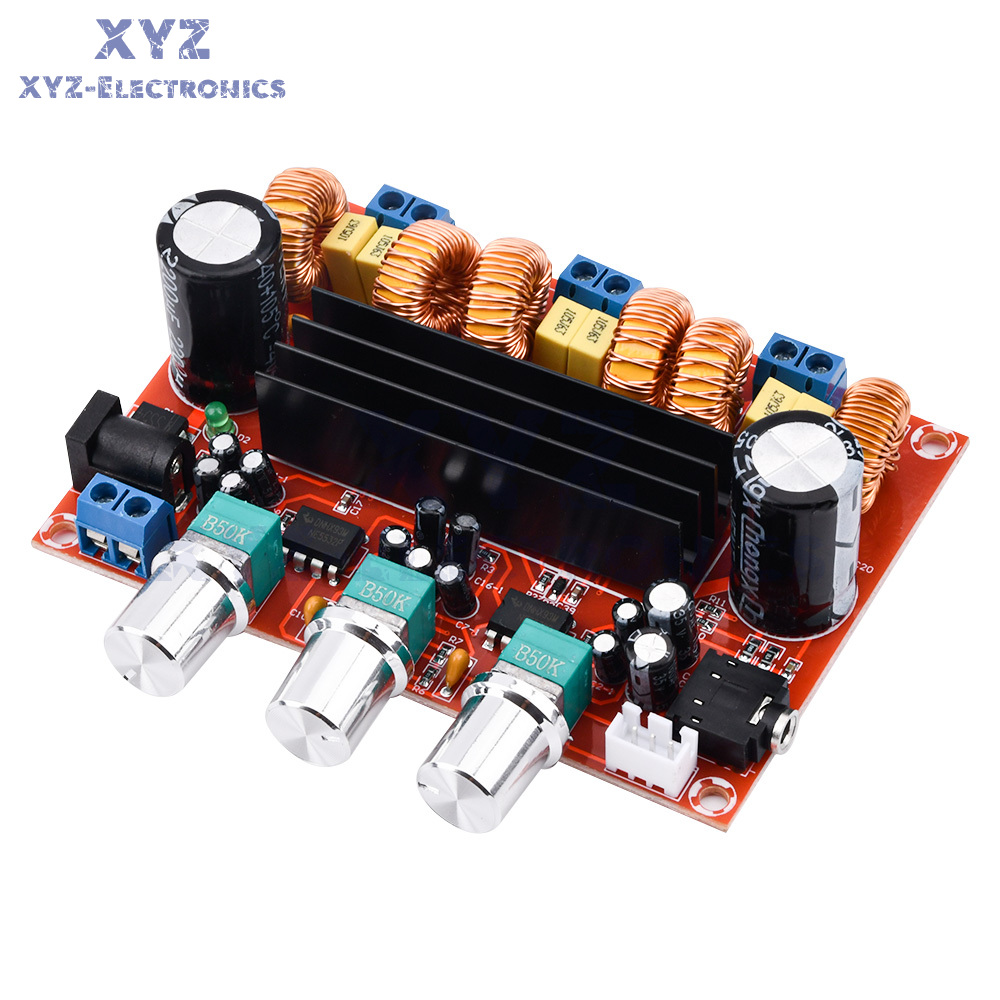

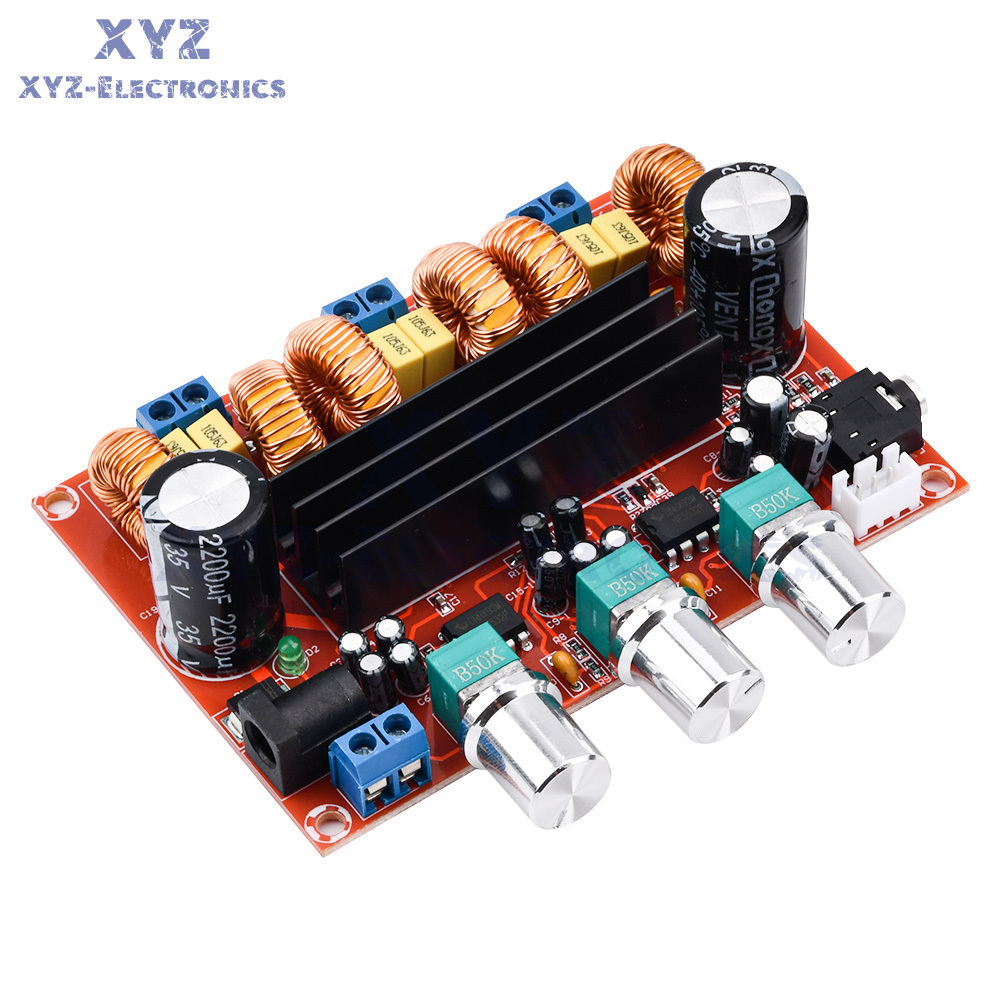

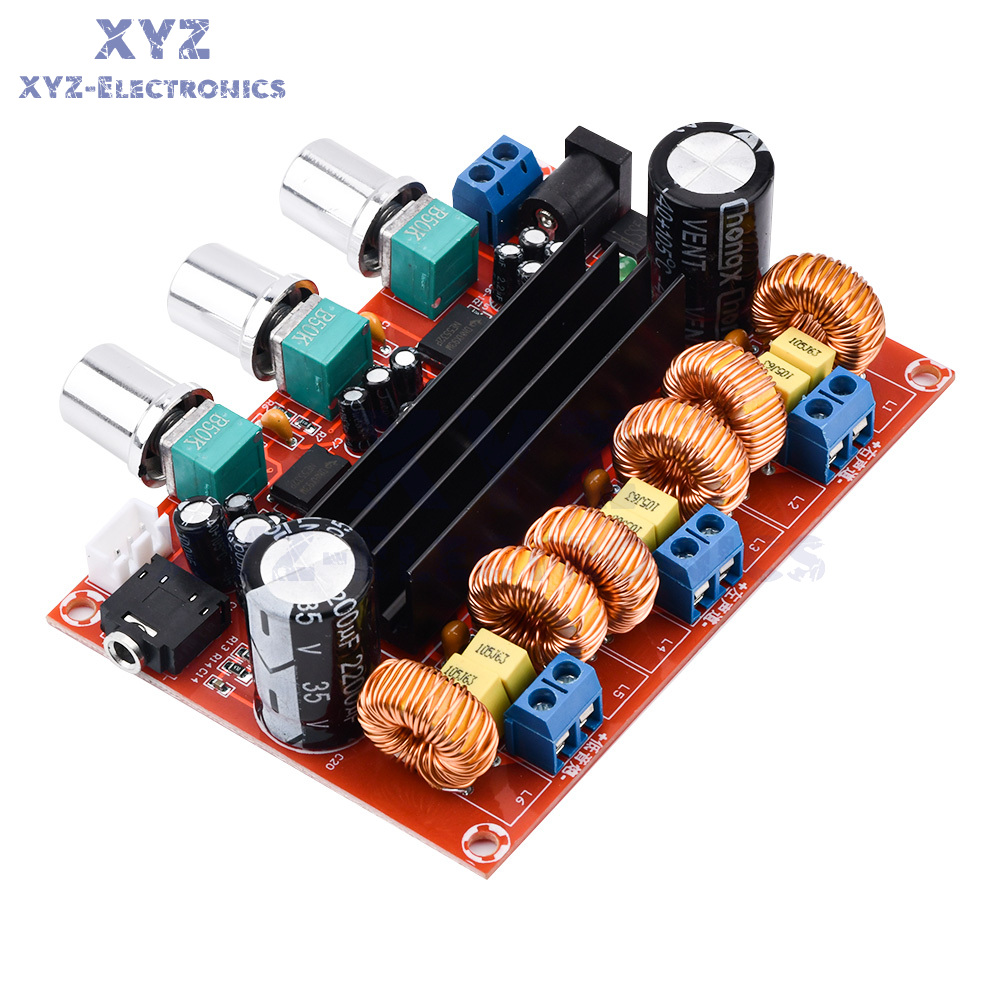

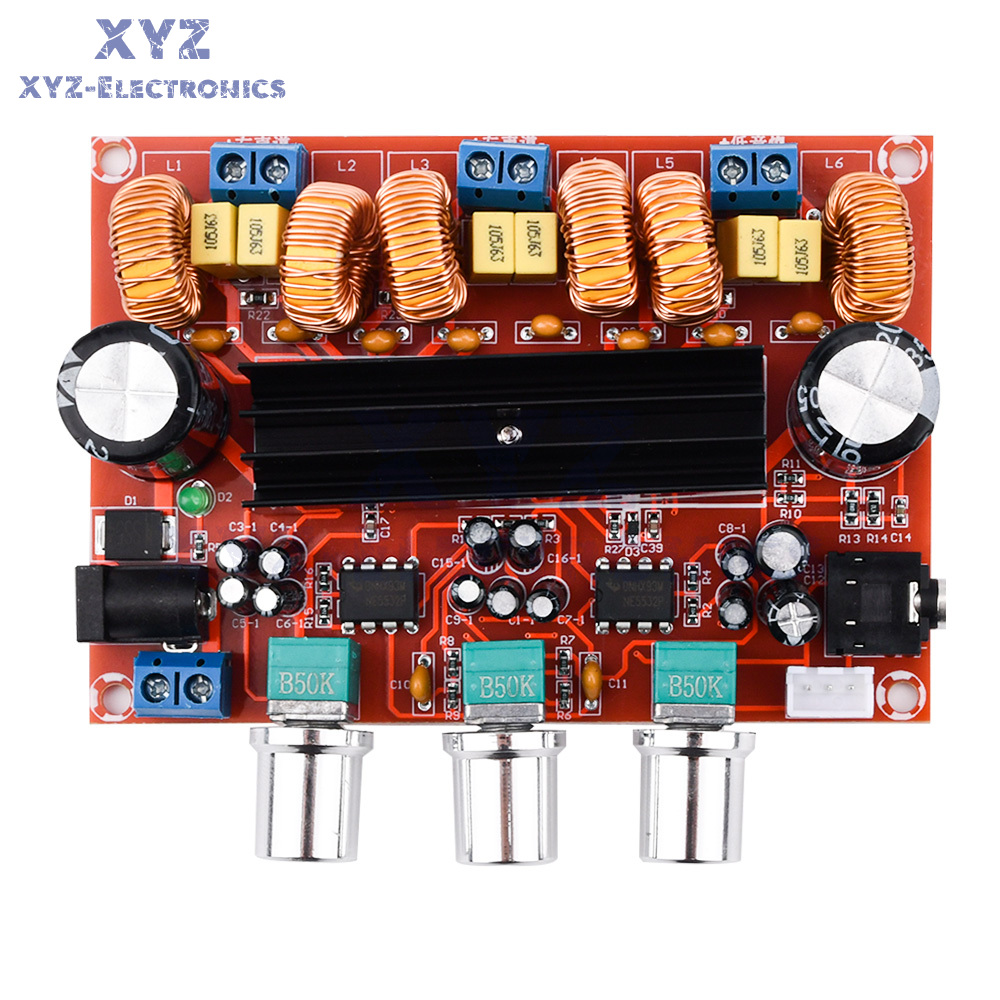

1*Domestic chip 2.1 channel digital amplifier board DC12V-24V 50WX2+100W
Two high quality TPA3116D2 digital amplifier chips are used.
Very good sound quality, high efficiency and power amplification.
50W * 2 + 100W 2.1 channels (left/right channel and subwoofer channel), high efficiency and low heat.
Equipped with DC 12-24V, wide input voltage.
Users can easily adjust the volume themselves.
Applicable speaker impedance: 4-8 ohms.
Just connect the power supply and speakers and enjoy pure digital music!
This amplifier board must be powered by a DC power supply (DC 12-24V), preferably with a high-performance switching power supply. Do not use a transformer!
Supply voltage: DC 12-24V
Chip: TPA3116 * 2
Channel type: 3 channels (left channel, right channel, subwoofer)
Output power: 50W * 2 + 100W * 1 subwoofer
Output matching: 4-8 ohms
Audio output: Terminal
Frequency response range: 14-100KHz
Signal to Noise Ratio: 100dB
Switching frequency: 1.2MHz
PCB board size: 100 * 70 * 30mm/ 3.94 * 2.75 * 1.18in (L * W * H)
Weight: 113g / 3.98oz
Package size: 13.5 * 11 * 5cm/ 5.31 * 4.33 * 1.97in (L * W * H)
Package weight: 178g / 6.3oz
Packing list：
1 * 2.1 channel audio amplifier board
