Advantages:
- ❶【Software Update MPPT Design 】100% MPPT 60A solar charge controller Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance Automatic battery voltage detection 12V/24V/36V/48V, Make sure batteries' voltage more than 12V to boost controller and make sure battery has enough power to Self-detection when connected to the controller.
- ❷【Multiple Battery Adaptation】 Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording. Two connectors for each pos and negs on solar and batteries connectors. copper wires:9AWG.

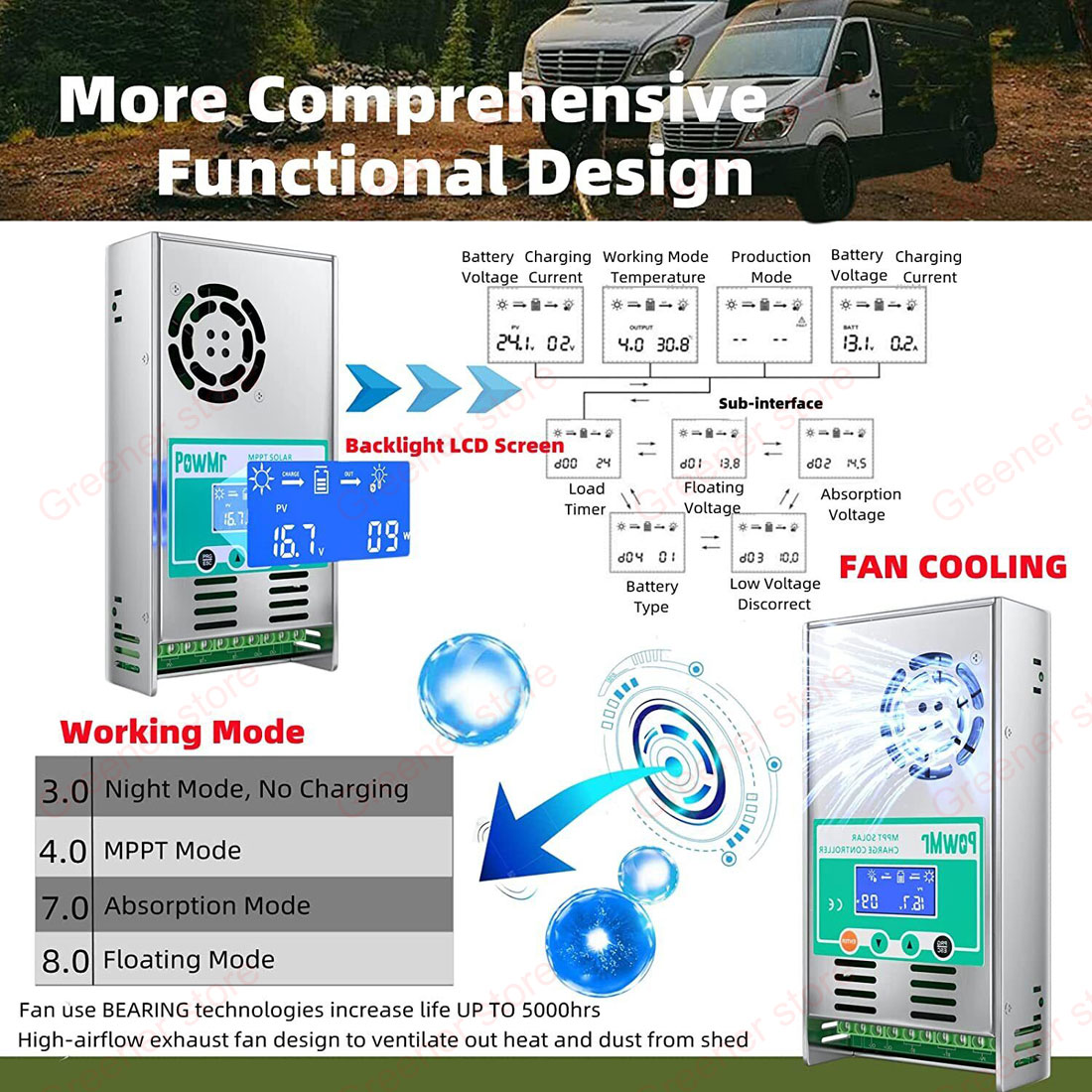

- ❸【Full System Protection】Backlight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature. ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters.
- ❹【Fan Heat Dissipation】Intelligence Fan-on temperature >45℃ and off < 40℃,Porous heat dissipation.and fan use BEARING technologies increase life UP TO 5000hrs in normal use. Suitable for RVs, Commercial Vehicles, Boats, Yachts, and Solar system.
- ❺【Notiction】If you use sealed lead acid, vented gel battery, and etc, you donn't need to set any parameters, the controller can adjuste automaticly and work normally; but if you use lithium batteries, you need to properly adjuste parameters according to the actual voltage of the battery, becauese the voltage of lithium batteries is unstable, such as acid battery 12V is 12V, lithium battery 12V may be 11.1V or 14.8V.
FEATURE:

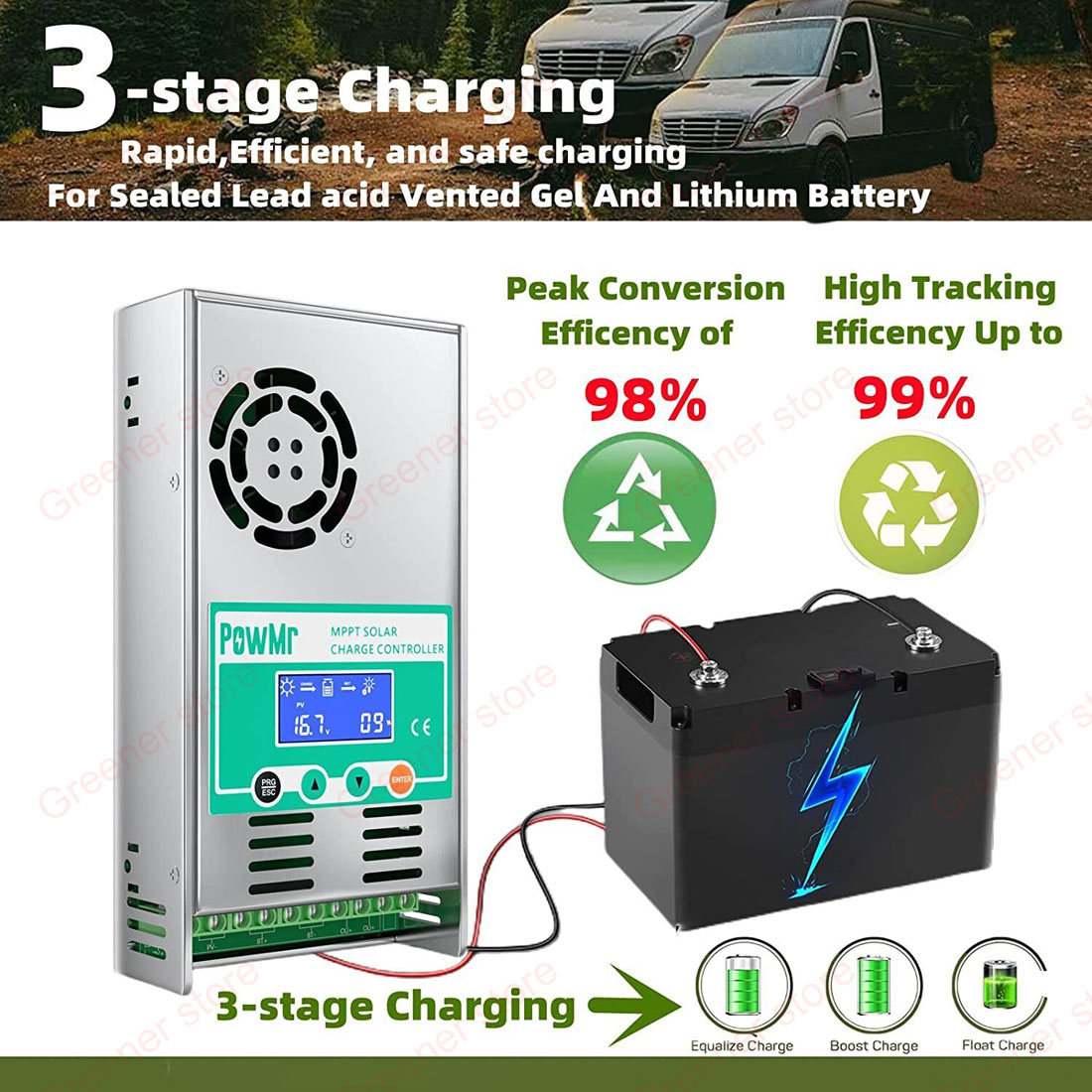

- Charging 3-stage: constant current(MPPT), constant voltage(Absorption Voltage), floating charge
- Selectable battery type Vented / Sealed / Gel / NiCd / Lithium battery (default is Sealed) (defined voltage for other battery by user)
- Soft start time ≤1S, Dynamic response and recovery time 100us
- Max efficiency ≥98.1%, PV utilization ≥99%

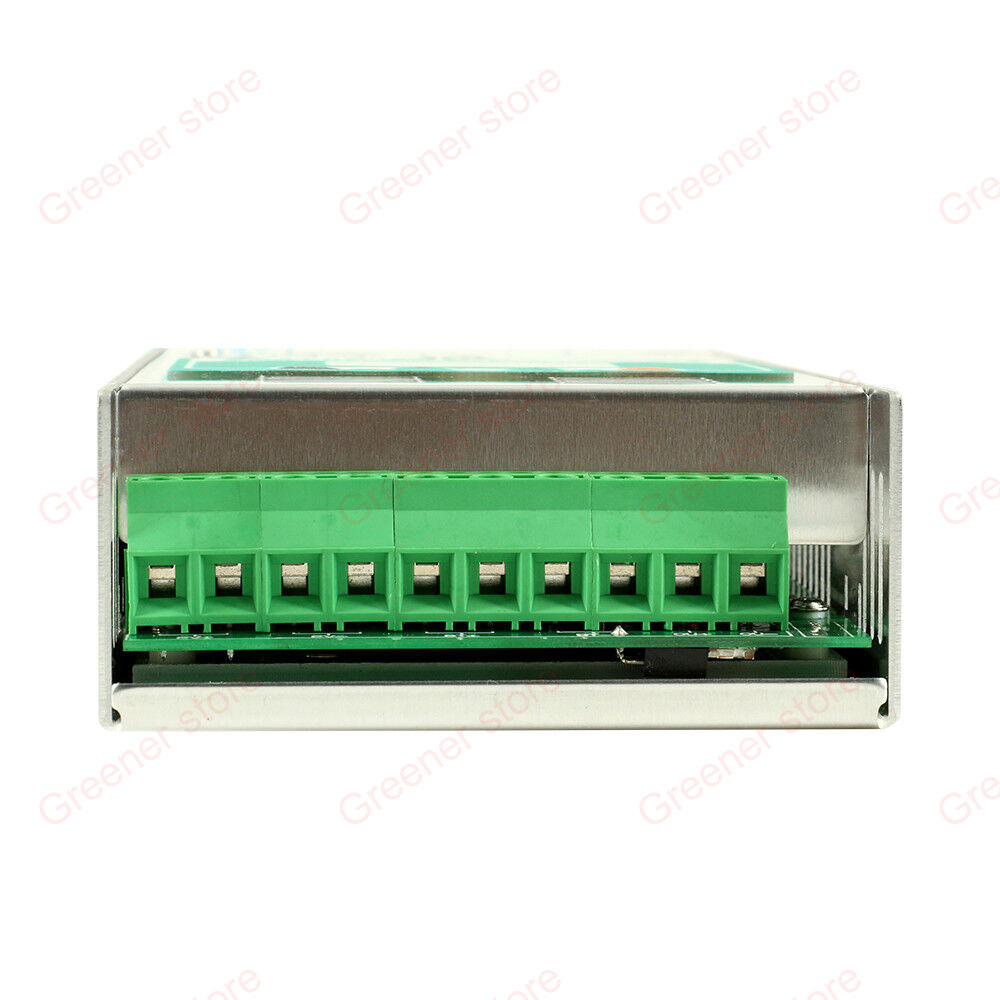

- In order to reduce the cost of electricity caused by high current, PV and battery each have two terminals

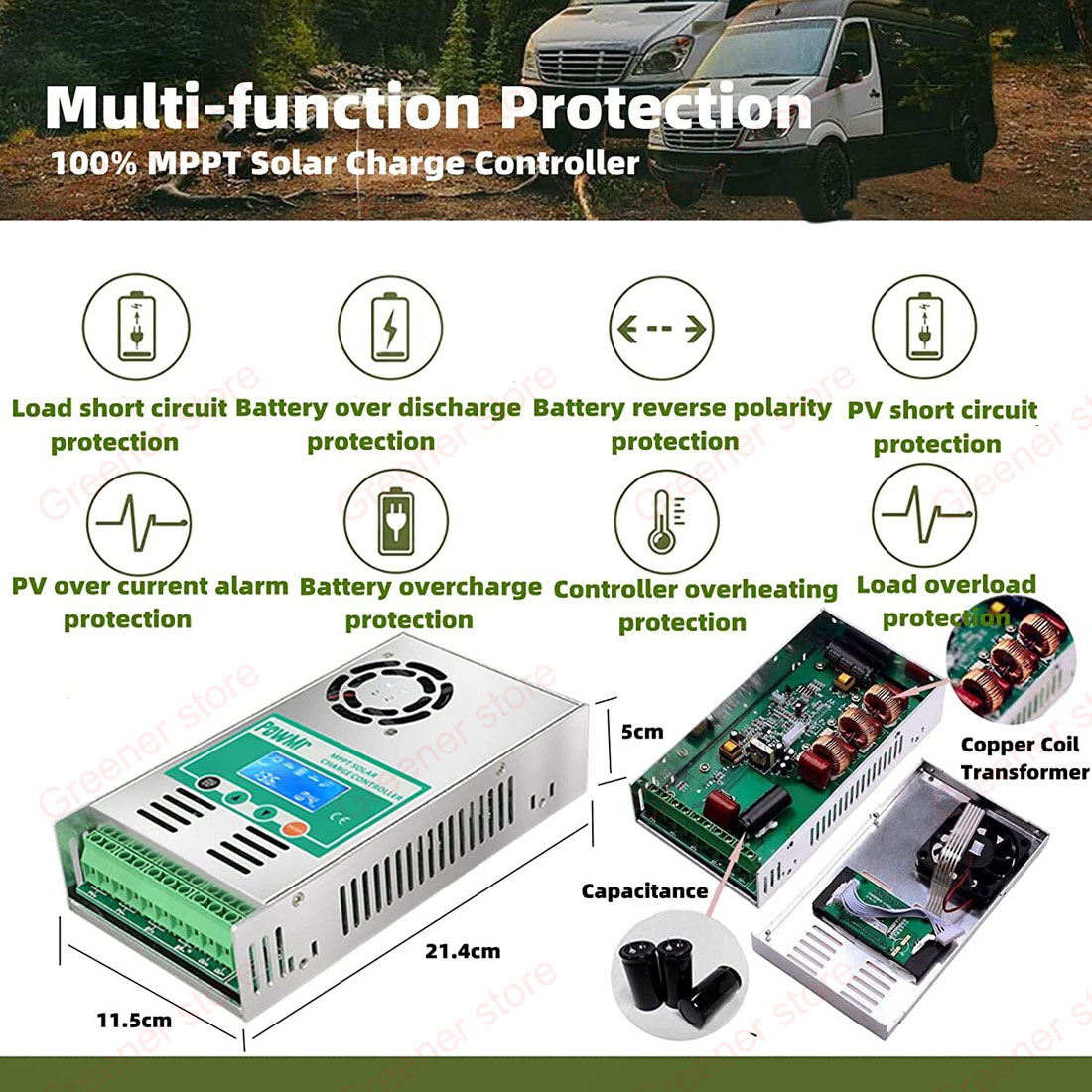

- MULTIPLE ELECTRONIC PROTECTIONS
- Short-circuting
- Reverse-current
- Overcharging
- Overload
- Over-discharging
- Reverse polarity protection
Notes: The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.
Remarks:
1.
The maximum PV input voltage (Voc): DC160V (The controller can not work
with this long duration voltage, which will interrupt the controller.
Refer to the input voltage of PV).
2.
The output port is only for lamps (12V system less 60W, 24V/36V/48V
system less 100W) and will be burned if connected to other loads. The
battery output is not reverse polarity protection.
3.
Always connect the battery first!!! Make sure the battery voltage is
sufficient for the controller to recognize the correct system voltage.
The order of dismantling contradicts the order of wiring.
4. Do not connect any inverter/wind/generator or charger to the controller, please connect the inverter to the battery side.
5.
Ensures the solar input voltage exceeds 3V or more than the battery
voltage and the total input power exceeds the max. , the charging
current is almost zero when the controller has trickle charge.

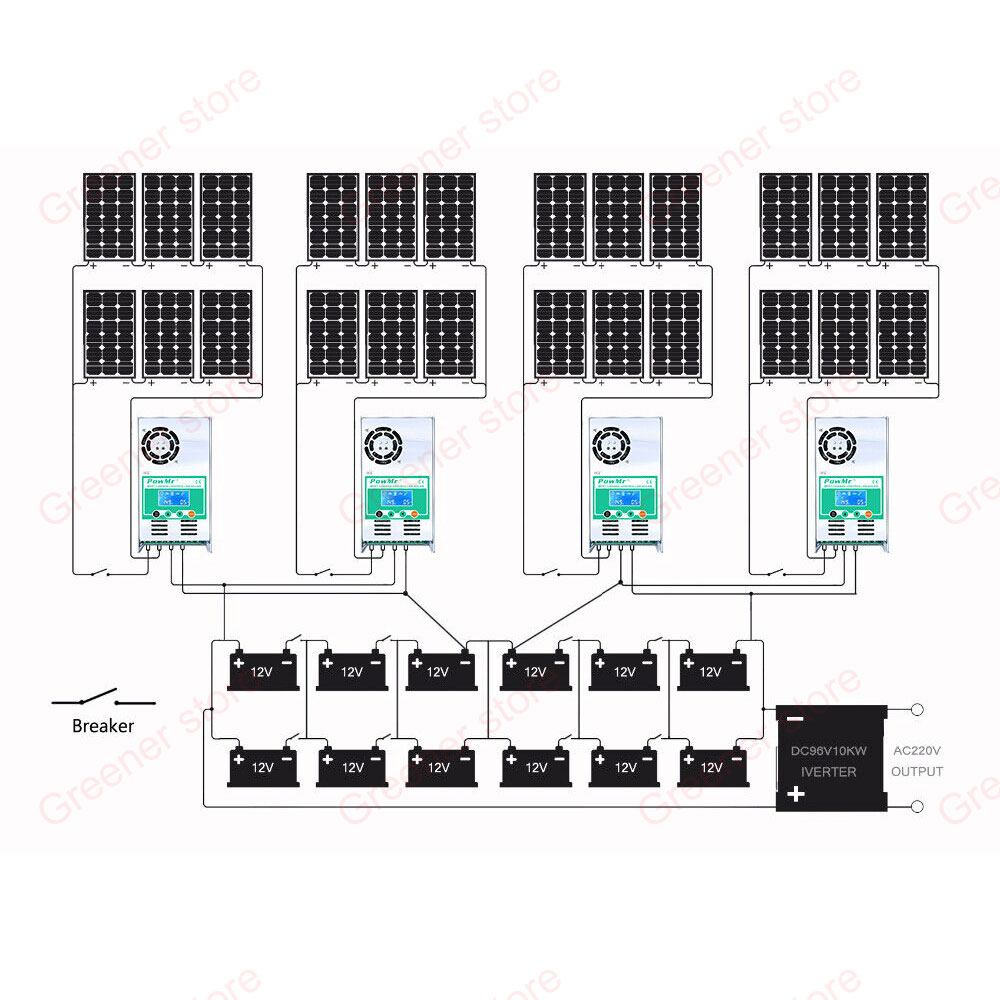

You can Put two pieces 60A in parallel ,So total is MPPT 120A.
Model Name | MPPT-30A | MPPT-40A | MPPT-50A | MPPT-60A |
Charging mode | MPPT Maximum power point tracking automatically | |||
Charging | 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge | |||
System type | DC12V/24V/36V/48V Recognition automatically | |||
System voltage automatic recognition | 12V system (DC9V-DC15V) | |||
24V system (DC18V-DC29V) | ||||
36V system (DC30V-DC39V) | ||||
48V system (DC40V~DC60V) | ||||
Soft start time | ≤1S | |||
Dynamic response and recovery time | ≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) | |||
PV utilization | ≥99% | |||
Input specification | ||||
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) | 12V system (DC20V~DC80V) | |||
24V system (DC37V~DC105V) | ||||
36V system (DC50V~DC160V) | ||||
48V system (DC72V~DC160V) | ||||
The maximum PV input voltage (Voc) | DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) | |||
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) | 12V system (360W) | 12V system (480W) | 12V system (600W) | 12V system (720W) |
24V system (720W) | 24V system (960W) | 24V system (1200W) | 24V system (1440W) | |
36V system (1080W) | 36V system (1400W) | 36V system (1800W) | 36V system (2100W) | |
48V system (1440W) | 48V system (1700W) | 48V system (2200W) | 48V system (2800W) | |
Output specification | ||||
Selectable battery type(default is Sealed) | Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) | |||
Absorption Charging Voltage | Refer to Batteries charging reference | |||
Floating Charging Voltage | Refer to Batteries charging reference | |||
Overcharging protection voltage | 12V system (15V) | |||
24V system (30V) | ||||
36V system (45V) | ||||
48V system (60V) | ||||
Rated output current | 30A | 40A | 50A | 60A |
Temperature Coefficient | ±0.02%/ centi-degree | |||
Automatic temperature compensation | 14.2V-(Max temperature-25 centi-degree)*0.3 | |||
Output voltage ripple-peak | 100mV | |||
Output voltage accurac | ≤±1% | |||
Input Anti-intrusion protection | yes | |||
Temperature Protection | 75°C | |||
Temperature increased protection | Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C | |||
Fan-on temperature | >40 °C | |||
Fan-off temperature | <35 °C | |||
Acoustic noise | ≤40dB | |||
Cooling way | Forced air cooling | |||
Components | Imported materials, Accord to EU standards, Industrial grade range. | |||
Environmental requirements | Meet 2002/95/EC; No cadmium, hydrides and fluorides | |||
Security Level | Accord to CE, PSE, FCC, EMC, EN60950 | |||
Electromagnetic Compatibility | Accord to EN61000, EN55022, EN55024 | |||
Enclosure | IP21 | |||
Net weight(Kg) | 1.1 | |||
Gross weight(Kg) | 1.2 | |||
 |  |  |

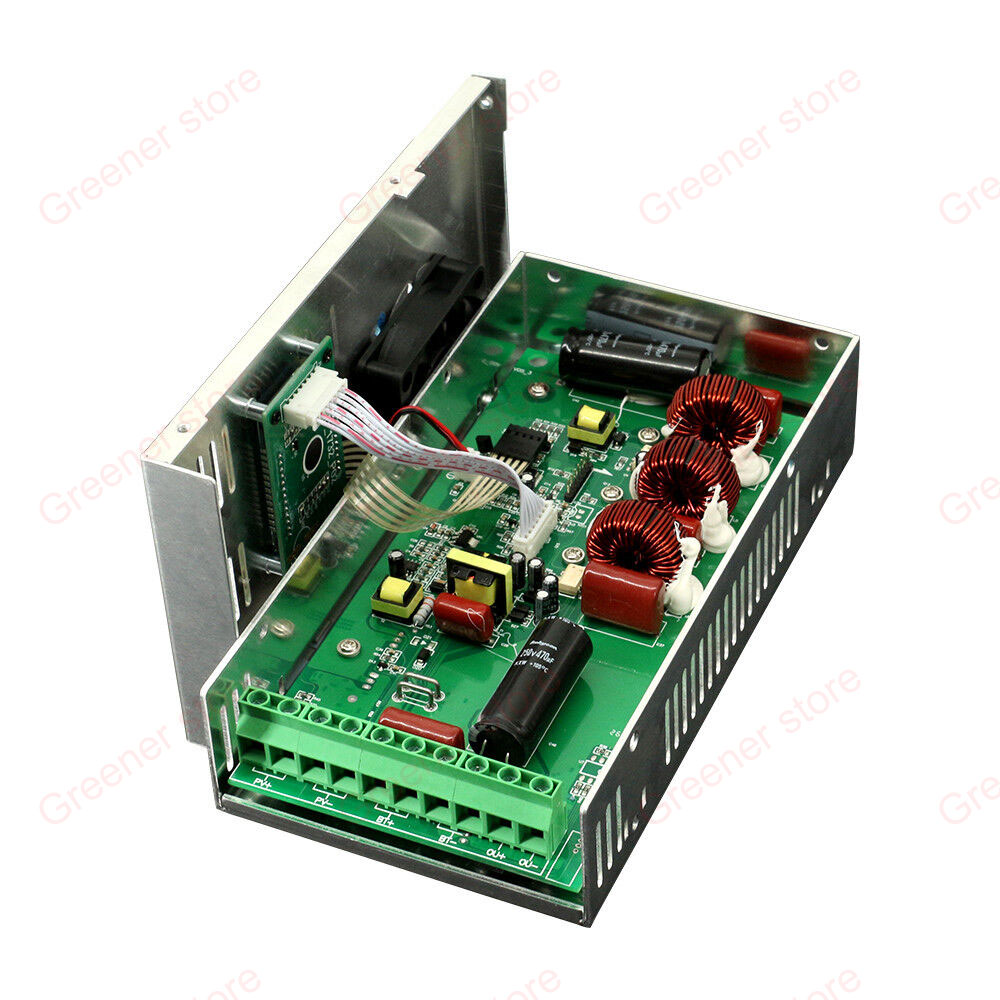

COPPER COILSTrue MPPT controller, The Three copper coils play a step-down roles to make your system work more stable.
| TRANSFORMERThree Electronic transformer, more safe MULTIPLE ELECTRONIC PROTECTIONS:
| FAN COOLING
|
TIPs

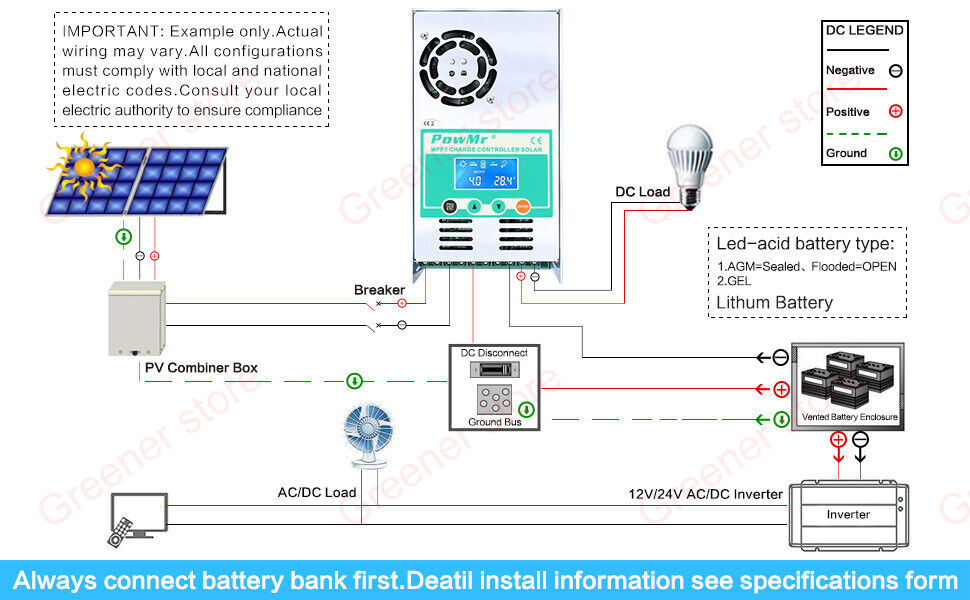

- Always connect battery first!!! Make sure enough batteries’ voltage let controller recognize the right system voltage. The disassembly sequence is contrary to the wiring order. NEVER connect the solar panel array to the controller without a battery
- DO NOT connect any Inverter/ wind/ Alternator or Charger into the charge controller! connect the Inverter directly to the battery.
- Ensures solar input voltage higher 3V or more than batteries’ voltage and total input power in the range. if input power is too low for max input power, it may be appears to have been discontinued., the charging current almost be zero when controller is floating charge.
- Parameter Setting RulesFloating voltage > Low voltage reconnect > Low voltage discharge.
- The solar controller will stop output when the battery under 10.7V. The LCD will be blank when the battery under 8V and it will re-output when the battery up to the 12.6V (adjustable).
- Install the Charger controller to the battery as close as possible. Tighten the wire, Carefully read battery manuals before operation.
- When controller makes buzzing sound because of It's working hard to dissipate heat for your controller. Rest your heart, it will be stop when temperature return to normal.
- Remove all the debris around the controller ( leaving a space of approx. 5.91in ).Make sure all connections going into and from the controller are tight. Do NOT let the positive (+) and negative (-) terminals of the battery touch each other.

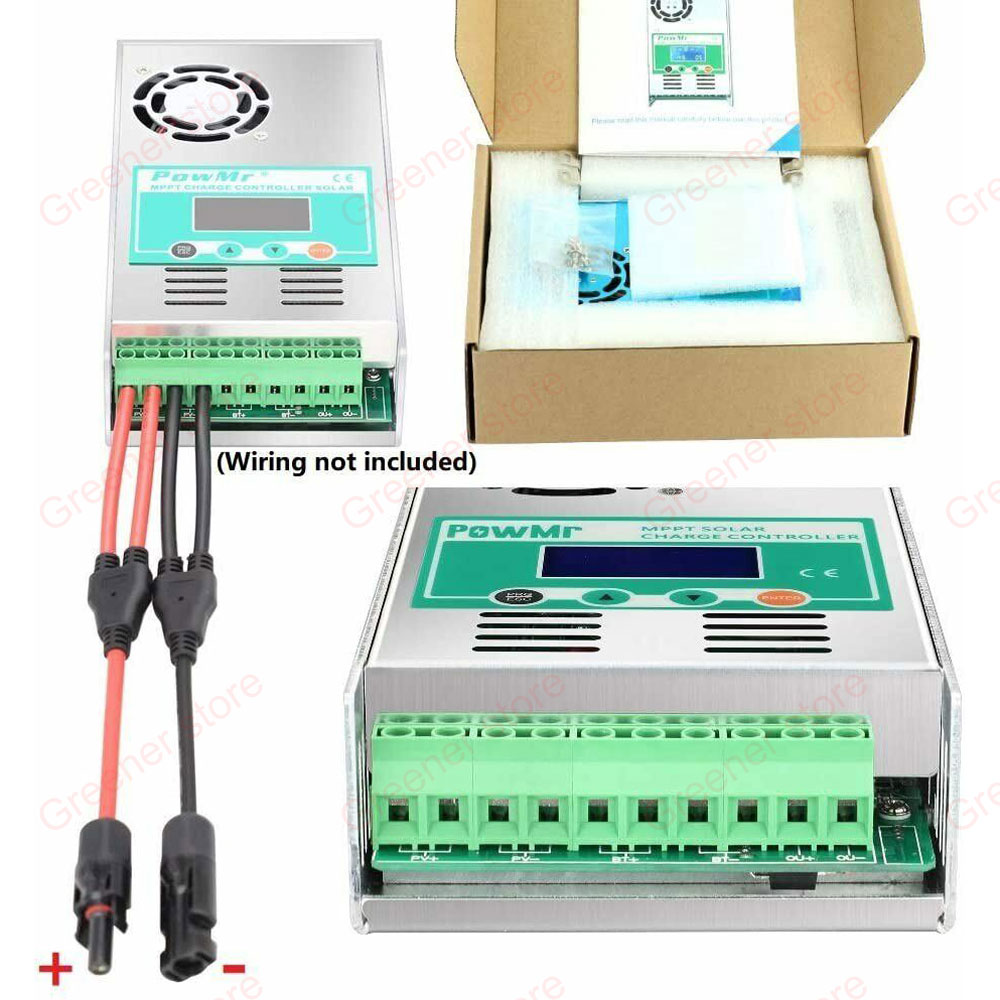

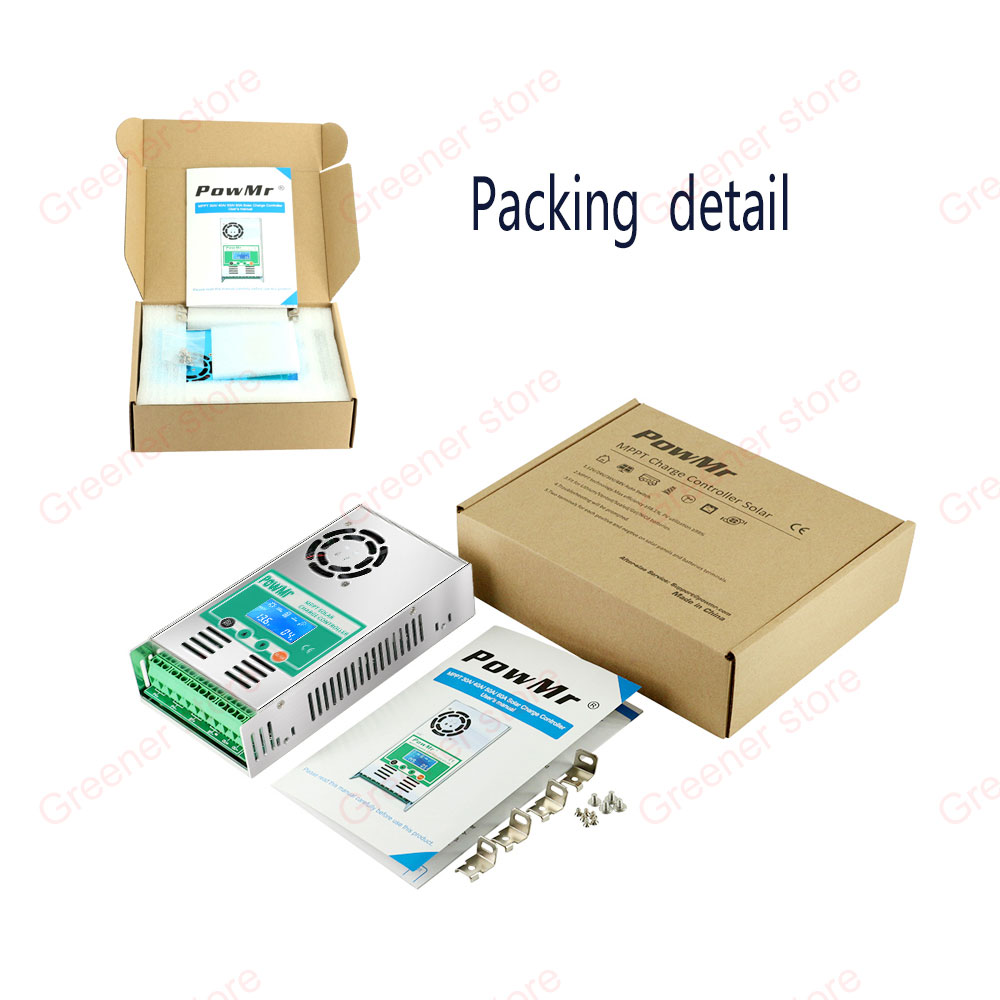

1x user manual
1x Mounting caps
1x Screws
