3000W Horizontal Wind Generator With 2000W On Grid Inverter For Home Use

Product Description

  • On grid system is very convenient. No need of batteries and the connection is easy.
    Because 2kw on grid inverter max input power can reach 3.5kw, 3kw wind turbine horizontal type can well matchs with 2kw on grid inverter. but the input voltage should be within 45-90v.
    FEATURES:

    HIGH-QUALITY BLADES

    The blade material is synthetically injection molded with high-strength FRP material. At the same time, the fashionable spiral blade is also designed with aerodynamics to make the rotor run smoothly, reliably and quietly.Coreless PMG provides lower start torque/wind speed and longer service life.Design service life 10~15 years.

    Maximum RPM protection. No higher than 300RPM, regardless of the wind speed.

    POWERFUL PERFORMANCE

    Designed with three-phase AC PMG, it boasts low torque, high-power tracking intelligent microprocessor that can effectively regulating the current and voltage. It obviously increases wind energy utilization and annual power generation.

    COMPACT & FIXED

    With dual bearings, the fan movement is more stable. Low vibration and low noise. In addition, with its compact shape, it has the lowest starting wind speed and a larger windward area, enabling it to generate electricity at lower wind speeds.

    EASY INSTALLATION

    All things you need for installation are included. You can also get extra installation tool (two wrenches). Humanized and convenient flange design, easy to install and maintain.

    MULTIFUNCTIONAL USE

    It is ideally suited for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplem

    1. A3 steel housing, makes small size, light weight, beautiful appearance and low working vibration.
    2.flange connection ensures good strength, easy installation and maintenance.
    3.enhanced fiberglass turbine blades with optimized aerodynamic shape design and structural design, can lower start wind speed and higher wind energy utilization.
    The blade is coated by gel coat resin and painted to resist corrosion by air and water.
    4. the automatic-yaw tail rudder empowers this horizontal swing-tail wind turbine (the tail automatically swings in high wind and automatically return in safe wind)a higher anti-typhoon capacity.
    5. permanent magnet external rotor design,reduced the resistance torque and very good heat dissipation performance compared to inner rotor generators.
    6. 42NSH magnetic steel piece has stronger magnetism and higher temperature resistance.
    7. F-class enameled wire could stand 150 degrees temperature, coil operation safety is ensured.
    8. the body shell is dacromet coated and twice anti-corrosion painted, to ensure rust free after a long time operation

    Rated power: 3000W

    Rated voltage: 48V / 96V

    Blade length: 140 cm

    Top net weight: 45kg

    Wind turbine diameter: 2.8 m

    Nominal wind speed: 10m / s

    Starting wind speed: 2.2 m / s

    Survival wind speed: 40m / s

    Generator: 3-phase permanent magnet synchronous generator

    Lifespan: More than 20 years

    Warehouse: HRB or for your order

    Blade material: fiberglass

    Shell material: aluminum alloy

    Permanent magnet material: rare earth NdFeB

    Control system: electromagnet

    Lubrication: grease

    Working temperature: -40 to 80

    Package includes:

    1 x  Generator

    3 x Fiber Glass Blades

    1 x Braket, and sets of assembling

    4 x Screws

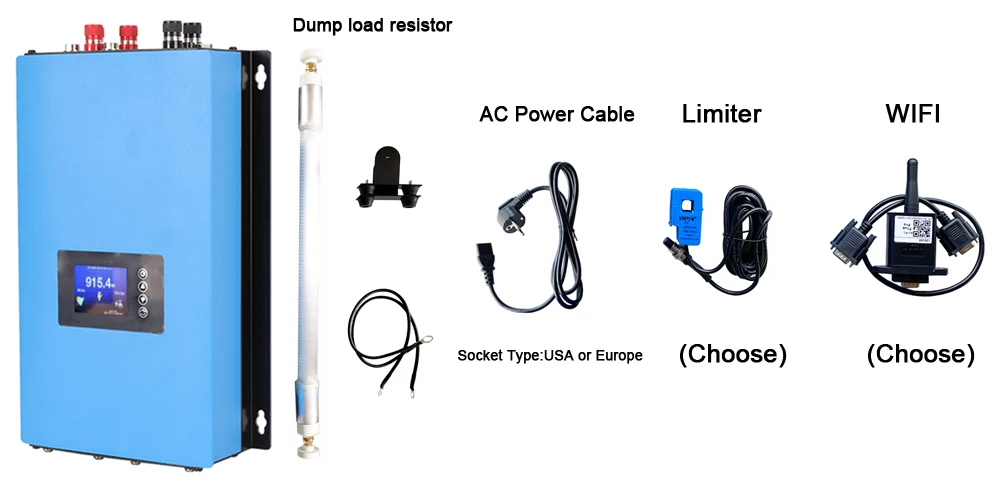

  • 1X 2kw on grid inverter
