Details

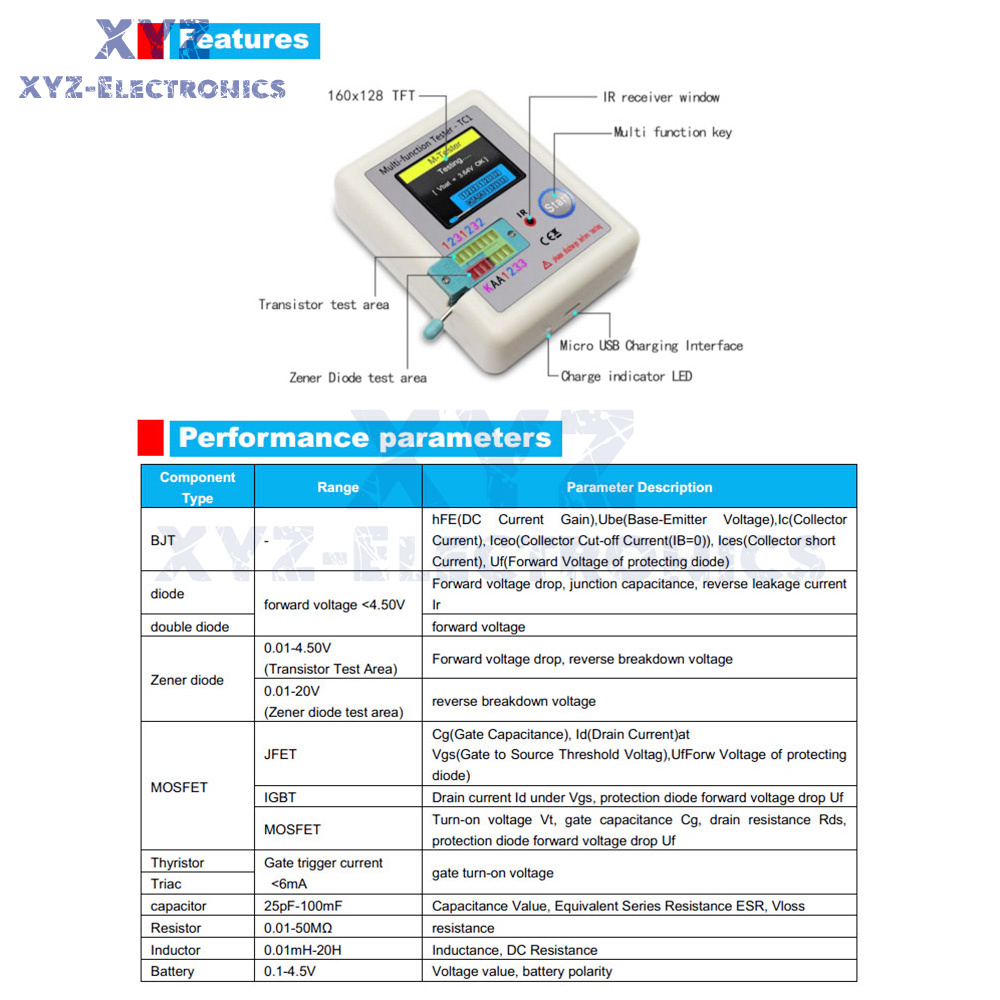

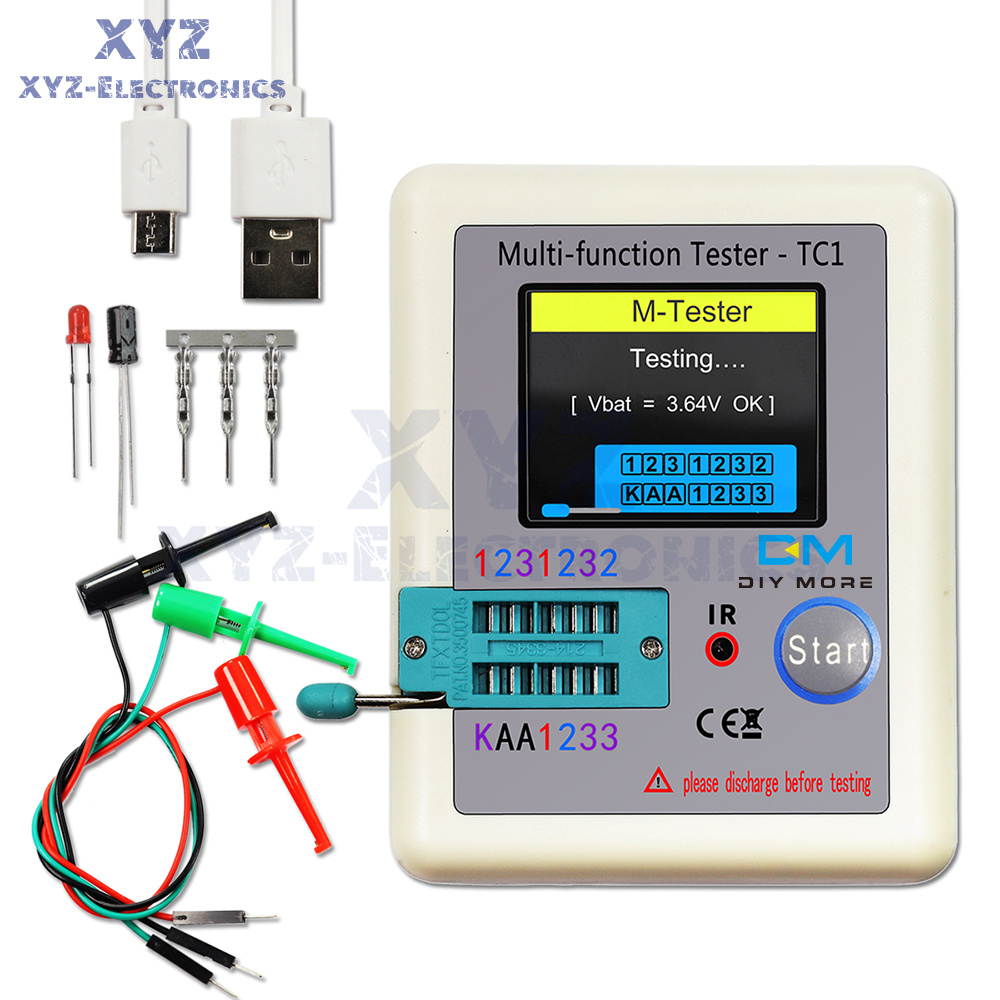

TC-V2.12k is a multi-function tester with TFT graphic display.

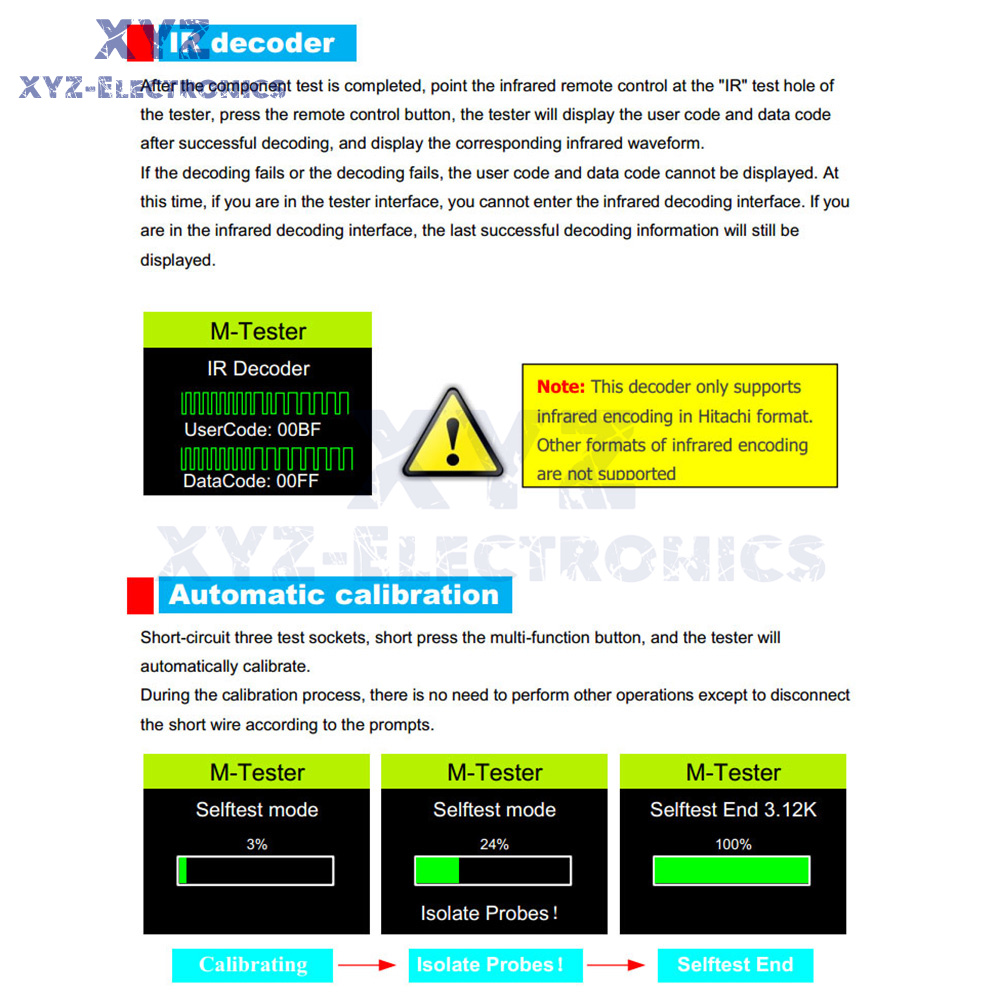

Automatic calibration self-test
Support Chinese and English
Built-in high capacity rechargeable lithium ion battery
Micro USB charging interface, charging indicator LED
Product Parameters:
Size:70x90x26m/2,71x3,58x1,10 inches
Display:TFT display, colour display
Diode range:less than 4.5 V
Zener Diode:Transistor detection area:0.01 - 4.5 V
Zener diode detection area: 0.01 - 30v
Thyristor range: IGT less than 6mA
Capacitance:25pF-100mF
Resistance:0,01-50mΩ
Inductance:0.01 mH-20H
Supply voltage:3.7 V
Power supply: built-in rechargeable lithium battery
Single button operation

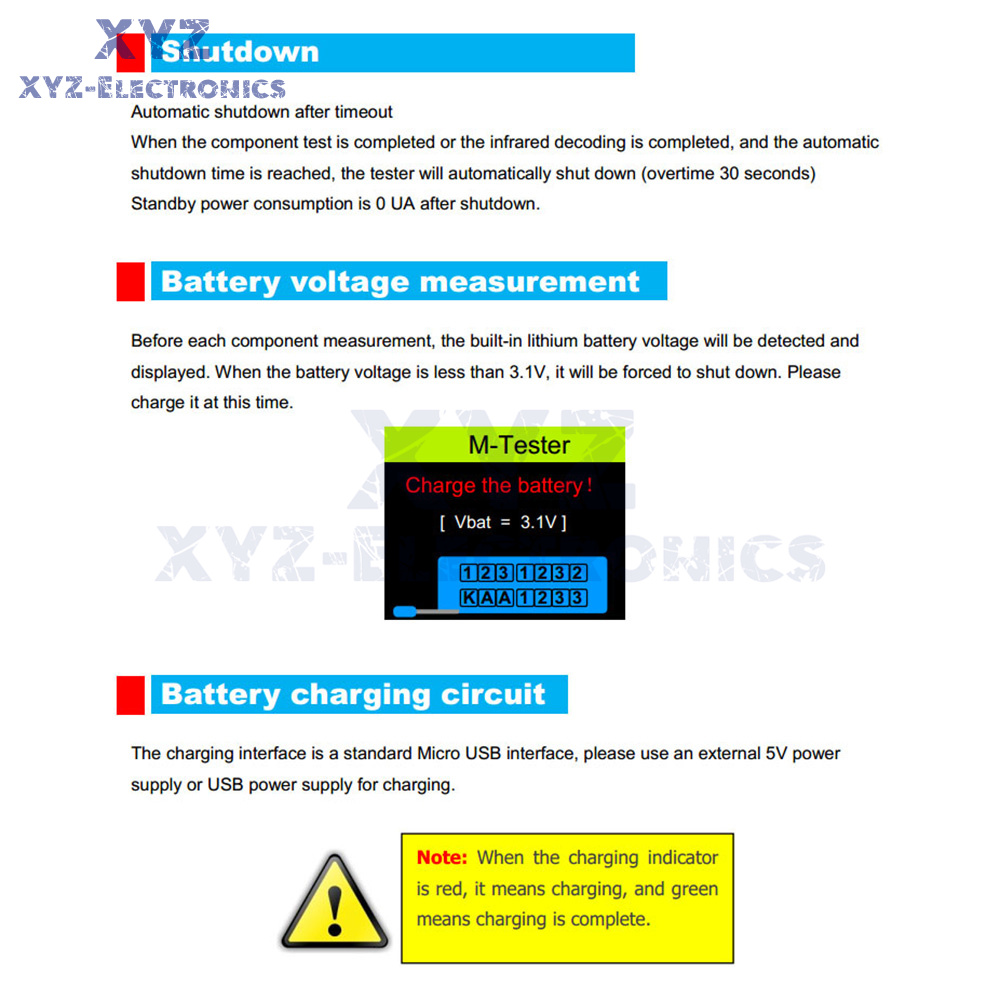

Automatic shutdown (standby time setting)
Built-in high-capacity rechargeable lithium-ion battery
Lithium-ion battery voltage detection
Supports Chinese and English
Warning: Built-in lithium-ion battery, it is strictly prohibited to immerse the tester in water or near a heat source!
Warning: For your personal safety, please strictly observe the specifications and precautions for the use of lithium-ion batteries!

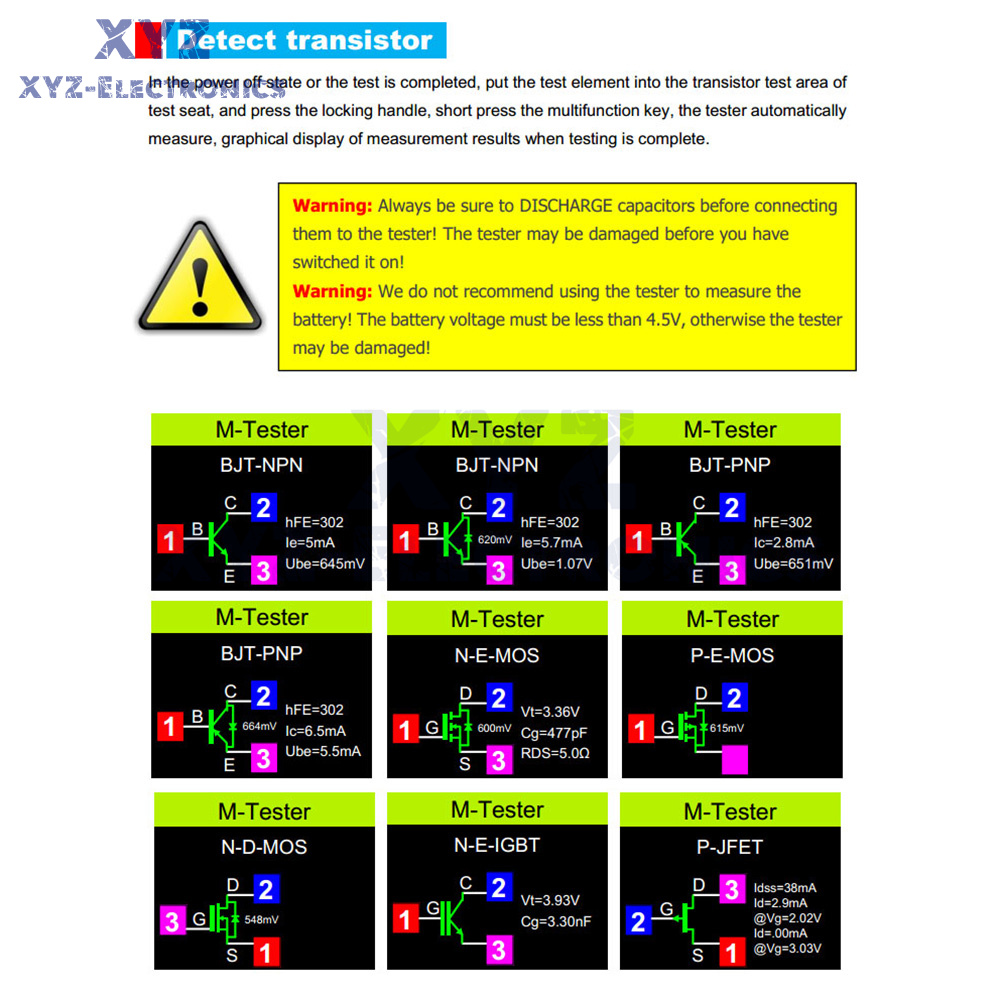

After completing the test has been turned off or test, will test the test in the test area part of the test socket transistor, the handle of the blockade, press the multi-function key automatically tester measurement, measurement results are displayed when the test is over.
Warning:Always download the capacitor before connecting to the tester! The tester may be damaged before switching on.
Warning:We do not recommend using the tester to measure batteries! The battery voltage should be less than 4.5 V or the tester may be damaged.
Tester X1
Accessory kit X1
