Details
Features:

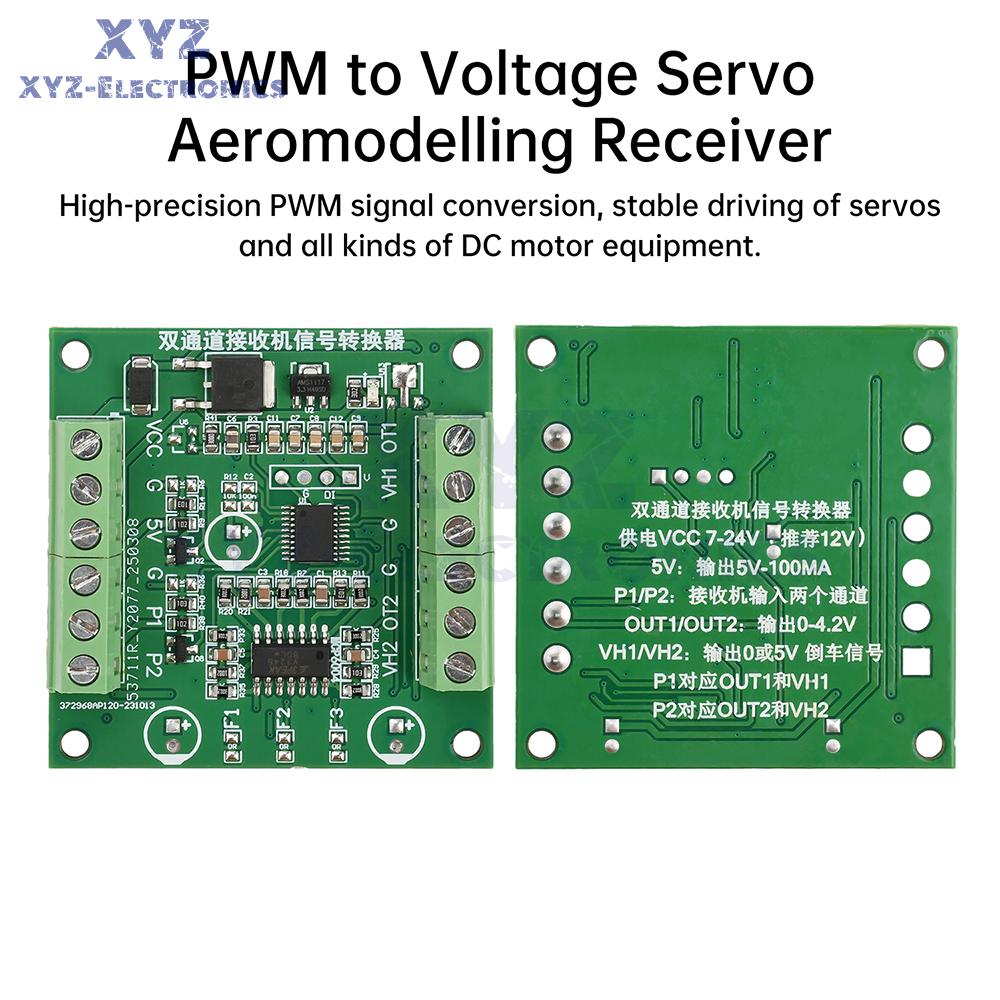

1.High precision PWM signal conversion, stable drive servo and all kinds of DC motor equipment.

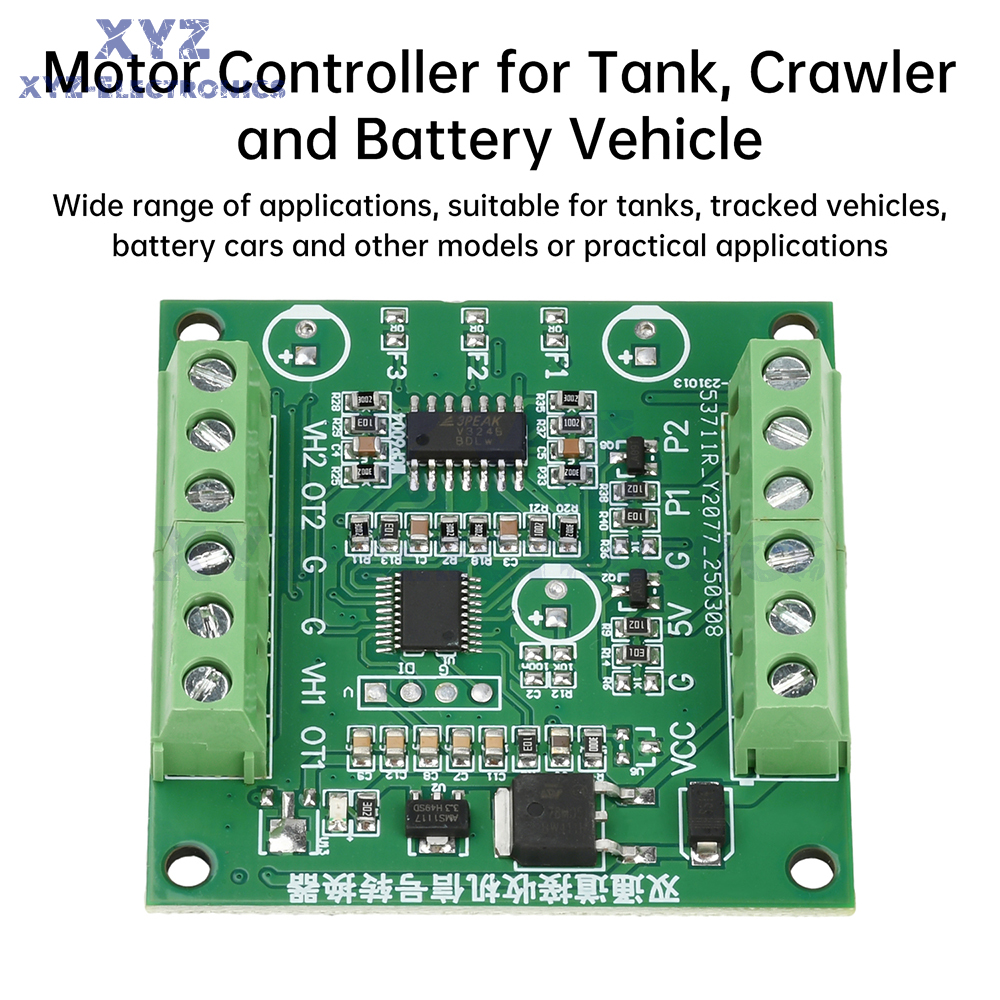

2. Wide range of applications, suitable for tanks, crawlers, battery cars and other models or practical applications.

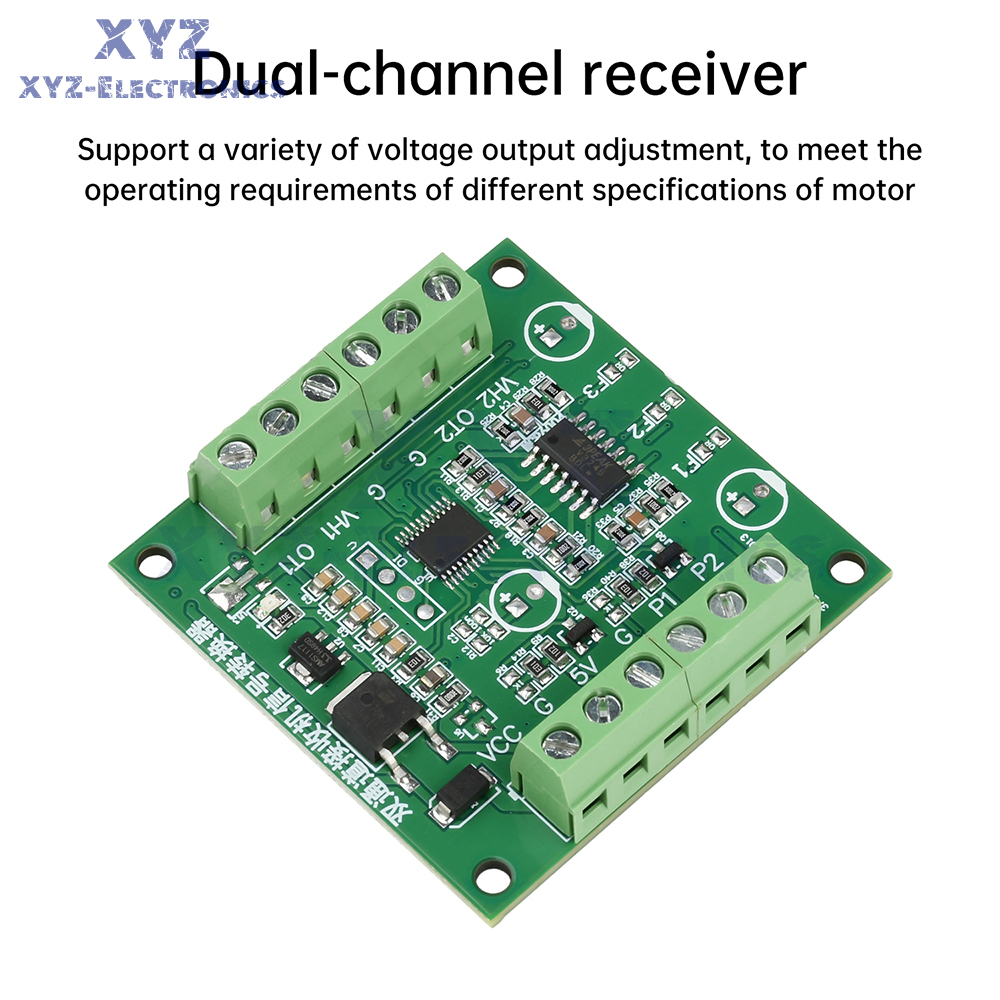

3. Supports multiple voltage output adjustment to meet the operating requirements of different motor specifications.
4. Compact design, convenient installation, strong anti-interference ability, ensure stable operation.
5. Air model level control chip, rapid response, low delay, improve the operating experience.
Parameter:
Power supply voltage: 7-14V (recommended 12V)
Signal Input Parameter: PWM signal of model receiver 1000us-2000us high level.
PWM support signal amplitude range of 2.5V-10V (model aircraft receivers are generally 5V)
Output Voltage:
OUT voltage signal Motor speed regulation (0-4.2V)
VH direction signal (0V or 5V)
Accuracy within 5%, linear conversion
Wiring Definition.
VCC: Power supply positive 7-14V (12V recommended)
GND: Power ground/PWM negative common ground
5V: can be external power supply 5V-100MA capacity
P1, P2: PWM signal input for servo receiver.
OUT1, OUT2: voltage signal-motor speed regulation (1000us~1500us to 4.2V~0V; 1500us~2000us to 0V~4.2V)
VH1, VH2: Direction signal (1000us~1500us output 5V; 1500us~2000us output 0V) P1-OUT1-VH1 is a group, P2-OUT2-VH2 is a group, both groups have the same function)
Product use: servo receiver PWM signal to speed signal, reverse signal, brake signal, etc. to control the motor with. Signal conversion, need to be used with the electric car controller, the specific can control how much motor and electric car controller. Used for low-speed electric agriculture, mountain, workshop, park and other transportation vehicles; tracked vehicles, tanks, airplanes and so on.
Package include:
Motor controller *1
