650B Road Disc Gravel 45mm Clincher Tubeless Carbon Rim
Specifications
| Type |
Clincher + Tubeless |
Size |
650B Gravel |
|
| Spoke Holes |
20, 24, 28, 32, 36 |

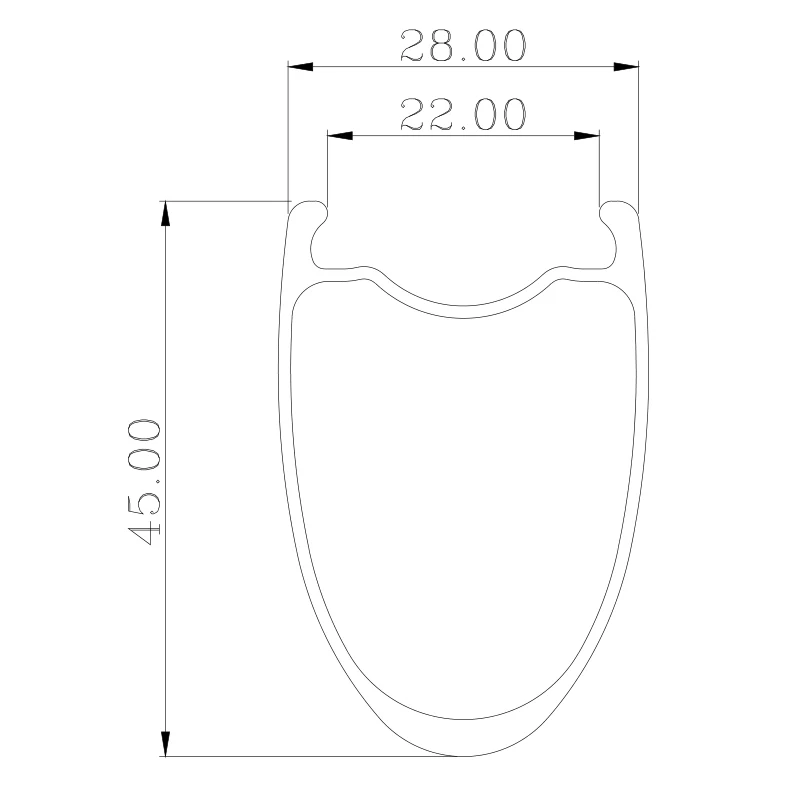

Depth |
45mm |
|
| Outer Width |
28mm |
Inner Width |
22mm |
|
| Weave |
UD / 3K / 12K |
Finish |
matte / glossy |
|
| Braking System |
Disc |
Nipple Position |
External |
|
| Max Weight Limit |
120Kg |
Material |
Toray T700 + T800 |
|
| Cycling Tire Pressure |
120psi Max |
Weight |
430±16g |
|
| ERD |
511mm |
Max Spoke Tension |
180KGf |
|
| Standard |
EN |
Warranty |
12 Months |
Optional Specifications
-
Weave : UD / 3K / 12K / 3K Twill / 12K Twill
-
Finish : matte or glossy
-
Spoke Holes : 20, 24, 28, 32, 36
-
Nipple Position : External or Internal
