Ketchup Paste Filling Machine Liquid Sauce Filler Peanut Butter Filling Machine

Product Description

Products Description
Model
G1WGD1000
Filling range
100-1000ml
Product capacity
5-20 bots/min
Filling Accuracy
±1%
Air Pressure
0.4-0.6MPa
Required Air Compressor
≥1.5KW 65L

Introduction:

Horizontal single head paste filling machine is the ideal equipment for filling paste and liquid. It is not only suitable for ketchup, detergent, honey and other paste, but also suitable for a variety of liquids. It is widely used for daily use, food and special industries.

Filling Principle:The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.

Features:

1. Two filling modes can be switched arbitrarily:This machine has two filling ways, foot and automatic, and they can be switched randomly.

2. 304 Stainless steel:Parts in contact with materials are made of 304 stainless steel, in line with food grade requirements.

3.Compact and reasonable structure: Its structure design is reasonable, small size, easy to operate.
4. Filling volume and filling speed can be adjusted:Filling volume adjustment handle, filling speed can be adjusted, filling high precision.
5.Wide filling range: paste liquid dual filling machine, to meet the filling needs of different industries.
Filling Volume:
10-100ml, 30-300ml, 50-500ml, 100-1000ml, 200-1500ml,300-2500ml, 1000-5000ml.
Details Images

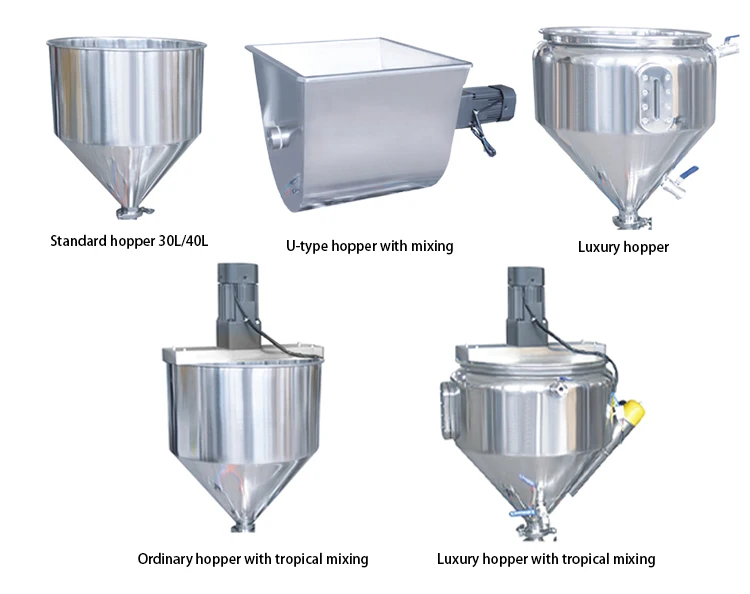

Hopper can be customized
Can increase the hopper like 50,60,100 L.
According to customer requirements can be customized hopper,
optional hopper: hopper with mixing and heating, pressure hopper,
U-type hopper with mixing , heating hopper.

Filling Nozzle
Filling nozzle is made of 304 stainless steel.
It can be customized for anti-drawing, anti-drip design and 316 stainless steel.

Detachable Buckle

It can be disassembled without tools and easy to clean.


Filling Volume Adjustment System
The stroke of the cylinder can be controlled by the reed switch.
Feed speed and discharge speed can be adjusted according to your requirements.
The filling range can be adjusted by shaking the handle on the left side for easy operation.
