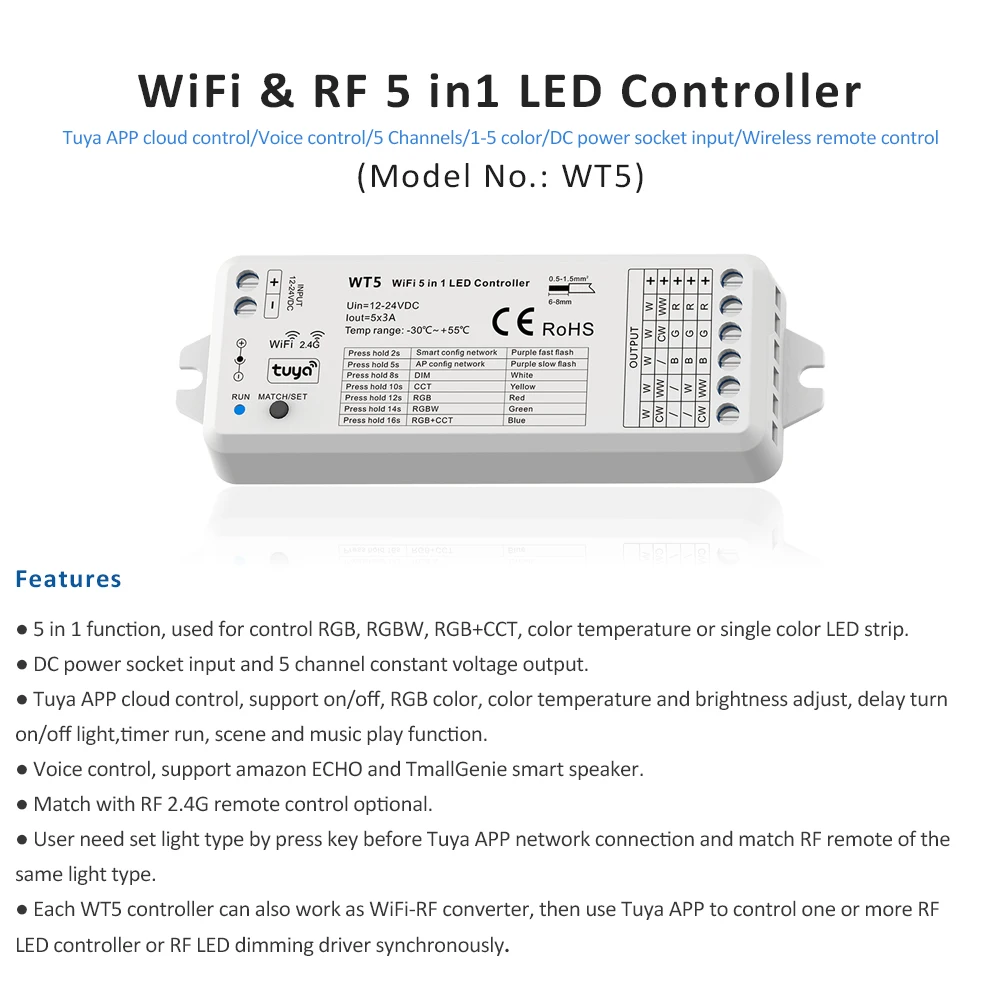

WT5 Specification:

● 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
● DC power socket input and 5 channel constant voltage output.

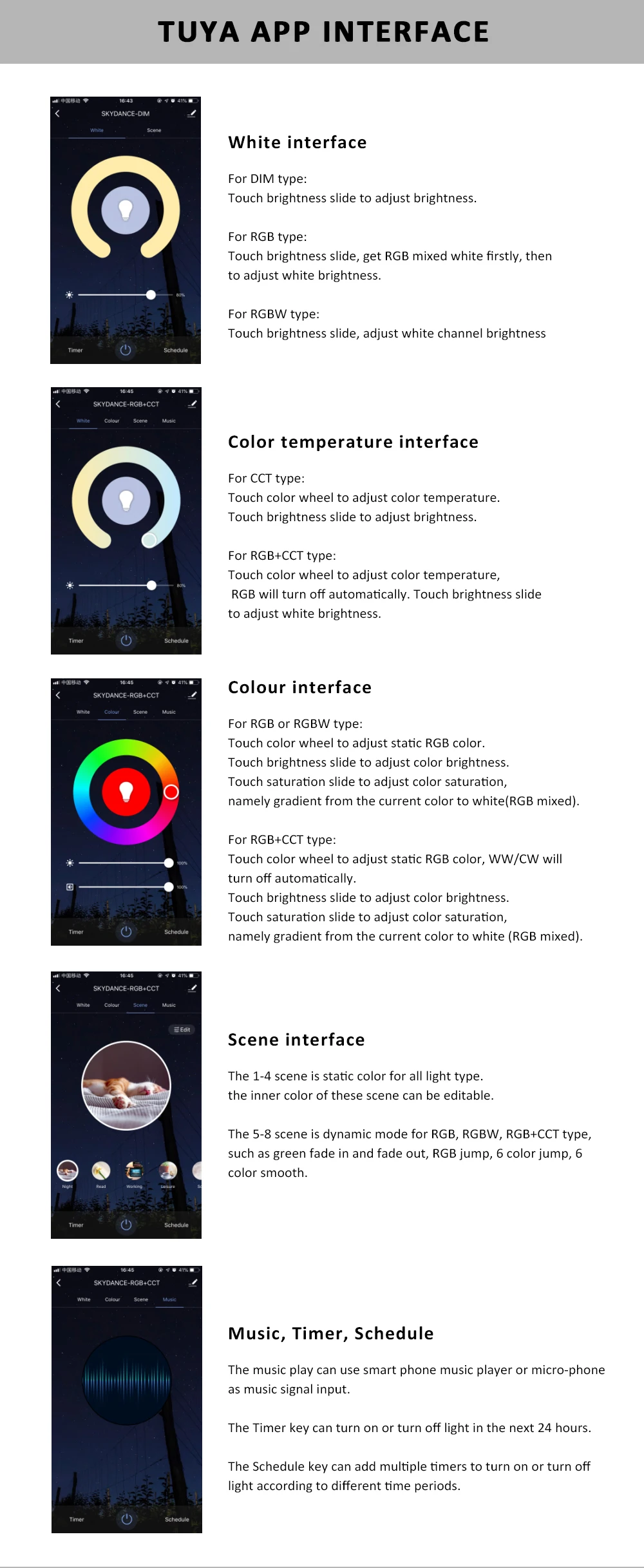

● Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light,timer run, scene and music play function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● Match with RF 2.4G remote control optional.
● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.

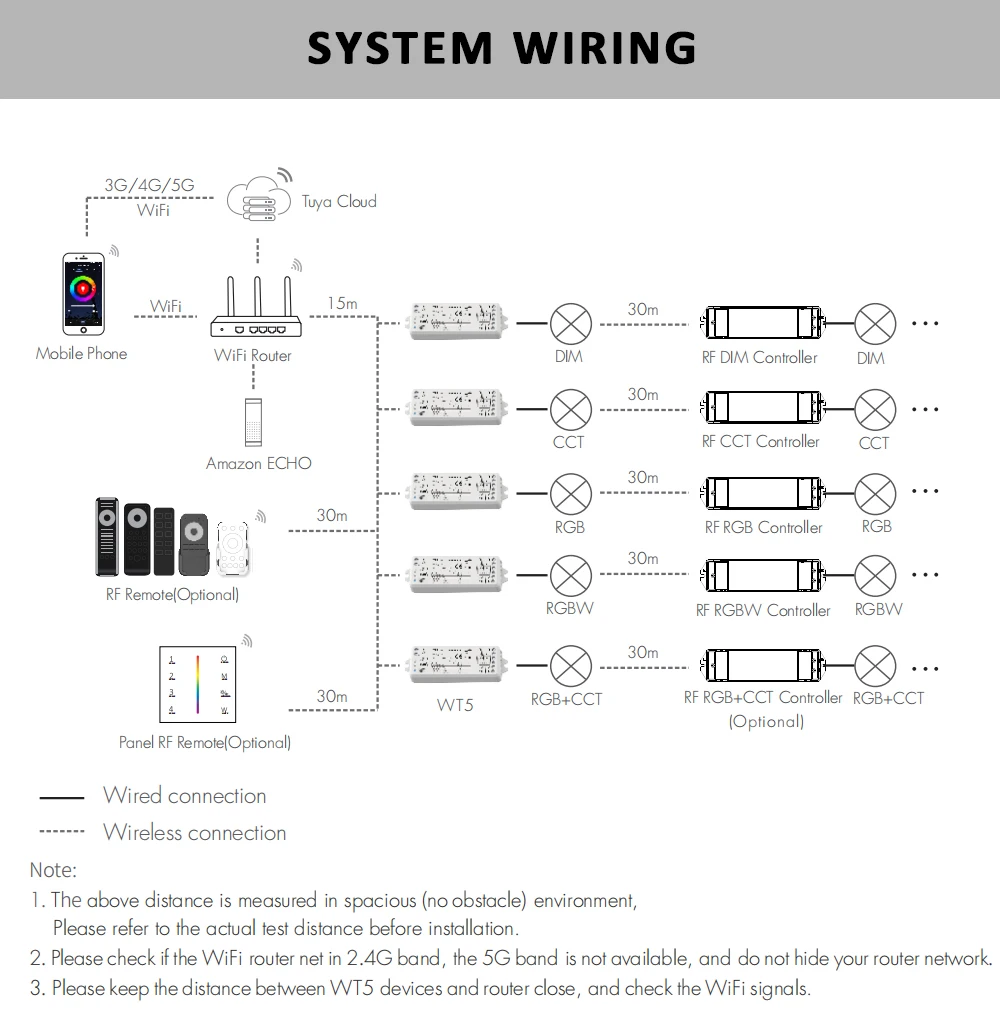

● Each WT5 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously


Main Parameters:

Input voltage: 12-24V DC
Output voltage:  12-24V DC
Output current: 5CH,3A/CH
Input signal: Tuya APP + RF 2.4GHz
Dimming range:0 -100%
Dimming range scale: 4096 (2^12) levels
PWM Frequency:500Hz (default)
Protection:Reverse polarity Over-heat

Package:
1PC Only WT5 Controller
