[xlmodel]-[custom]-[8888]Specification:





Description:

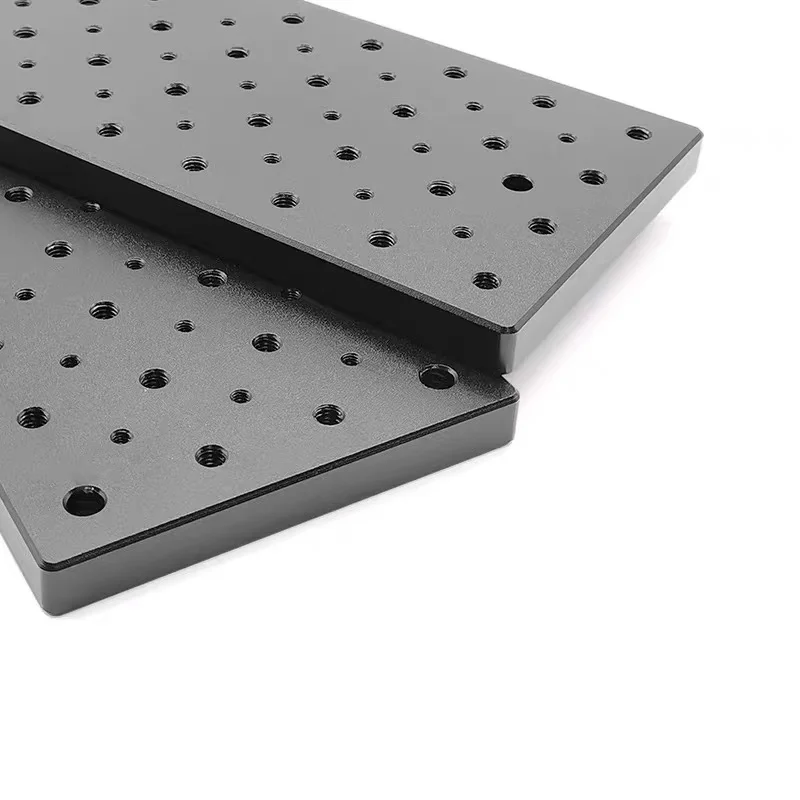

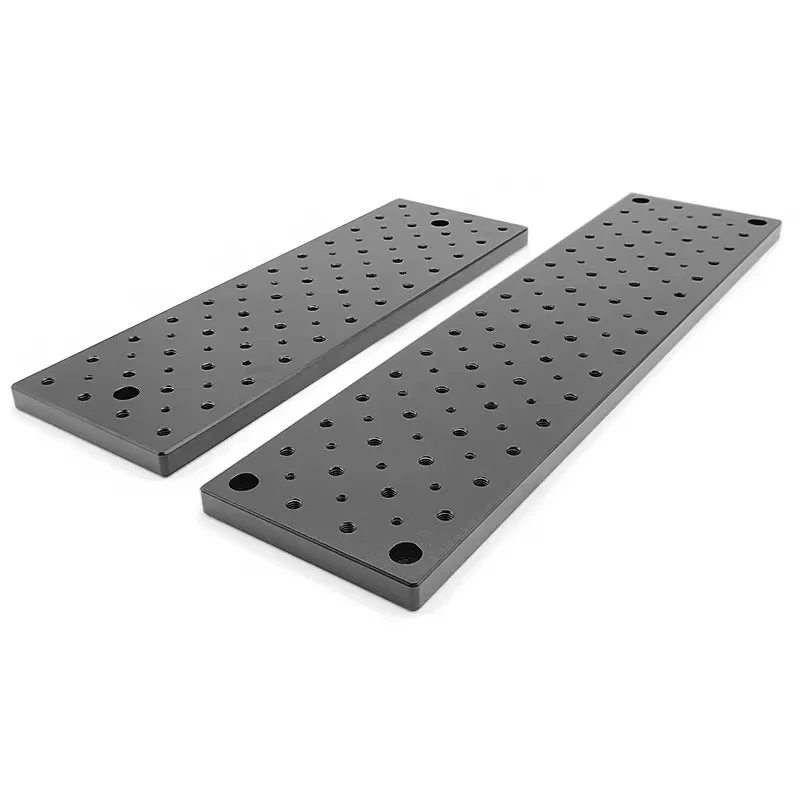

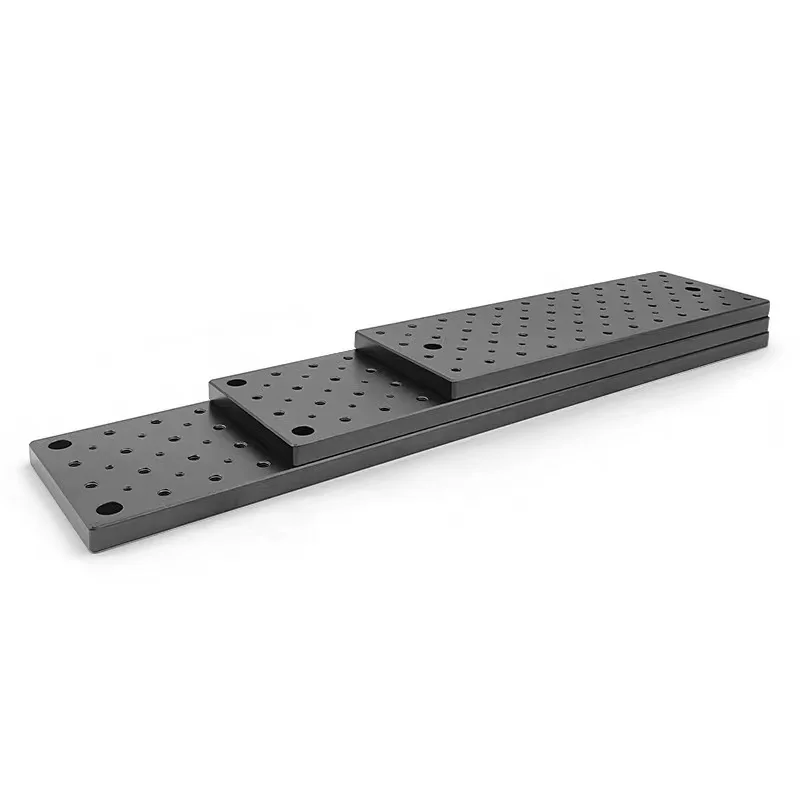

The aluminum breadboard is a non-magnetic material, which can be used as the bottom plate of the optical device, a cost-effective carrier platform for experiments and installation of small optical systems. The surface of the breadboard is blackened by anodic oxidation, which can reduce the surface light reflection; it is arranged in a 25mm*25mm array, and the threaded holes with a distance of 12.5mm from the edge penetrate the bottom, and components can be installed on either side.





Feature:

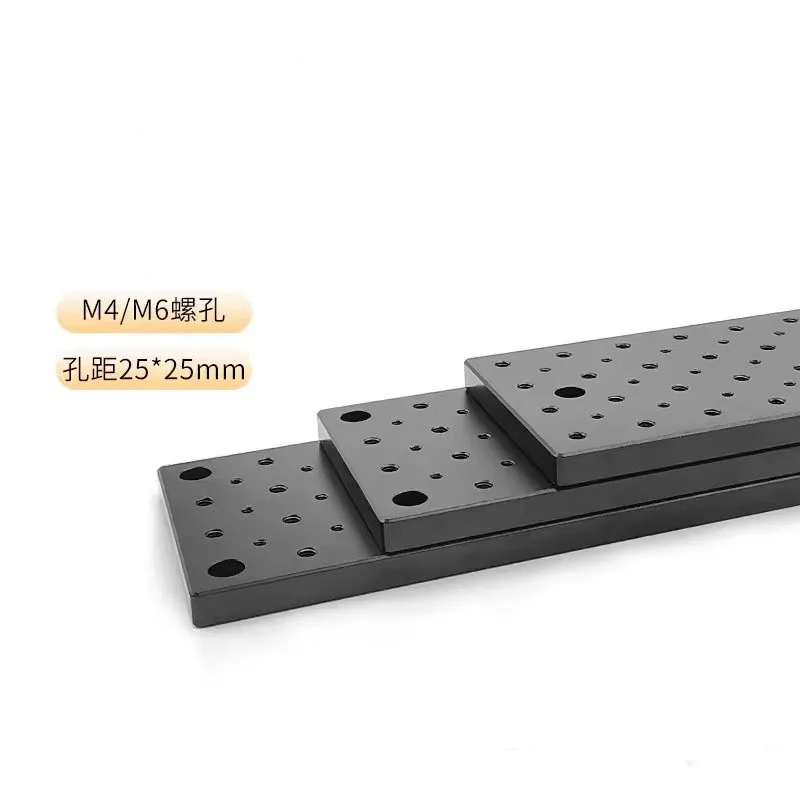

1.The platform surface adopts matrix arrangement, and the standard of hole diameter is M4/M6 threaded hole;
2.The hole distance is 25mm*25mm, the thickness is 10.1mm, and the flatness is <0.1mm;
3.The countersunk mounting hole does not affect the threaded hole array at all, and the distance from the edge is 25mm;
4.The standard threaded hole array can be installed with various optomechanics, optical benches, etc.;
5.It is precision processed with 7075 solid aluminum alloy, which is light in weight, easy to move, and the plane is not easy to deform;

Parameter:

Product name: Optical Flat Plate
Material: 7075 Aluminum Alloy
Surface Treatment: Anodized Black
Thread: M4/M6 (2 Countersunk Holes)

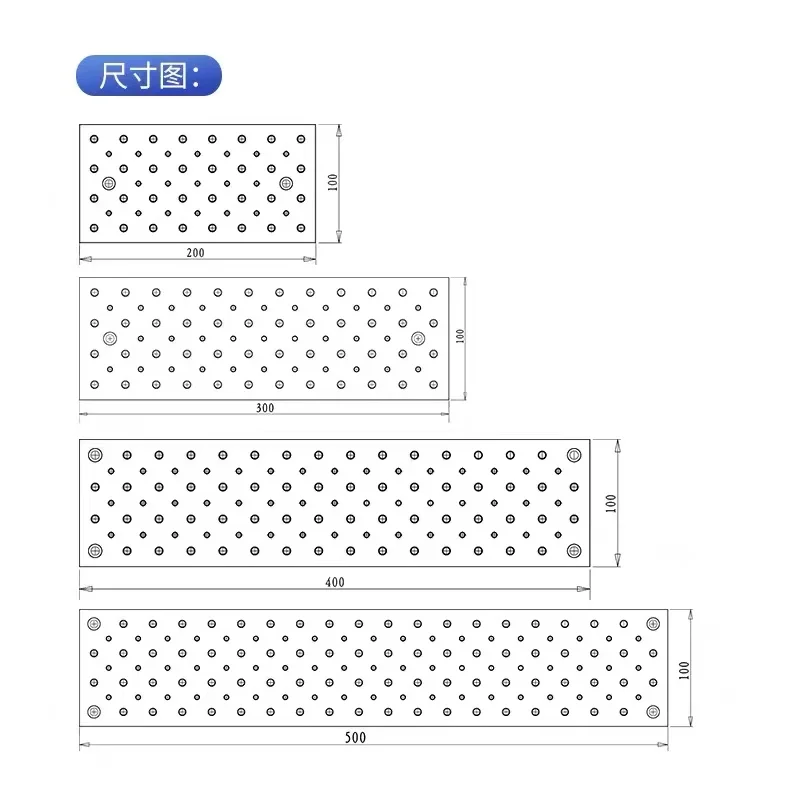

Size: 300x100x12MM
Weight: 0.78KG
