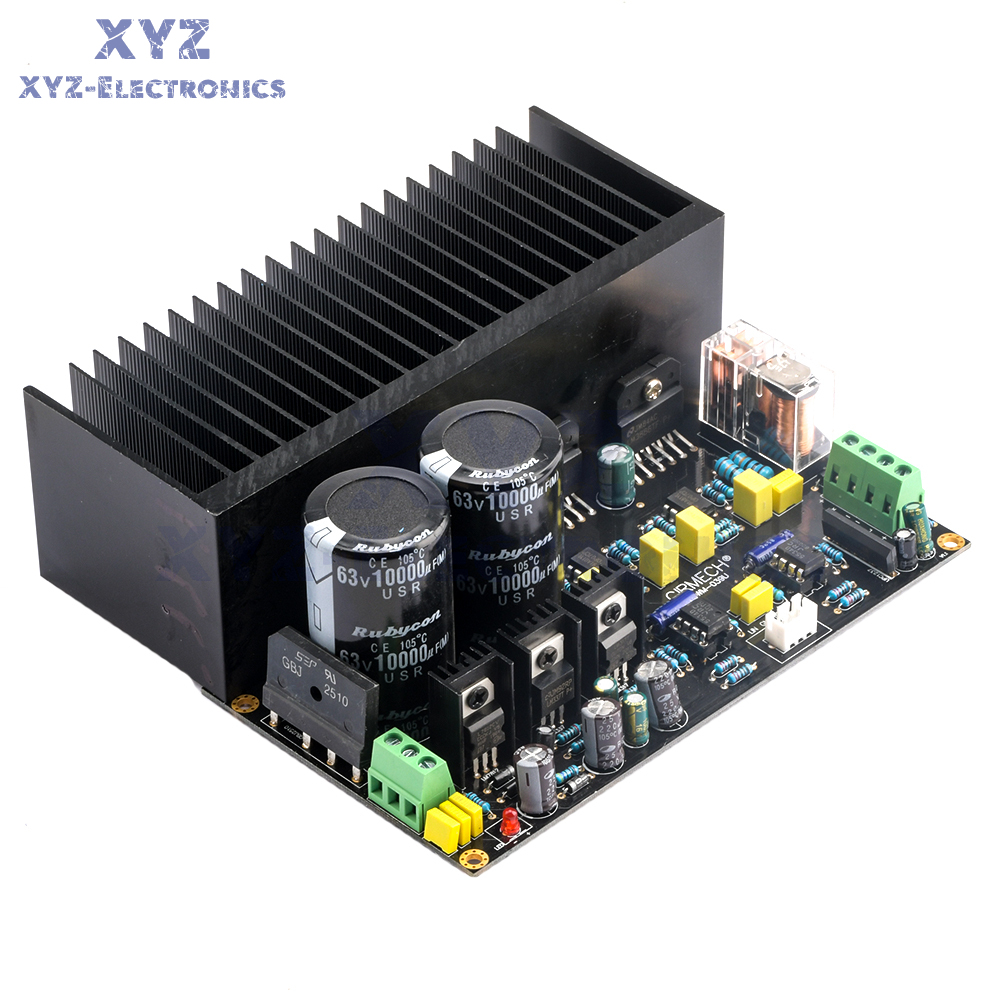

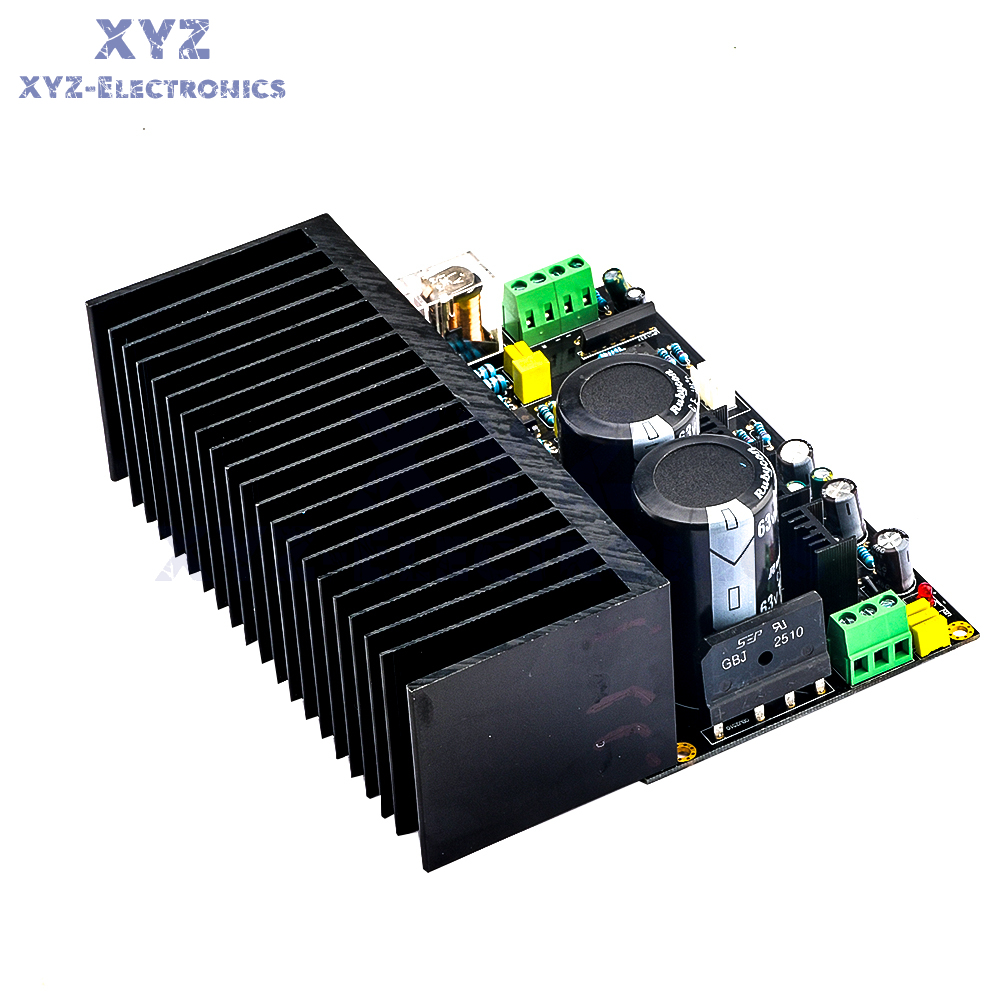

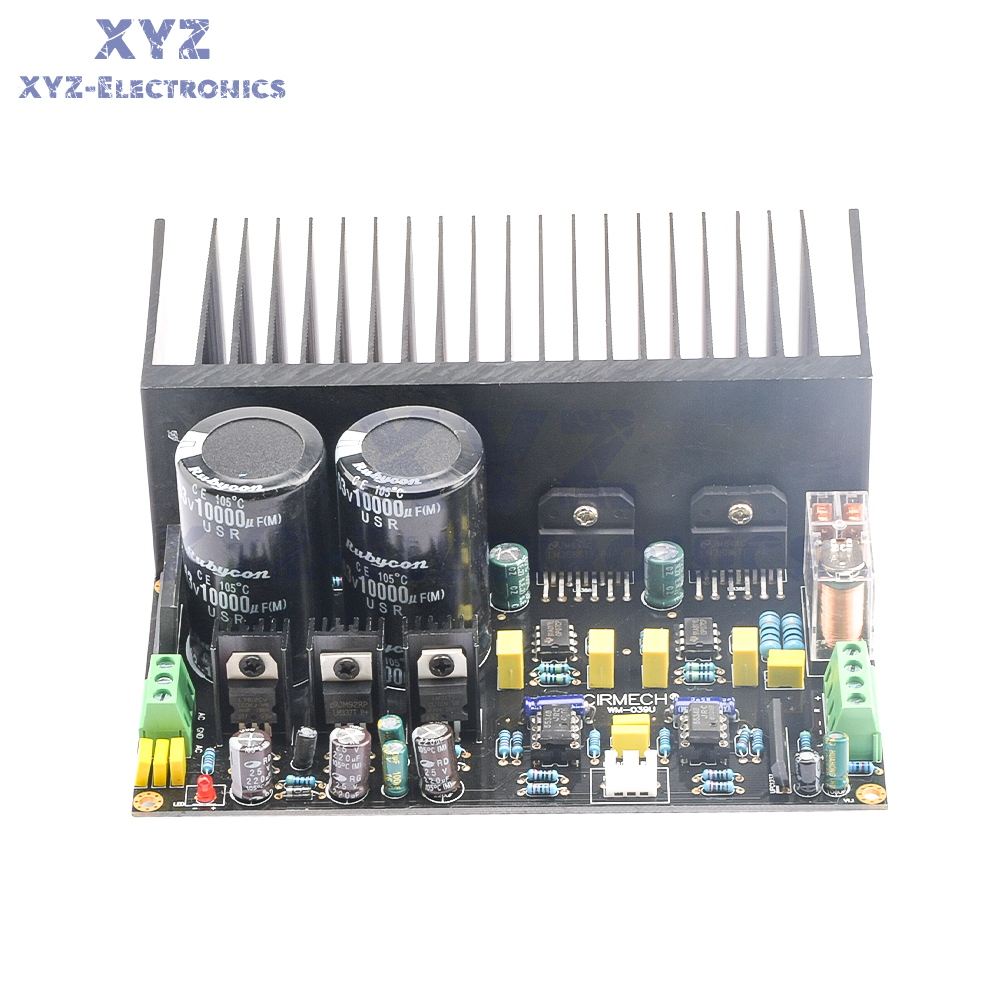

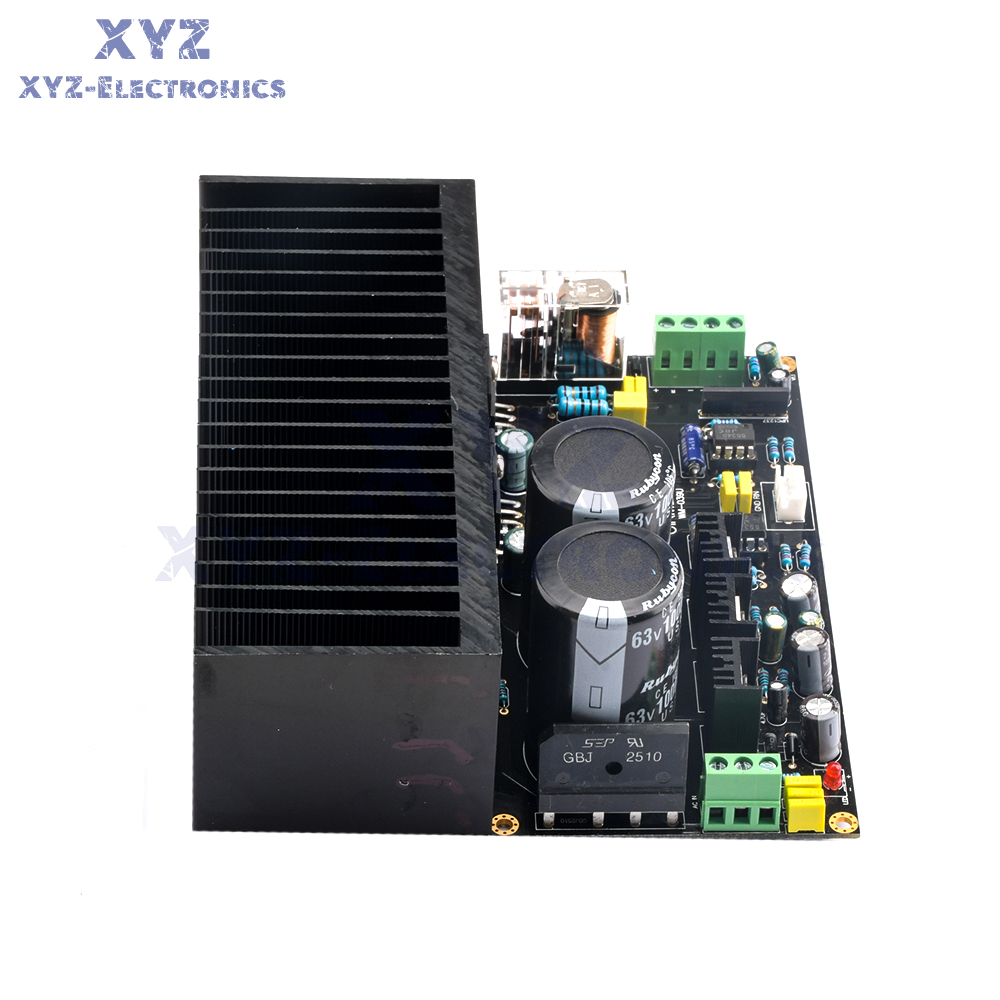

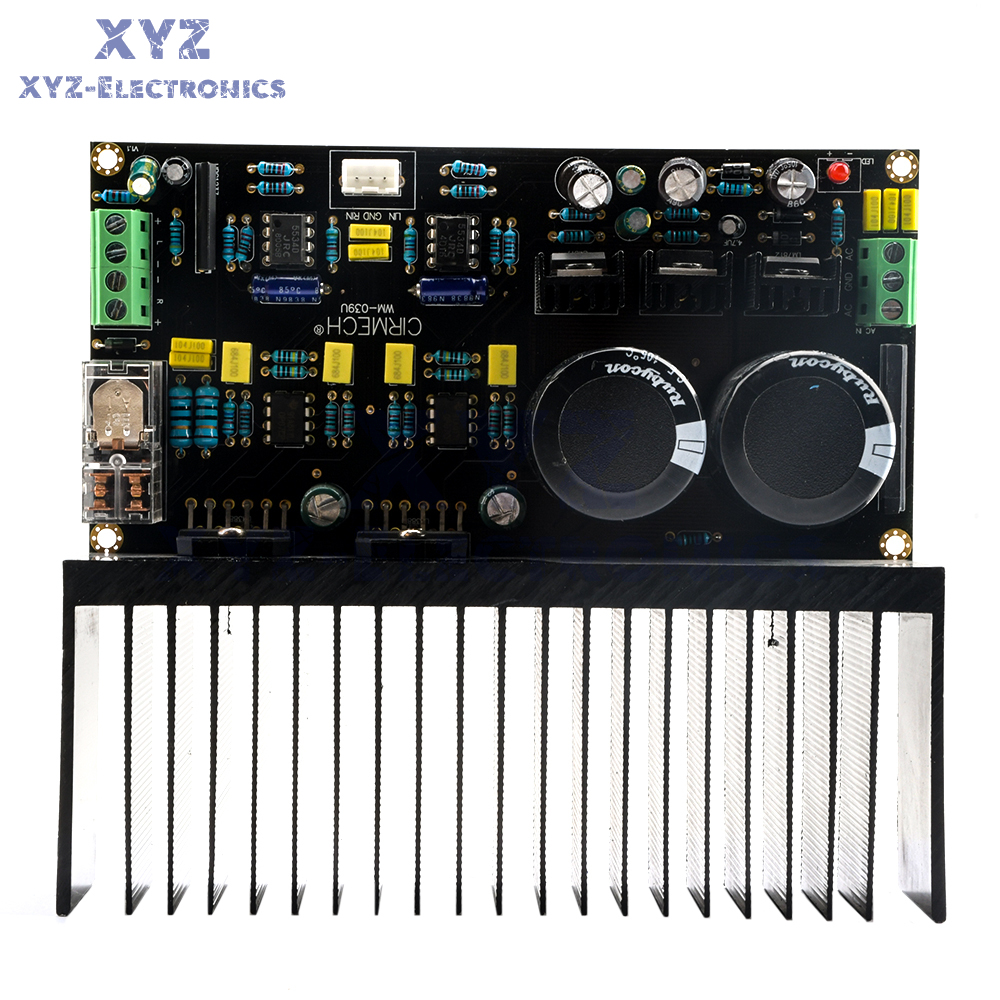

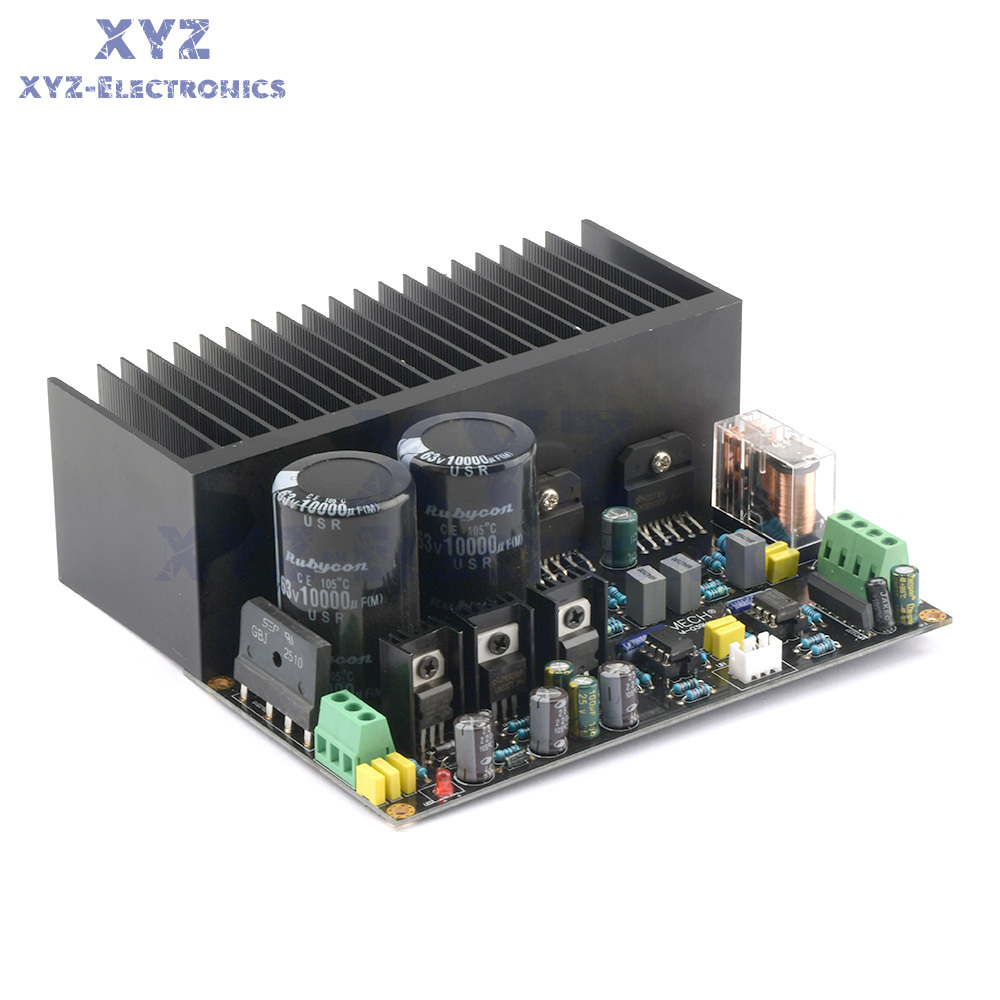

LM3886 Stereo 2.0 High Power Amplifier Board OP07 DC Servo 5534 Pre-amplifier

Details

Features:
1: Widely used
2: High performance-price ratio
3: Simple to use and easy to understand
4: Overheating DC short circuit protection
5: Pre-stage stabilized DC servo with protection
Configuration details parameters
Power supply voltage: AC12-28V X 2 (double AC)
Power supply: recommended above 200W
Output power: 68W X 2 MAX.
Output impedance: 4-16 ohms
Channel: 2-channel stereo
Circuit architecture: LM3886+OPO7+NE5534
Features: Pre-stage stabilized DC servo with protection
Protection feature: overheating DC short circuit protection
Size: 14.8*13.5*5cm
Net weight: 548.5g

Note:
1. The maximum power depends on the power supply voltage power and speaker impedance, THD = 0.1%, RL = 4Ω VS = ±28V;
2. If it is a 4Ω load, please do not exceed the voltage of the transformer to double AC20V to avoid unnecessary losses;
3. Please pay attention to monitor the temperature of the heat sink during use, if necessary, it is recommended to use a fan to assist heat dissipation;
4. The design size is for reference only, and there is a deviation from the actual product, please refer to the actual product.

Package:
1*  LM3886 power amplifier board finished product
