Details

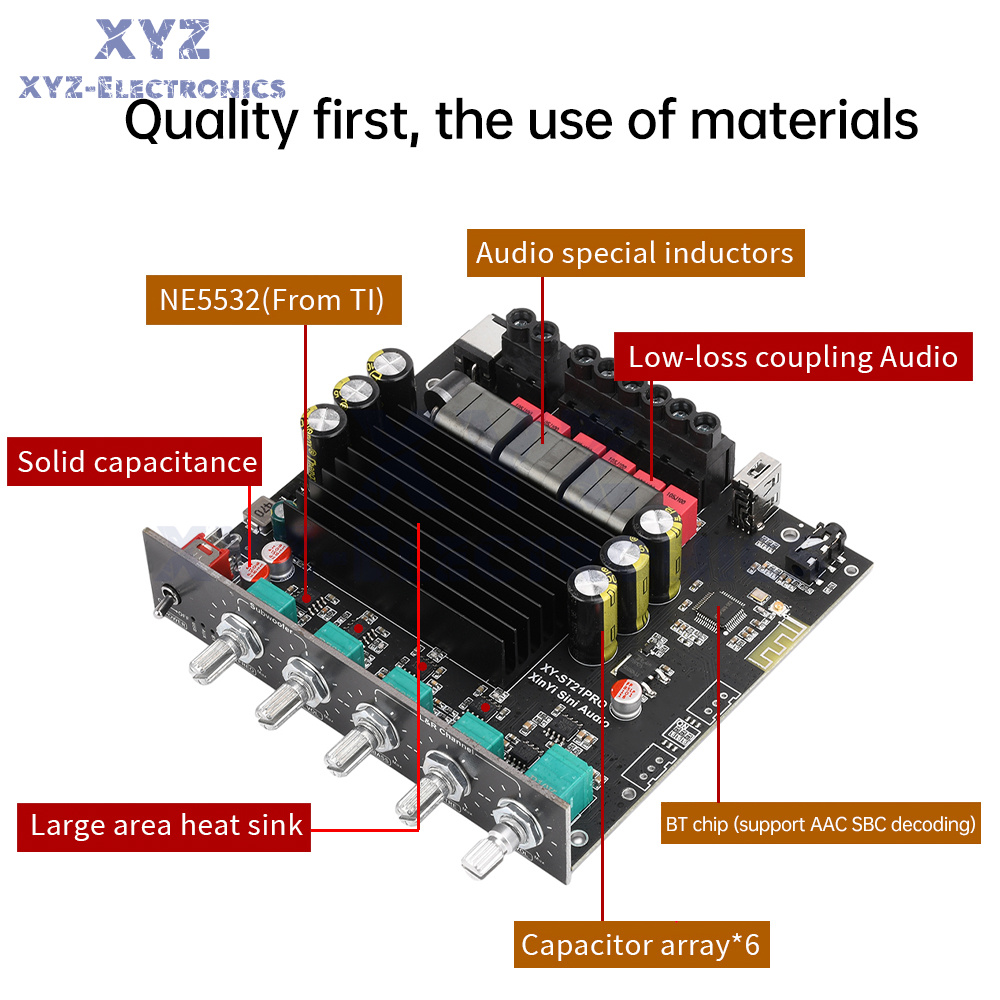

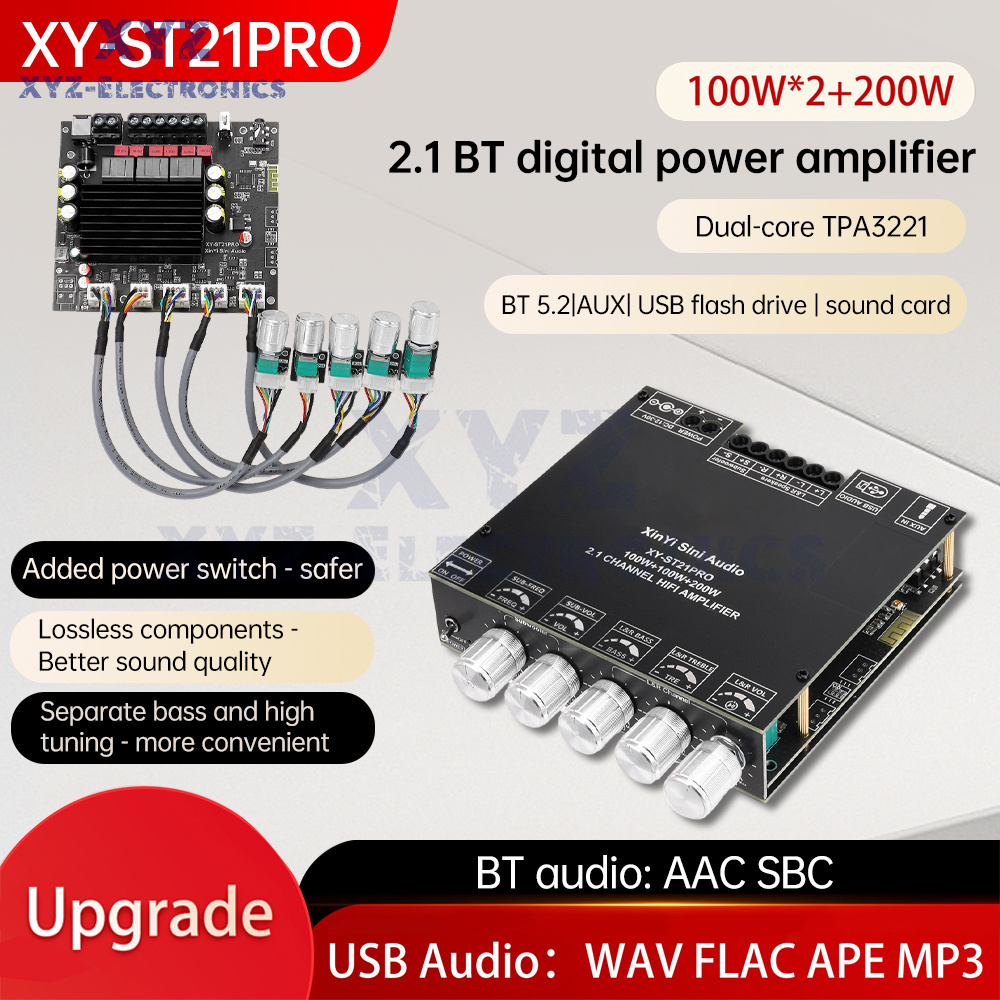

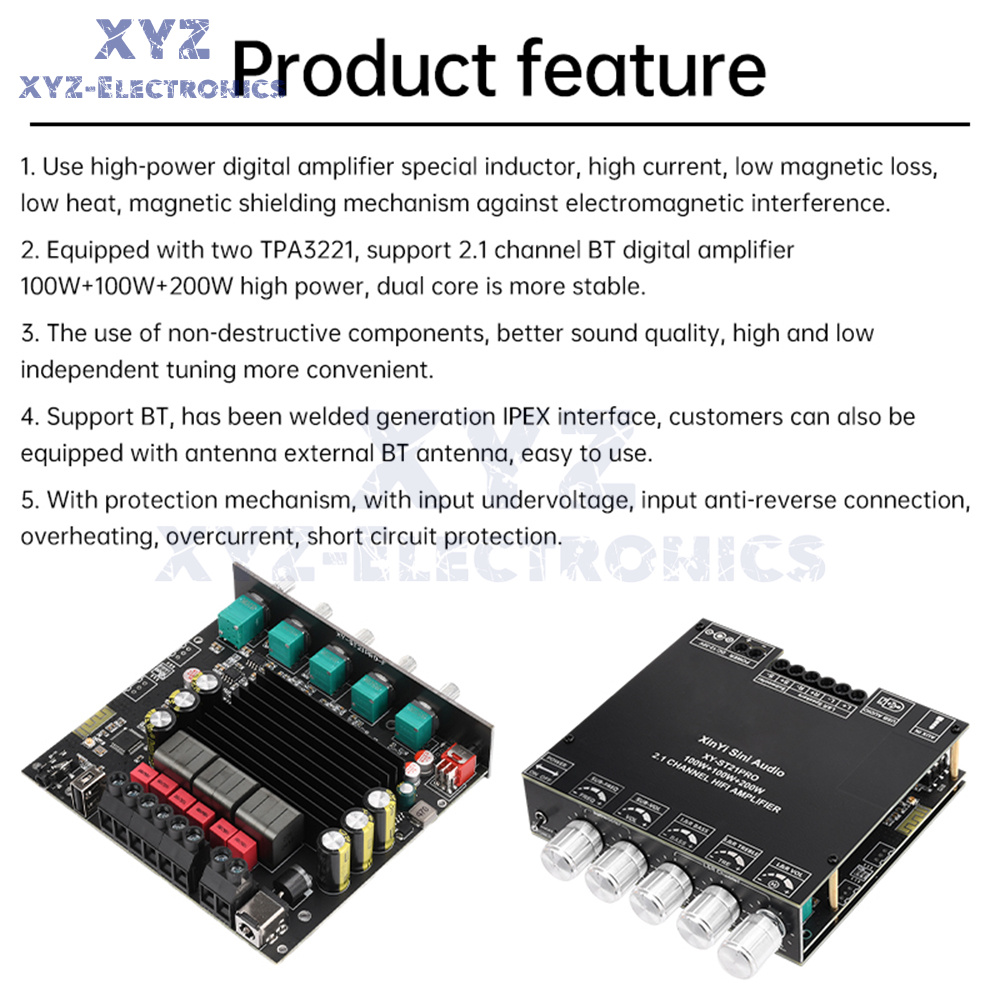

2. Carry two TPA3221, support 2.1 channel Bluetooth digital amplifier 100W + 100W + 200W high power, dual-core more stable.
3. Using lossless components, better sound quality, high and low independent tuning more convenient.
4. Support Bluetooth, has welded a generation of IPEX interface, customers can also be equipped with their own antenna external Bluetooth antenna, easy to use.
5. With protection mechanism, with input undervoltage, input anti-reverse connection, overheating, overcurrent, short circuit protection.
Product Name：Bluetooth audio amplifier board
Product Model: XY-ST21 PRO

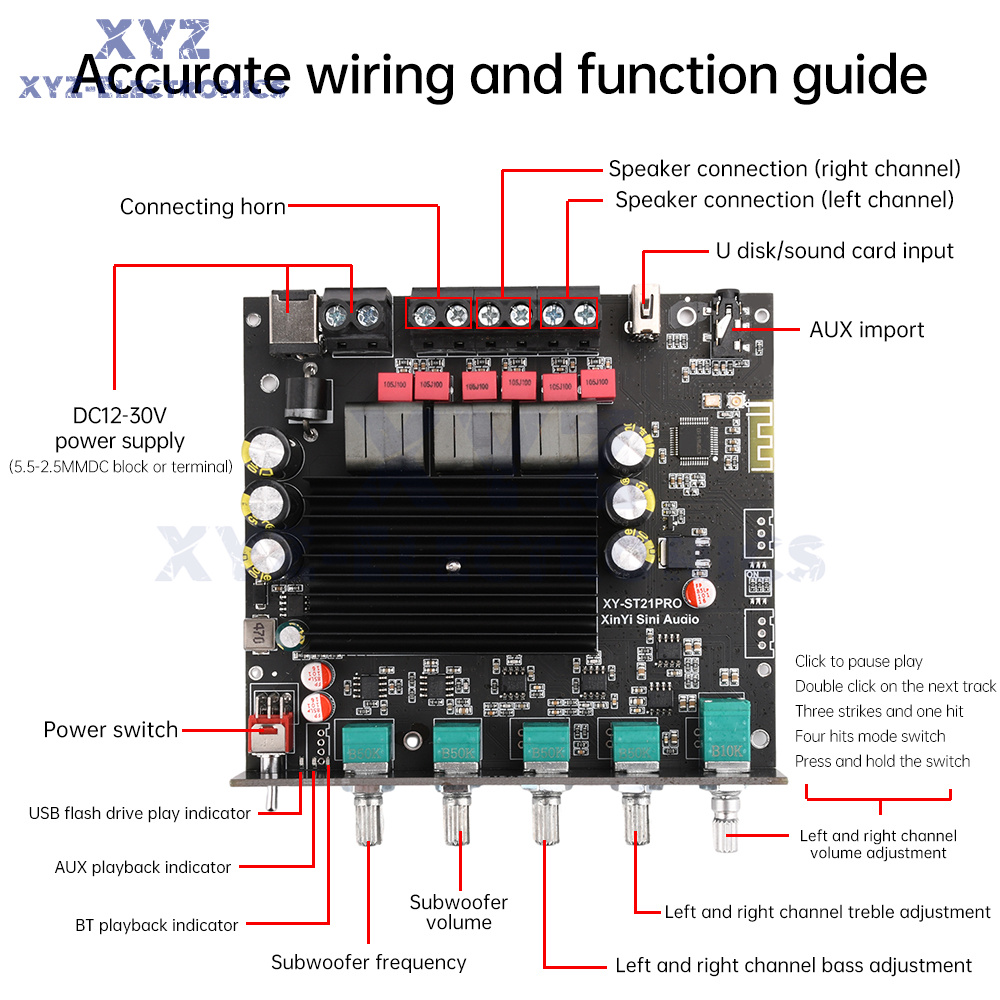

Power supply: DC12-30V/5A or above
DC Holder: 5.5-2.5MM
Bluetooth version: 5.2
Audio input: Bluetooth + AUX + U disk + sound card
Bluetooth audio decoding: AAC SBC
Left and right channel output power:
10W+10W @ 8Ω/12VDC;
20W+20W @ 4Ω/12VDC;
35W+35W @ 8Ω/24VDC;
70W+70W @ 4Ω/24VDC;
60W+60W @ 8Ω/30VDC;
100W+100W @ 4Ω/30VDC
Subwoofer output power:
10W @ 8Ω/12VDC;
20W @ 4Ω/12VDC;
35W @ 8Ω/24VDC;
70W @ 4Ω/24VDC;
60W @ 8Ω/30VDC;
100W @ 4Ω/30VDC;
200W @ 2Ω/30VDC
Product Dimensions:
Without case: approx. 111x100x23mm
With case: about 112x102x28mm
Potentiometer connection cable length: approx. 20cm
1 x amplifier board
1 x Enclosure Kit
5 x Leads
1. Shipment does not include power supply, audio cable.
2.Add external antenna (special scene):
2-1. board are with on-board antenna, normal distance 10-15 meters, if it is loaded into a metal shell (will shield the signal) or increase the Bluetooth distance (20-30 meters) before using the external antenna.
2-2. Customers need to buy their own 2.4G antenna (antenna extension cable, antenna bar), this product does not include external antenna.
