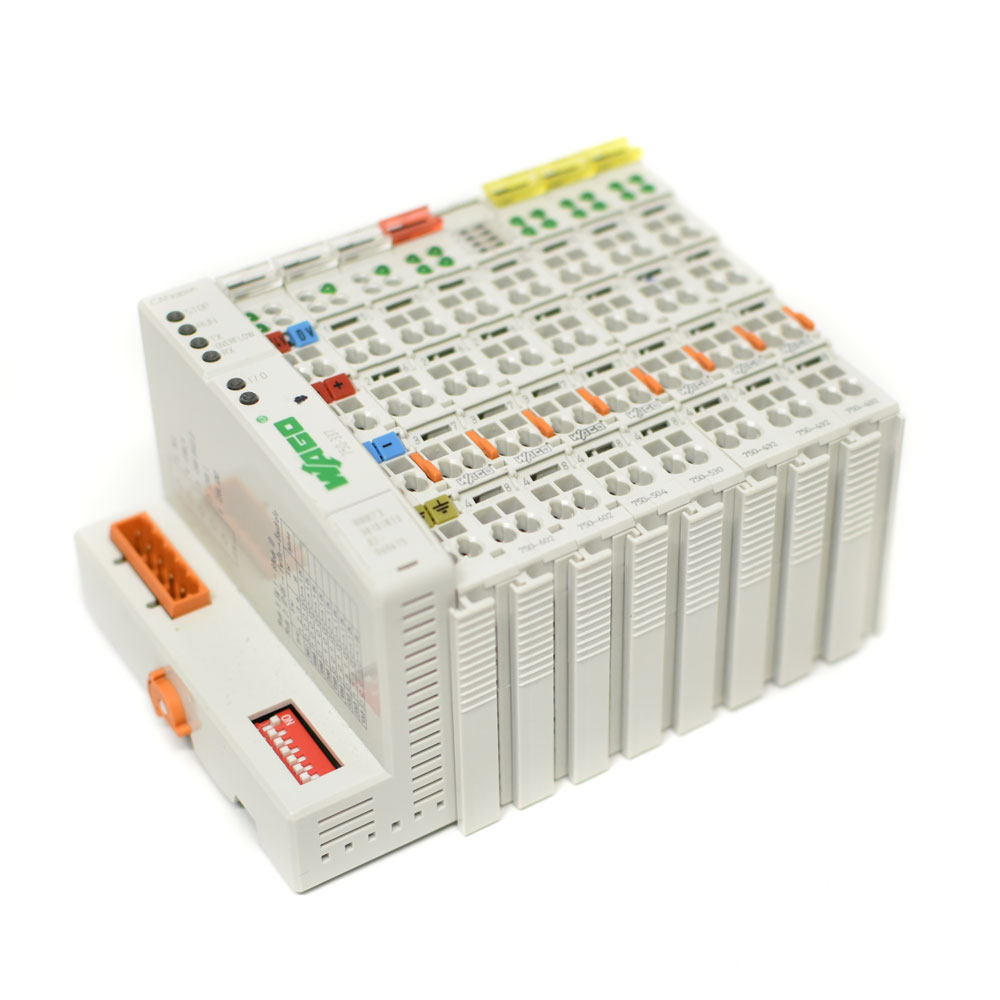

Wago 750-337 Coupler w/ 750-504, 750-530, 2x 750-602, 3x 750-432 Fieldbus Module
Manufacturer: Wago
Model: 750-337
Condition: Used
Manufacturer: Wago
Condition: Used. Comes in non-original packaging. This coupler and module setup is in good condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
Notes: This coupler and modules were removed from a working setup and have not been tested since their removal.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) WAGO 750-337 I/O Fieldbus Coupler CANopen
- (3) WAGO 750-432 4-Channel Digital Input Module; 24 VDC; 3 ms;
- (1) WAGO 750-504 4-Channel Digital Output Module; 24 VDC; 0.5 A
- (1) WAGO 750-530 8-Channel Digital Output Module; 24 VDC; 0.5 A
- (2) WAGO 750-602 Power Supply Module; 24 VDC
Specifications:
- Manufacturer: WAGO
- Model: 750-337
-
Description: I/O Fieldbus Coupler CANopen
- Communications CANopen
- Number of fieldbus nodes on master (max.) 110
- Transmission rate 10 kBd … 1 MBd
- Bus segment length (max.) 1000 m
- Transmission medium (communication/Fieldbus) Shielded Cu cable 3 x 0.25 mm²
- Number of modules per node (max.) 64
- Number of PDOs 32 Tx / 32 Rx
- Number of SDO 2 SDO servers
- COB ID distribution SDO, standard
- Node ID distribution DIP switch
- Communication profile DS-301 V4.1er of modules without a bus extension (max.) 64
- Manufacturer: WAGO
- Model: 750-602
-
Description: Power Supply; 24 VDC
- Signal type Voltage
- Signal type (voltage) 24 VDC
- Supply voltage (system) 5 VDC; via data contacts
- Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact
- Current carrying capacity (power jumper contacts) 10A
- Number of outgoing power jumper contacts 3
- Indicators LED (C) green: operating voltage status: power jumper contacts
- Manufacturer: WAGO
- Model: 750-504
-
Description: 4-channel digital output; 24 VDC; 0.5 A
- Number of digital outputs 4
- Number of Channels 4
- Signal type Digital
- Signal type (voltage) 24 VDC
- Actuator connection 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators.
- Output characteristic high-side switching
- Output current per channel 0.5A
- Output current short-circuit-protected
- Load type: Resistive, inductive, lamp load
- Switching frequency (max.) 1 kHz
- Inductive load switch-off energy dissipation (max.) 0.3J
- Output data width (internal) max. 4Bit
- Supply voltage (system) 5 VDC; via data contacts
- Current consumption (5 V system supply) 10mA
- Supply voltage (field) 24 VDC
- Manufacturer: WAGO
- Model: 750-530
-
Description: 8-channel digital output; 24 VDC; 0.5 A
- Number of digital outputs 8
- Number of Channels 8
- Signal type Digital
- Signal type (voltage) 24 VDC
- Actuator connection 8 x (1-wire)
- Output characteristic high-side switching
- Output current per channel 0.5A
- Output current short-circuit-protected
- Load type Resistive, inductive, lamp load
- Switching frequency (max.) 2 kHz
- Inductive load switch-off energy dissipation (max.) 0.9J
- Output data width (internal) max. 8Bit
- Supply voltage (system) 5 VDC; via data contacts
- Current consumption (5 V system supply) 25mA
- Supply voltage (field) 24 VDC
- Manufacturer: WAGO
- Model: 750-432
-
Description: 4-channel digital input; 24 VDC; 3 ms; 2-conductor connection
- Number of digital inputs 4
- Number of Channels 4
- Signal type Digital
- Signal type (voltage) 24 VDC
- Sensor connection 4 x (2-wire)
- Input characteristic high-side switching
- Input filter (digital) 3ms
- Input current per channel for signal (1) type. 4.5mA
- Voltage range for signal (0) −3 … +5 VDC
- Voltage range for signal (1) 15 … 30 VDC
- Sensor supply 24 VDC
- Input data width (internal) max. 4Bit
- Supply voltage (system) 5 VDC; via data contacts
- Current consumption (5 V system supply) 5.5mA
- Supply voltage (field) 24 VDC
